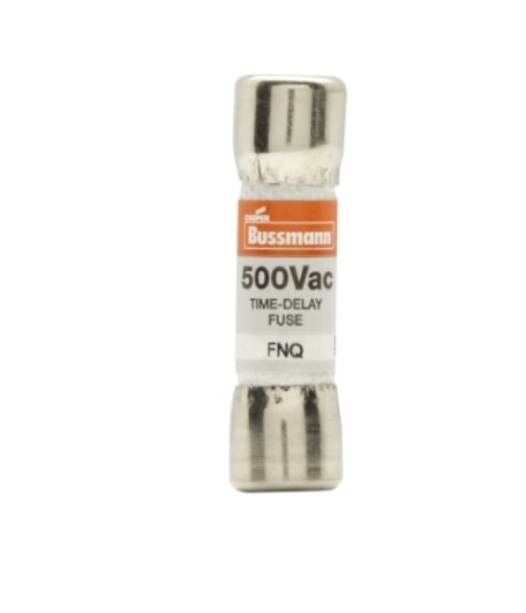

FNQ-3-1/2 - Eaton Bussmann 3.5A 500V Time-Delay Midget Fuse, 10kA Interrupt, Ferrule End, Non-Indicating, Orange, UL/CSA/CE

FNQ-3-1/2

FNQ-3-1/2 is a genuine Eaton Bussmann time-delay (slow blow) midget fuse designed for reliable circuit protection in motor control and transformer applications.

This fuse features a 3.5A current rating, 500V AC voltage rating, and a high 10,000A interrupting capacity. It is constructed with a fiber tube body, nickel-plated bronze endcaps, and ferrule terminals for secure mounting. The FNQ-3-1/2 is non-indicating, measures 13/32" x 1-1/2", and is color-coded orange for easy identification. It is ideal for circuits with inrush currents and is certified to meet rigorous safety standards.

Key Specifications
• Part Number: FNQ-3-1/2
• Manufacturer: Eaton Bussmann
• Amperage: 3.5A
• Voltage: 500V AC
• Poles: 1
• Mounting Type: Cartridge, ferrule end x ferrule end
• Interrupt Rating: 10 kA at 500V AC
• Series/Frame: FNQ, Midget
• Trip Unit: Time-delay (slow blow), dual element
• Certifications: UL Listed (248-14), CSA Certified, CE Marked, RoHS Compliant
• Dimensions: 13/32" diameter x 1-1/2" length
• Color: Orange
• Material: Fiber tube, nickel-plated bronze endcaps

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-3-1/2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNQ Series
• Type : FNQ
• Voltage : 500
• Amperage : 3
• AIC rating : 10kA@500V
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 051712786034
• GTIN : 00051712786034
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.175
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
