Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNQ-2/10

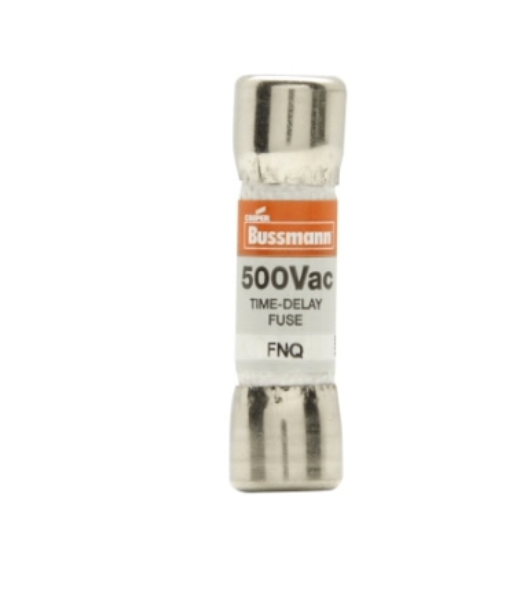

FNQ-2/10 is a Bussmann Eaton time-delay midget fuse designed for reliable circuit protection.This 0.2 amp fuse features a 500 VAC voltage rating and a 10,000 amp interrupting rating, suitable for supplemental protection in electrical systems. It has a cartridge body measuring 13/32 inch by 1-1/2 inch and complies with UL 248-14 and CSA C22.2 No. 248.14 standards. The fuse is non-indicating and offers time-delay characteristics to withstand temporary overloads.
- Amperage: 0.2 A (2/10 amp)
- Voltage Rating: 500 VAC
- Interrupting Rating: 10 kA
- Fuse Type: Time-Delay (Slow Blow)
- Class: Midget Fuse
- Dimensions: 13/32 in x 1-1/2 in (10.3 mm x 38.1 mm)
- Mounting Type: Cartridge
- Agency Certifications: UL Listed, CSA Certified, CE Compliant
- Series: FNQ
- Non-Indicating
Specifications
- Part Number: FNQ-2/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNQ Series
- Type : FNQ
- Voltage : 500
- Amperage : 2
- AIC rating : 10kA@500V
- Diameter : 0.41
- Barrels : 1
Product Data
- UPC : 051712786218
- GTIN : 00051712786218
- Country of Origin : Mexico
- Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.175
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
