FNQ-10 - Bussmann Cooper Eaton 10A 500V AC Time-Delay Midget Fuse, Class CC, 10kA Interrupt, UL/CSA/CE/RoHS

FNQ-10

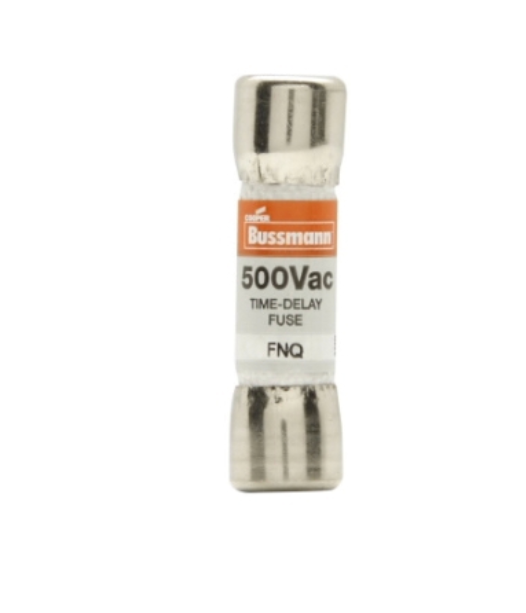

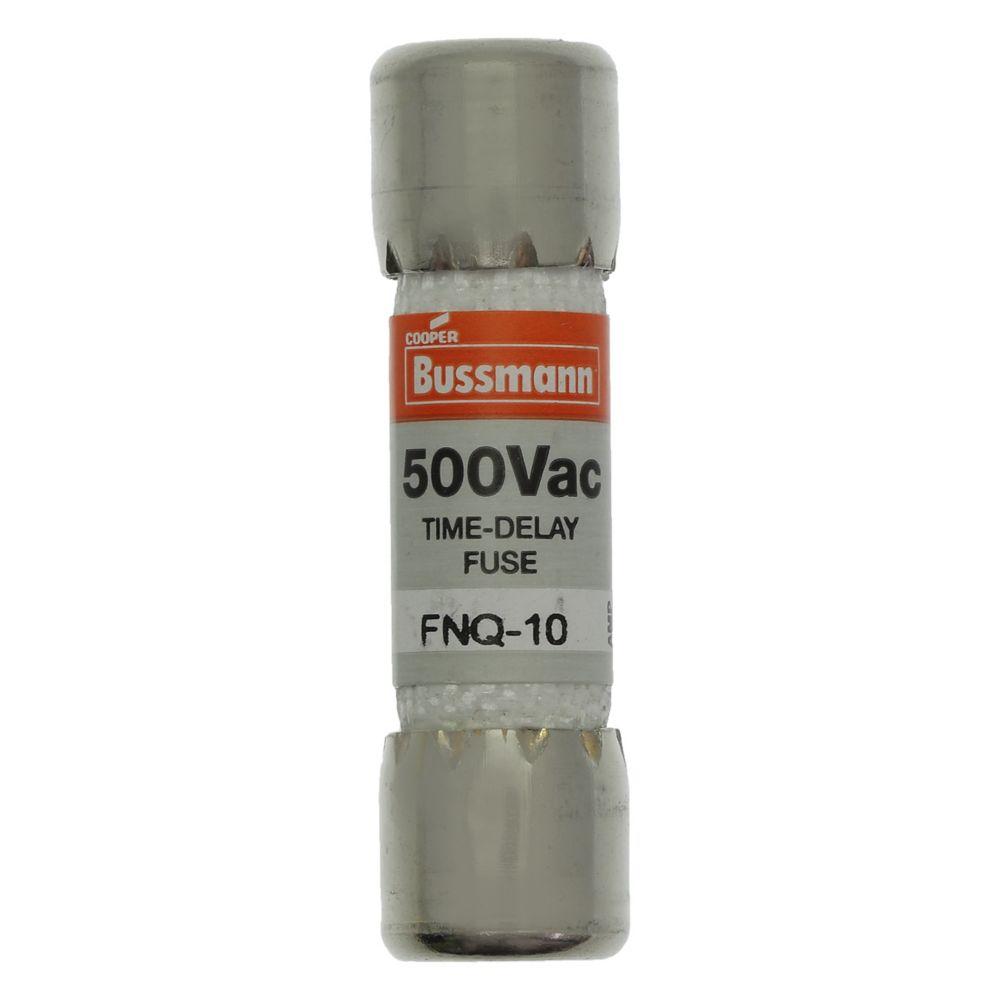

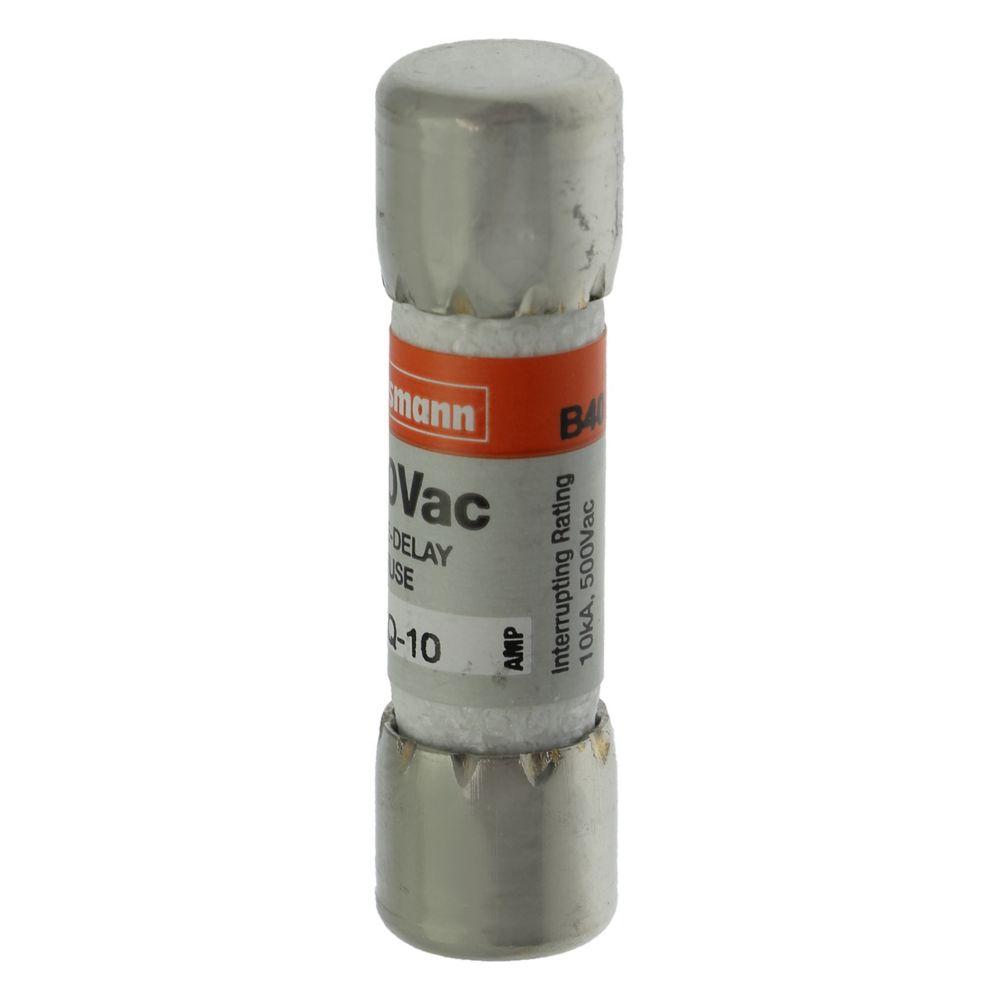

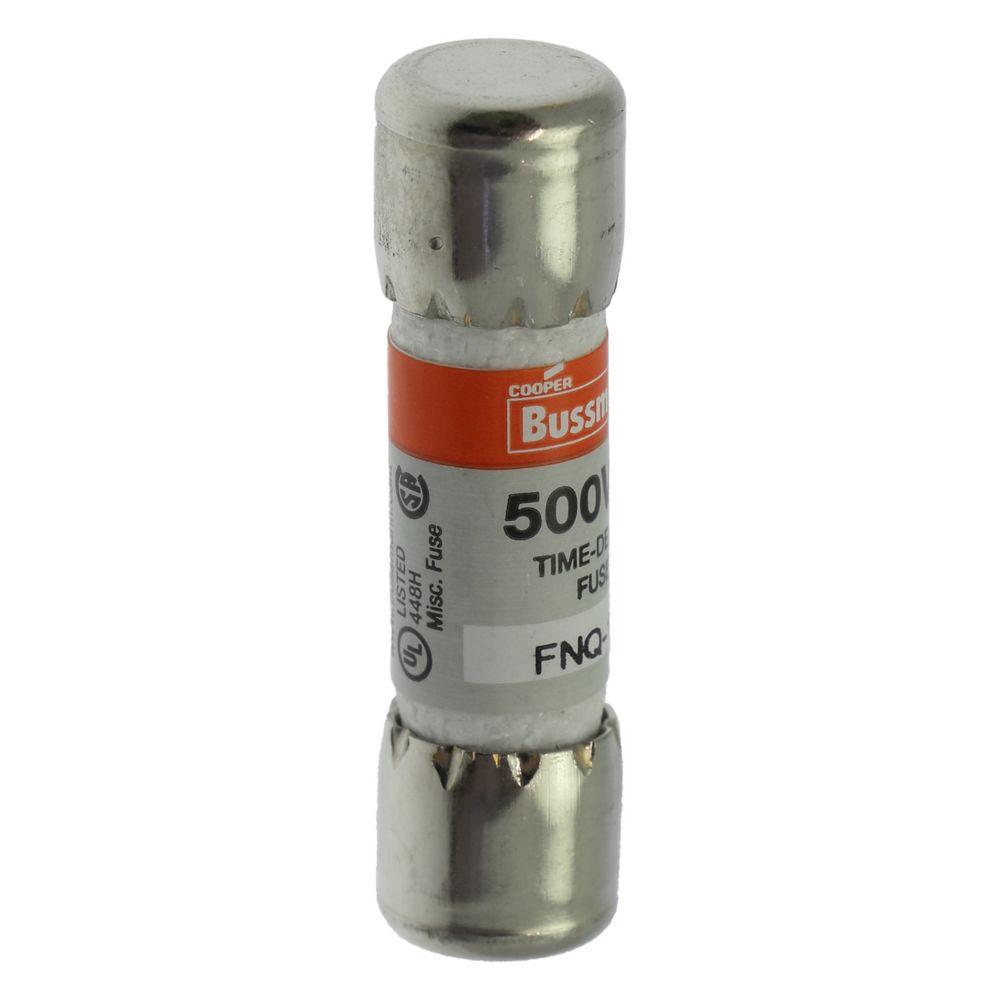

FNQ-10 is a Bussmann, Cooper, Eaton time-delay midget fuse designed for reliable circuit protection in demanding applications.

This cartridge-style fuse features a slow-blow design ideal for circuits with inrush currents, such as motor control transformers, and offers robust performance with a nickel-plated bronze endcap and fiber tube construction. It is UL Listed, CSA Certified, CE marked, and RoHS compliant for global regulatory acceptance.

Key Specifications

• Amperage: 10A
• Voltage: 500V AC
• Poles: 1
• Mounting Type: Cartridge, ferrule end x ferrule end
• Interrupt Rating: 10kA at 500V AC
• Series/Frame: FNQ, Class CC
• Trip Unit: Time-delay (slow blow)
• Certifications: UL Listed (Std. 248-14), CSA Certified (C22.2 No. 248.14), CE, RoHS compliant
• Physical Size: 13/32" x 1 1/2"
• Material: Fiber tube, nickel-plated bronze endcap
• Color Code: Orange
• Agency File Numbers: UL E19180, CSA 53787

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNQ-10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : FNQ Series
• Type : FNQ
• Voltage : 500
• Amperage : 10
• AIC rating : 10kA@500V
• Diameter : 0.41
• Barrels : 1

Product Data

• UPC : 051712786102
• GTIN : 00051712786102
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.175
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
