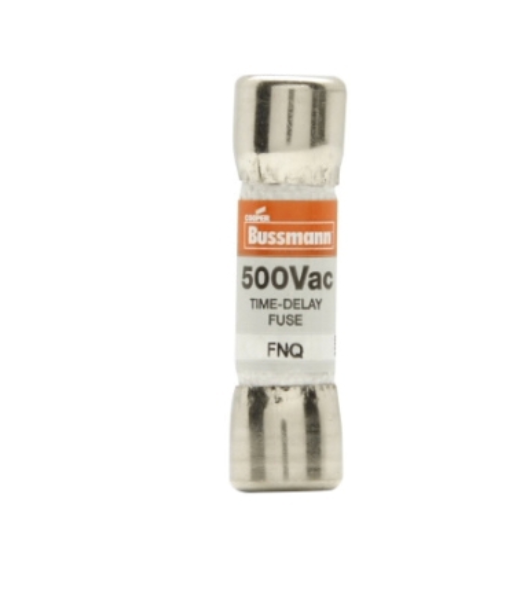

FNQ-1/4 - Eaton Bussmann 1/4 Amp 500V Time Delay Fuse Dual Element

FNQ-1/4

FNQ-1/4 is an Eaton Bussmann time delay fuse designed for reliable circuit protection in industrial and control applications.This 1/4 amp, 500 VAC fuse features dual element time delay characteristics, allowing it to withstand temporary inrush currents without nuisance blowing. It has a 10,000 amp interrupting rating and ferrule terminal mounting. The fuse is constructed with a fiber tube and measures 0.4063 inch diameter by 1.5 inches length. Certified to UL 248-14, CSA, and CE standards, it is ideal for protecting motor control transformers, branch circuits, and other industrial equipment.

Key Specifications
• Amperage: 1/4 Amp
• Voltage Rating: 500 VAC
• Interrupting Rating: 10,000 Amps Symmetrical
• Fuse Type: Dual Element Time Delay
• Mounting Type: Ferrule Terminal
• Dimensions: 0.4063 inch diameter x 1.5 inch length
• Construction: Fiber Tube
• Certifications: UL 248-14, CSA, CE
• Series: FNQ
• Manufacturer: Eaton Bussmann
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FNQ-1/4
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNQ Series
• Type : FNQ
• Voltage : 500
• Amperage : 1
• AIC rating : 10kA@500V
• Diameter : 0.41
• Barrels : 1



Product Data

• UPC : 051712786010
• GTIN : 00051712786010
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.175
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
