Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNQ-1-1/8

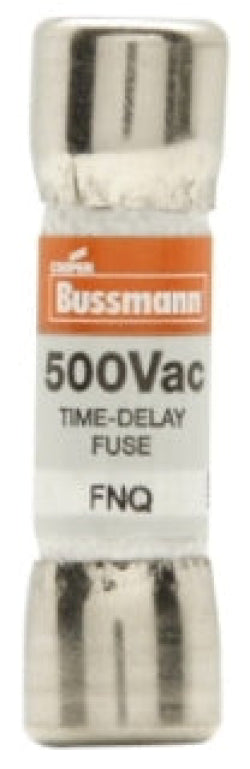

FNQ-1-1/8 is a Eaton Bussmann Class CC time delay fuse rated for 1.125 amperes and 500 volts AC. It features a fiber tube construction and is designed for low voltage circuit protection.
This fuse provides reliable time-delay protection for branch circuits, motor control transformers, and circuits with inrush currents. It has a maximum voltage rating of 500V AC and a high interrupting rating suitable for industrial applications. The fuse is a single-pole cartridge type with nickel-plated brass end caps and is color-coded for easy identification.
- Key Specifications
- Amperage: 1.125 A
- Voltage Rating: 500 V AC
- Fuse Type: Class CC, Time Delay
- Poles: 1
- Construction: Fiber tube with nickel-plated brass end caps
- Interrupting Rating: High interrupting capacity
- Mounting Type: Cartridge fuse, compatible with Class CC fuse holders
- Series: FNQ
- Standards: UL Listed
- Part Number: FNQ-1-1/8
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNQ Series
- Type : FNQ
- Voltage : 500
- Amperage : 1
- AIC rating : 10kA@500V
- Diameter : 0.41
- Barrels : 1
- UPC : 051712786232
- GTIN : 00051712786232
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.175
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
