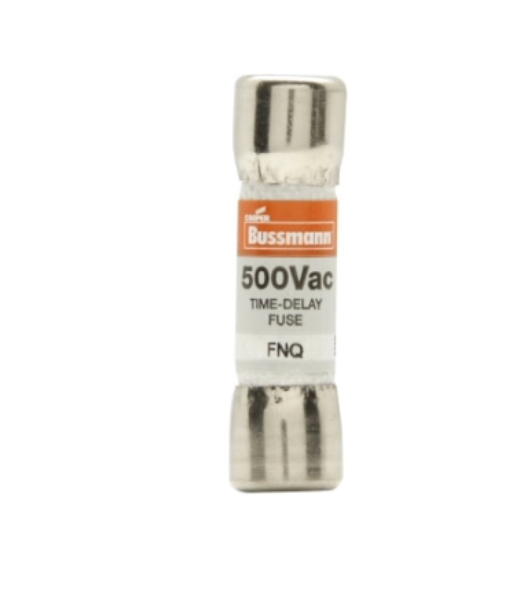

FNQ-1-1/4 - Eaton Bussmann 1.25A 500VAC Time-Delay Class CC Fuse

FNQ-1-1/4

This fuse features a fiber tube construction with nickel-plated brass endcaps, providing reliable protection for motor control transformers and circuits with inrush currents. It is a single-pole, non-indicating fuse with a maximum voltage rating of 500 volts AC and a time-delay characteristic suitable for industrial control applications. The FNQ series is UL listed and CSA certified for safety compliance.

Key Specifications
• Amperage: 1.25 A
• Voltage Rating: 500 VAC maximum
• Poles: 1
• Mounting Type: Cartridge body fuse
• Interrupting Rating: High interrupting capacity (typical for Class CC)
• Fuse Type: Time-delay, Class CC
• Construction: Fiber tube with nickel-plated brass endcaps
• Typical Applications: Motor control transformers, circuits with inrush currents
• Certifications: UL Listed, CSA Certified
• Series: FNQ supplemental fuse series

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: FNQ-1-1/4
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNQ Series
• Type : FNQ
• Voltage : 500
• Amperage : 1
• AIC rating : 10kA@500V
• Diameter : 0.41
• Barrels : 1



Product Data

• UPC : 051712786140
• GTIN : 00051712786010
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.175 lb
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
