Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNQ-1-1/2

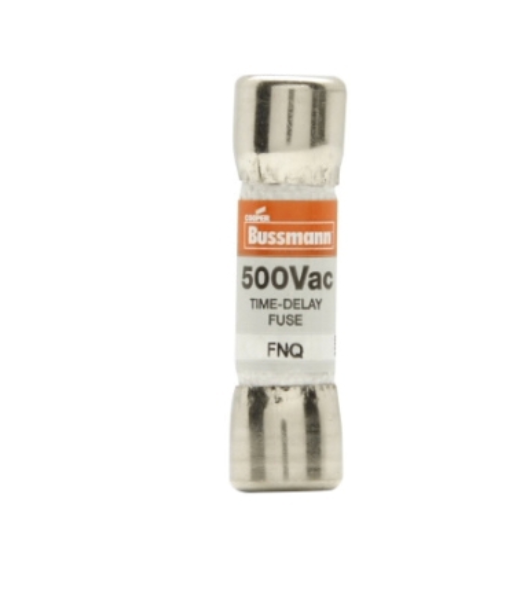

FNQ-1-1/2 is an Eaton Bussmann Series FNQ-R Class CC time-delay, dual-element, current-limiting fuse designed for advanced circuit protection.
This rejection-style fuse features a melamine tube construction, ferrule terminals, and a non-indicating design. It is engineered for line protection, small control transformers, industrial control, and branch circuits, offering reliable performance with a high interrupting rating.
-
Key Specifications
- Amperage: 1.5A
- Voltage: 600VAC
- Poles: Not applicable (fuse)
- Mounting Type: Ferrule end x ferrule end
- Interrupt Rating: 200kAIC at 600VAC
- Series/Frame: FNQ-R, Class CC
- Trip Unit: Time-delay, dual-element
- Certifications: CE Marked, RoHS Compliant
- Response Time: 12 seconds at 200%
- Fuse Indicator: Non-indicating
- Special Features: Rejection style, current-limiting
- Application: Line protection, control transformers, industrial control, branch circuits
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FNQ-1-1/2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNQ Series
- Type : FNQ
- Voltage : 500
- Amperage : 1
- AIC rating : 10kA@500V
- Diameter : 0.41
- Barrels : 1
Product Data
- UPC : 051712786249
- GTIN : 00051712786225
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.175 lb
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
