Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNM-8

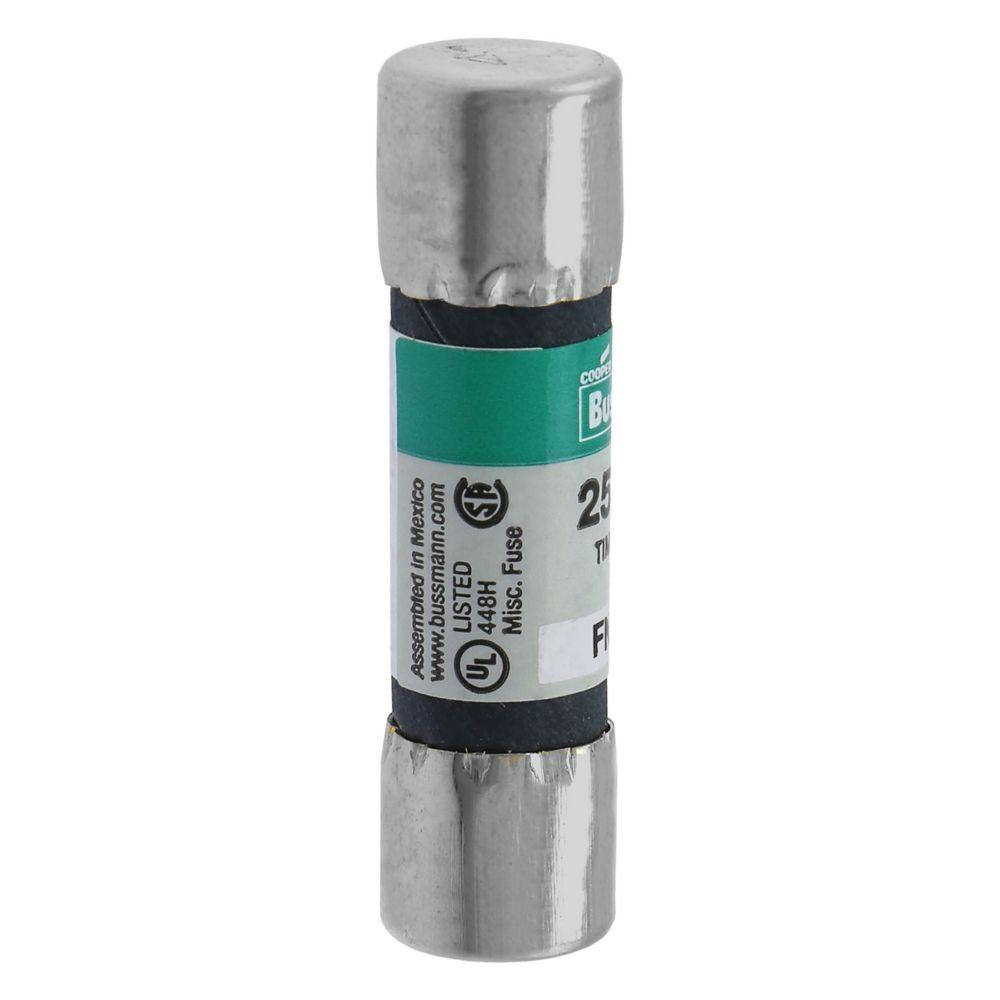

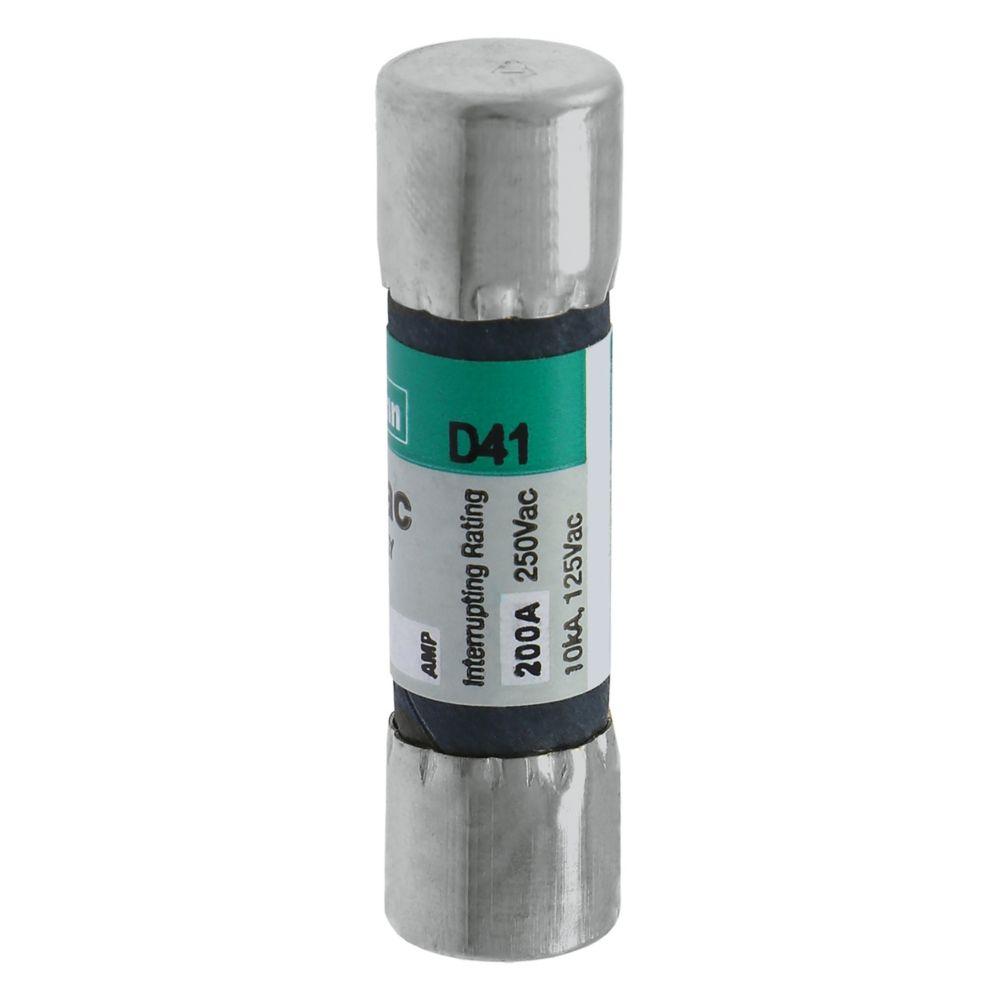

FNM-8 is a Bussmann Eaton 8 amp, 250 volt AC time-delay midget fuse designed for reliable circuit protection.This dual element, non-indicating fuse features ferrule end x ferrule end construction and offers a high interrupting rating of 200 AIC at 250 VAC and 10 kAIC at 125 VAC. It measures 13/32 inch by 1 1/2 inch and complies with UL and CSA certifications, making it suitable for supplemental circuit protection in various electrical applications.
- Key Specifications
- Amperage: 8 Amps
- Voltage Rating: 250 VAC
- Fuse Type: Time-Delay (Dual Element)
- Physical Size: 13/32 inch x 1 1/2 inch
- Interrupting Rating: 200 AIC at 250 VAC, 10 kAIC at 125 VAC
- Mounting Type: Ferrule end x ferrule end
- Non-Indicating
- Certifications: UL Listed, CSA Certified
- Series: FNM Supplemental Fuse
- Part Number: FNM-8
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNM Series
- Type : FNM
- Voltage : 250
- Amperage : 8
- AIC rating : 200kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : 1422-01
- Barrels : 1
- UPC : 051712520805
- GTIN : 00051712520805
- Country of Origin : Mexico
- Dimensions : 0.39 in x 1.44 in x 0.39 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
