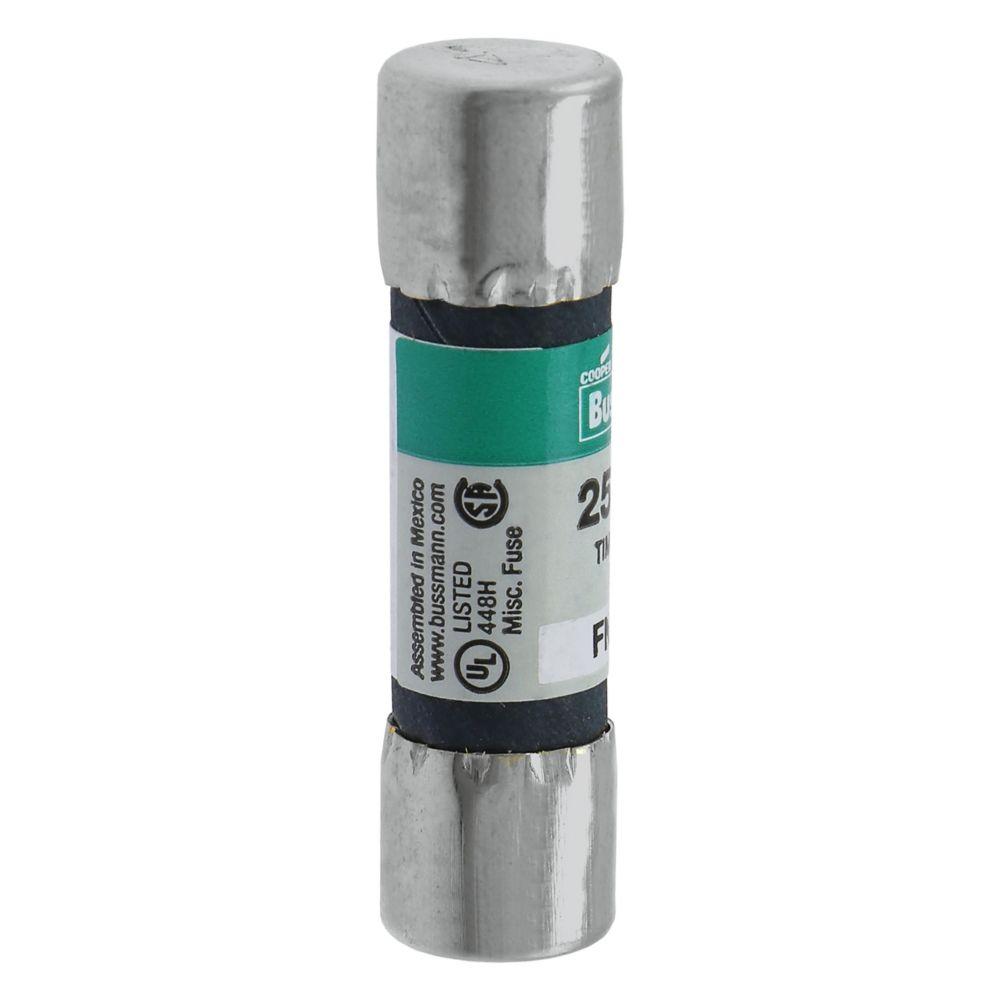

FNM-7 - Eaton Bussmann 7 Amp 250 Volt Time-Delay Supplemental Fuse

FNM-7

FNM-7 is a 7 Amp, 250 Volt time-delay supplemental fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a ferrule non-rejection connection type and a high interrupting rating of 200 Amps at 250 VAC and 10,000 Amps at 125 VAC. It is a midget size fuse with dimensions approximately 13/32 inch diameter by 1-1/2 inch length. The FNM series fuse is UL listed, CSA certified, RoHS compliant, and suitable for low voltage applications requiring time-delay characteristics.

Key Specifications
• Amperage: 7 Amp
• Voltage Rating: 250 VAC
• Interrupting Rating: 200 A at 250 VAC, 10,000 A at 125 VAC
• Fuse Type: Time-Delay Supplemental (FNM Series)
• Connection: Ferrule Non-Rejection
• Dimensions: 13/32 inch diameter x 1-1/2 inch length
• Certifications: UL Listed, CSA Certified, RoHS Compliant
• Mounting Type: Midget Fuse Holder

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNM-7
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNM Series
• Type : FNM
• Voltage : 250
• Amperage : 7
• AIC rating : 200kA@250V
• Connection : Ferrule Non-Rejection
• Diameter : 0.41
• Class Rating : 1422-01
• Barrels : 1

Product Data

• UPC : 051712520706
• GTIN : 00051712520706
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.175
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
