FNM-5-6/10 - Bussmann, Cooper Bussmann, Eaton 5.6A 250VAC Time-Delay Midget Fuse, Non-Indicating, Ferrule, 10kAIC at 125VAC, 200AIC at 250VAC, FNM Series

FNM-5-6/10

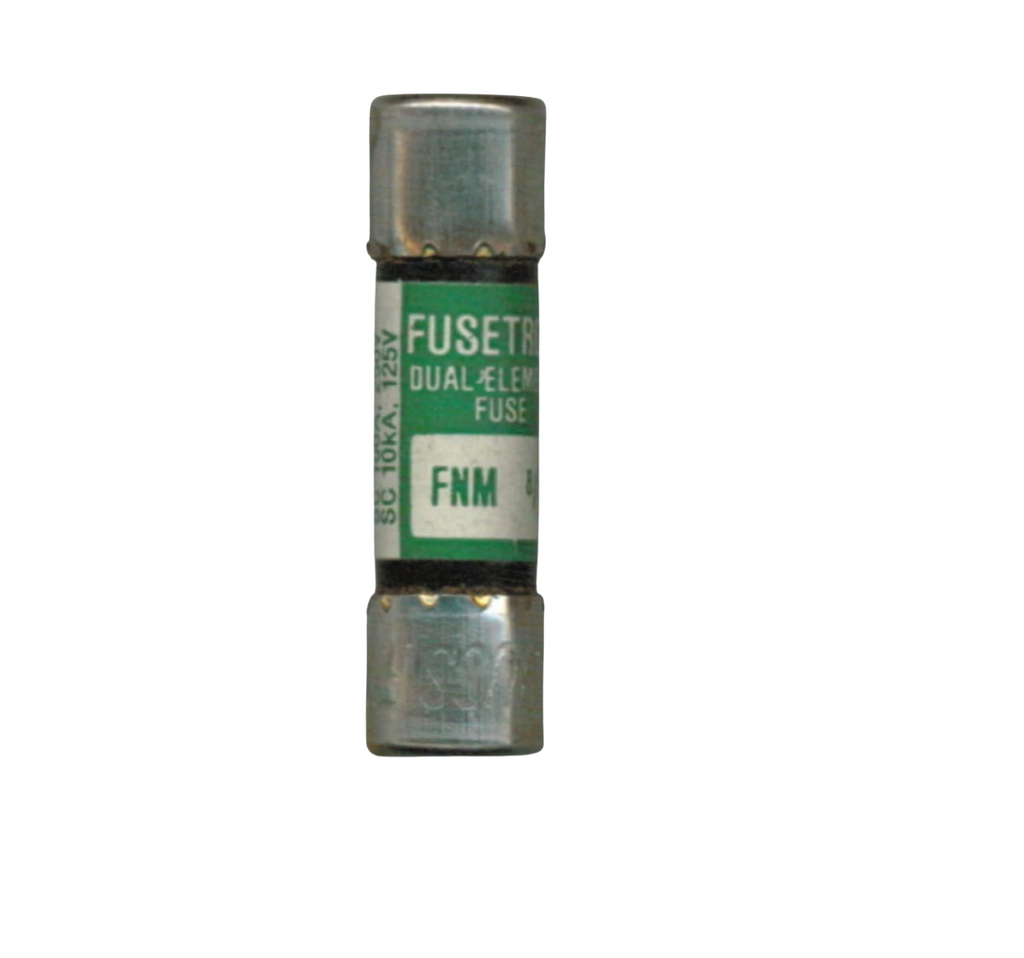

FNM-5-6/10 is a time-delay, non-indicating midget fuse from Bussmann, Cooper Bussmann, and Eaton, designed for supplemental circuit protection.

This cylindrical fuse features ferrule ends, a dual element, and is rated for 5.6A at 250VAC, with a time-delay characteristic ideal for inductive loads. It is part of the FNM series and is suitable for use in approved fuse blocks or holders.

Key Specifications
• Amperage: 5.6A
• Voltage: 250VAC
• Poles: 1
• Mounting Type: Ferrule (cylindrical, 13/32" dia x 1-1/2" L)
• Interrupt Rating: 10kA at 125VAC, 200A at 250VAC
• Series/Frame: FNM (Midget)
• Trip Unit: Time-delay (dual element)
• Certifications: UL Listed (Std. 248-14), CSA Certified (Class 1422-01), CE, RoHS compliant
• Class: CC/Supplemental
• Color: Green
• Non-indicating, non-rejection style
• Agency info: UL File E19180, CSA File 53787

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNM-5-6/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNM Series
• Type : FNM
• Voltage : 250
• Amperage : 5
• AIC rating : 200kA@250V
• Connection : Ferrule Non-Rejection
• Diameter : 0.41
• Class Rating : 1422-01
• Barrels : 1

Product Data

• UPC : 051712520560
• GTIN : 00051712520560
• Country of Origin : Mexico
• Dimensions : 0.39 in x 1.44 in x 0.39 in (Length/Depth x Height x Width)
• Weight : 0.2
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
