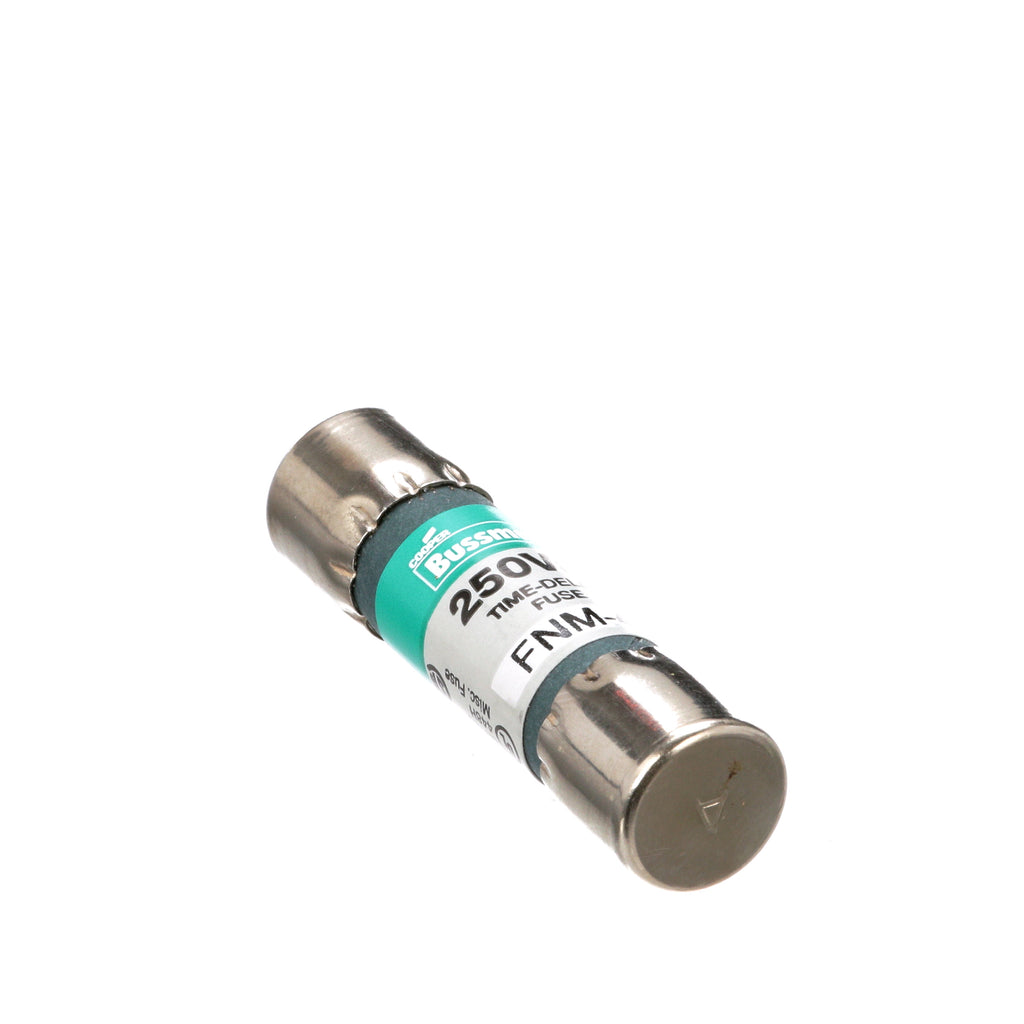

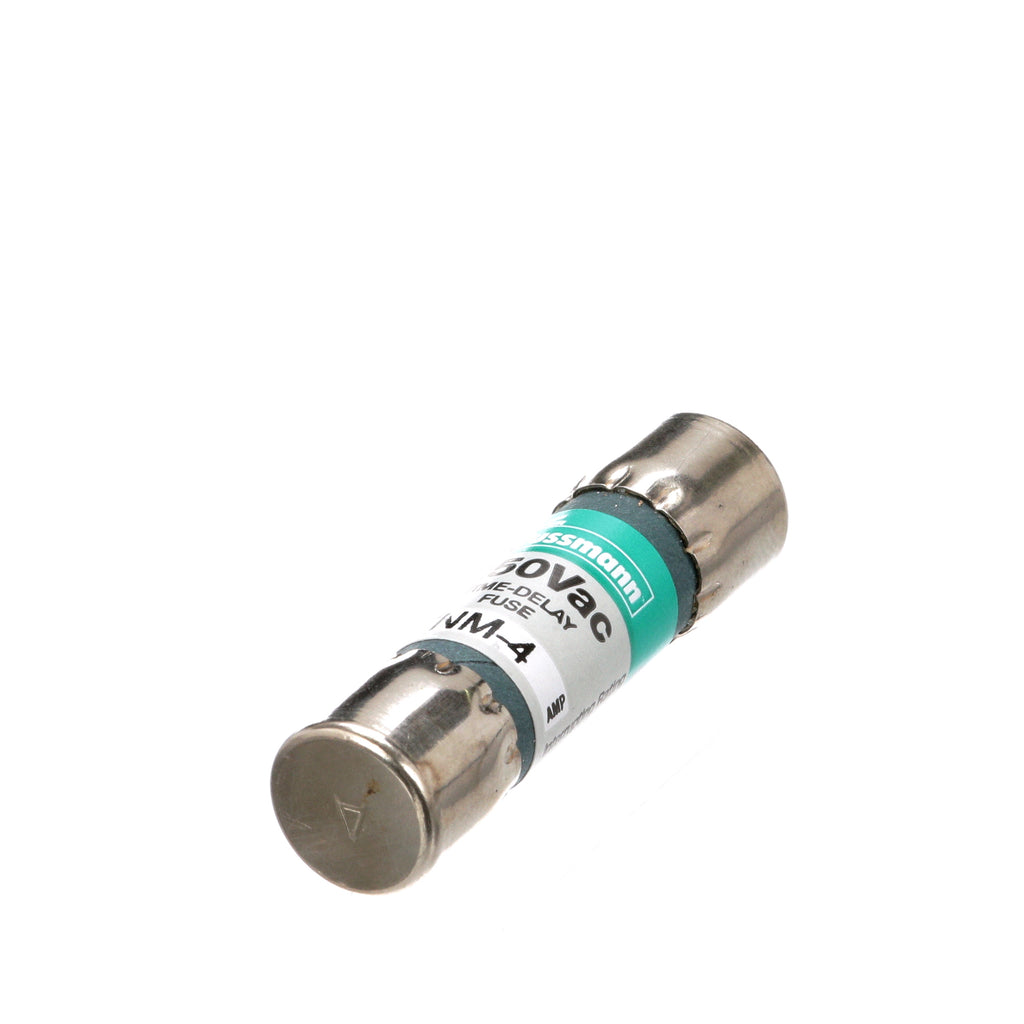

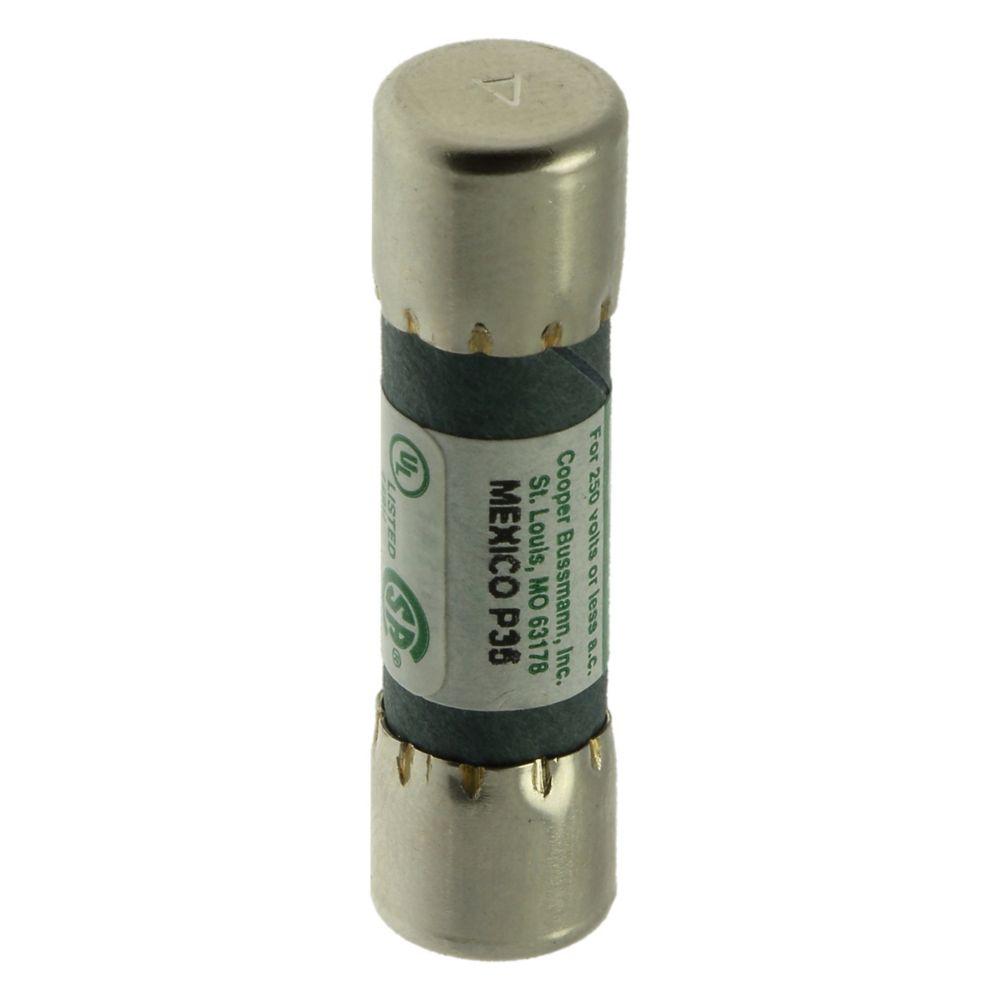

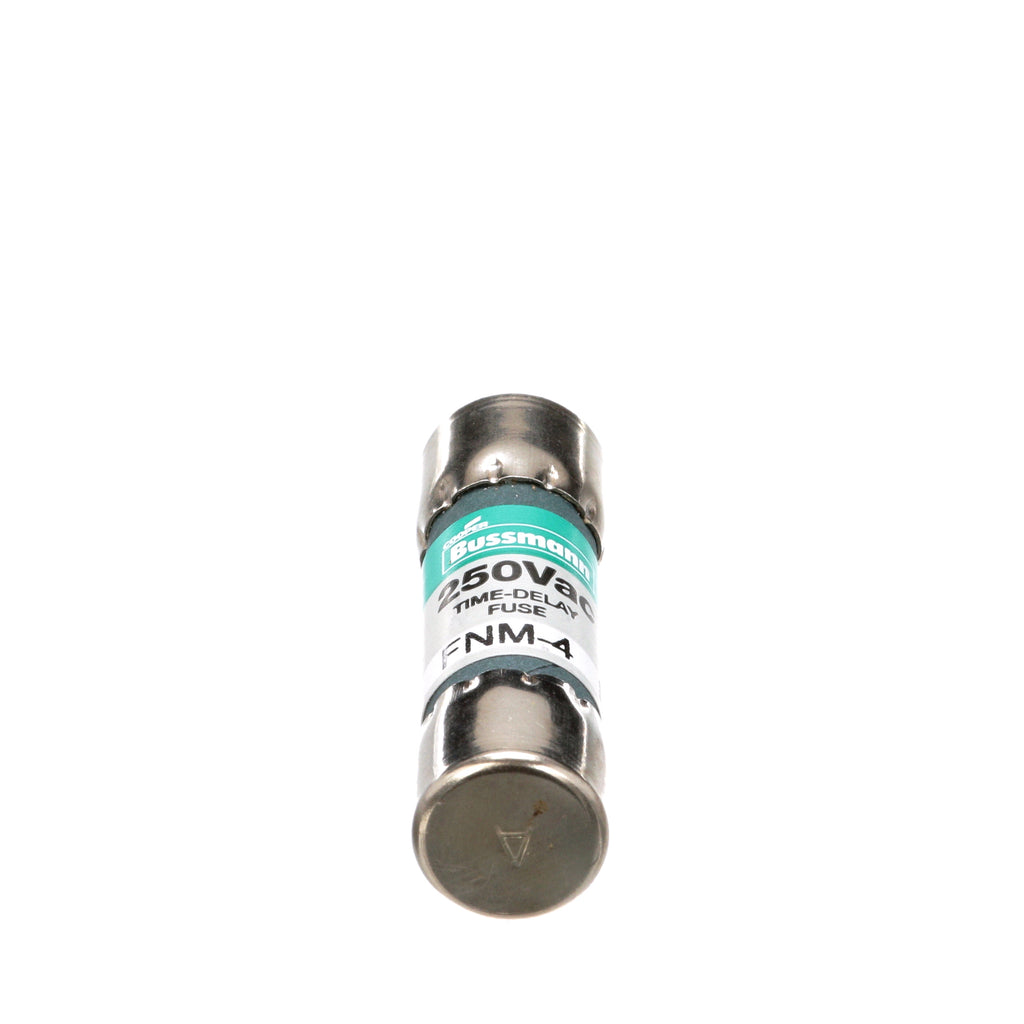

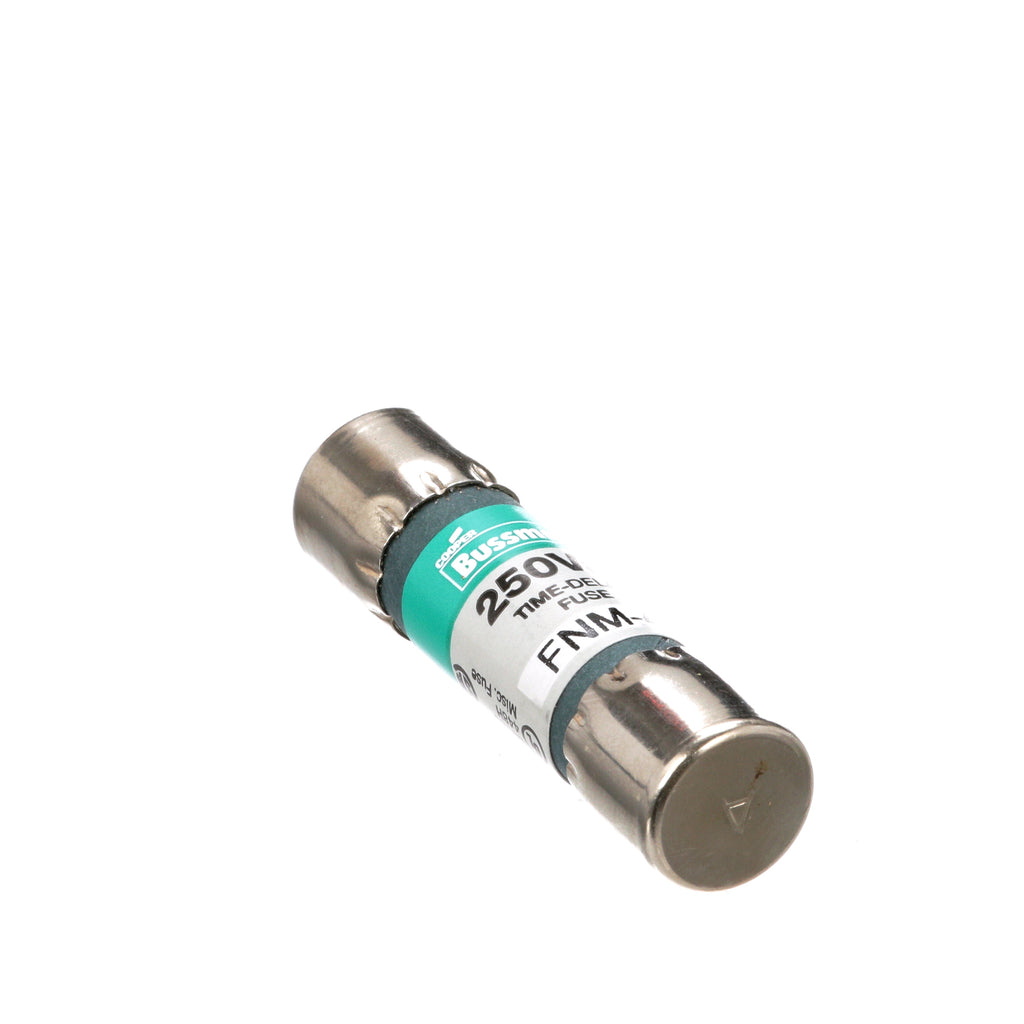

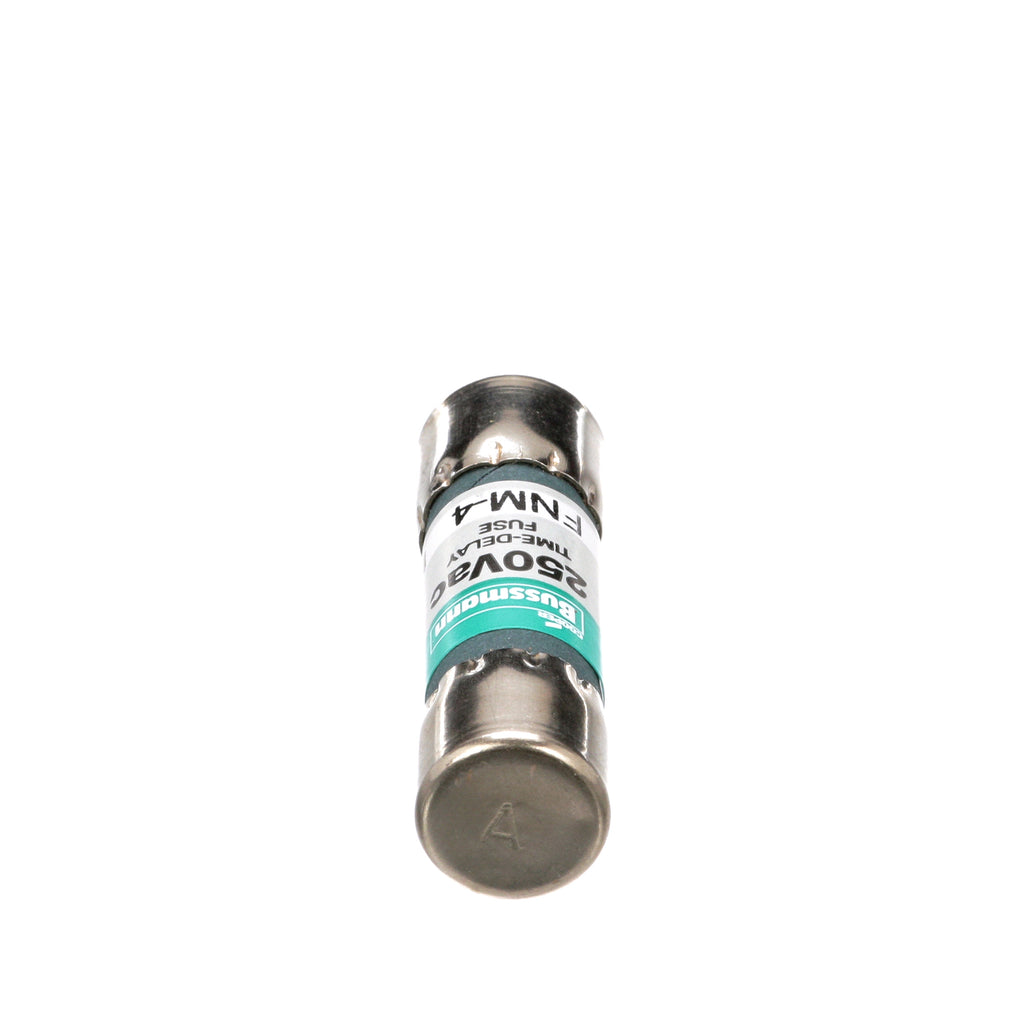

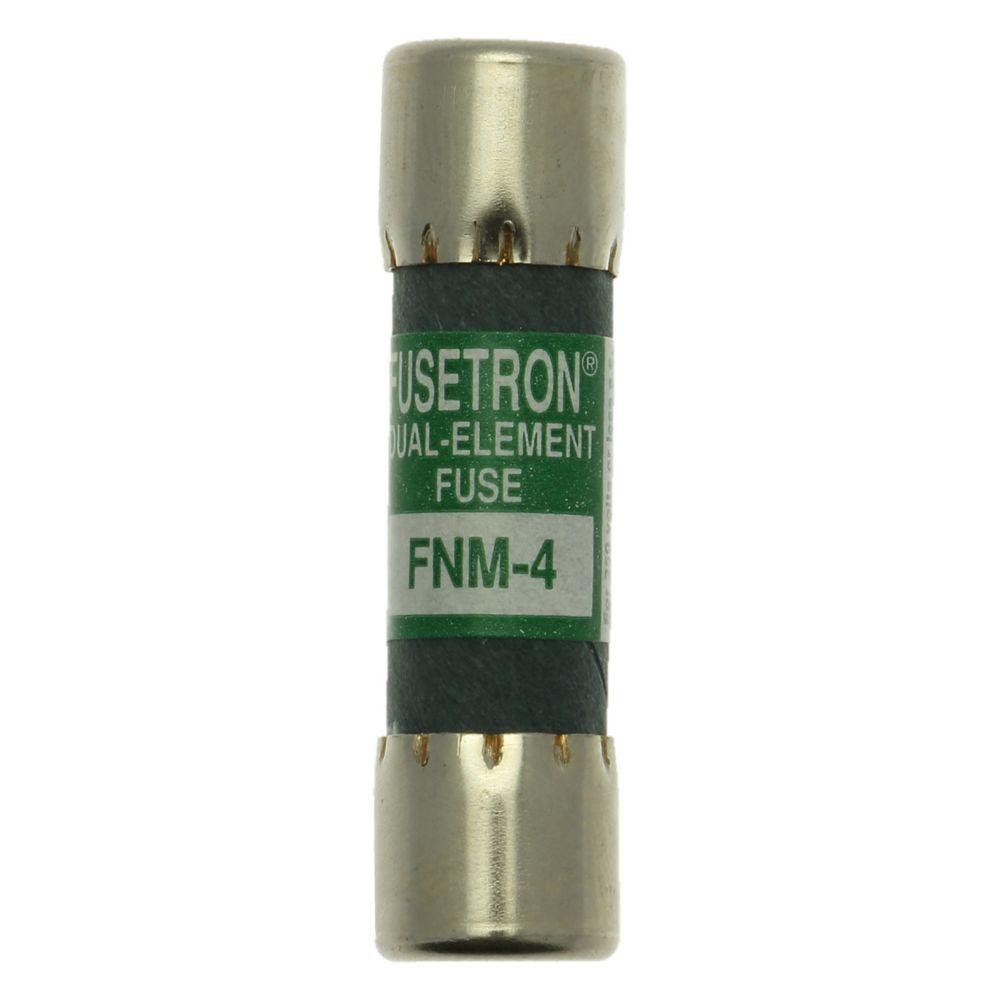

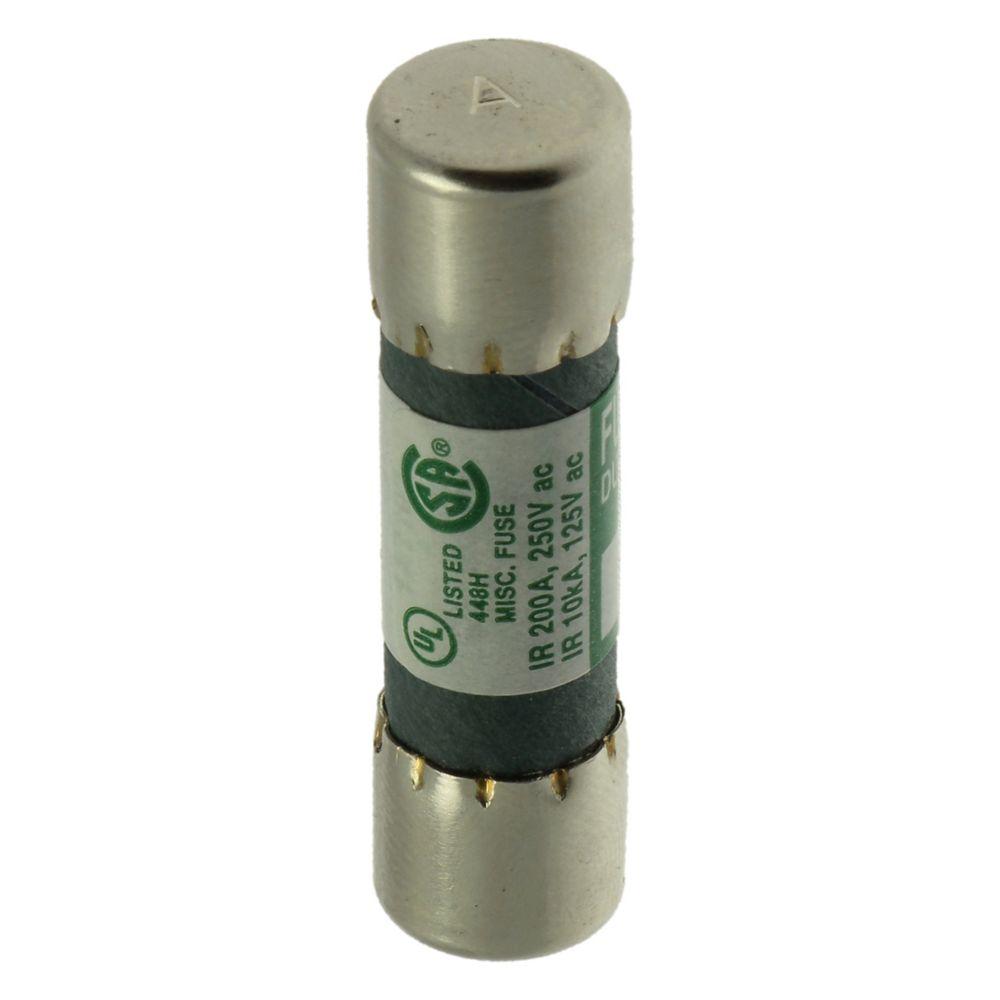

FNM-4 - Eaton Bussmann 4 Amp 250 Volt Time-Delay Midget Fuse 1.5 Inch Ferrule Connection

FNM-4

FNM-4 is a 4 amp, 250 volt time-delay midget fuse from Eaton Bussmann designed for supplemental circuit protection.This fuse features a dual element construction for time-delay operation, ferrule non-rejection end connections, and a melamine tube body measuring approximately 13/32 inch diameter by 1.5 inches length. It has an interrupting rating of 200 amperes at 250 VAC and 10 kA at 125 VAC, making it suitable for general purpose and lighting circuit protection. The FNM-4 is UL listed, CSA certified, CE marked, and RoHS compliant.

Key Specifications
• Amperage: 4 A
• Voltage Rating: 250 VAC
• Interrupting Rating: 200 A @ 250 VAC, 10 kA @ 125 VAC
• Type: Time-Delay Midget Fuse
• Construction: Dual Element, Melamine Tube
• Dimensions: 0.41 inch diameter x 1.5 inch length
• Connection: Ferrule Non-Rejection
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FNM-4
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNM Series
• Type : FNM
• Voltage : 250
• Amperage : 4
• AIC rating : 200kA@250V
• Connection : Ferrule Non-Rejection
• Diameter : 0.41
• Class Rating : 1422-01
• Barrels : 1



Product Data

• UPC : 051712520409
• GTIN : 00051712520409
• Country of Origin : Mexico
• Dimensions : 0.39 in x 1.44 in x 0.39 in (Length/Depth x Height x Width)
• Weight : 0.2
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
