FNM-30 - Eaton Bussmann 30A 250V Time Delay Midget Fuse Dual Element 10kA Interrupt Rating

FNM-30

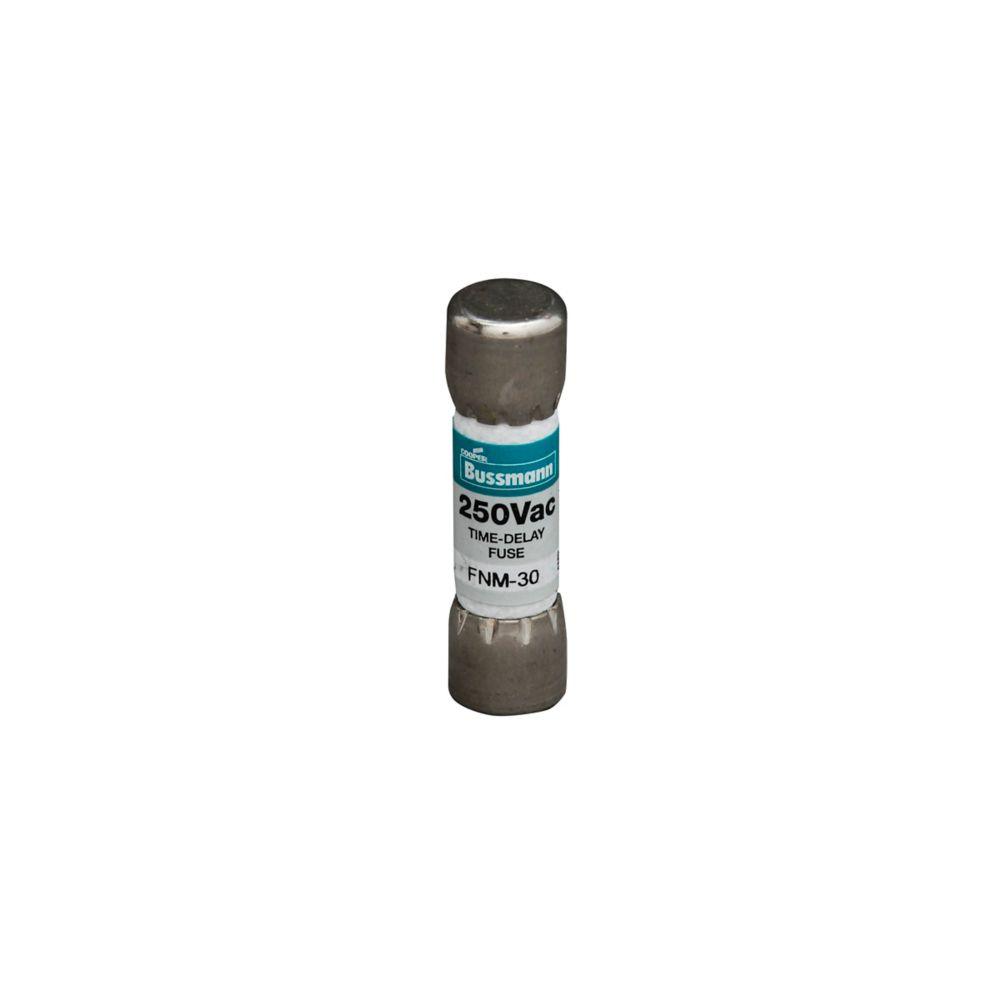

FNM-30 is a 30 amp, 250 volt time delay midget fuse from Eaton Bussmann designed for general-purpose circuit protection.This fuse features a dual element time delay design with a fiber tube construction and nickel-plated bronze end caps. It has a physical size of 13/32 inch diameter by 1-1/2 inch length and is rated for an interrupting capacity of 10,000 amps at 250 VAC. The fuse is UL listed, CSA certified, and meets Class 1422-01 standards, suitable for lighting circuits, meter circuits, and other general applications.

Key Specifications
• Amperage: 30A
• Voltage Rating: 250 VAC
• Fuse Type: Time Delay / Slow Blow
• Interrupt Rating: 10,000 AIC at 250 VAC
• Body Style: Cartridge Midget Fuse
• Mounting Style: Holder
• Physical Size: 13/32" diameter x 1.5" length
• End Caps: Nickel-plated bronze ferrule ends
• Certifications: UL Listed, CSA Certified
• Series: Bussmann FNM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNM-30
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNM Series
• Type : FNM
• Voltage : 250
• Amperage : 30
• AIC rating : 10kA@250V
• Connection : Ferrule Non-Rejection
• Diameter : 0.41
• Class Rating : 1422-01
• Barrels : 1

Product Data

• UPC : 051712523004
• GTIN : 00051712523004
• Country of Origin : Mexico
• Dimensions : 0.39 in x 1.44 in x 0.39 in (Length/Depth x Height x Width)
• Weight : 0.2
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
