2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNM-3

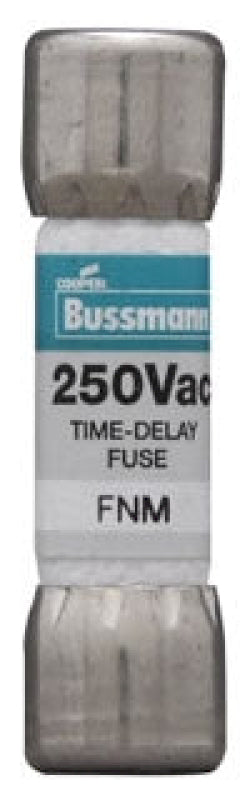

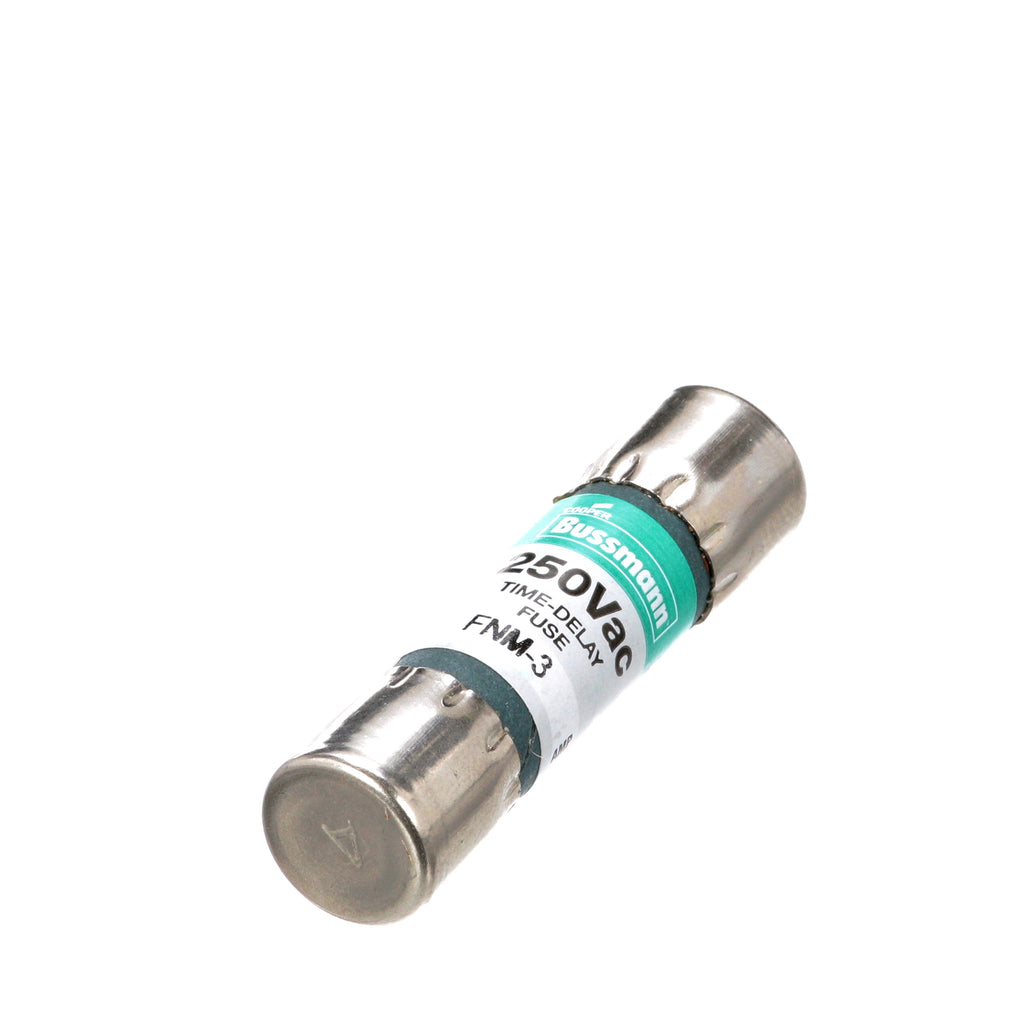

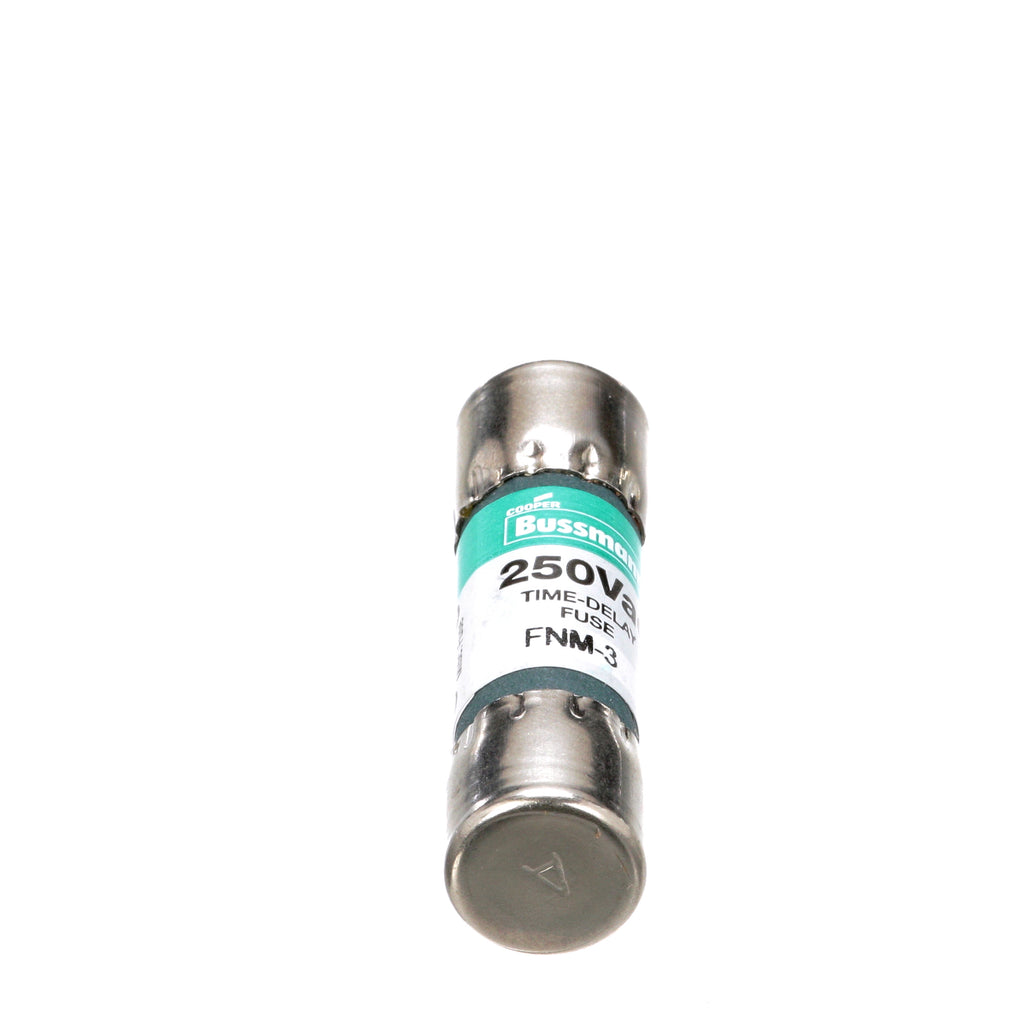

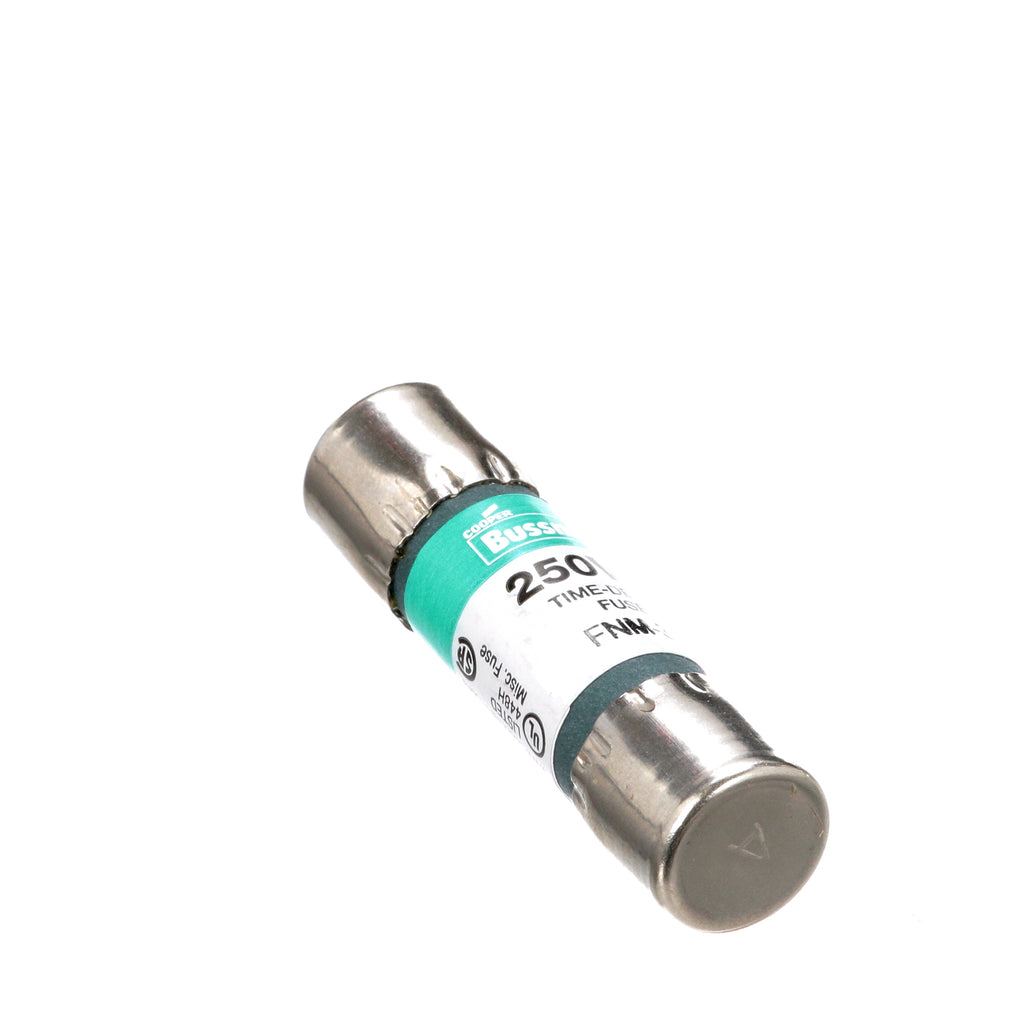

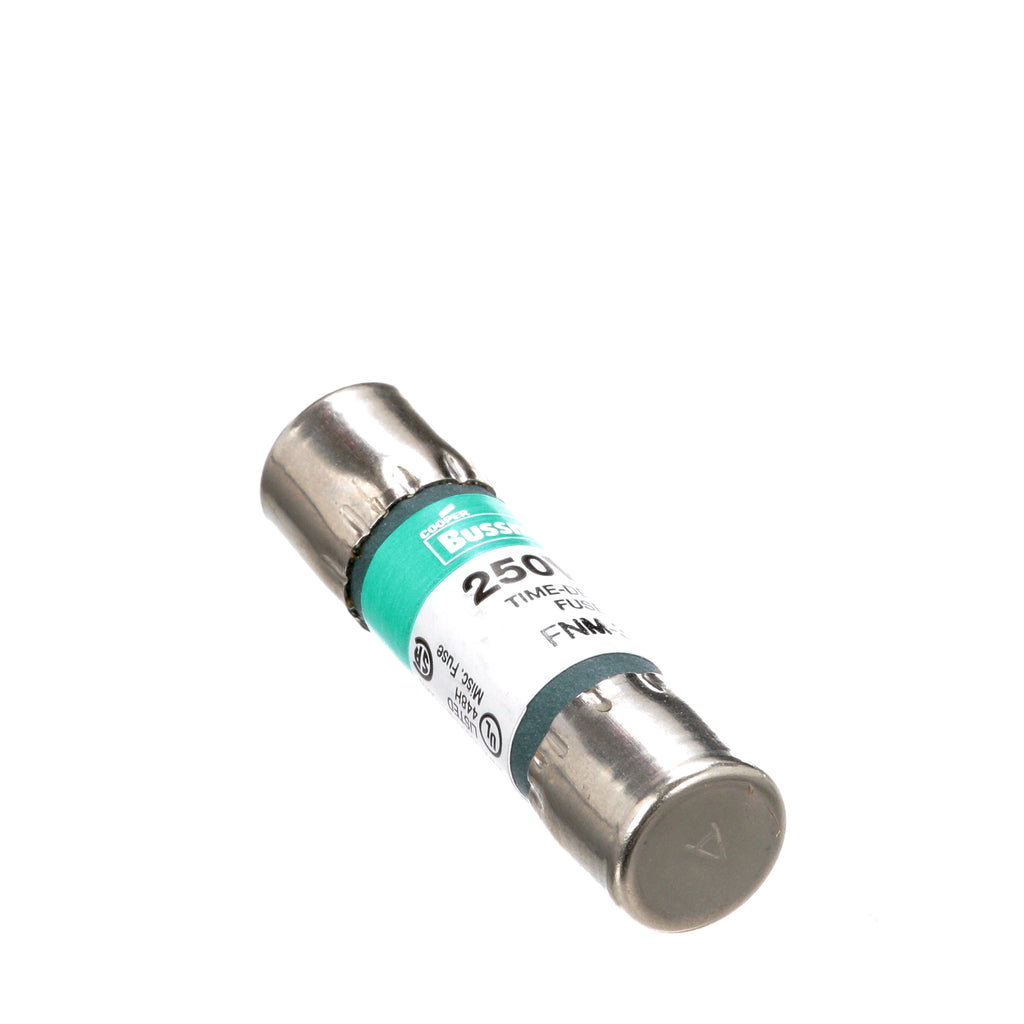

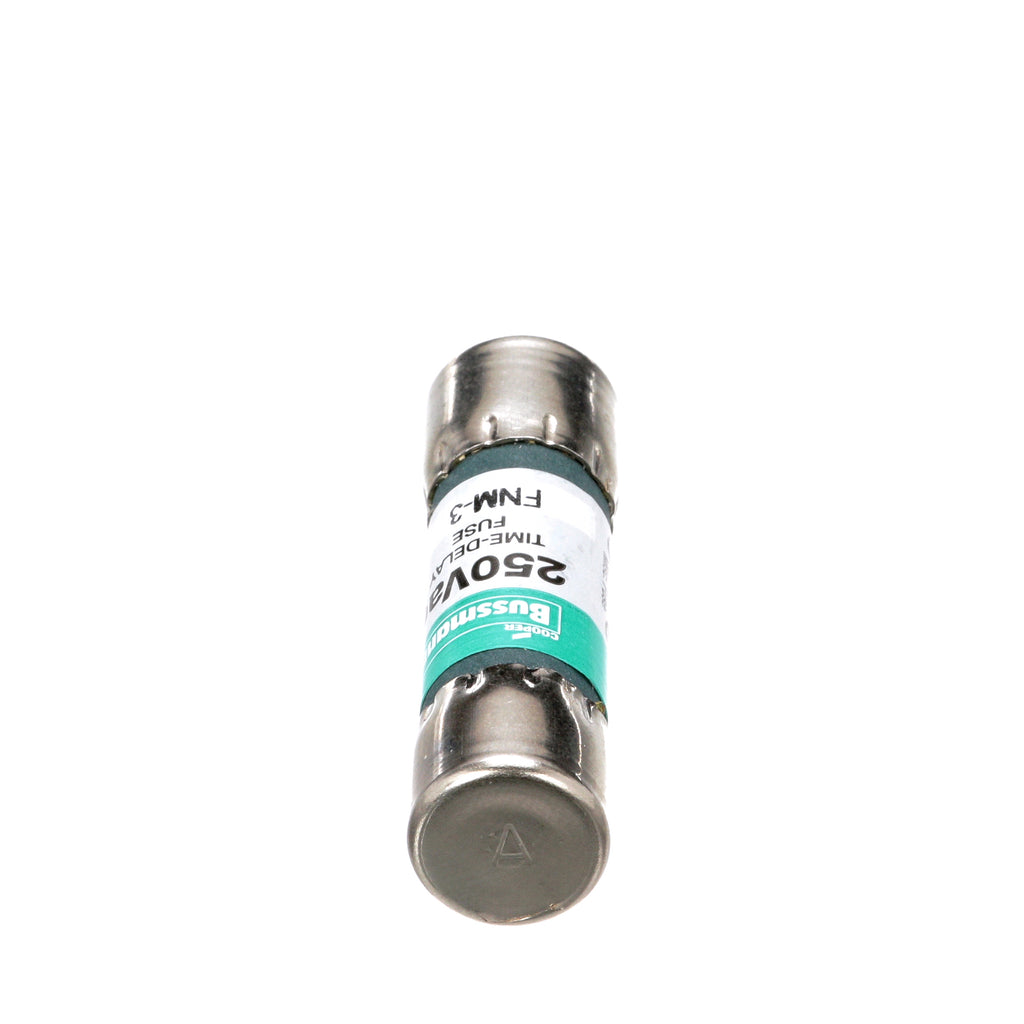

FNM-3 is a 3 amp, 250 volt AC time-delay midget fuse from Eaton Bussmann designed for supplemental circuit protection.This fuse features a dual element construction for superior time-delay performance, a melamine tube body with ferrule end connections, and a 10,000 amp interrupt rating. It is sized 13/32" x 1-1/2" and suitable for use in various electrical applications requiring reliable overcurrent protection.
- Key Specifications
- Amperage: 3 A
- Voltage Rating: 250 VAC
- Fuse Type: Time-Delay Midget Fuse
- Element: Dual
- Interrupt Rating: 10 kAIC
- Body Material: Melamine Tube
- End Type: Ferrule
- Physical Size: 13/32" x 1-1/2"
- Manufacturer: Eaton Bussmann
- Part Number: FNM-3
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNM Series
- Type : FNM
- Voltage : 250
- Amperage : 3
- AIC rating : 100kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : 1422-01
- Barrels : 1
- UPC : 051712520300
- GTIN : 00051712520300
- Country of Origin : Mexico
- Dimensions : 0.39 in x 1.44 in x 0.39 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
