FNM-3-2/10 - Bussmann 3.2 Amp 250V Time Delay Midget Fuse Dual Element UL CSA

FNM-3-2/10

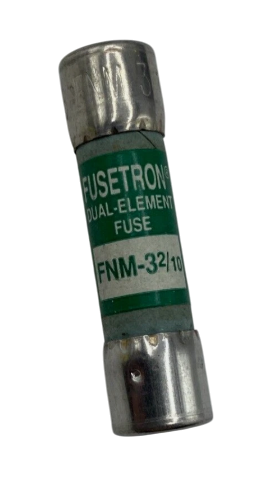

FNM-3-2/10 is a 3.2 Amp, 250 Volt AC time delay midget fuse from Bussmann designed for supplemental circuit protection.This dual element fuse features a cylindrical 13/32" diameter by 1 1/2" length body, providing reliable time delay protection with an interrupting rating of 100 AIC at 250 VAC and 10,000 AIC at 125 VAC. It is UL Listed to standard 248-14 and CSA Certified, suitable for use in inductive circuits requiring supplemental protection.

• Amperage: 3.2 Amps
• Voltage Rating: 250 VAC
• Fuse Type: Time Delay (Slow Blow)
• Body Size: 13/32" diameter x 1 1/2" length
• Interrupting Rating: 100 AIC @ 250 VAC, 10,000 AIC @ 125 VAC
• Dual Element Construction
• Mounting Type: Midget Fuse
• UL Listed Std. 248-14, File E19180, Guide JDYX
• CSA Certified Class 1422-01, File 53787
• Color: Green

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNM-3-2/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNM Series
• Type : FNM
• Voltage : 250
• Amperage : 3
• AIC rating : 100kA@250V
• Connection : Ferrule Non-Rejection
• Diameter : 0.41
• Class Rating : 1422-01
• Barrels : 1

Product Data

• UPC : 05171252032
• GTIN : 00051712520324
• Country of Origin : Mexico
• Dimensions : 0.39 in x 1.44 in x 0.39 in (Length/Depth x Height x Width)
• Weight : 0.2
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
