Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNM-20

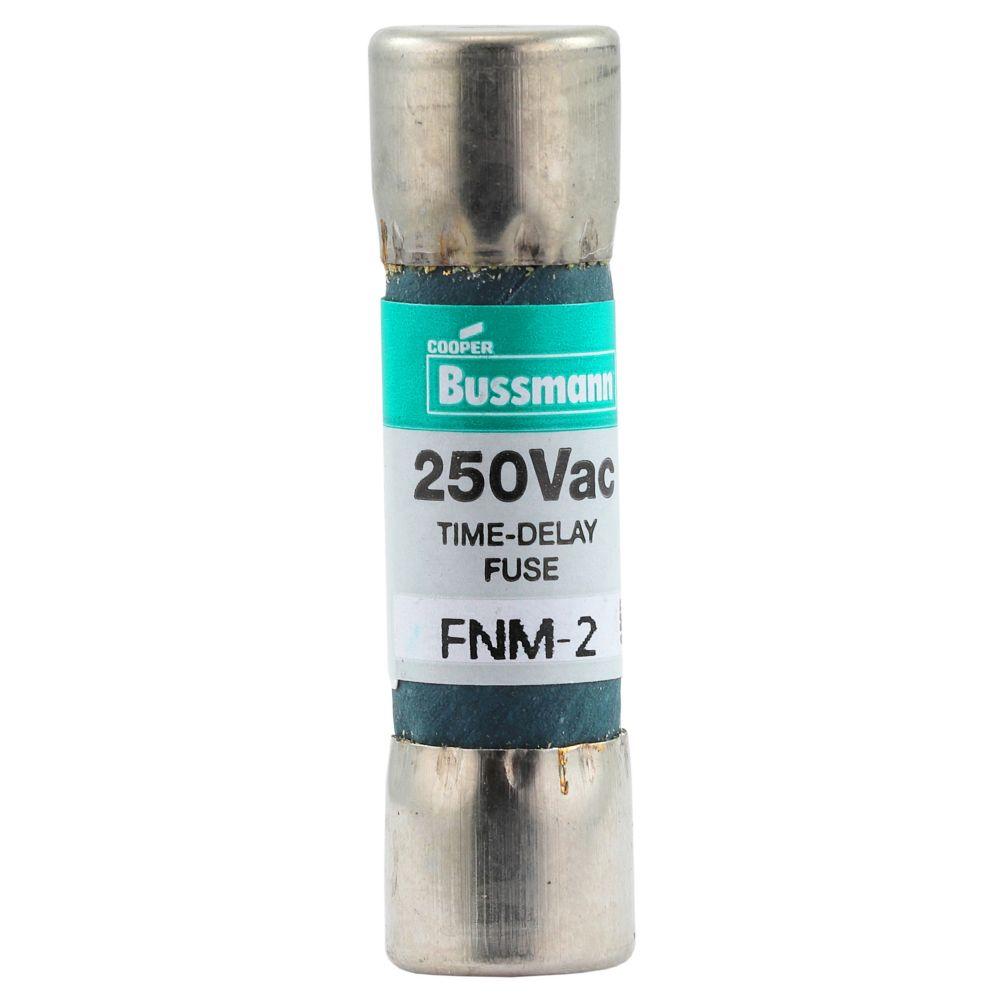

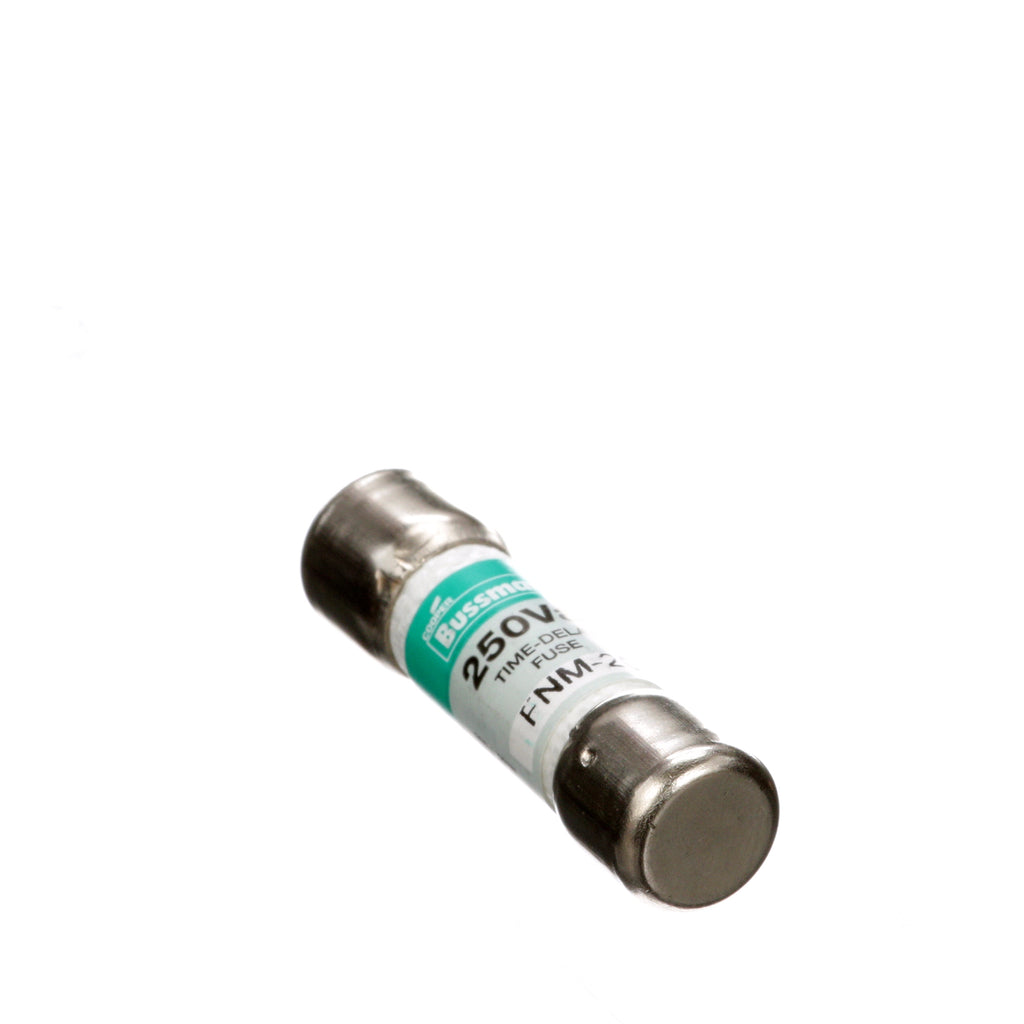

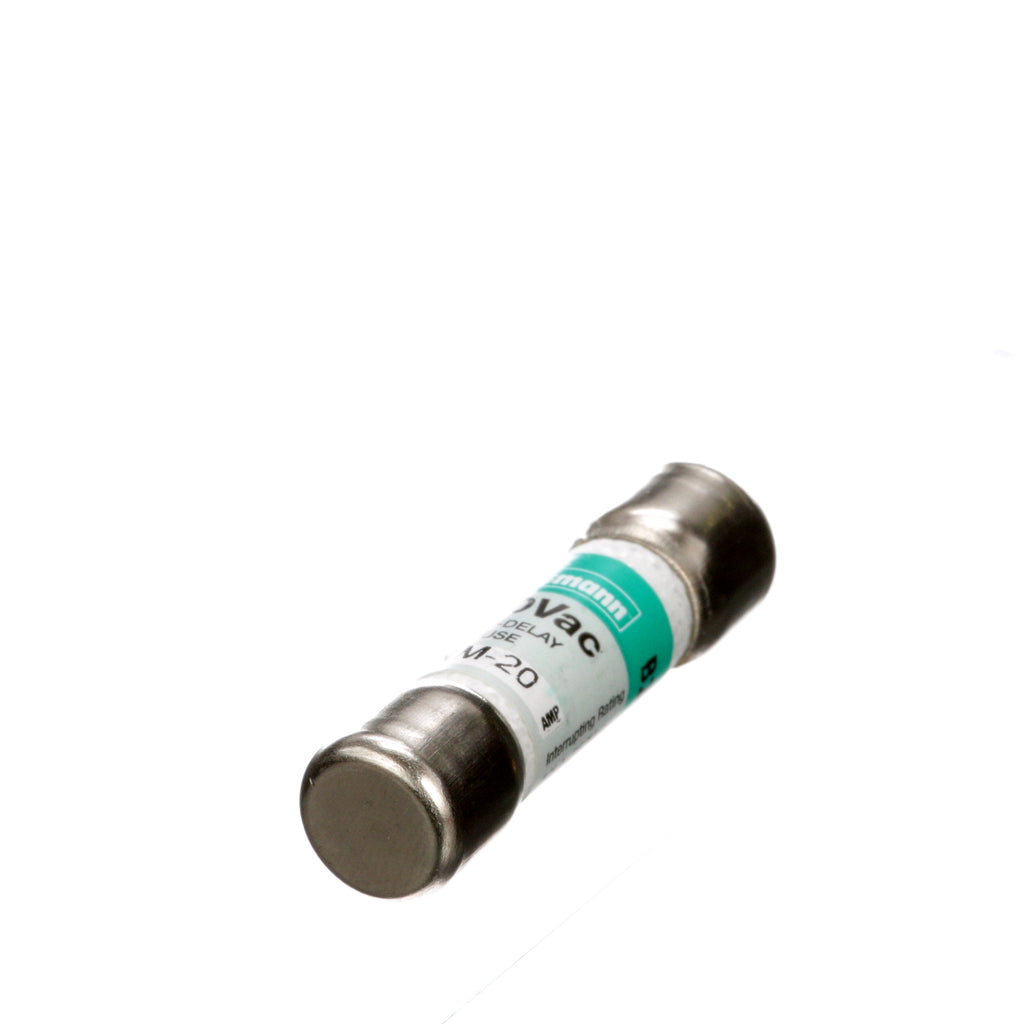

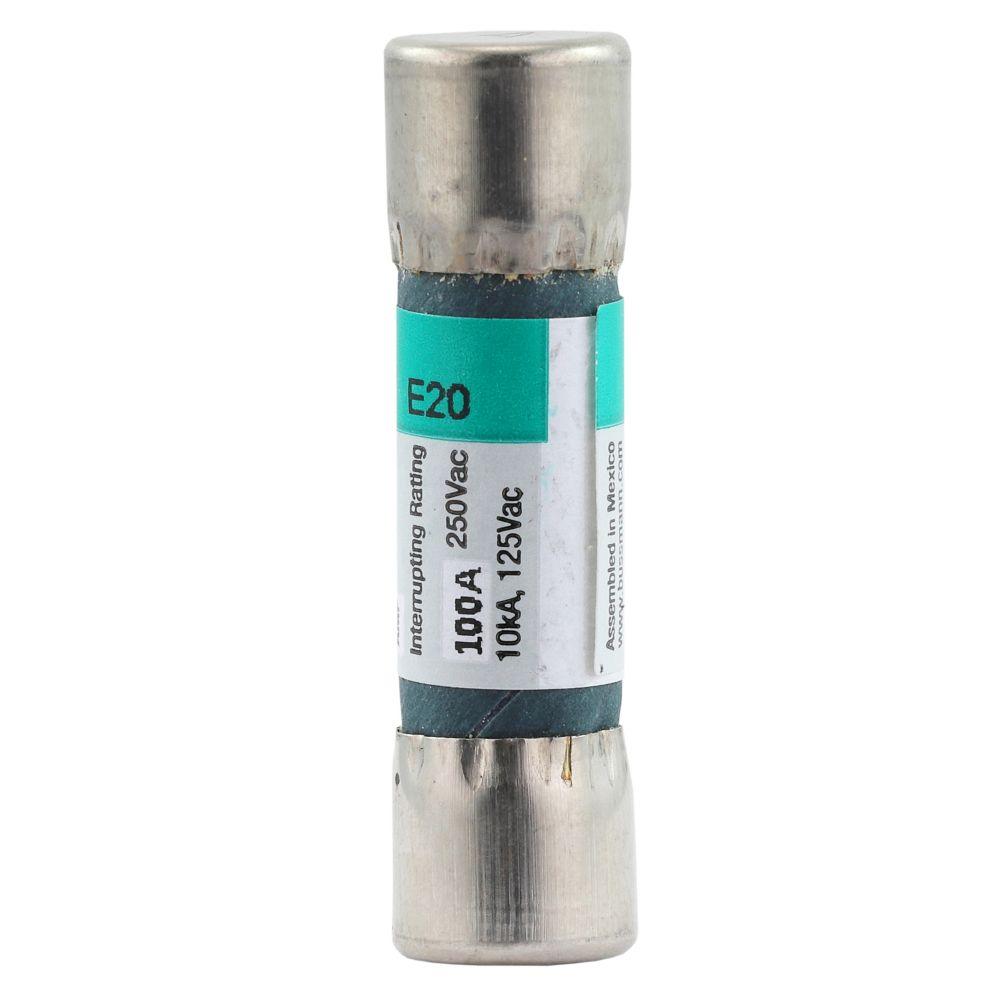

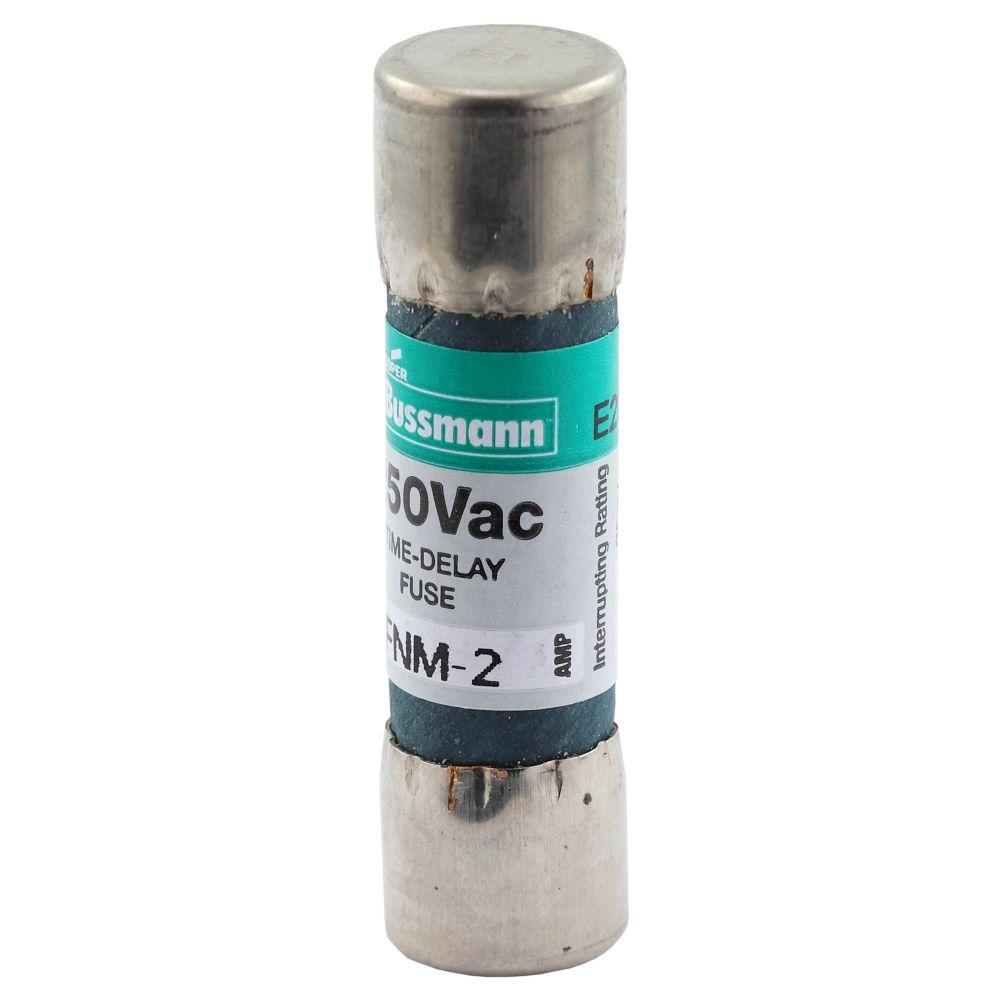

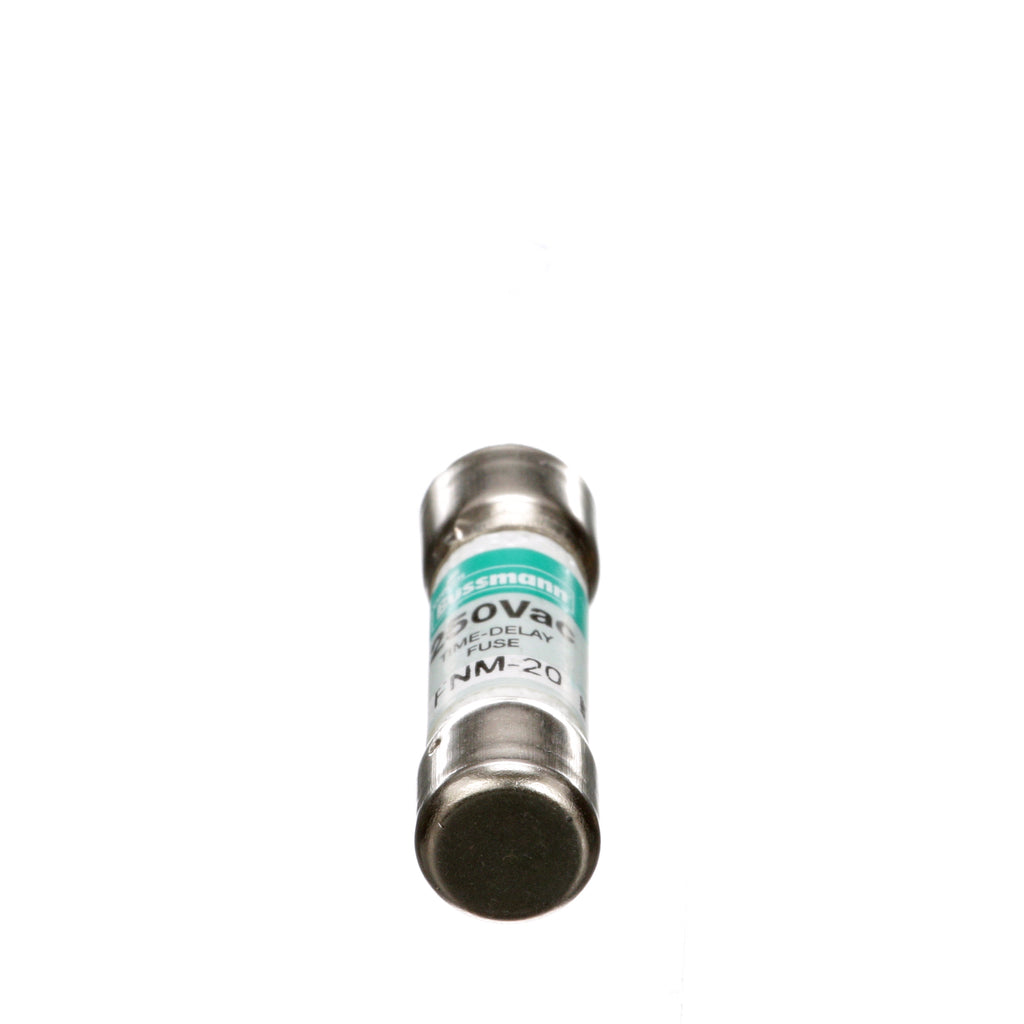

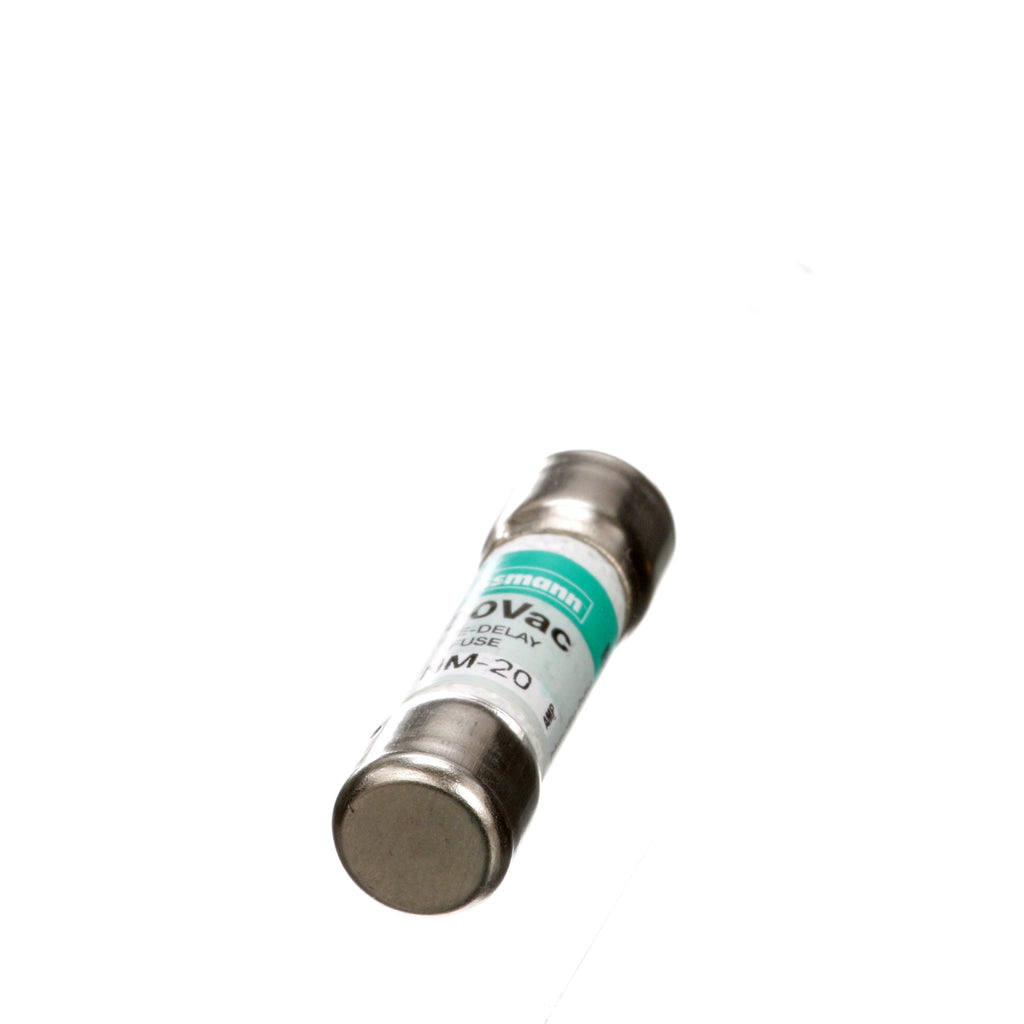

FNM-20 is a 20 amp, 250 volt time-delay midget fuse designed for supplemental circuit protection.This Bussmann Eaton fuse features a melamine tube construction with dimensions of 13/32 inch by 1-1/2 inch. It is a dual element, time-delay type suitable for inductive circuits, providing reliable protection with a 10,000 A interrupting rating at 250 VAC. The fuse is UL listed, CSA certified, and RoHS compliant, meeting industry safety standards.
- Amperage: 20 A
- Voltage Rating: 250 VAC
- Fuse Type: Time-Delay (Slow Blow)
- Physical Size: 13/32 inch x 1-1/2 inch
- Interrupting Rating: 10,000 AIC at 250 VAC
- Mounting Type: Midget Cartridge
- Agency Certifications: UL Listed, CSA Certified, RoHS Compliant
- Supplemental protection for inductive circuits
- Non-indicating fuse
- Manufacturer Series: FNM
Specifications
- Part Number: FNM-20
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNM Series
- Type : FNM
- Voltage : 250
- Amperage : 20
- AIC rating : 10kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : 1422-01
- Barrels : 1
Product Data
- UPC : 051712522007
- GTIN : 00051712522007
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 1
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
