Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

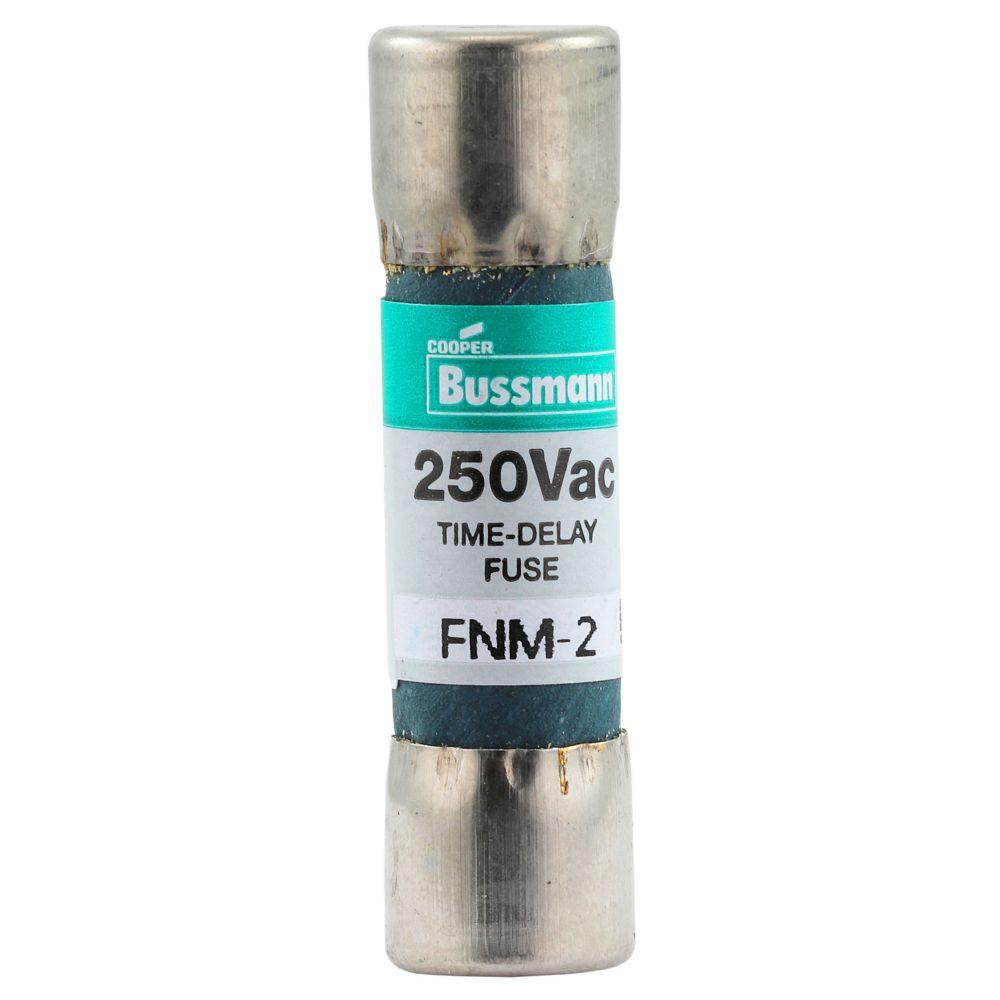

FNM-2

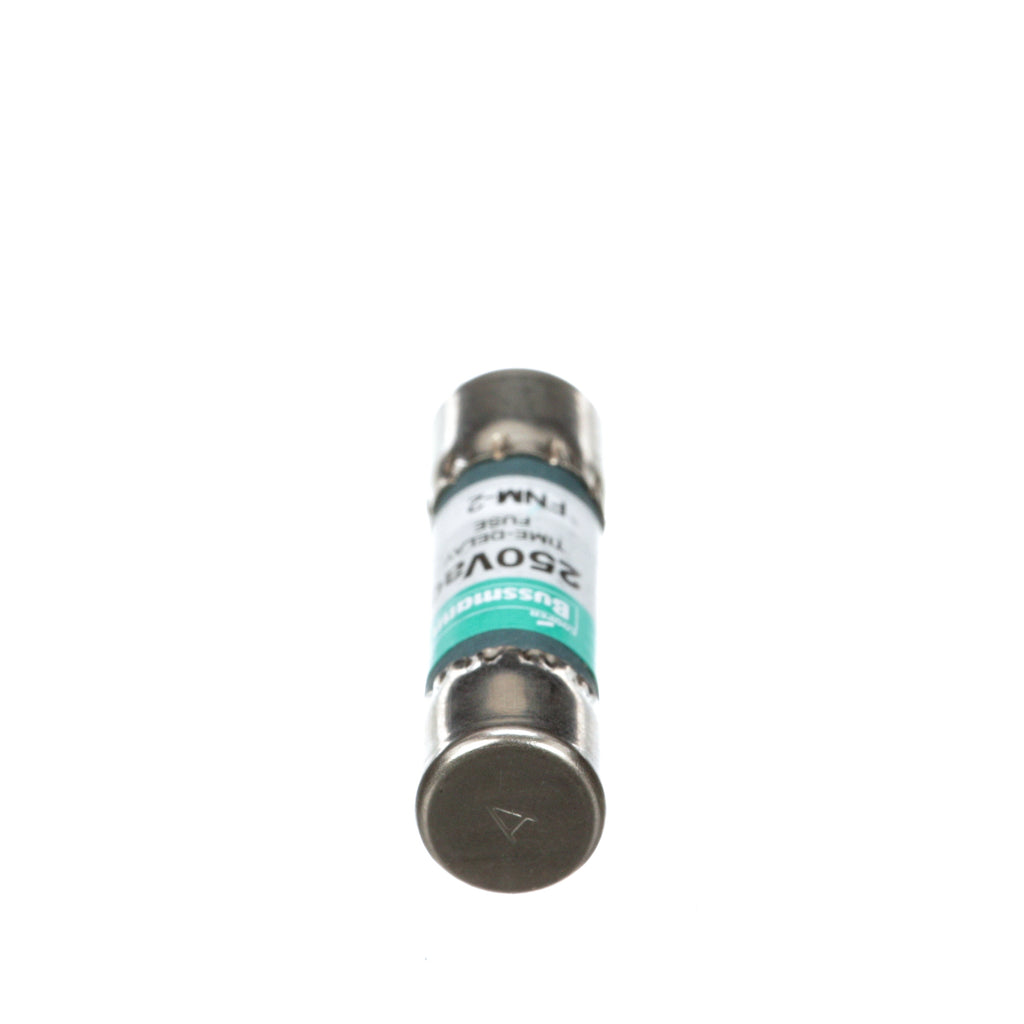

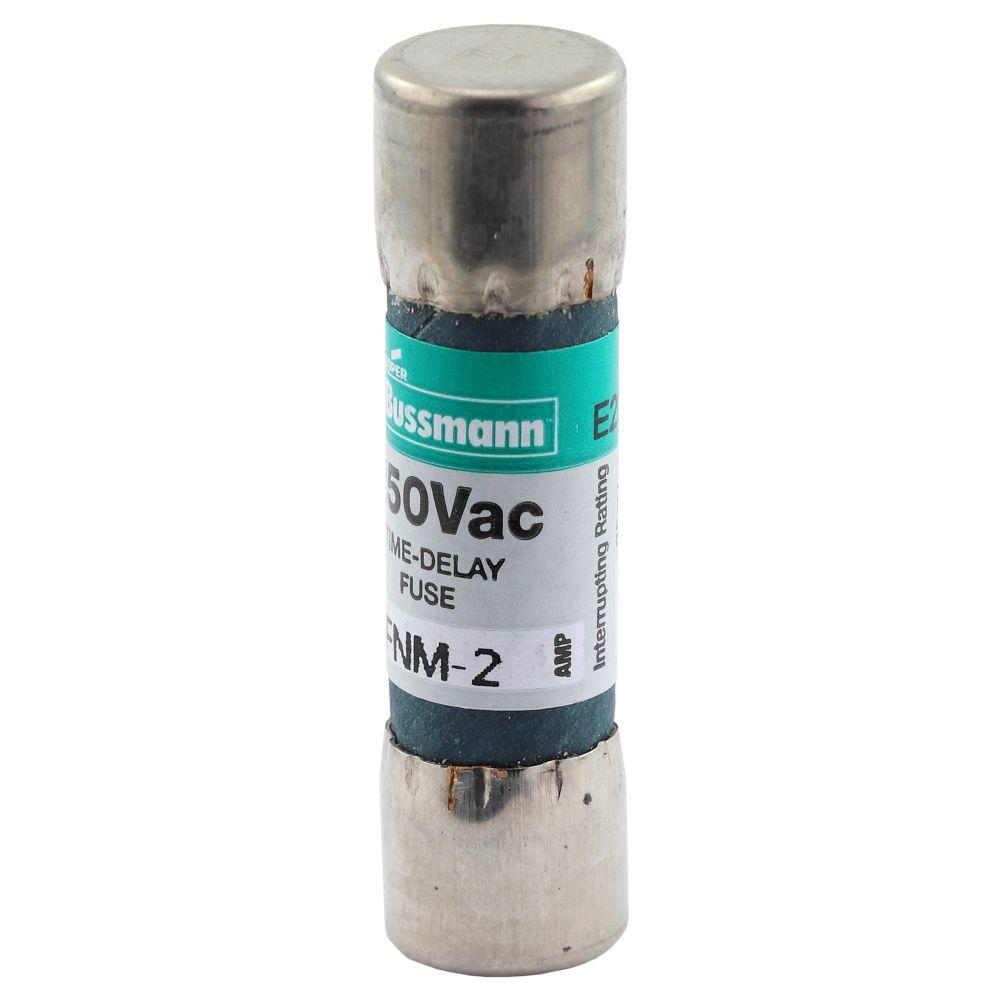

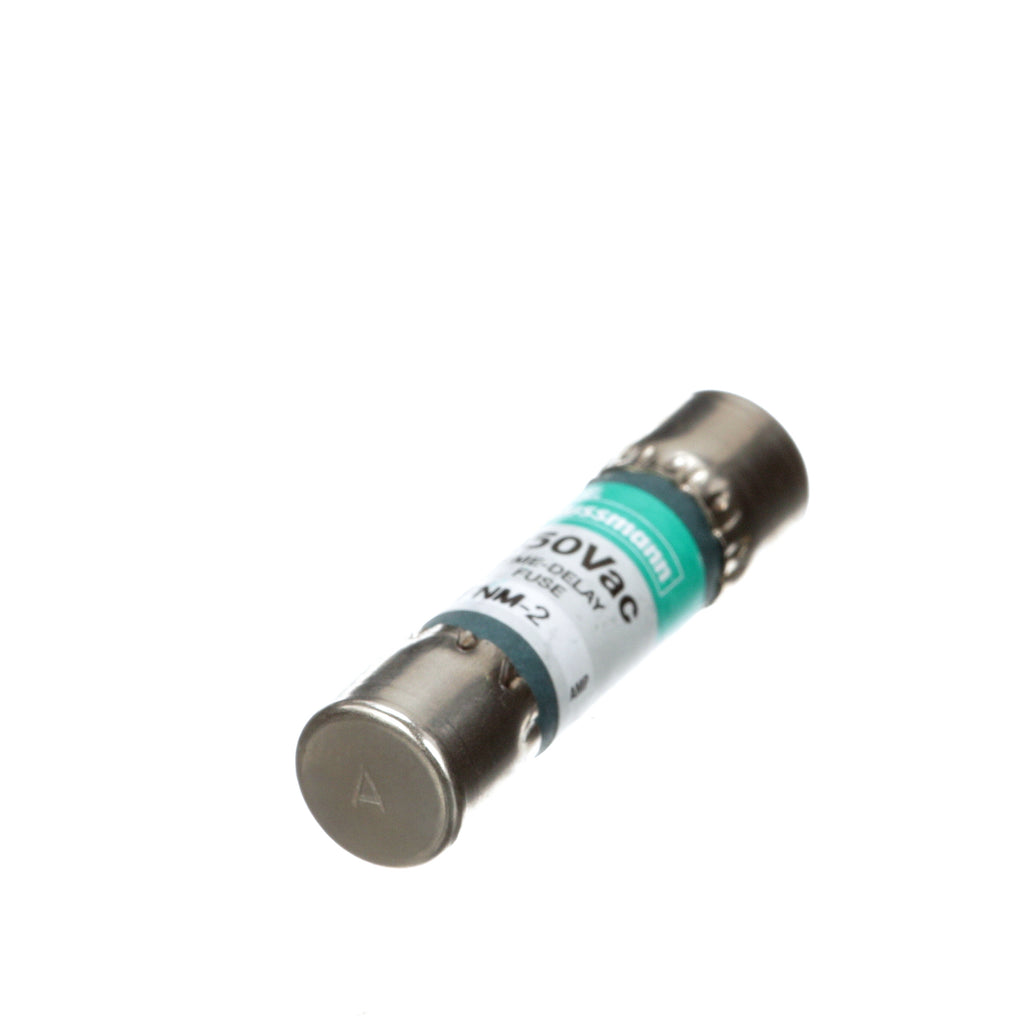

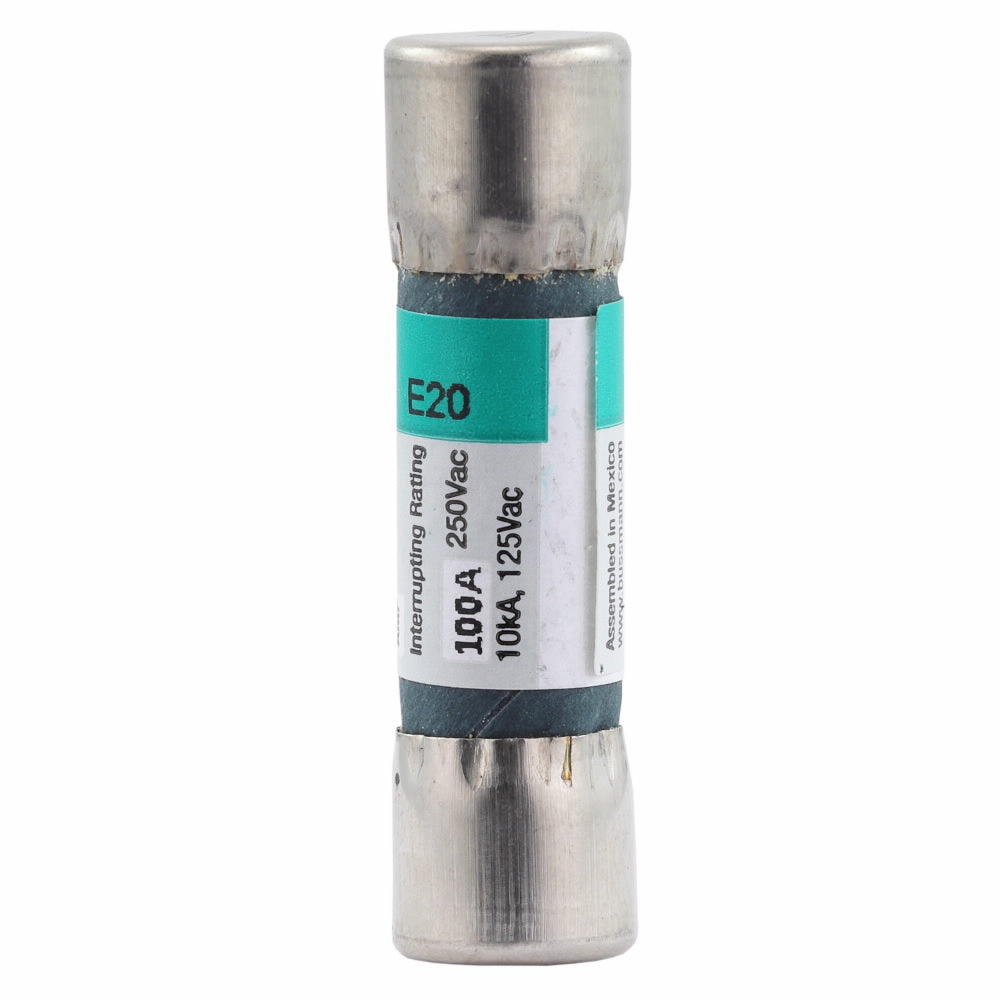

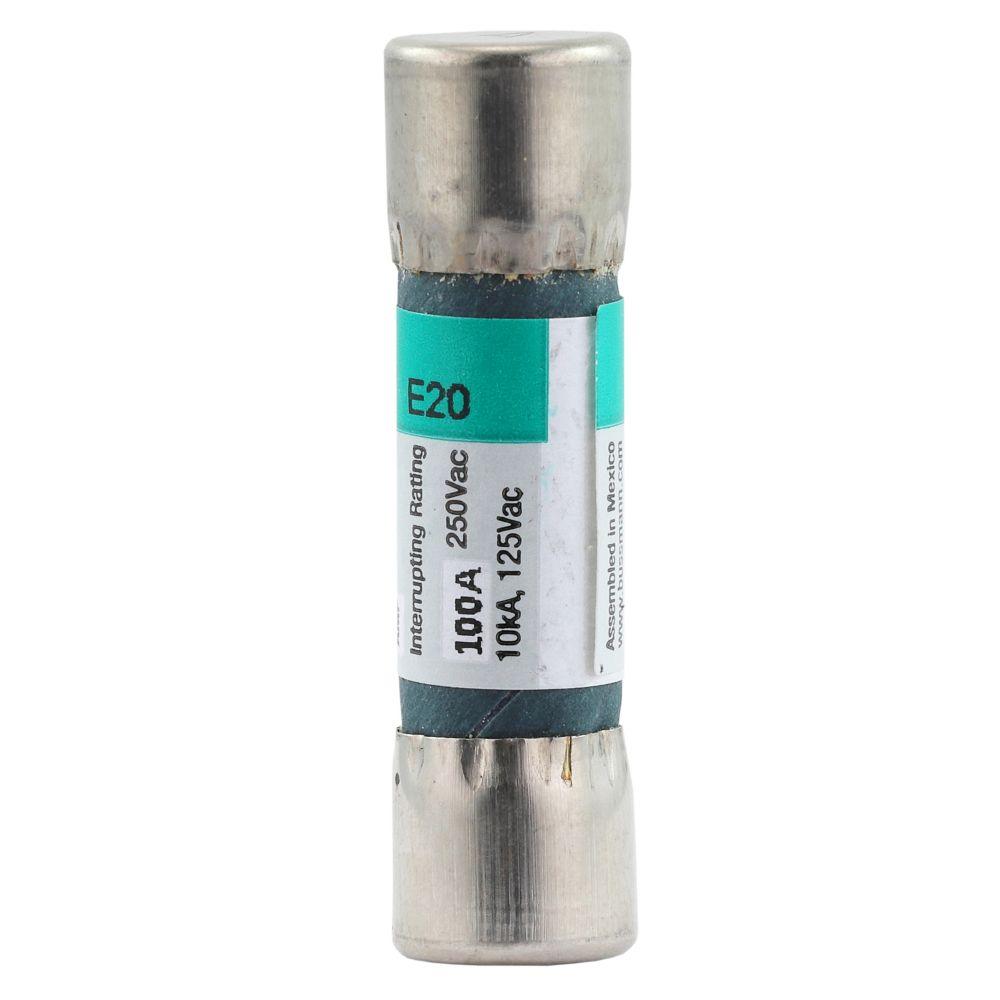

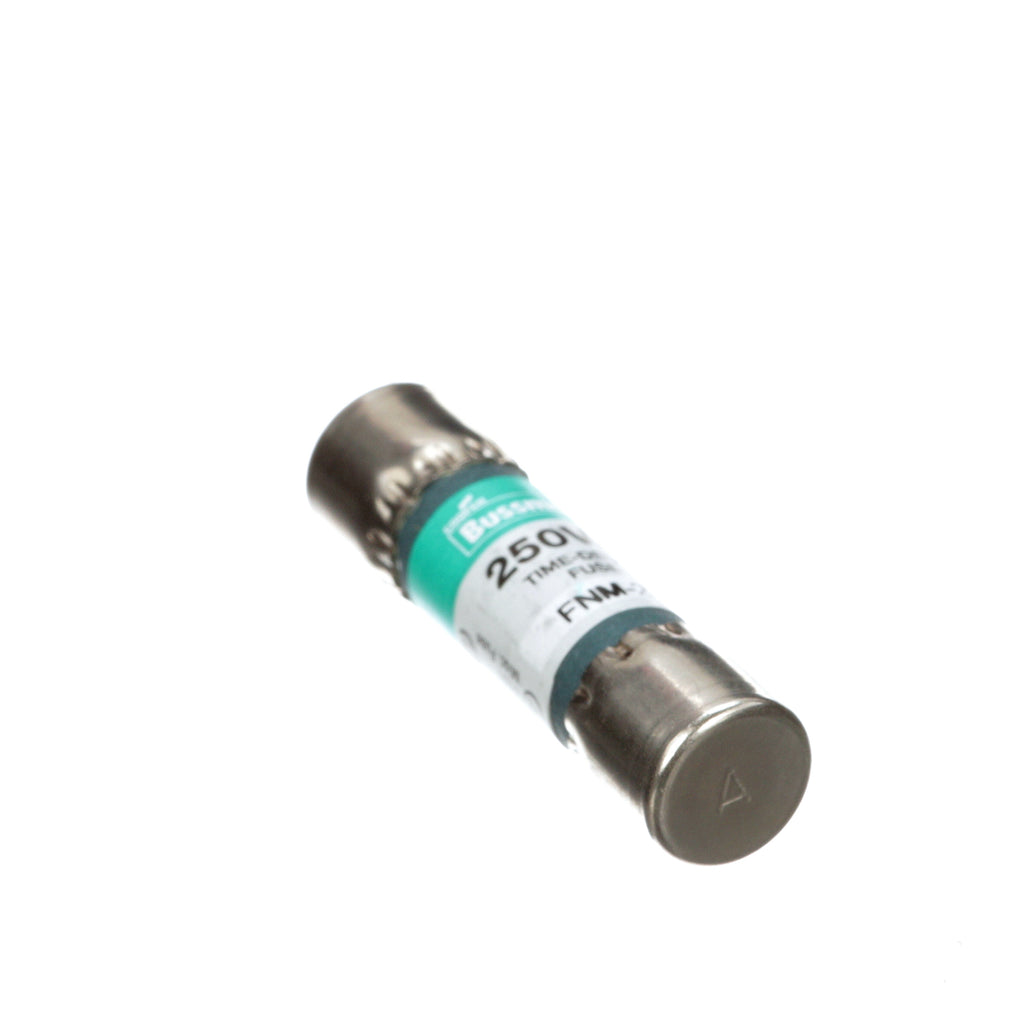

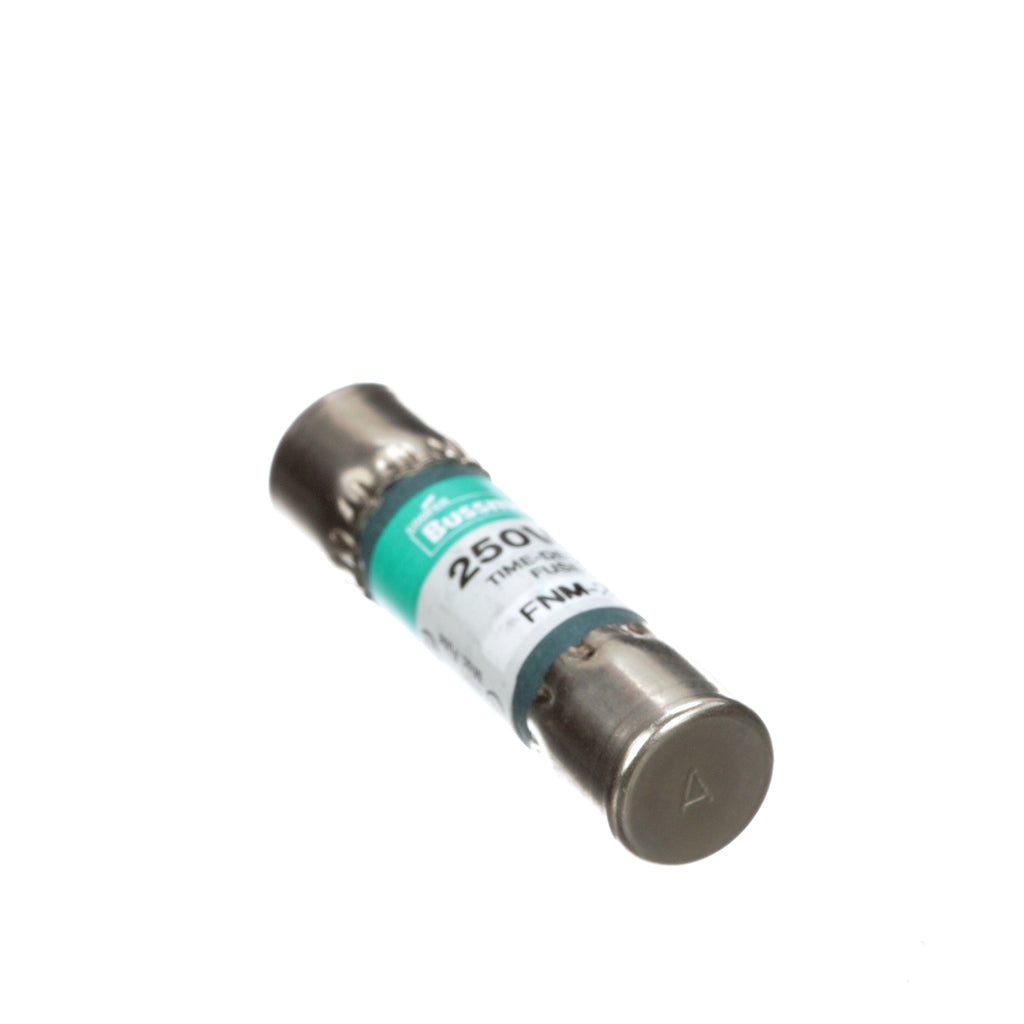

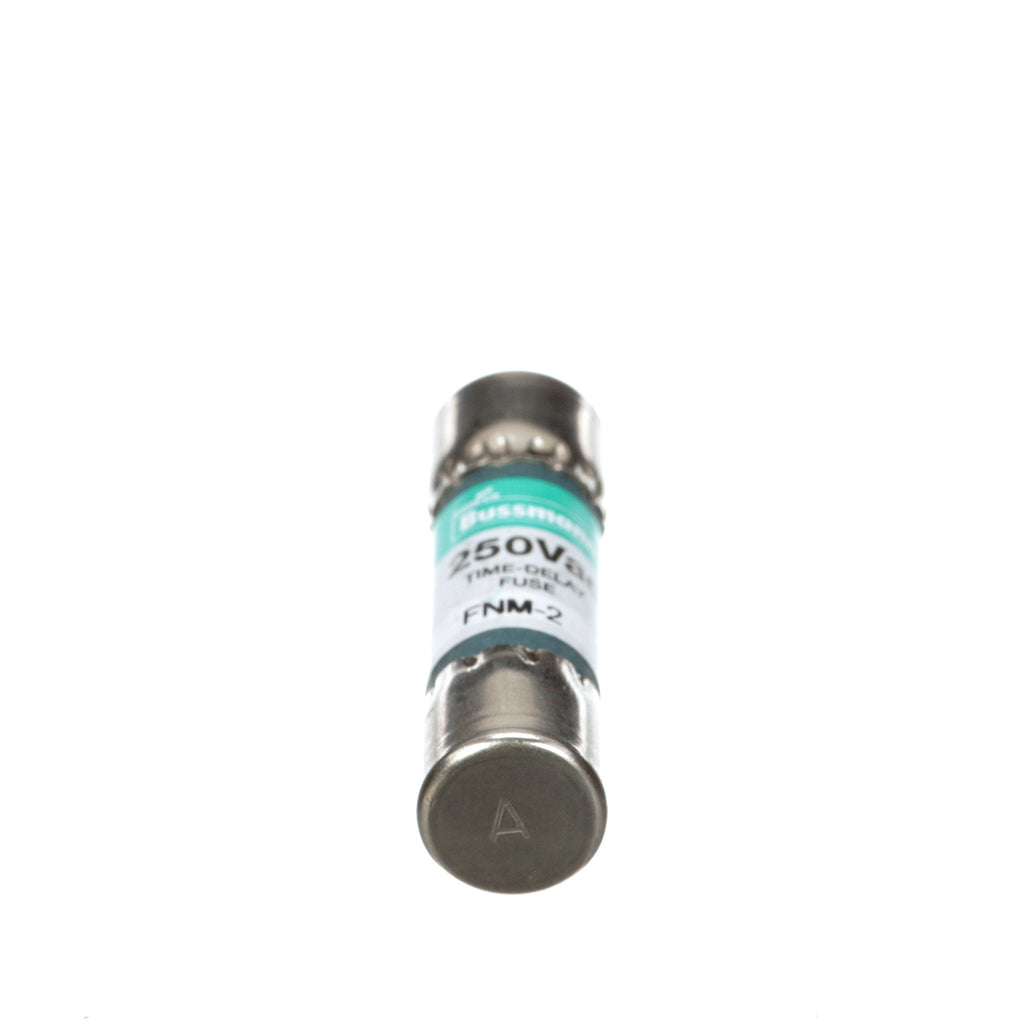

FNM-2 is a 2 amp, 250 volt time-delay midget fuse from Eaton Bussmann designed for low voltage supplemental protection.This fuse features a 1-pole, dual element construction with a fiber tube body, measuring 13/32 inch diameter by 1-1/2 inch length. It has an interrupting rating of 100 amperes at 250 VAC and 10,000 amperes at 125 VAC, suitable for protecting circuits against overloads and short circuits. The FNM-2 complies with UL 248-14, CSA Class 1422-01, and CE standards, ensuring reliable and certified performance.
- Key Specifications
- Amperage: 2 Amps
- Voltage Rating: 250 VAC
- Poles: 1
- Fuse Type: Time-Delay Midget Supplemental Fuse
- Interrupting Rating: 100A @ 250 VAC, 10,000A @ 125 VAC
- Dimensions: 13/32 inch diameter x 1-1/2 inch length
- Construction: Fiber Tube
- Certifications: UL Listed, CSA Certified, CE Compliant
- Series: FNM
- Mounting Type: Ferrule Terminal
Specifications
- Part Number: FNM-2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNM Series
- Type : FNM
- Voltage : 250
- Amperage : 2
- AIC rating : 100kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : 1422-01
- Barrels : 1
Product Data
- UPC : 051712520201
- GTIN : 00051712520201
- Country of Origin : Mexico
- Dimensions : 0.39 in x 1.44 in x 0.39 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
