Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNM-15/100

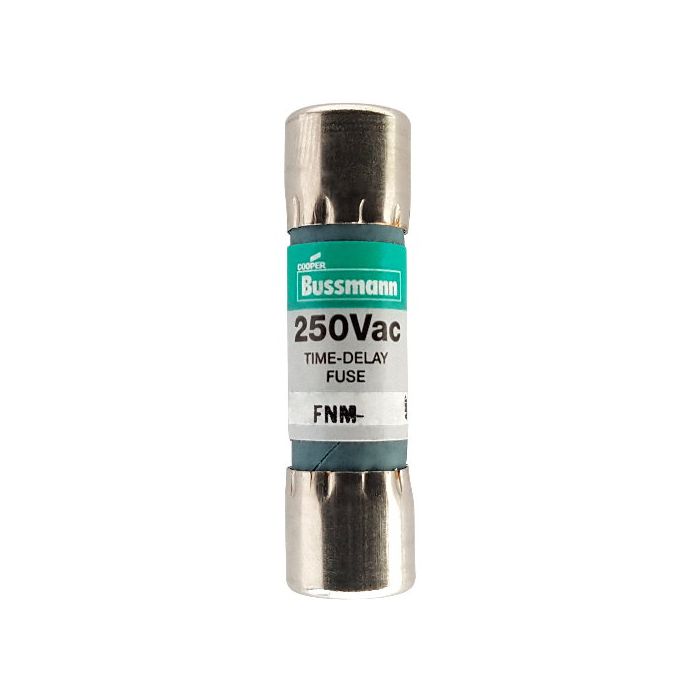

FNM-15/100 is a 15 amp, 250 volt time-delay midget fuse from Eaton Bussmann designed for supplemental circuit protection.This fuse features a dual element time-delay design suitable for protecting motors and other circuits with temporary overloads. It has a cylindrical body type with ferrule ends, a 10kA interrupt rating at 250VAC, and is UL Listed and CSA Certified. The fuse size is 5AG midget (13/32 x 1-1/2 inch), making it compatible with standard fuse holders.
- Amperage: 15A
- Voltage Rating: 250VAC
- Fuse Size: 5AG Midget (13/32 x 1-1/2 inch)
- Time-Delay, Dual Element
- Interrupt Rating: 10,000 AIC
- Body Type: Cylindrical
- End Type: Ferrule x Ferrule
- UL Listed (Std. 248-14)
- CSA Certified
- RoHS Compliant
- Supplemental Fuse Class
Specifications
- Part Number: FNM-15/100
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNM Series
- Type : FNM
- Voltage : 250
- Amperage : 15
- AIC rating : 35kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : 1422-01
- Barrels : 1
Product Data
- UPC : 051712520010
- GTIN : 00051712520010
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
