Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNM-10

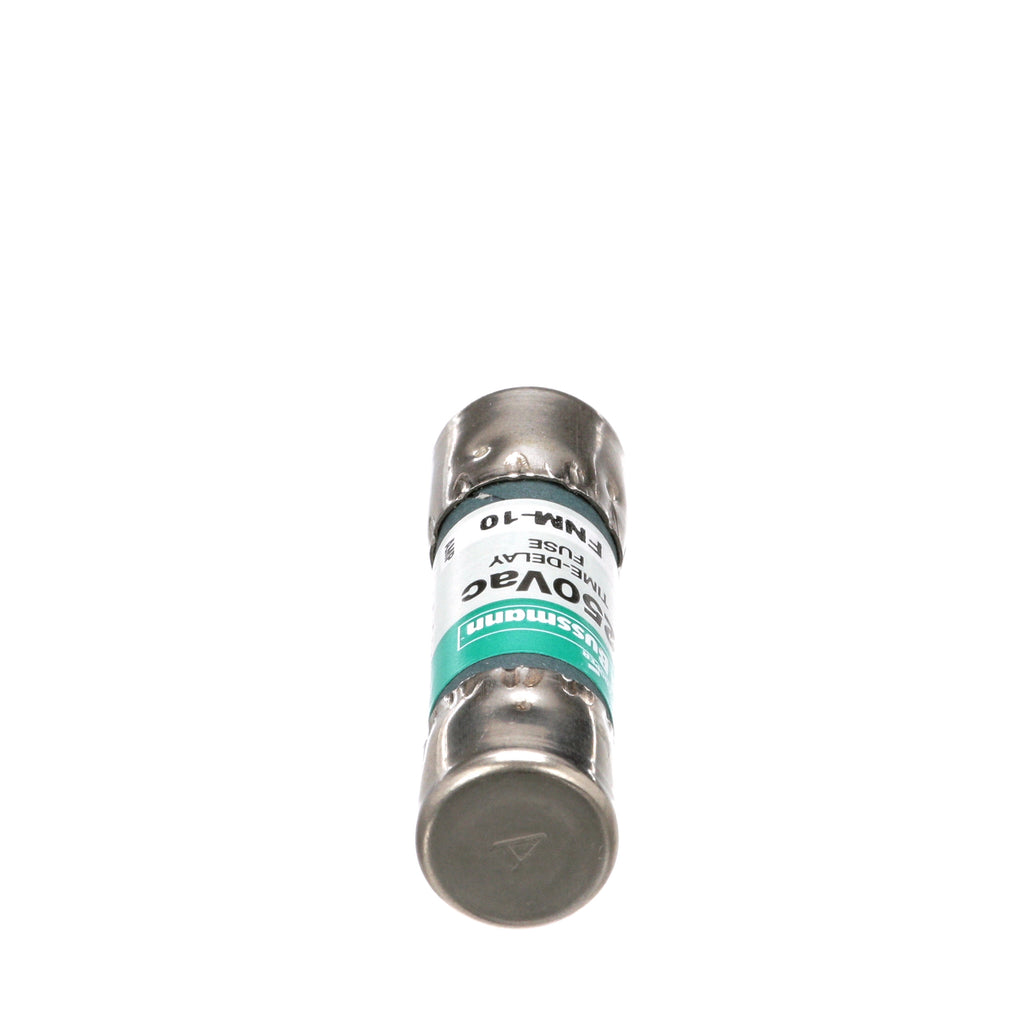

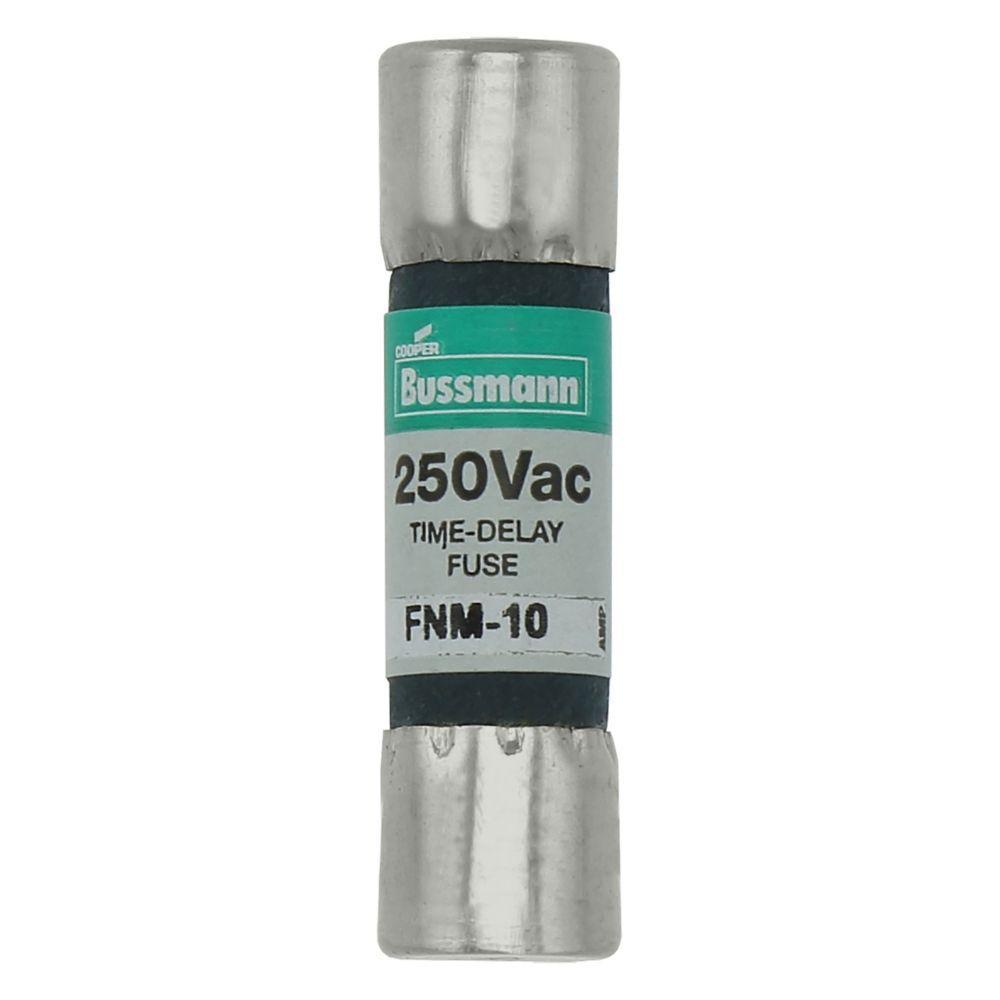

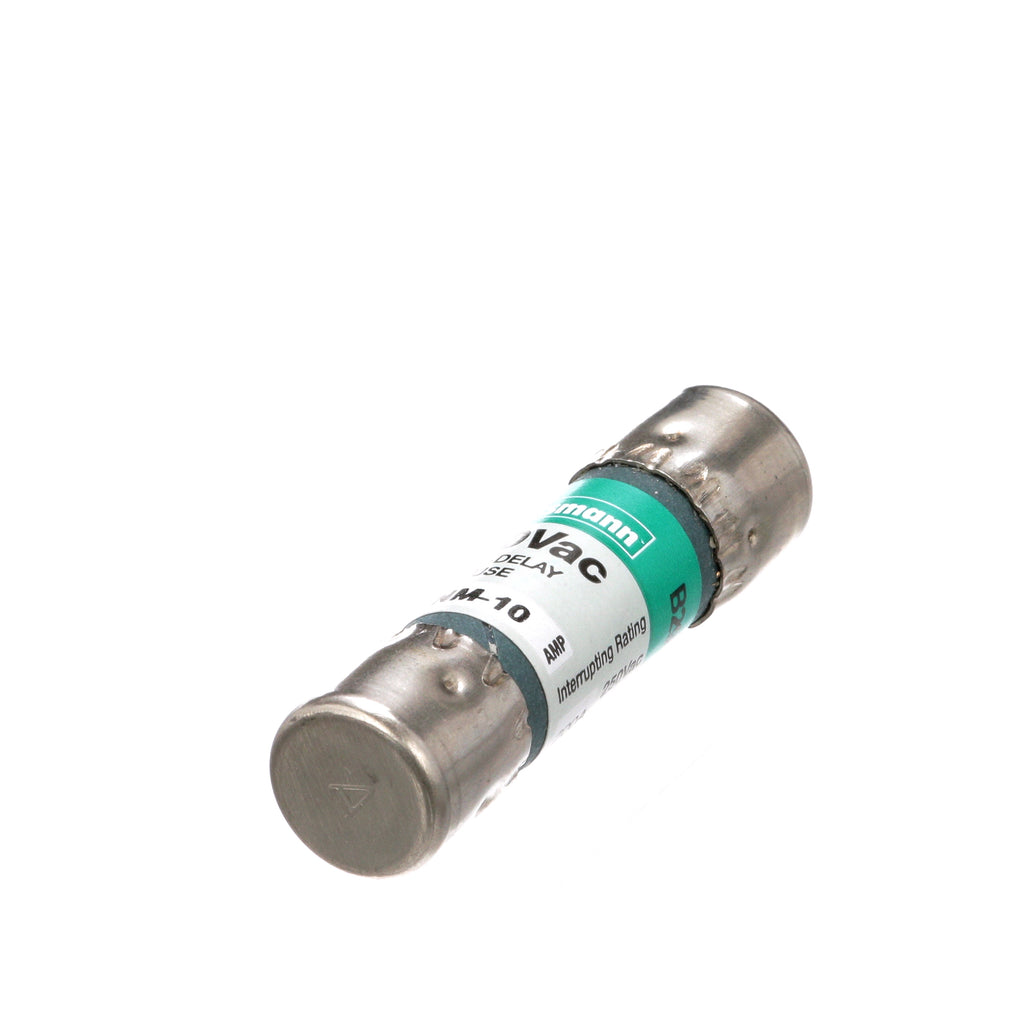

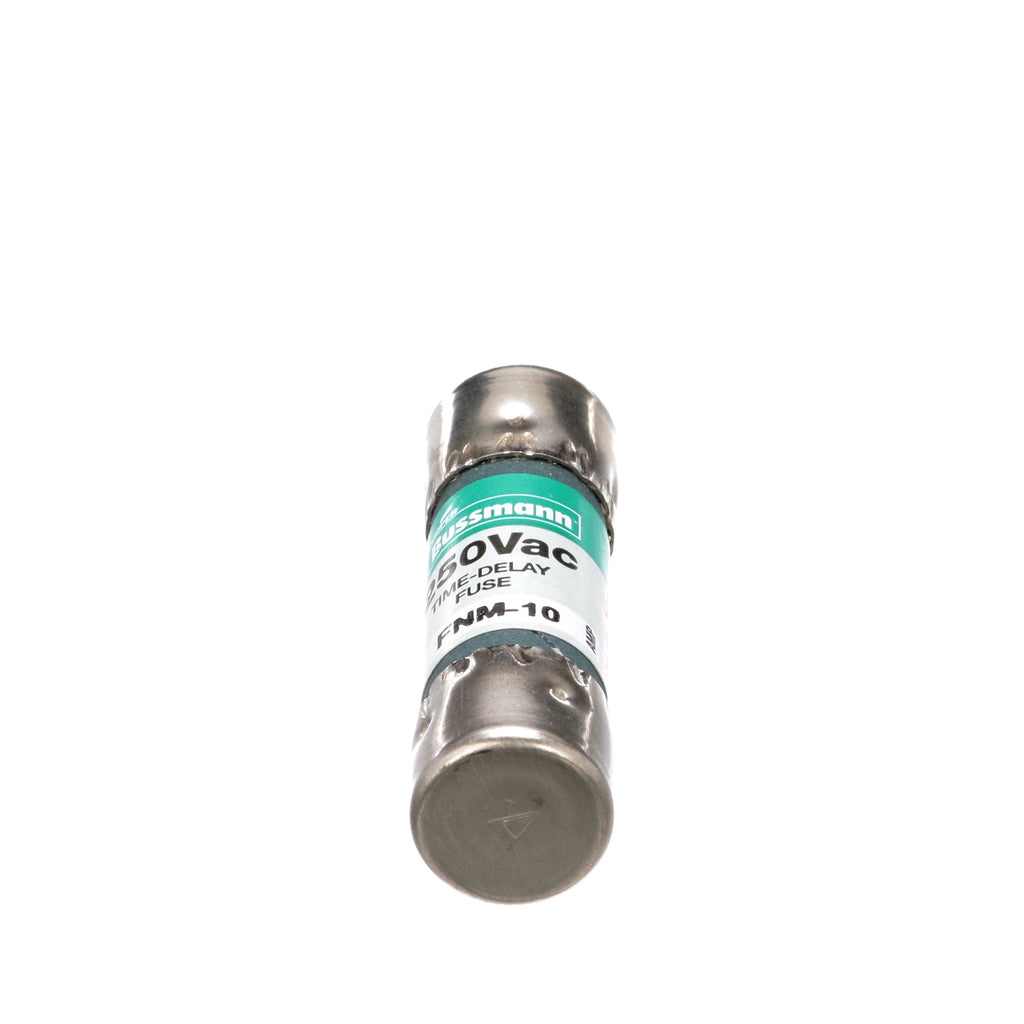

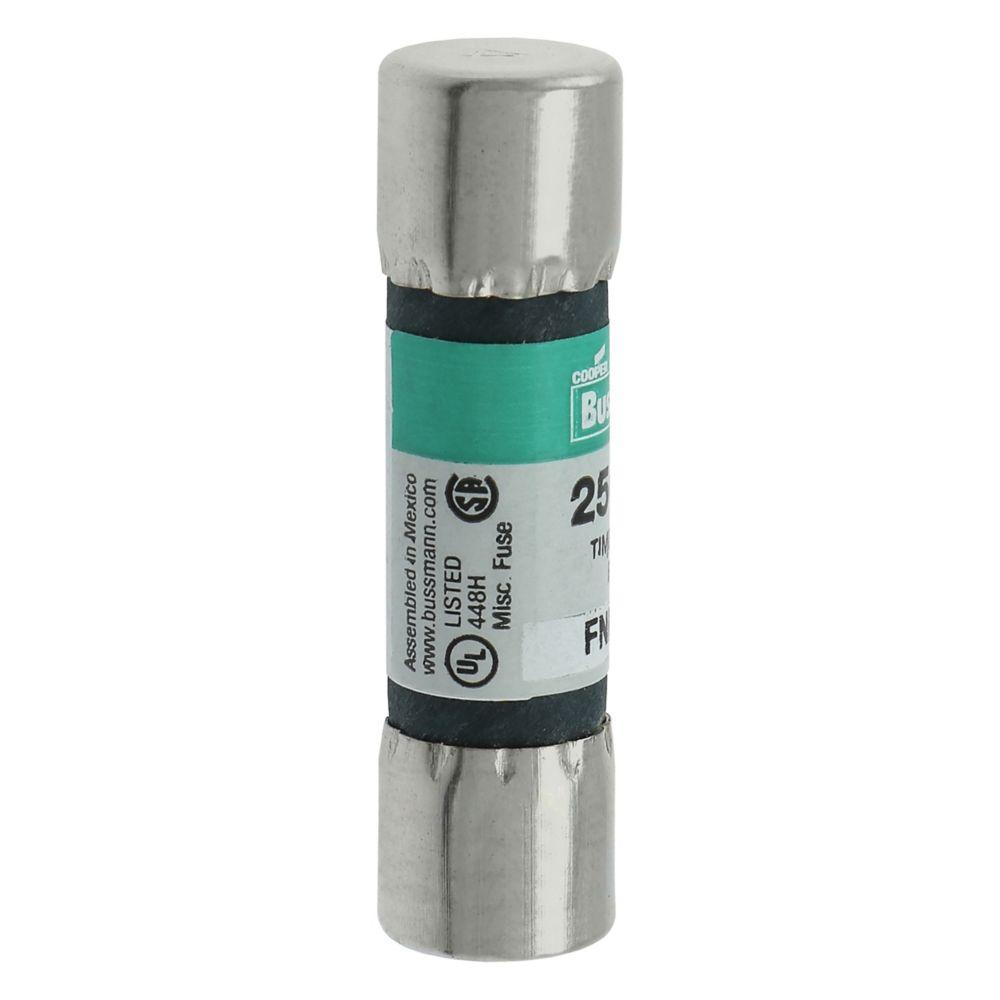

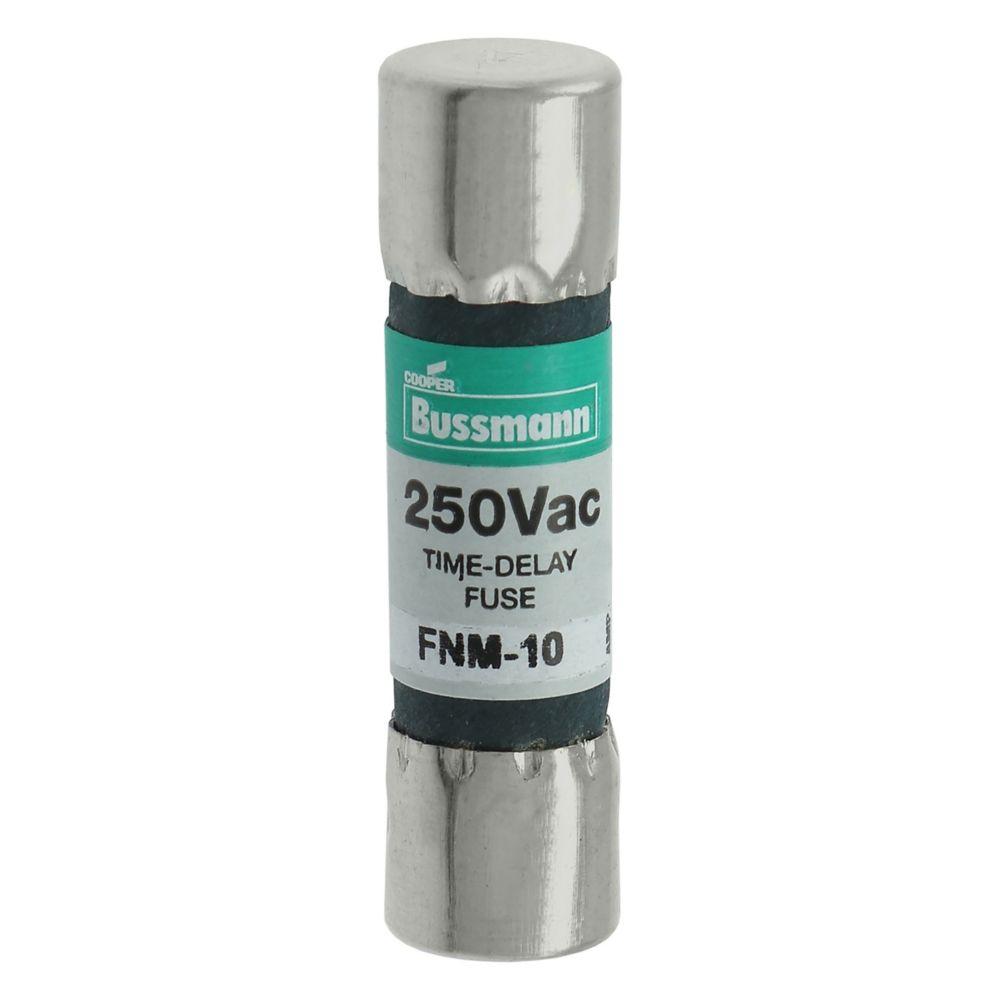

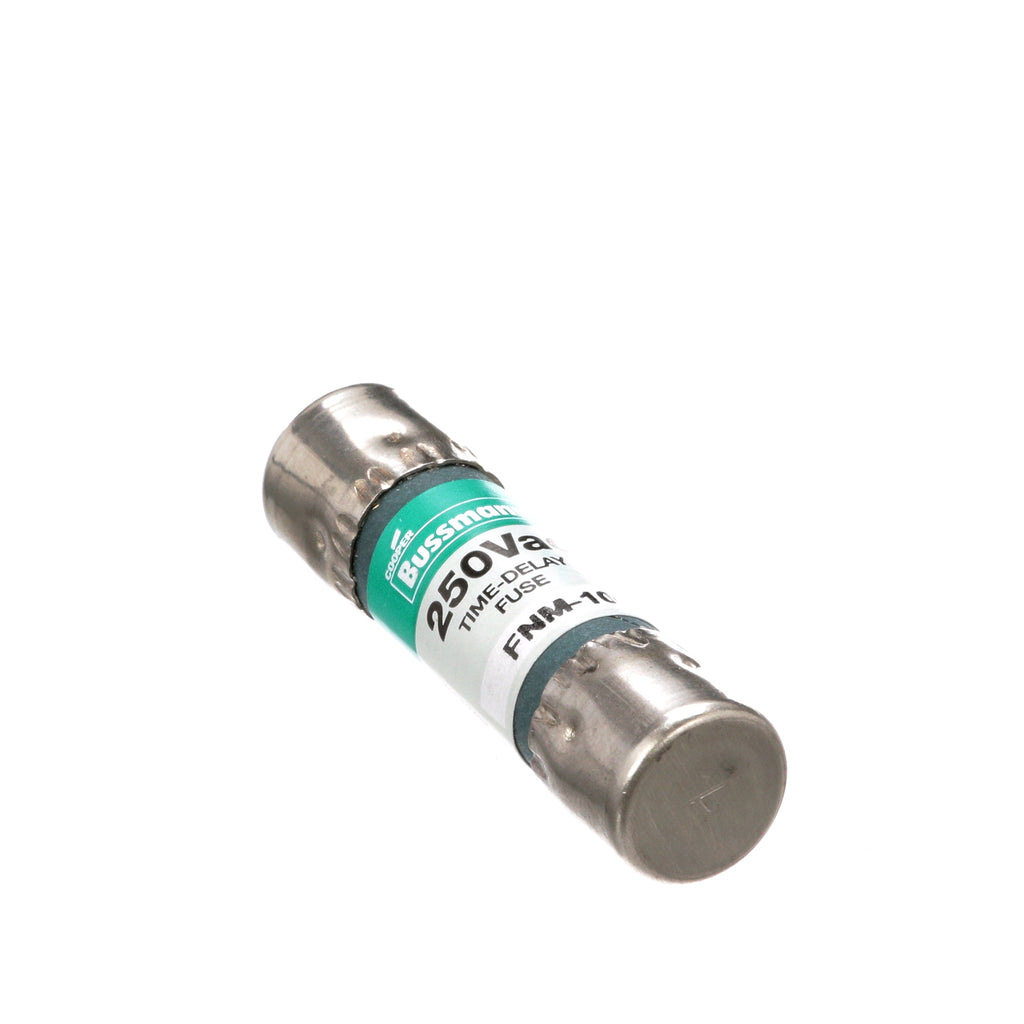

FNM-10 is a Bussmann Eaton time delay midget fuse rated for 10 amps and 250 volts AC. It provides reliable circuit protection in compact form.
This fuse features a dual element time-delay design suitable for supplemental protection in industrial and electrical applications. It measures 13/32 inch diameter by 1 1/2 inch length, with an interrupting rating of 35 amps at 250 VAC and 10,000 amps at 125 VAC. The FNM-10 is UL listed and CSA certified, meeting industry safety standards.
- Key Specifications
- Amperage: 10 A
- Voltage Rating: 250 VAC
- Fuse Type: Time Delay (Slow Blow)
- Physical Size: 13/32 in diameter x 1 1/2 in length

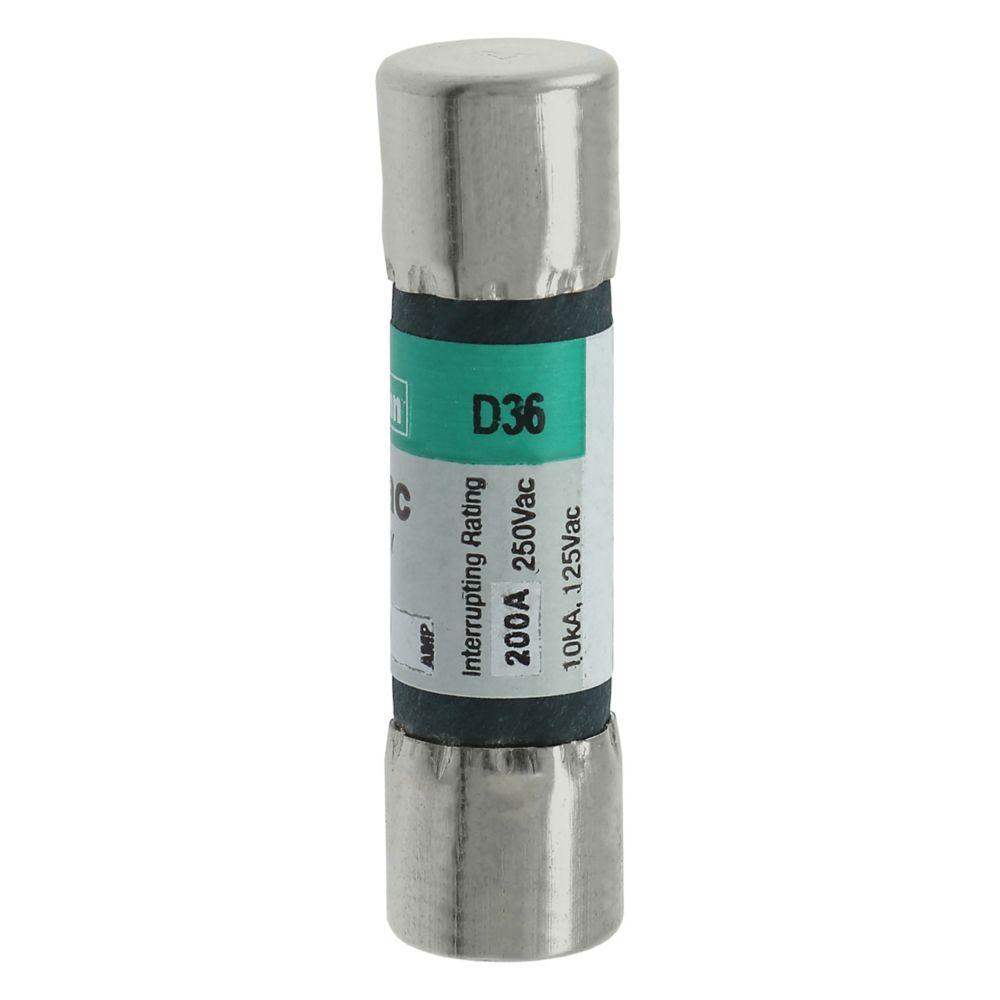

- Interrupt Rating: 35 A at 250 VAC, 10 kA at 125 VAC
- Mounting Type: Midget Fuse Holder
- Agency Certifications: UL Listed, CSA Certified
- Series: FNM
- Dual Element Design
- Non-Indicating
- Part Number: FNM-10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNM Series
- Type : FNM
- Voltage : 250
- Amperage : 10
- AIC rating : 200kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : 1422-01
- Barrels : 1
- UPC : 051712521000
- GTIN : 00051712521000
- Country of Origin : Mexico
- Dimensions : 0.39 in x 1.44 in x 0.39 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
