Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNM-1

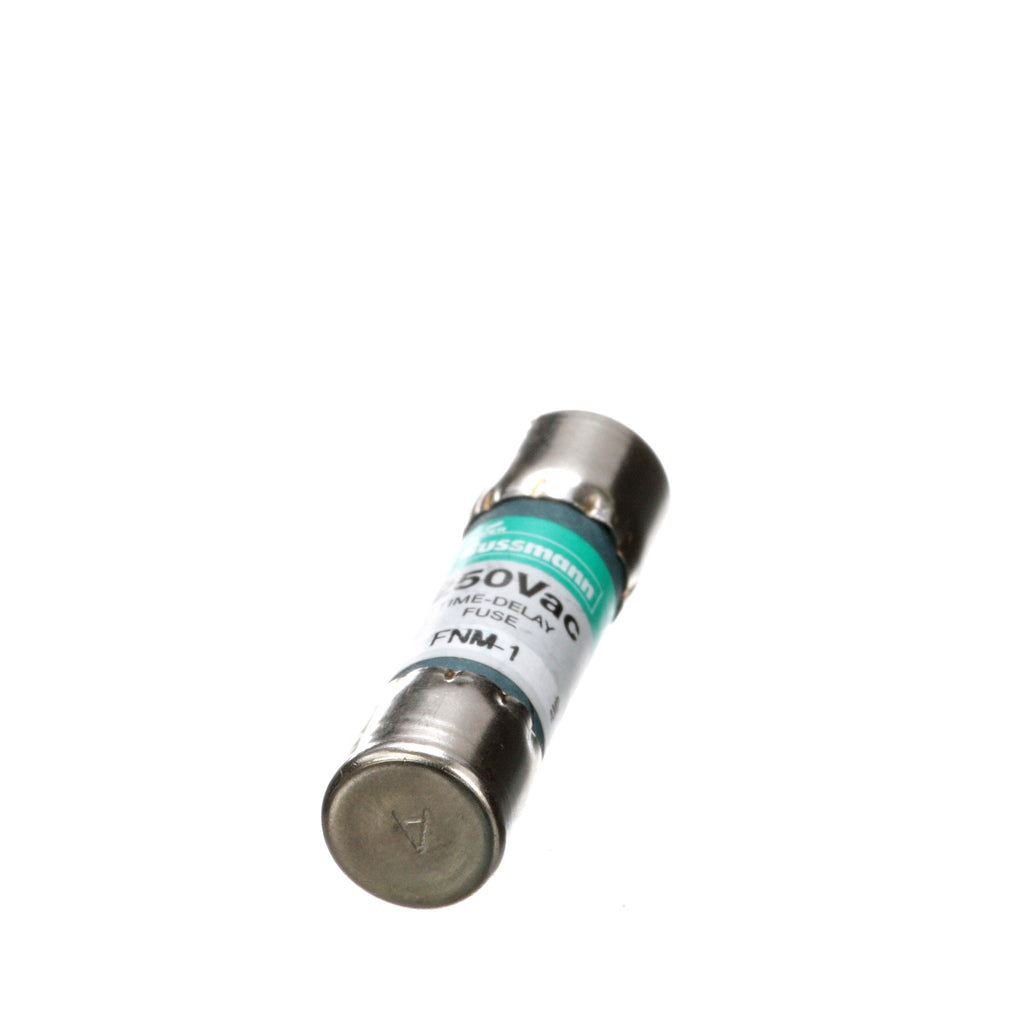

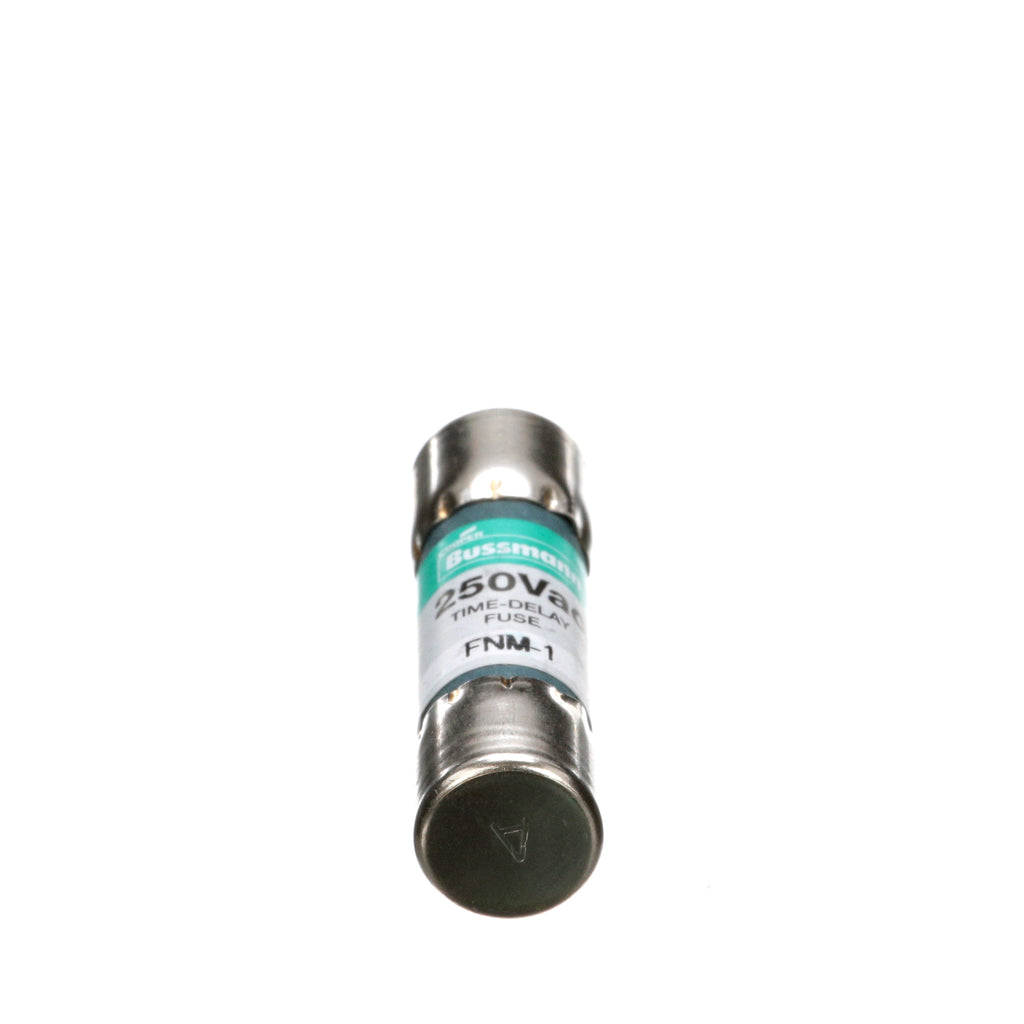

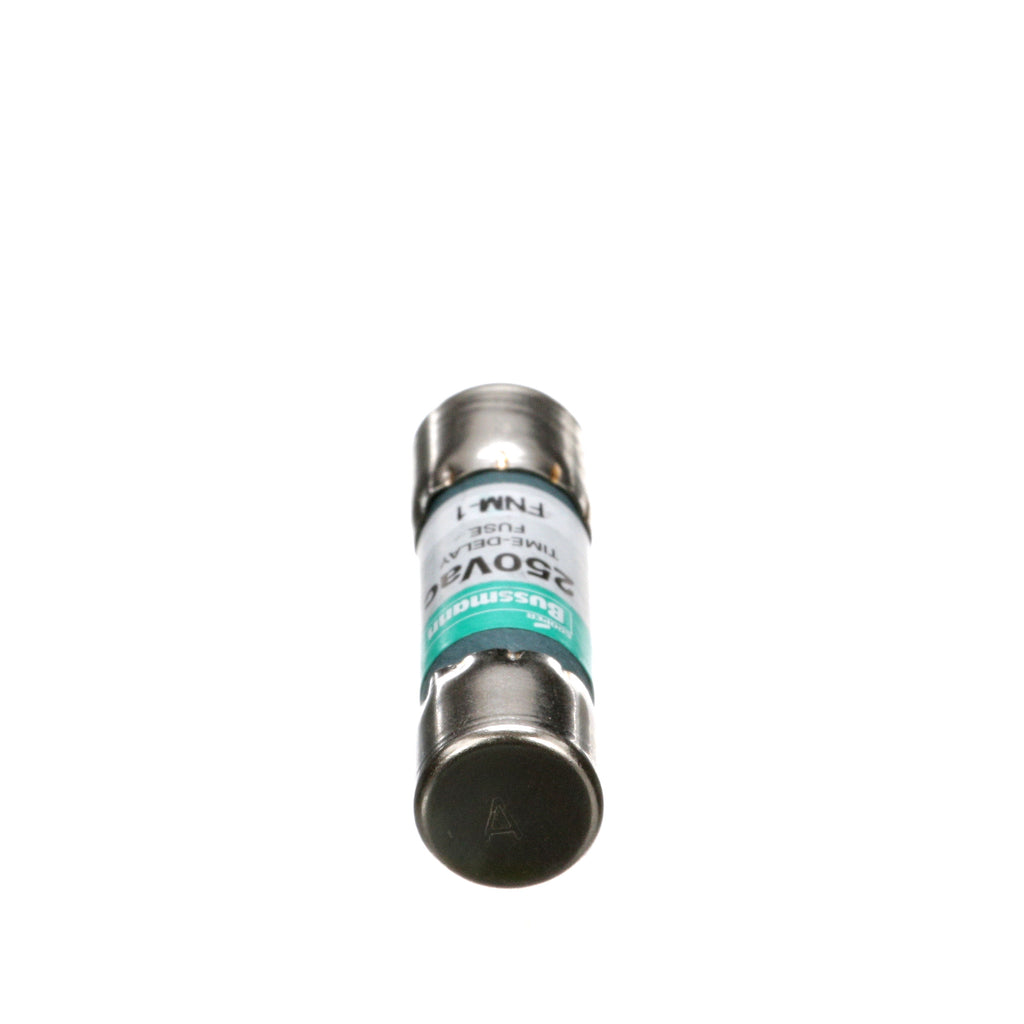

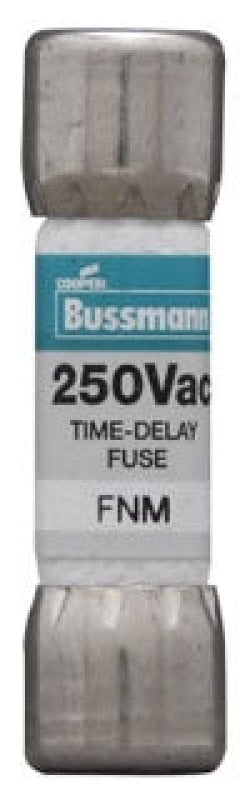

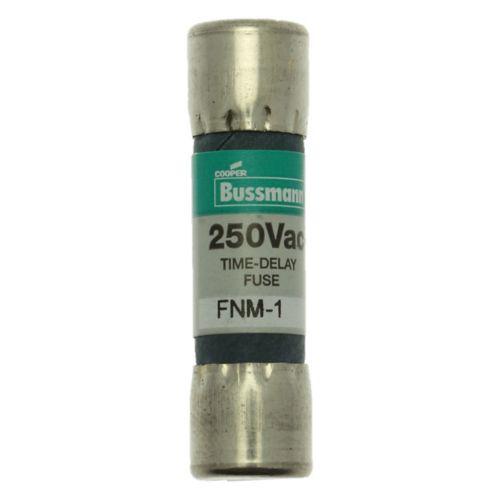

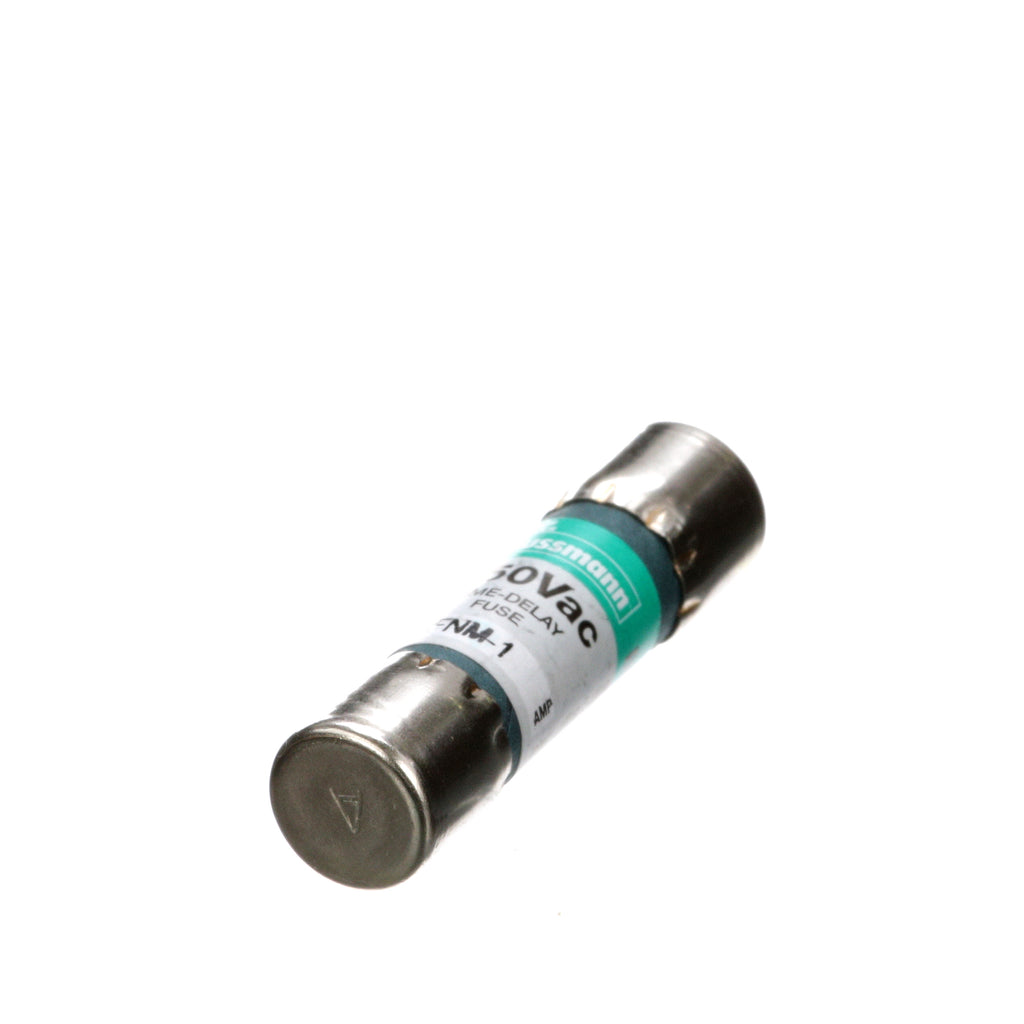

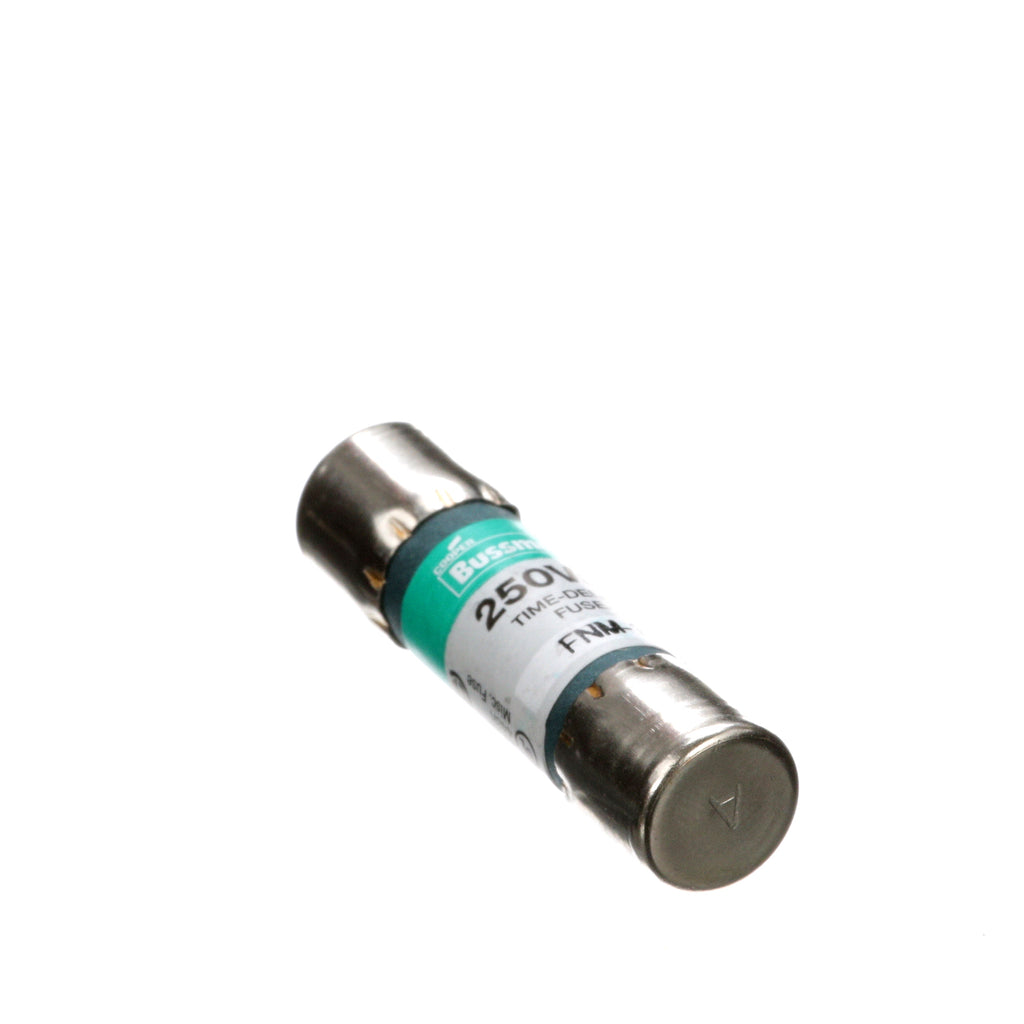

FNM-1 is a 1 Amp, 250 VAC time-delay midget fuse from Eaton Bussmann designed for supplemental circuit protection.FNM-1 features a cylindrical fiber tube body measuring 13/32 inch diameter by 1-1/2 inch length, with a dual element for time-delay operation. It has a 35 Amp interrupt rating at 250 VAC and 10,000 Amp interrupt rating at 125 VAC, suitable for Class CC supplemental fuse applications. This fuse is non-indicating and non-rejection type, with ferrule terminal ends for holder mounting. It is UL listed, CSA certified, RoHS compliant, and meets Class 1422-01 standards.
- Key Specifications
- Amperage: 1 Amp
- Voltage Rating: 250 VAC
- Fuse Type: Time-Delay Midget
- Interrupt Rating: 35 A at 250 VAC, 10 kA at 125 VAC
- Dimensions: 13/32 inch diameter x 1-1/2 inch length
- Mounting Type: Ferrule terminal, holder mount
- Class: CC Supplemental Fuse
- Non-indicating, Non-rejection
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Series: FNM
Specifications
- Part Number: FNM-1
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNM Series
- Type : FNM
- Voltage : 250
- Amperage : 1
- AIC rating : 35kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : 1422-01
- Barrels : 1
Product Data
- UPC : 051712520102
- GTIN : 00051712520102
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
