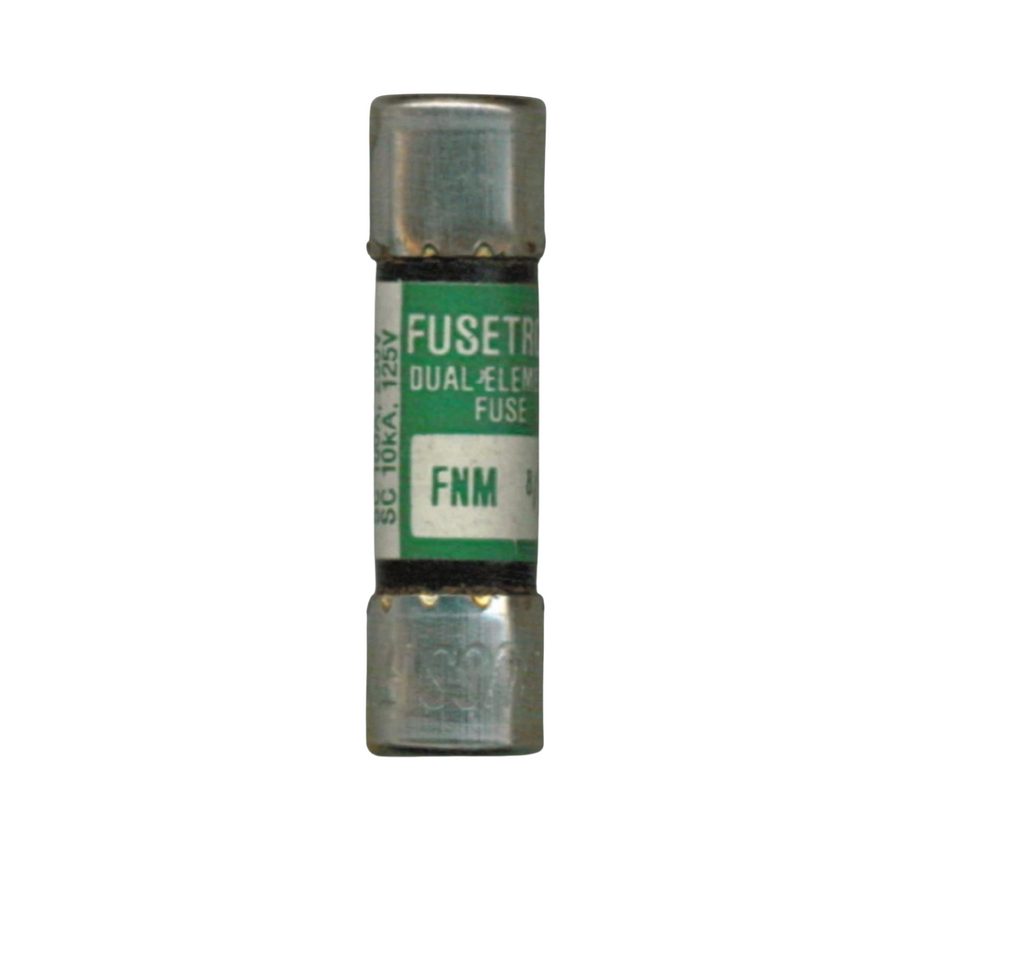

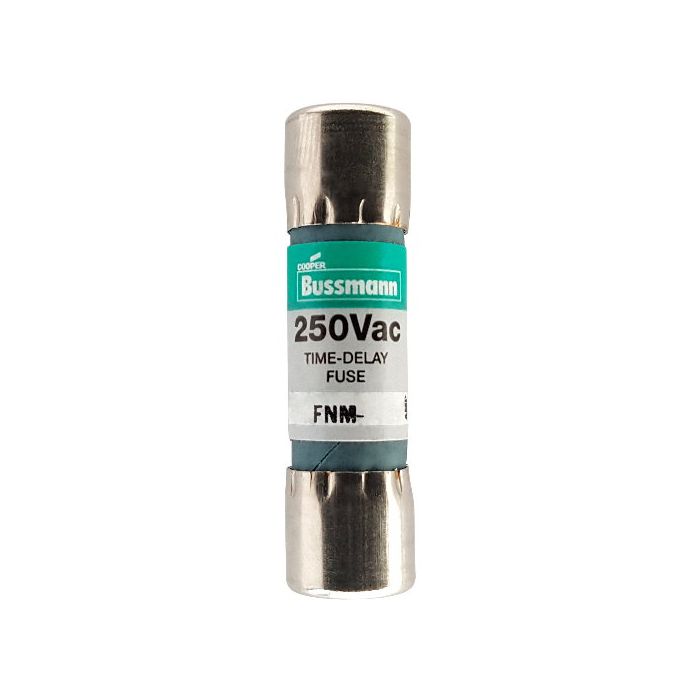

FNM-1/8 - Eaton Bussmann 1.8A 250VAC Time-Delay Fuse Dual Ferrule End 100AIC

FNM-1/8

FNM-1/8 is a time-delay supplemental fuse from Eaton Bussmann designed for reliable circuit protection.This 1.8 amp fuse features a 250 VAC voltage rating, dual ferrule end construction, and a 100 amp interrupting rating (AIC). It is a non-indicating, dual-element fuse suitable for protecting motors and circuits requiring time-delay characteristics. The fuse complies with UL 248-14 and CSA Class 1422-01 standards and is RoHS compliant.

Key Specifications
• Amperage: 1.8 A
• Voltage Rating: 250 VAC
• Interrupting Rating: 100 AIC
• Fuse Type: Time-Delay Supplemental
• Body Type: Dual Ferrule End
• Agency Approvals: UL Listed, CSA Certified, RoHS Compliant
• Non-Indicating
• Series: Bussmann FNM
• Mounting: Ferrule End

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNM-1/8
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNM Series
• Type : FNM
• Voltage : 250
• Amperage : 1
• AIC rating : 35kA@250V
• Connection : Ferrule Non-Rejection
• Diameter : 0.41
• Class Rating : 1422-01
• Barrels : 1

Product Data

• UPC : 051712150569
• GTIN : 00051712150569
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.2
