Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

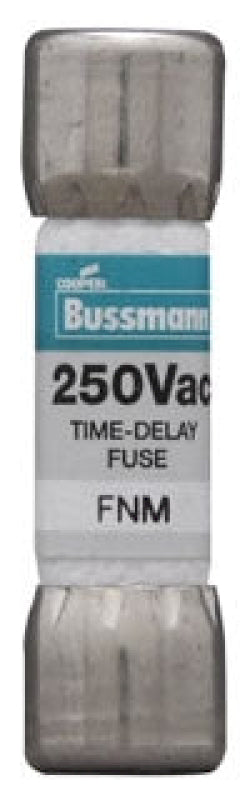

FNM-1/2
FNM-1/2 is an Eaton Bussmann series time-delay midget fuse rated at 0.5 amperes and 250 volts for reliable circuit protection.This fuse features a dual element design with time-delay characteristics, non-indicating ferrule end connections, and a high interrupt rating of 35 AIC at 250 VAC and 10 kAIC at 125 VAC. It complies with UL and CSA certifications and is CE marked for safety and performance.
- Amperage: 0.5 A
- Voltage Rating: 250 VAC
- Time-Delay Dual Element
- Interrupt Rating: 35 AIC at 250 VAC, 10 kAIC at 125 VAC
- Non-indicating
- Ferrule end x ferrule end connection
- Midget size
- UL Listed and CSA Certified
- CE Marked
- Nickel-plated bronze endcaps
Specifications
- Part Number: FNM-1/2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNM Series
- Type : FNM
- Voltage : 250
- Amperage : 1
- AIC rating : 35kA@250V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : 1422-01
- Barrels : 1
Product Data
- UPC : 051712520058
- GTIN : 00051712520058
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
