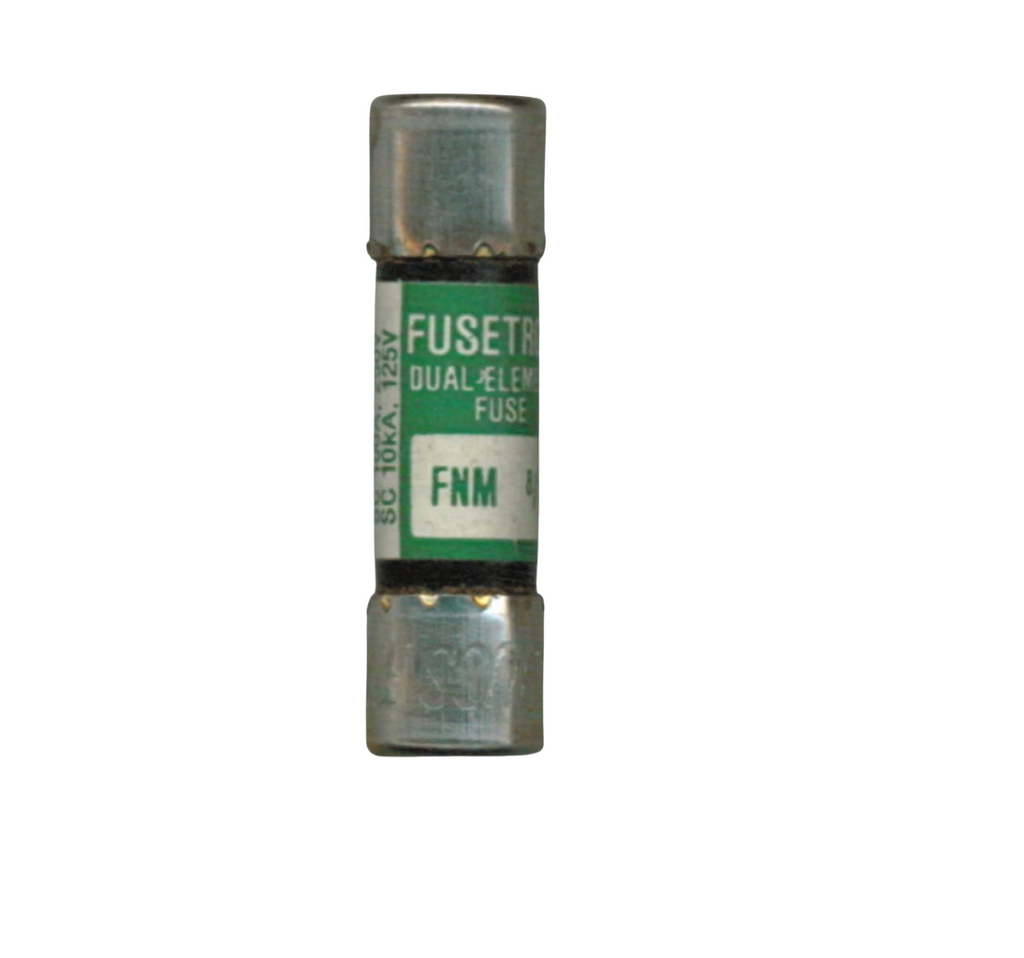

FNM-1/10 - Bussmann Eaton 1/10 Amp 250 Volt AC Time-Delay Midget Fuse Class 5AG/AB

FNM-1/10

FNM-1/10 is a Bussmann Eaton time-delay midget fuse rated for 1/10 amp and 250 volts AC, designed for supplemental circuit protection.This fuse features a dual-element, non-rejection design suitable for protecting sensitive equipment with a 35 amp interrupt rating at 250 VAC and 10 kA at 125 VAC. It complies with UL 248-14 and CSA Class 1422-01 standards and is RoHS compliant. The fuse has a ferrule terminal connection and is color-coded green for easy identification.

• Amperage: 1/10 Amp
• Voltage Rating: 250 VAC
• Fuse Type: Time-Delay (Dual Element)
• Class: 5AG/AB Supplemental Fuse
• Interrupt Rating: 35 A at 250 VAC, 10 kA at 125 VAC
• Terminal Connection: Ferrule
• Color Code: Green
• Certifications: UL Listed, CSA Certified, RoHS Compliant
• Mounting Type: Midget (13/32 in x 1 1/2 in)
• Non-Rejection Design

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNM-1/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNM Series
• Type : FNM
• Voltage : 250
• Amperage : 1
• AIC rating : 35kA@250V
• Connection : Ferrule Non-Rejection
• Diameter : 0.41
• Class Rating : 1422-01
• Barrels : 1

Product Data

• UPC : 051712520003
• GTIN : 00051712520003
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.2
• Certification : CE, CSA Class 1422-01, UL-248-14 Guide JDYX
