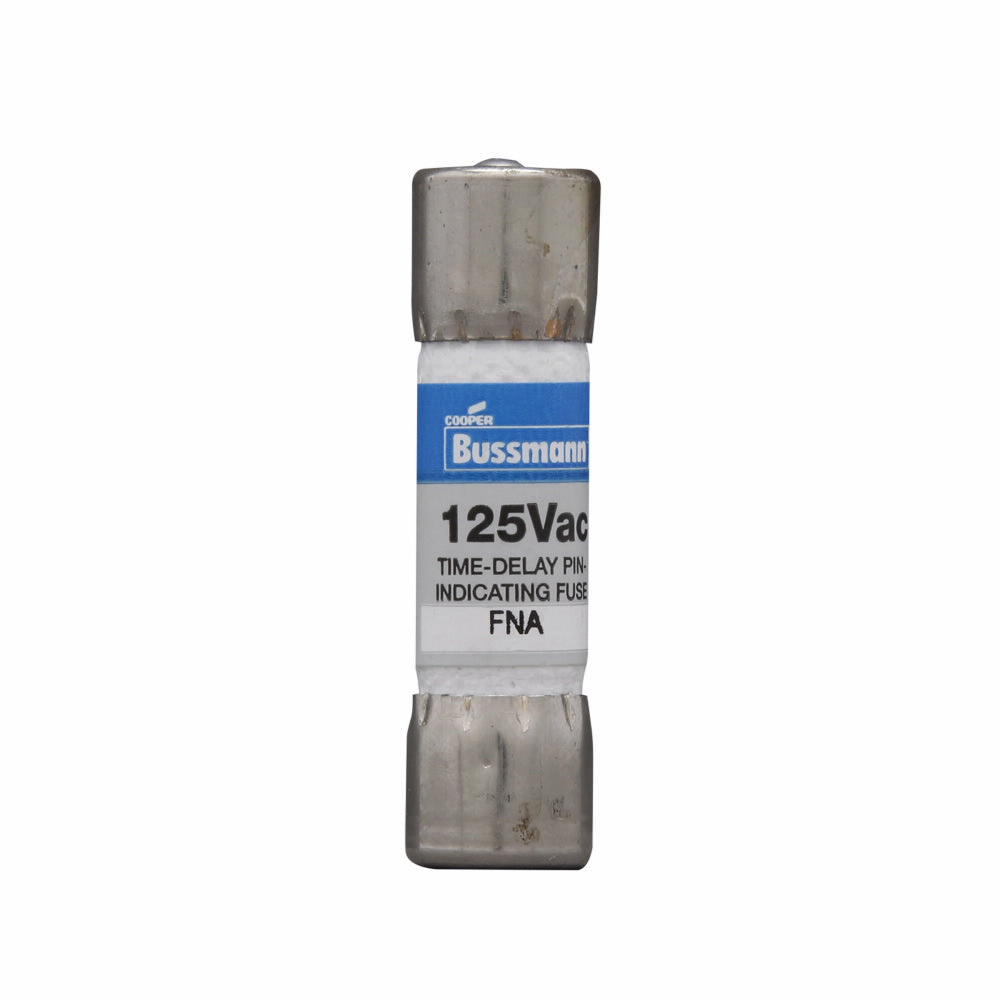

FNA-9 - Eaton Bussmann FNA Series 9A 125V Time-Delay Low Voltage Fuse with Pin Indicator and 10kA Interrupt Rating

FNA-9

FNA-9 is a Bussmann FNA Series time-delay low voltage fuse designed for reliable circuit protection in a variety of electrical applications. This fuse features a 9A current rating and a 125V AC voltage rating, making it suitable for use in supplemental protection circuits. The FNA-9 is a single-barrel fuse with a pin indicating feature for easy status identification and is constructed with a time-delay characteristic to withstand temporary current surges. It is commonly used in industrial, commercial, and electronic circuits where dependable protection is required. The FNA-9 fuse is part of the Eaton Bussmann FNA series, known for its robust construction and high interrupting capacity. It is designed for use in fuse holders and panels that accept the standard 1.5-inch length and 0.406-inch diameter. The fuse is rated for an interrupting capacity of 10,000 amps at 125V AC, ensuring safe operation under fault conditions. This fuse is suitable for both inductive and electronic load circuits and is UL and CSA listed for safety compliance.

• Part Number: FNA-9
• Manufacturer: Eaton Bussmann
• Series: FNA Series
• Amperage: 9A
• Voltage: 125V AC
• Fuse Type: Time-Delay (Slow Blow)
• Interrupt Rating: 10kA at 125V AC
• Indicator: Pin Indicating
• Mounting Type: Barrel (Ferrule End)
• Length: 1.5 inches
• Diameter: 0.406 inches
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNA-9
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNA Series
• Type : FNA
• Voltage : 125
• Amperage : 9
• AIC rating : 10kA@125V
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1

Product Data

• UPC : 051712713740
• GTIN : 00051712713740
• Country of Origin : Mexico
• Dimensions : 0.37 in x 1.46 in x 0.37 in (Length/Depth x Height x Width)
• Weight : 0.1
• Certification : CE, CSA Class 1422-01, UL-248-12 Guide JDYX
