- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNA-8

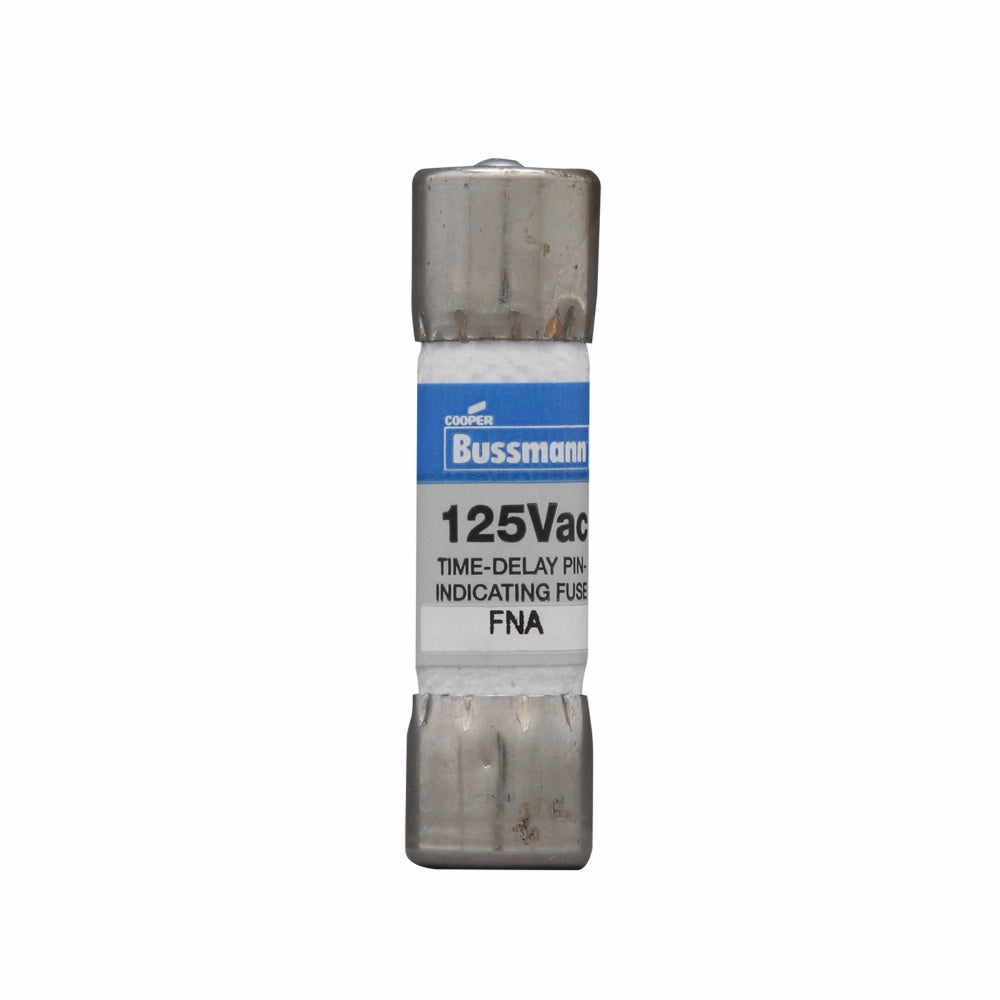

FNA-8 is a dual element, time-delay, pin indicating supplemental fuse from Eaton Bussmann, designed for reliable circuit protection in electronic and inductive load applications.
This midget fuse features a silver-plated ferrule end connection, non-indicating design, and superior overload and cycling capabilities. It is color-coded blue for easy identification and is part of the FNA series, known for its robust performance in demanding environments.
-
Key Specifications
- Part Number: FNA-8
- Manufacturer: Eaton Bussmann
- Amperage: 8A
- Voltage: 125V
- Poles: Not applicable (fuse)
- Mounting Type: Ferrule end x ferrule end
- Interrupt Rating: 10 kAIC at 125V
- Series/Frame: FNA Series
- Trip Unit: Dual element, time-delay
- Certifications: CE Marked
- Connection: Silver-plated pin
- Fuse Indicator: Non-indicating
- Packaging: Standard
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FNA-8
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNA Series
- Type : FNA
- Voltage : 125
- Amperage : 8
- AIC rating : 10kA@125V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 051712713634
- GTIN : 00051712713634
- Country of Origin : Mexico
- Dimensions : 0.37 in x 1.46 in x 0.37 in (Length/Depth x Height x Width)
- Weight : 0.1
- Certification : CE, CSA Class 1422-01, UL-248-12 Guide JDYX
