Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

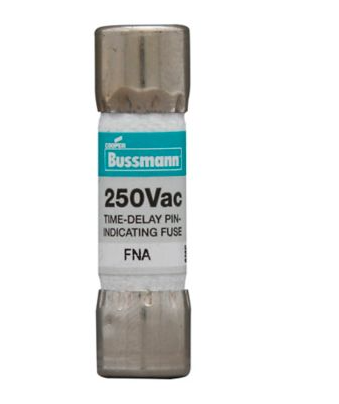

FNA-6/10
FNA-6/10 is a 0.6 amp, 125 volt midget time delay fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a dual element time delay design with pin indicating status, a cylindrical cartridge body, and a non-rejection ferrule terminal type. It is rated for 125 volts AC with an interrupt rating typically around 10kA at 125V AC, suitable for low voltage supplemental protection applications. The FNA series is known for its dependable performance in protecting sensitive electronic and electrical equipment.
- Key Specifications
- Amperage: 0.6 A
- Voltage Rating: 125 V AC
- Fuse Type: Midget Time Delay
- Series: FNA
- Body Style: Cylindrical Cartridge
- Terminal Type: Ferrule
- Pin Indicating: Yes
- Interrupt Rating: 10,000 A at 125 V AC
- Non-Rejection Type
- Manufacturer: Eaton Bussmann
Specifications
- Part Number: FNA-6/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNA Series
- Type : FNA
- Voltage : 250
- Amperage : 6
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 05171271341
- GTIN : 00051712713412
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 1.5
- Certification : CE, CSA Class 1422-01, UL-248-12 Guide JDYX
