FNA-5 - Eaton 5 Amp 125 Vac Time Delay Fuse Dual Element Pin Indicating 10kA Interrupt Rating

FNA-5

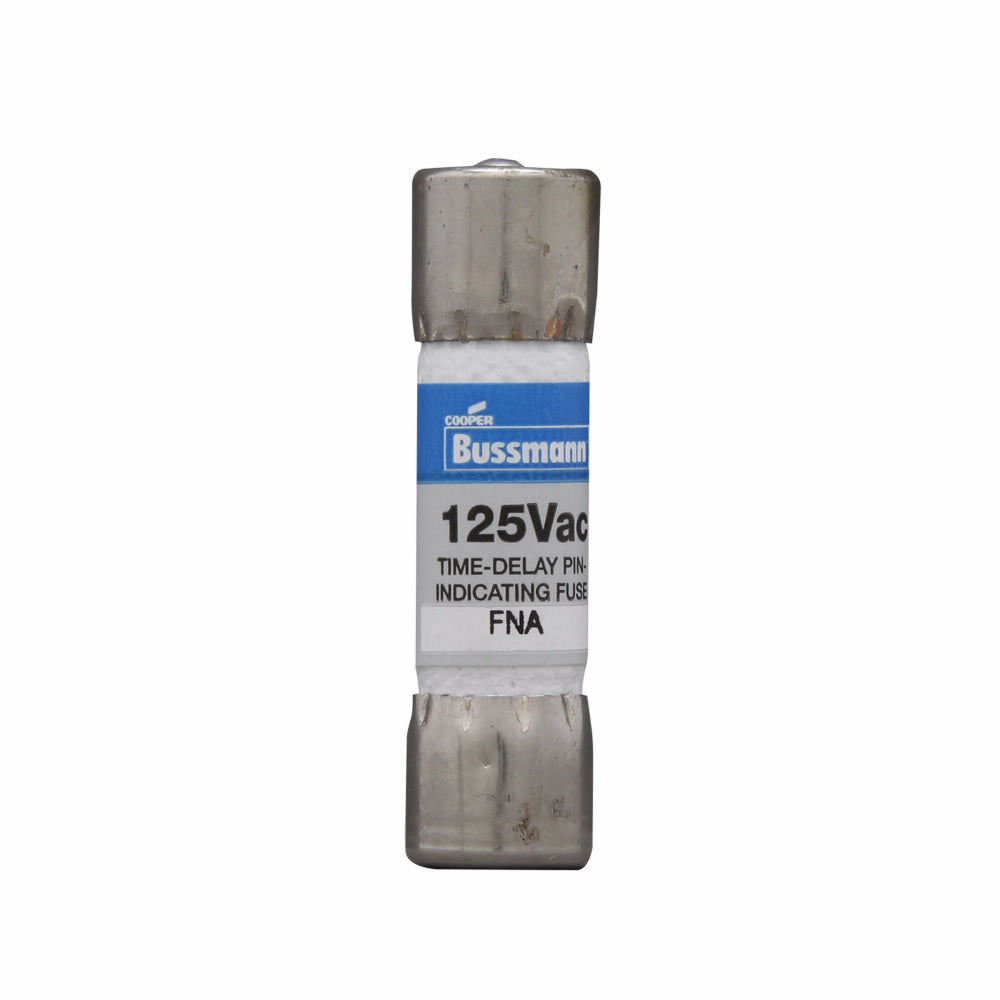

FNA-5 is an Eaton Bussmann series 5 Amp, 125 Vac, dual element time delay fuse with pin indicating feature.This fuse is designed for supplemental circuit protection with a 10,000 Amp interrupt rating at 125 Vac. It features a ferrule terminal, silver-plated pins, and a compact 13/32 inch diameter by 1-1/2 inch length size. The FNA-5 fuse complies with UL 248-14, CSA, and CE certifications, making it suitable for inductive and electronic load circuits requiring time-delay characteristics.

• Amperage: 5 Amp
• Voltage Rating: 125 Vac
• Interrupt Rating: 10,000 Amps
• Fuse Type: Dual Element Time Delay
• Pin Indicating: Yes
• Dimensions: 13/32 inch diameter, 1-1/2 inch length
• Terminal Type: Ferrule
• Certifications: UL 248-14, CSA, CE
• Series: Eaton Bussmann FNA
• Material: Silver-plated pins

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNA-5
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNA Series
• Type : FNA
• Voltage : 125
• Amperage : 5
• AIC rating : 10kA@125V
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1

Product Data

• UPC : 051712713580
• GTIN : 00051712713580
• Country of Origin : Mexico
• Dimensions : 0.37 in x 1.46 in x 0.37 in (Length/Depth x Height x Width)
• Weight : 0.1
• Certification : CE, CSA Class 1422-01, UL-248-12 Guide JDYX
