Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNA-4

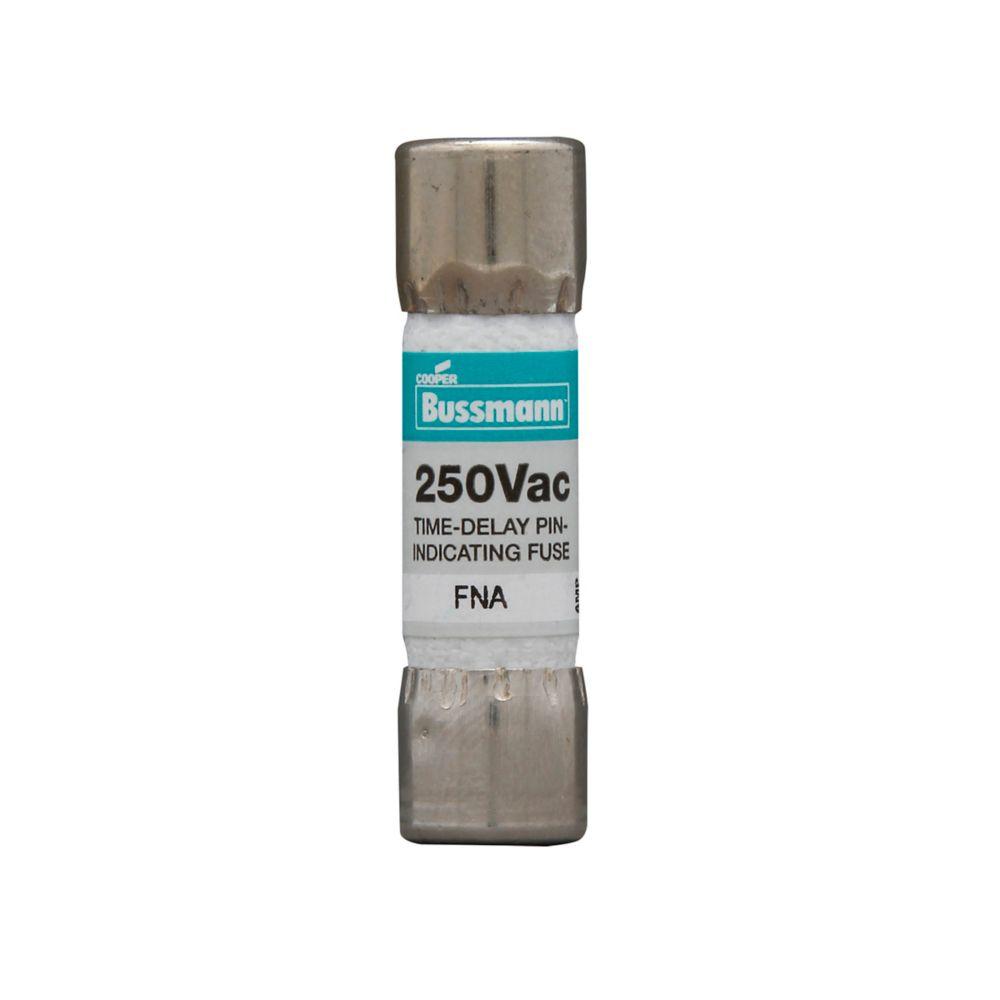

FNA-4 is a Bussmann FNA Series 4A 125VAC pin indicating time-delay supplemental fuse with dual element construction for reliable circuit protection in industrial and commercial applications.This fuse features a pin indicating design for visual blown fuse detection, time-delay characteristics for handling temporary overloads, and a robust dual element construction for enhanced durability. Suitable for use in low-voltage circuits, it provides dependable protection for sensitive equipment and control circuits.
- Amperage Rating: 4A
- Voltage Rating: 125VAC
- Interrupting Rating: 10,000AIC @ 125VAC
- Series/Frame: FNA Series
- Element Type: Dual Element
- Time-Delay: Yes
- Pin Indicating: Yes
- Mounting Type: Barrel (1 Barrel)
- Physical Size: 0.406" x 1.5"
- Agency Approvals: UL Listed, CSA Certified
Specifications
- Part Number: FNA-4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNA Series
- Type : FNA
- Voltage : 125
- Amperage : 4
- AIC rating : 10kA@125V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 051712713566
- GTIN : 00051712713566
- Country of Origin : Mexico
- Dimensions : 0.35 in x 1.46 in x 0.35 in (Length/Depth x Height x Width)
- Weight : 0.1
- Certification : CE, CSA Class 1422-01, UL-248-12 Guide JDYX
