FNA-4/10 - Eaton Bussmann Series Time-Delay Fuse 0.4A 250V Dual Element 10kAIC at 125VAC 35AIC at 250VAC

FNA-4/10

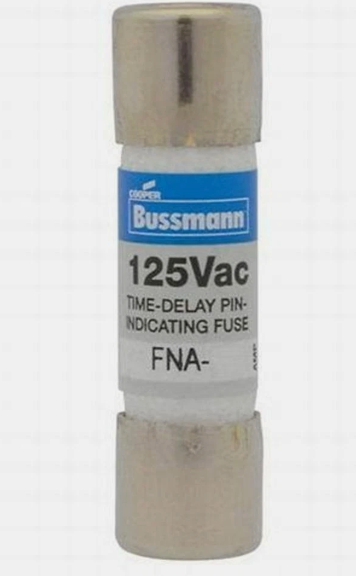

FNA-4/10 is an Eaton Bussmann series time-delay fuse designed for inductive and electronic circuits with a 0.4 amp rating and 250 volt capacity.This dual-element, non-indicating fuse features ferrule end connections and silver-plated pins, providing superior overload and cycling capabilities. It has an interrupt rating of 10 kAIC at 125 VAC and 35 AIC at 250 VAC, suitable for protecting sensitive electronic and inductive loads.

• Amperage: 0.4 A
• Voltage Rating: 250 V AC
• Interrupt Rating: 10 kAIC at 125 VAC, 35 AIC at 250 VAC
• Fuse Type: Time-delay (slow blow)
• Number of Elements: Dual
• Connection Type: Ferrule end x ferrule end
• Pin Material: Silver-plated
• Fuse Indicator: Non-indicating
• Series: Eaton Bussmann FNA
• Mounting Type: Inline fuse holder compatible
• Certifications: CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNA-4/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNA Series
• Type : FNA
• Voltage : 250
• Amperage : 4
• AIC rating : 10kA@250V
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1

Product Data

• UPC : 05171271339
• GTIN : 00051712713399
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
• Weight : 1.5
• Certification : CE, CSA Class 1422-01, UL-248-12 Guide JDYX
