Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

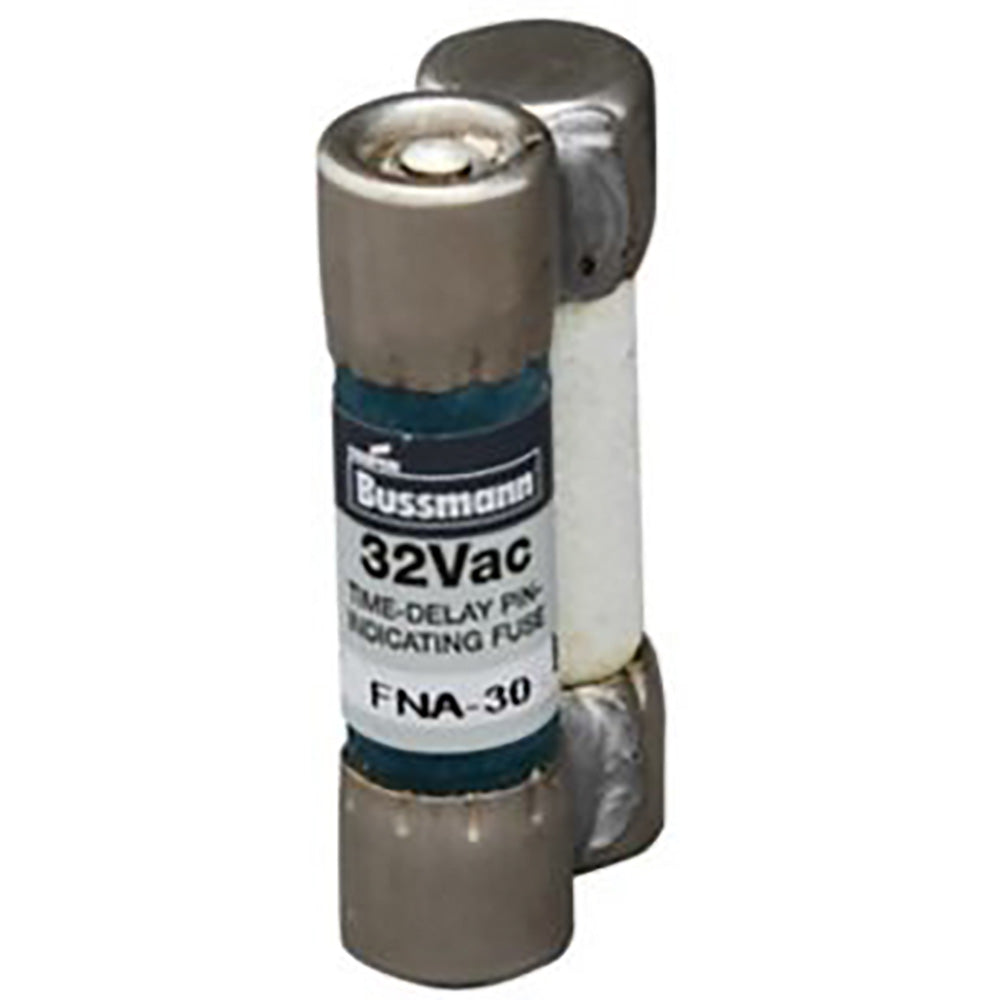

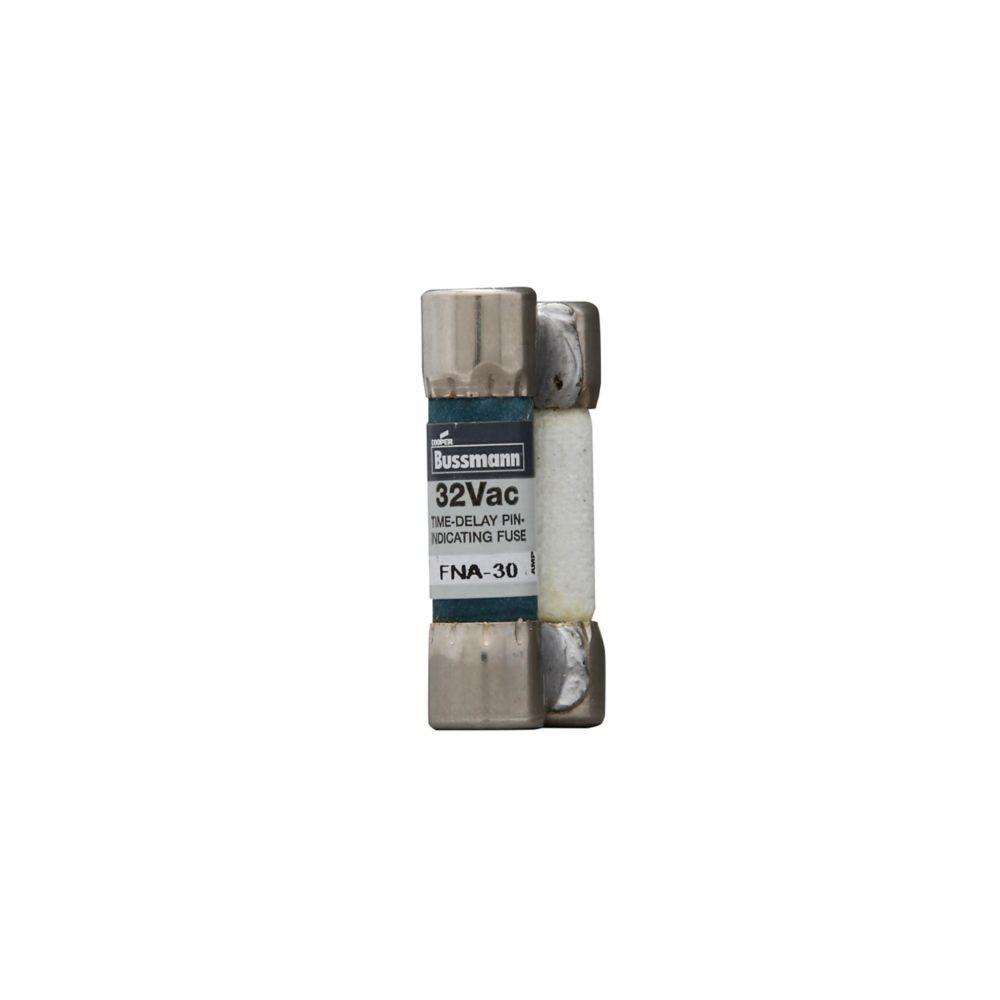

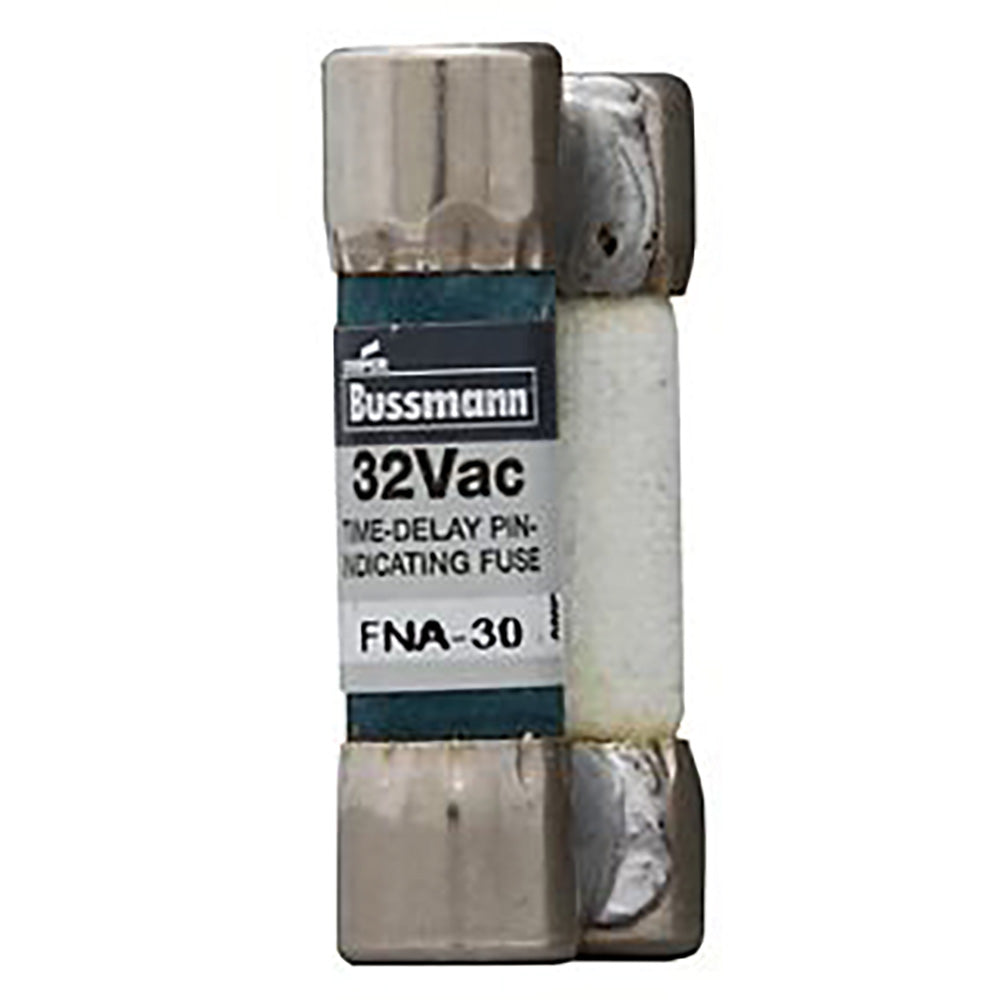

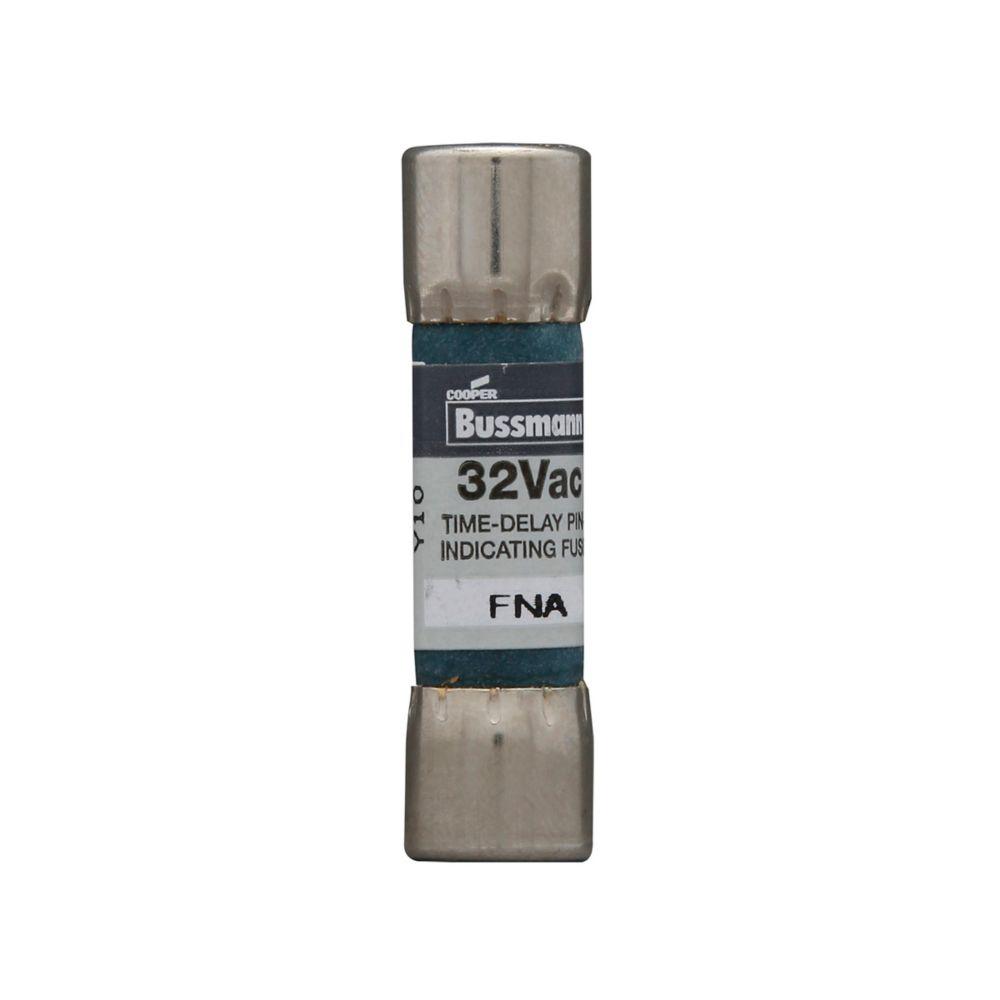

FNA-30
FNA-30 is a 30 amp, 32 volt time delay low voltage fuse from Eaton's Bussmann FNA Series.This Eaton FNA-30 fuse features a dual-element time delay design suitable for supplemental circuit protection. It has a 1 kA interrupt rating at 32 VAC and is constructed with a 2-barrel design measuring approximately 0.82 inches in diameter. The fuse is UL and CSA certified, providing reliable protection in low voltage applications.
- Key Specifications
- Manufacturer: Eaton
- Series: Bussmann FNA
- Current Rating: 30 Amps
- Voltage Rating: 32 Volts AC
- Fuse Type: Time Delay / Slow Blow
- Interrupt Rating: 1 kA at 32 VAC
- Poles: 1 (single fuse)
- Mounting Type: Supplemental fuse holder required
- Dimensions: Approx. 0.82 inch diameter
- Certifications: UL, CSA
- Part Number: FNA-30
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNA Series
- Type : FNA
- Voltage : 32
- Amperage : 30
- AIC rating : 1kA@32V
- Diameter : 0.82
- Class Rating : Midget
- Barrels : 2
- UPC : 051712713696
- GTIN : 00051712713696
- Dimensions : 0.81 in x 1.52 in x 0.4 in (Length/Depth x Height x Width)
- Weight : 0.3
