Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

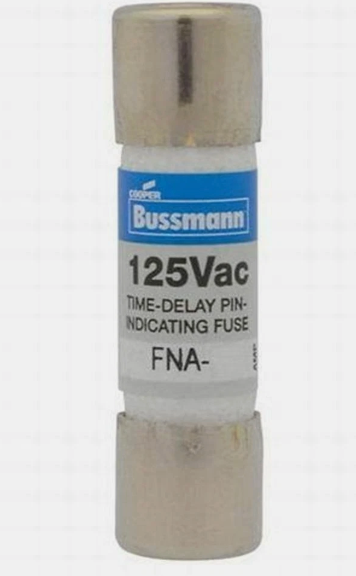

FNA-3/4
FNA-3/4 is a 0.75 amp, 250 VAC time delay pin indicating supplemental fuse from Eaton's Bussmann series.
This fuse features a slow blow (time delay) characteristic designed for supplemental circuit protection in electrical and industrial applications. It has a cartridge body style with a mounting style for fuse holders. The fuse is UL listed and CSA certified, with an interrupt rating of 35A at 250 VAC. Its compact size measures approximately 13/32 inch diameter by 1-1/2 inch length, suitable for use in holders designed for FNA series fuses.
- Key Specifications
- Amperage: 0.75A
- Voltage Rating: 250 VAC
- Fuse Type: Time Delay (Slow Blow)
- Interrupt Rating: 35A at 250 VAC
- Body Style: Cartridge
- Mounting Type: Fuse Holder
- Length: 1-1/2 inch (approx.)
- Diameter: 13/32 inch (approx.)
- Pin Indicating: Yes
- Certifications: UL Listed, CSA Certified
- Series: FNA Supplemental Fuse
- Part Number: FNA-3/4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNA Series
- Type : FNA
- Voltage : 250
- Amperage : 3
- AIC rating : 10kA@250V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- UPC : 05171215053
- GTIN : 00051712150538
- Country of Origin : Mexico
- Dimensions : 0.35 in x 1.46 in x 0.35 in (Length/Depth x Height x Width)
- Weight : 0.1
- Certification : CE, CSA Class 1422-01, UL-248-12 Guide JDYX
