Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNA-3-1/2

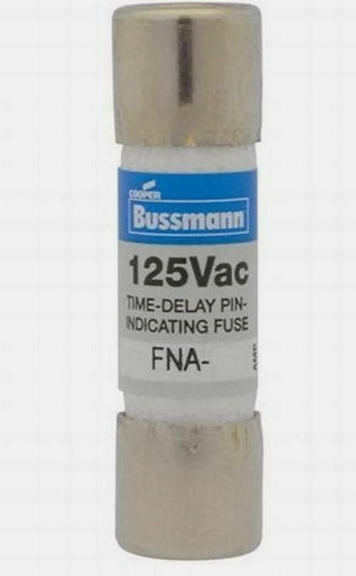

FNA-3-1/2 is a 3.5 ampere, 125 VAC time delay dual element pin indicating fuse from Eaton's Bussmann series.This fuse features a midget size with a 13/32 inch diameter and 1-1/2 inch length, designed for supplemental circuit protection in inductive and electronic load circuits. It offers a high interrupting rating of 10,000 amps at 125 VAC, ensuring reliable protection against overcurrent conditions. The fuse is UL 248-14, CSA, and CE certified, providing compliance with industry safety standards. Its pin indicating design allows easy blown fuse identification.
- Key Specifications
- Current Rating: 3.5 Amps
- Voltage Rating: 125 VAC
- Fuse Type: Time Delay (Dual Element)
- Interrupting Rating: 10 kA at 125 VAC
- Size: 13/32 inch diameter x 1-1/2 inch length
- Pin Indicating: Yes
- Certifications: UL 248-14, CSA, CE
- Series: Bussmann FNA
- Mounting Type: Midget Fuse Holder
Specifications
- Part Number: FNA-3-1/2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNA Series
- Type : FNA
- Voltage : 125
- Amperage : 3
- AIC rating : 10kA@125V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 05171271355
- GTIN : 00051712713559
- Dimensions : 0.35 in x 1.46 in x 0.35 in (Length/Depth x Height x Width)
- Weight : 0.1
