Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNA-2

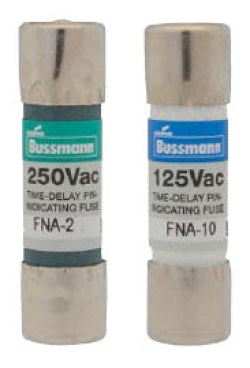

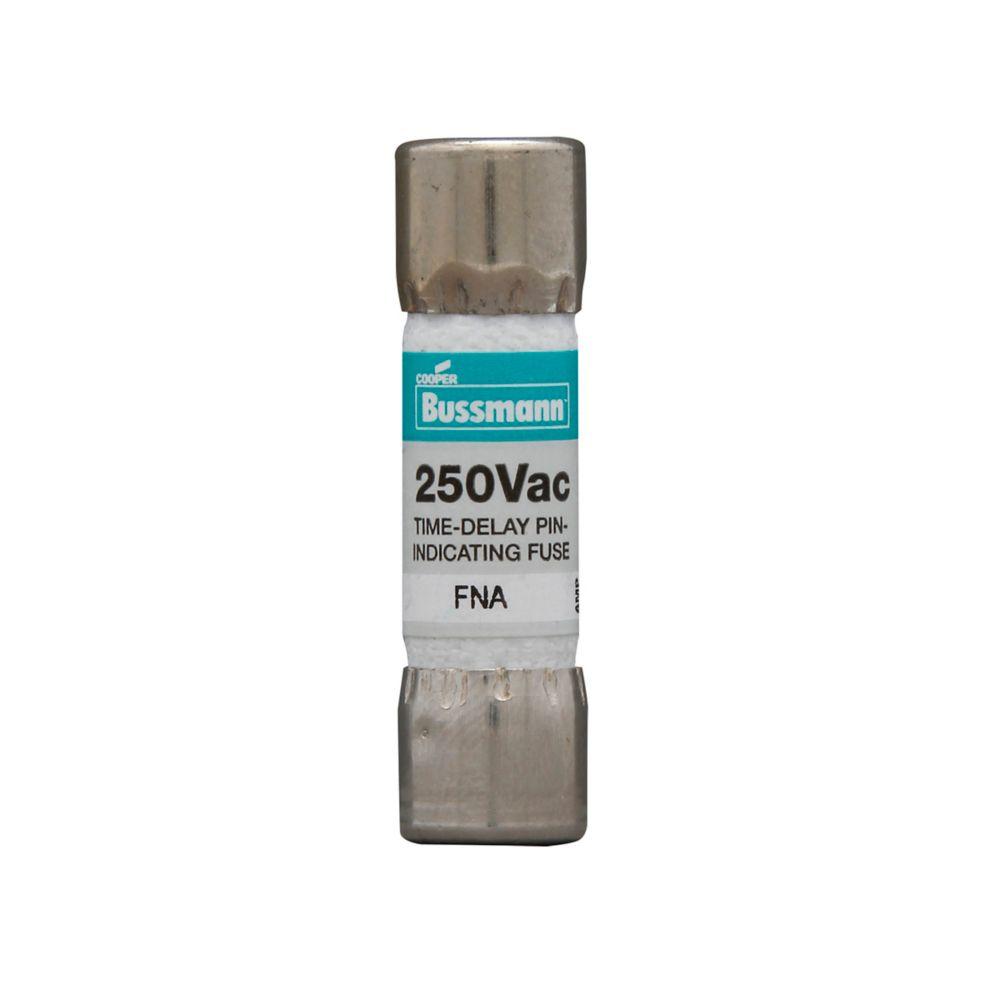

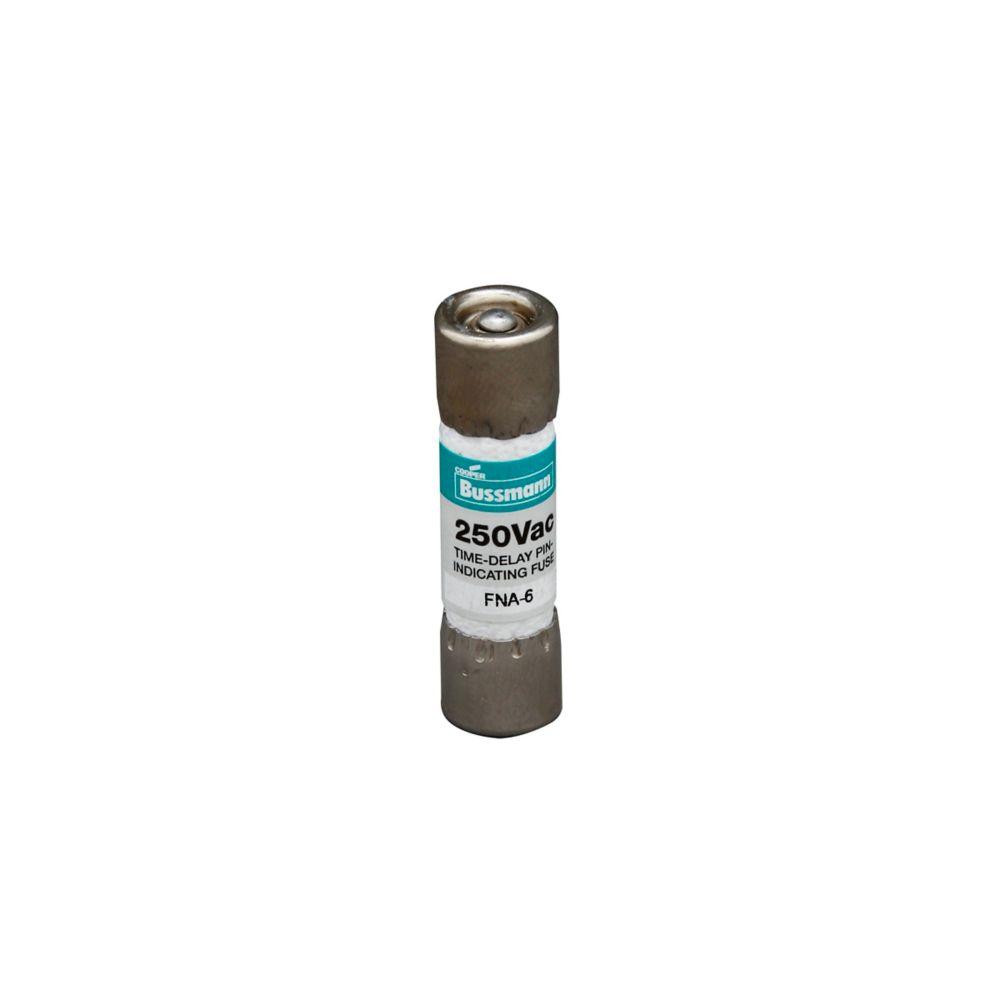

FNA-2 is an Eaton Bussmann series time-delay dual element fuse rated for 2 amps and 250 volts AC.
This fuse features a dual element design with time-delay characteristics, suitable for inductive and electronic circuits. It has a high interrupt rating of 10 kAIC at 125 VAC and 200 kAIC at 250 VAC, with silver-plated pins and ferrule end connections. The fuse is non-indicating and CE marked for compliance.
- Key Specifications
- Amperage Rating: 2 A
- Voltage Rating: 250 V AC
- Interrupt Rating: 10 kAIC at 125 VAC, 200 kAIC at 250 VAC
- Fuse Type: Time-Delay Dual Element
- Connection: Ferrule end x ferrule end
- Fuse Indicator: Non-indicating
- Material: Silver-plated pins
- Compliance: CE Marked
- Physical Size: Approximately 0.406" diameter x 1.5" length
- Series: Bussmann FNA
- Part Number: FNA-2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNA Series
- Type : FNA
- Voltage : 125
- Amperage : 2
- AIC rating : 10kA@125V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- UPC : 051712713498
- GTIN : 00051712713498
- Country of Origin : Mexico
- Dimensions : 0.35 in x 1.46 in x 0.35 in (Length/Depth x Height x Width)
- Weight : 0.1
- Certification : CE, CSA Class 1422-01, UL-248-12 Guide JDYX
