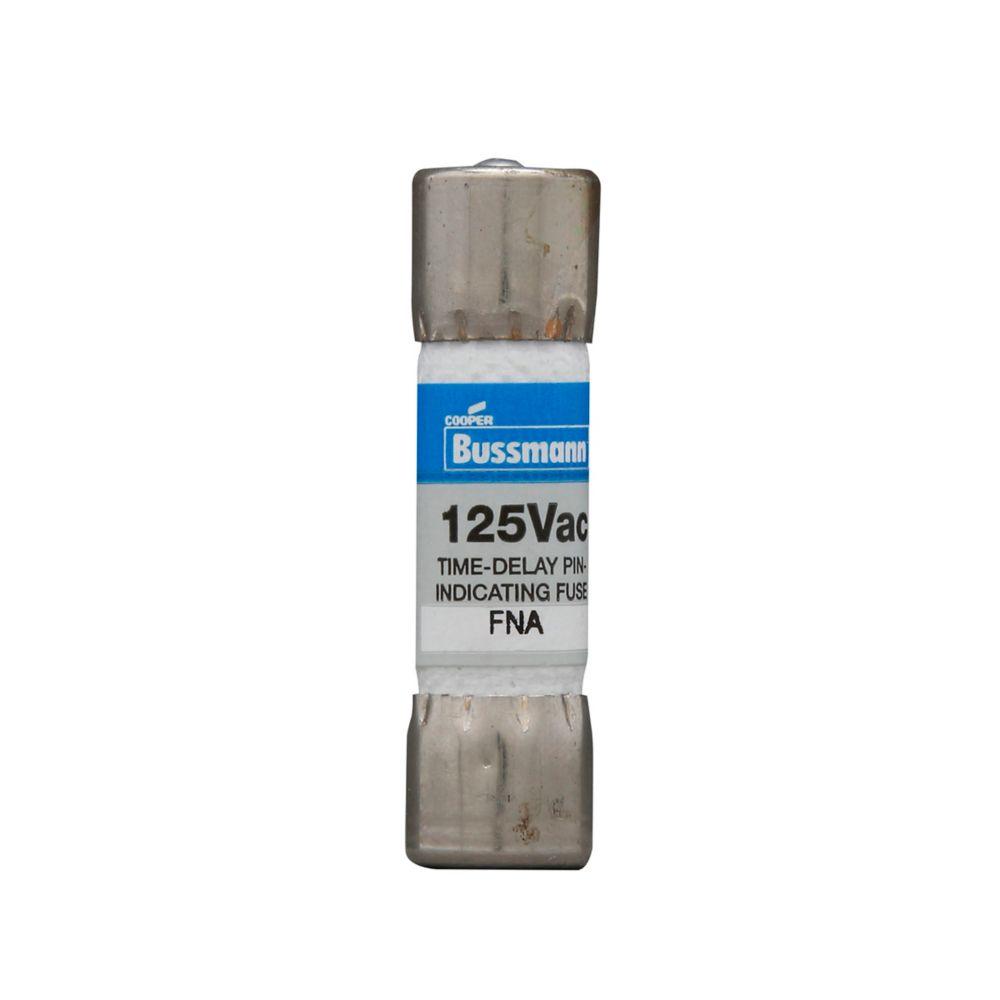

FNA-12 - Eaton Bussmann 12A 125VAC Time Delay Pin Indicating Midget Fuse

FNA-12

FNA-12 is a dual-element time-delay supplemental fuse designed for control transformers, relays, and electronic circuits requiring precise overcurrent protection. FNA-12 is a dual-element time-delay supplemental fuse designed for control transformers, relays, and electronic circuits requiring precise overcurrent protection. This Eaton Bussmann series fuse features a pin indicator for visual identification of blown fuse conditions, silver-plated pins for reliable electrical contact, and fiber tube construction. The time-delay characteristic permits close sizing on inductive loads while maintaining fast response to short circuits. Rated for 125VAC maximum voltage with a 10 kA interrupt rating at 125VAC. CSA certified for Class 1422-01 applications.

• Current Rating: 12 Amperes
• Voltage Rating: 125VAC
• Fuse Type: Dual-Element Time Delay
• Interrupt Rating: 10 kA at 125VAC
• Size: 13/32 inch diameter x 1-1/2 inch length
• Pin Indicator: Yes, for visual open fuse identification
• Construction: Fiber tube with silver-plated pin
• Certification: CSA Certified Class 1422-01, File 53787
• Application: Control transformers, relays, inductive loads, electronic circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNA-12
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNA Series
• Type : FNA
• Voltage : 125
• Amperage : 12
• AIC rating : 10kA@125V
• Diameter : 0.82
• Class Rating : Midget
• Barrels : 2

Product Data

• UPC : 051712713658
• GTIN : 00051712713658
• Country of Origin : Mexico
• Dimensions : 0.817 in x 1.843 in x 0.817 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : CE, CSA Class 1422-01, UL-248-12 Guide JDYX
