Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FNA-10

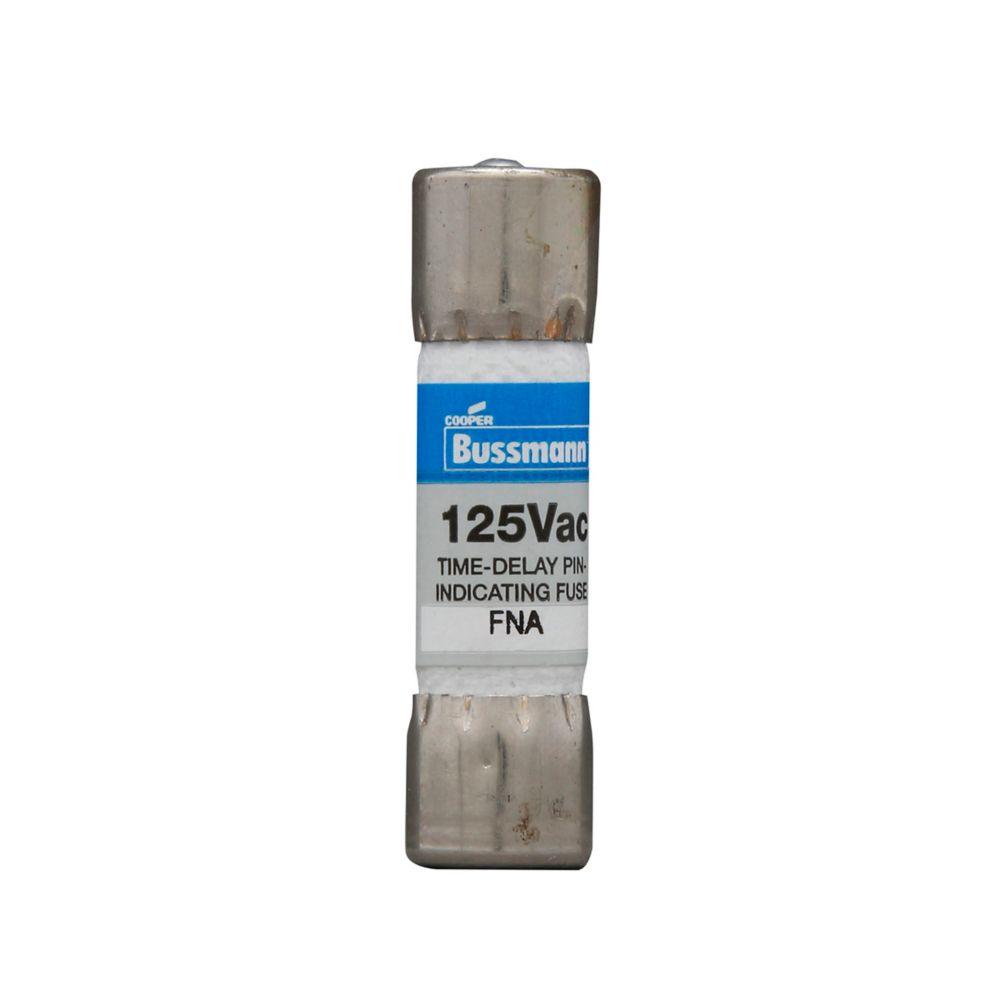

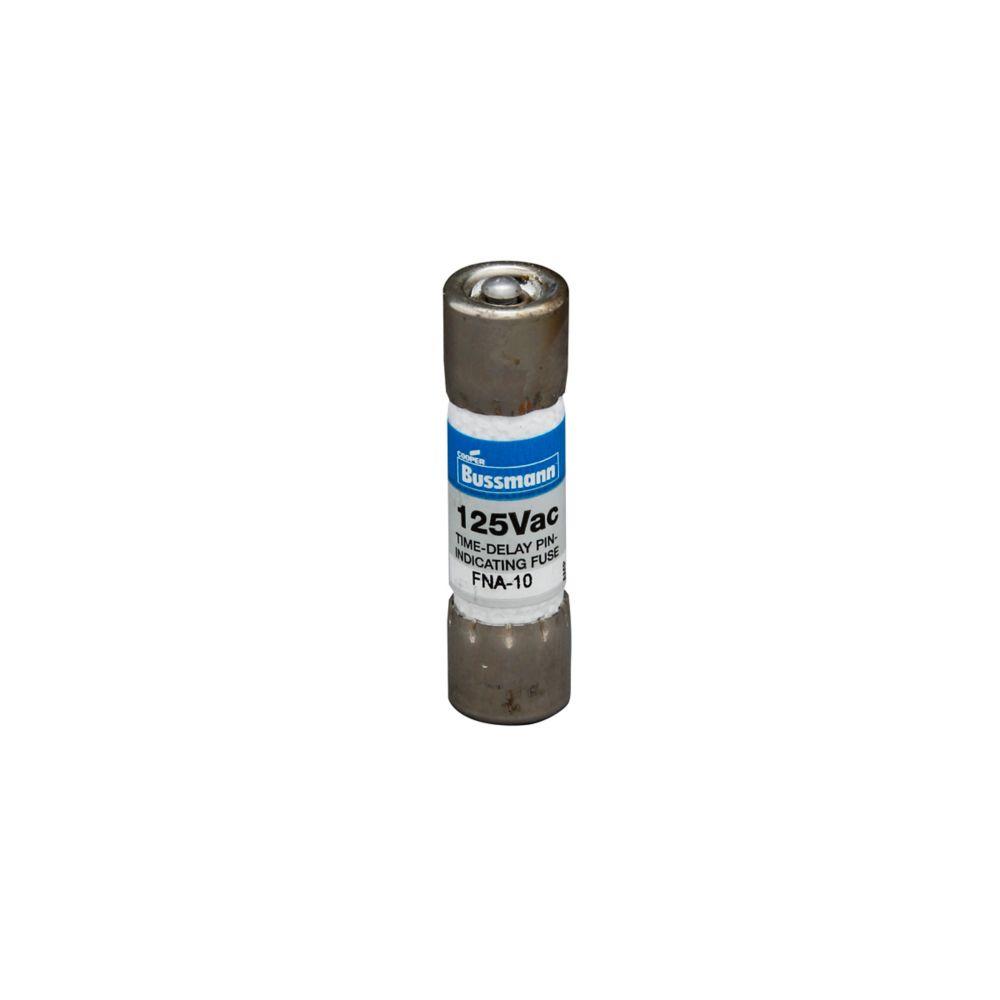

FNA-10 is a 10 amp, 125 volt time-delay supplemental fuse from Eaton Bussmann series designed for inductive and electronic circuits.This dual element fuse features ferrule end connections, a silver-plated pin for reliable electrical contact, and a 10 kA interrupting rating at 125 VAC. It is non-indicating and offers superior overload and cycling capabilities, making it suitable for protecting sensitive equipment.
- Amperage Rating: 10 A
- Voltage Rating: 125 V AC
- Interrupting Rating: 10 kA at 125 VAC
- Fuse Type: Time-Delay Supplemental
- Number of Elements: Dual
- Connection Type: Ferrule end x ferrule end
- Fuse Indicator: Non-indicating
- Pin Material: Silver-plated
- Dimensions: 0.406 in diameter x 1.5 in length
- Certifications: CE Marked, UL Listed, CSA Certified
- Series: Bussmann FNA
Specifications
- Part Number: FNA-10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNA Series
- Type : FNA
- Voltage : 125
- Amperage : 10
- AIC rating : 10kA@125V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 051712713641
- GTIN : 00051712713641
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 0.1
- Certification : CE, CSA Class 1422-01, UL-248-12 Guide JDYX
