Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

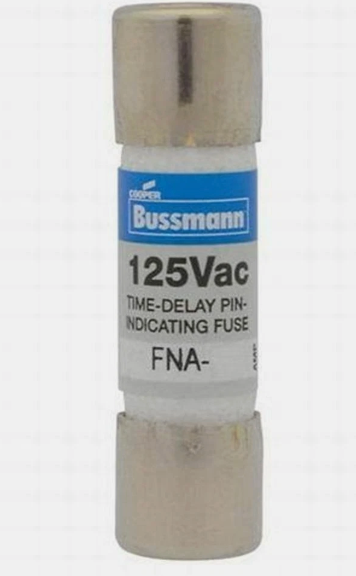

FNA-1-8/10
FNA-1-8/10 is a Bussmann series pin indicating, time delay cartridge fuse designed for supplemental circuit protection.FNA-1-8/10 features a 1.8 ampere rating with a 125 VAC voltage rating and a 10 kA interrupting rating at 125 VAC. It has a slow blow response time and silver-plated pins for reliable electrical contact. This fuse is suitable for industrial and electrical applications requiring time-delay protection in a cartridge mounting style.
- Amperage: 1.8A
- Voltage Rating: 125 VAC
- Interrupt Rating: 10 kA at 125 VAC
- Fuse Type: Time Delay (Slow Blow)
- Mounting Style: Cartridge
- Pin Indicating: Yes
- Material: Silver-plated pins
- Series: Bussmann FNA
- Dimensions: 13/32 inch x 1-1/2 inch
- Certifications: UL, CSA
Specifications
- Part Number: FNA-1-8/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FNA Series
- Type : FNA
- Voltage : 125
- Amperage : 1
- AIC rating : 10kA@125V
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 05171271348
- GTIN : 00051712713481
- Country of Origin : Mexico
- Dimensions : 1.5 in x 0.406 in x 0.406 in (Length/Depth x Height x Width)
- Weight : 3
- Certification : CE, CSA Class 1422-01, UL-248-12 Guide JDYX
