FNA-1/10 - Eaton 0.1A 250VAC Time-Delay Supplemental Fuse Cartridge

FNA-1/10

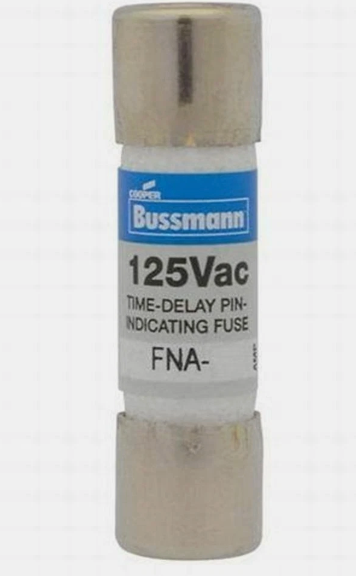

FNA-1/10 is a 0.1 amp, 250 VAC time-delay supplemental fuse cartridge from Eaton's Bussmann series designed for reliable circuit protection.This fuse features a pin-indicating design for visual blown fuse indication and is rated for 35A interrupt capacity at 250 VAC. It is a dual-element, slow-blow fuse suitable for inductive and electronic load circuits, providing time-delay performance to prevent nuisance blowing. The fuse is a 13/32 inch by 1-1/2 inch cylindrical cartridge with ferrule ends for holder mounting.

• Current Rating: 0.1 Amps
• Voltage Rating: 250 VAC
• Fuse Type: Time-Delay (Slow Blow)
• Interrupt Rating: 35 Amps at 250 VAC
• Mounting Style: Holder (Cartridge Fuse)
• Pin Indicating for blown fuse status
• Dimensions: 13/32" x 1-1/2"
• Series: Bussmann FNA
• Agency Approvals: UL, CSA
• Application: Supplemental circuit protection for inductive and electronic loads

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FNA-1/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FNA Series
• Type : FNA
• Voltage : 250
• Amperage : 1
• AIC rating : 10kA@250V
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1

Product Data

• UPC : 05171271335
• GTIN : 00051712713351
• Country of Origin : Mexico
• Dimensions : 0.35 in x 1.46 in x 0.35 in (Length/Depth x Height x Width)
• Weight : 0.1
• Certification : CE, CSA Class 1422-01, UL-248-12 Guide JDYX
