Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR600ID

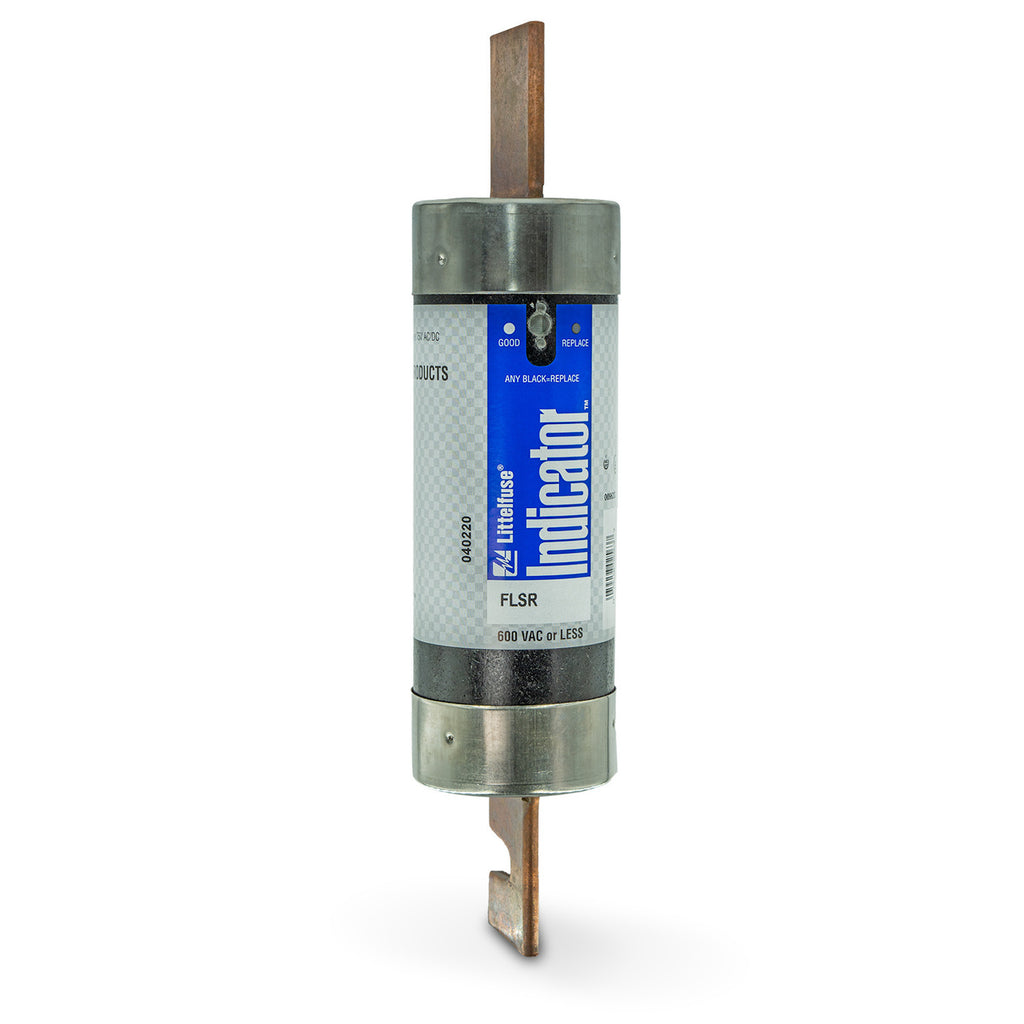

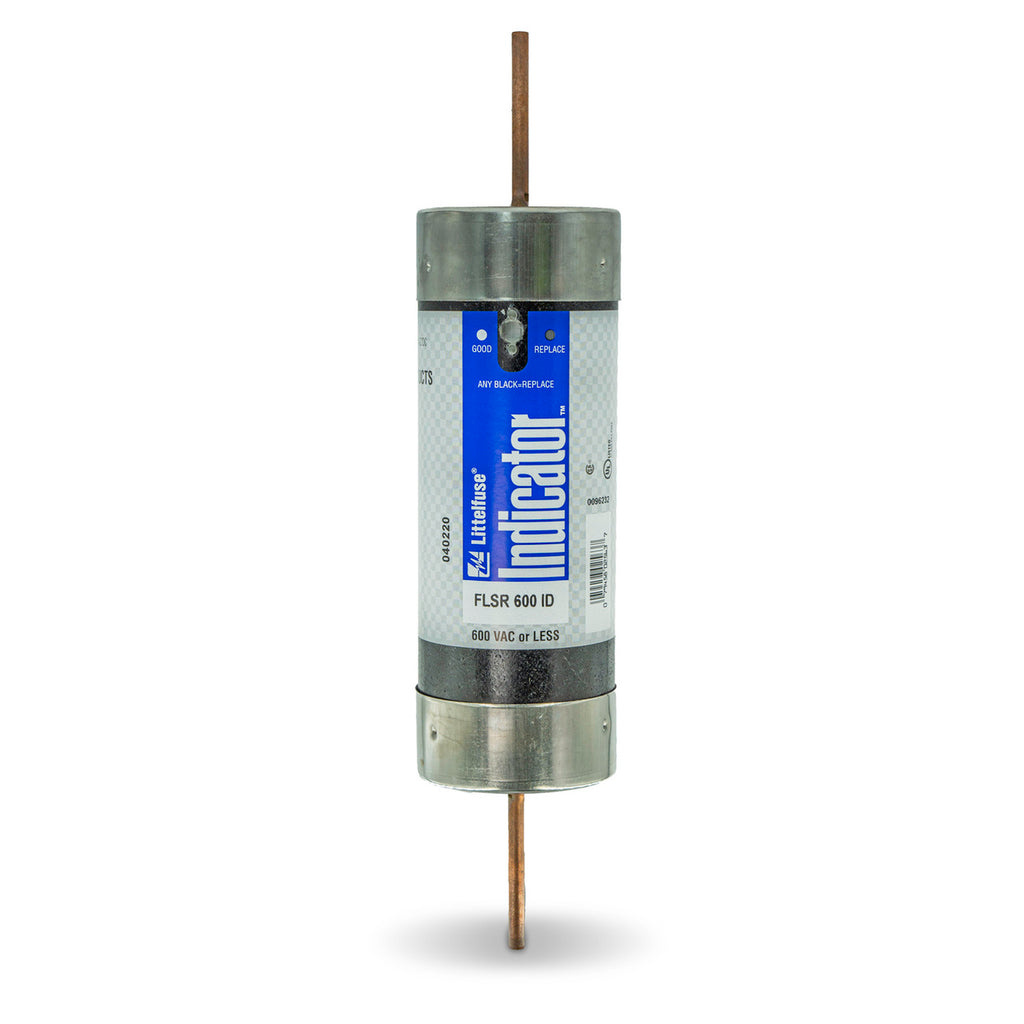

FLSR600ID is a Littelfuse Class RK5 dual-element time delay fuse with visual blown fuse indication, designed for general purpose circuit protection in low voltage applications. This fuse features a knife-blade mounting style, current limiting design, and dual-element construction for advanced short-circuit and overload protection. The indicating window turns black when the fuse is blown, allowing for fast and easy identification. It is suitable for use in service entrance switches, transformers, switchboard mains, feeders, motor control centers, and motor branch circuits.
- 600 Ampere Rating
- 600 VAC / 300 VDC Voltage Rating
- Class RK5 Fuse Type
- Time Delay Response
- Knife-Blade Mounting
- 200 kA Interrupting Rating @ 600VAC
- 20 kA Interrupting Rating @ 300VDC
- Dual Element Design
- Visual Blown Fuse Indicator
- UL 248-12 Listed
- CSA Certified
- CE Approved
Specifications
- Part Number: FLSR600ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Diameter : 3.09
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 079458025637
- GTIN : 00079458025637
- Country of Origin : Mexico
- Dimensions : x 13 3/8 in x
- Weight : 5.55
- Certification : CSA, cUL, UL
