Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR600

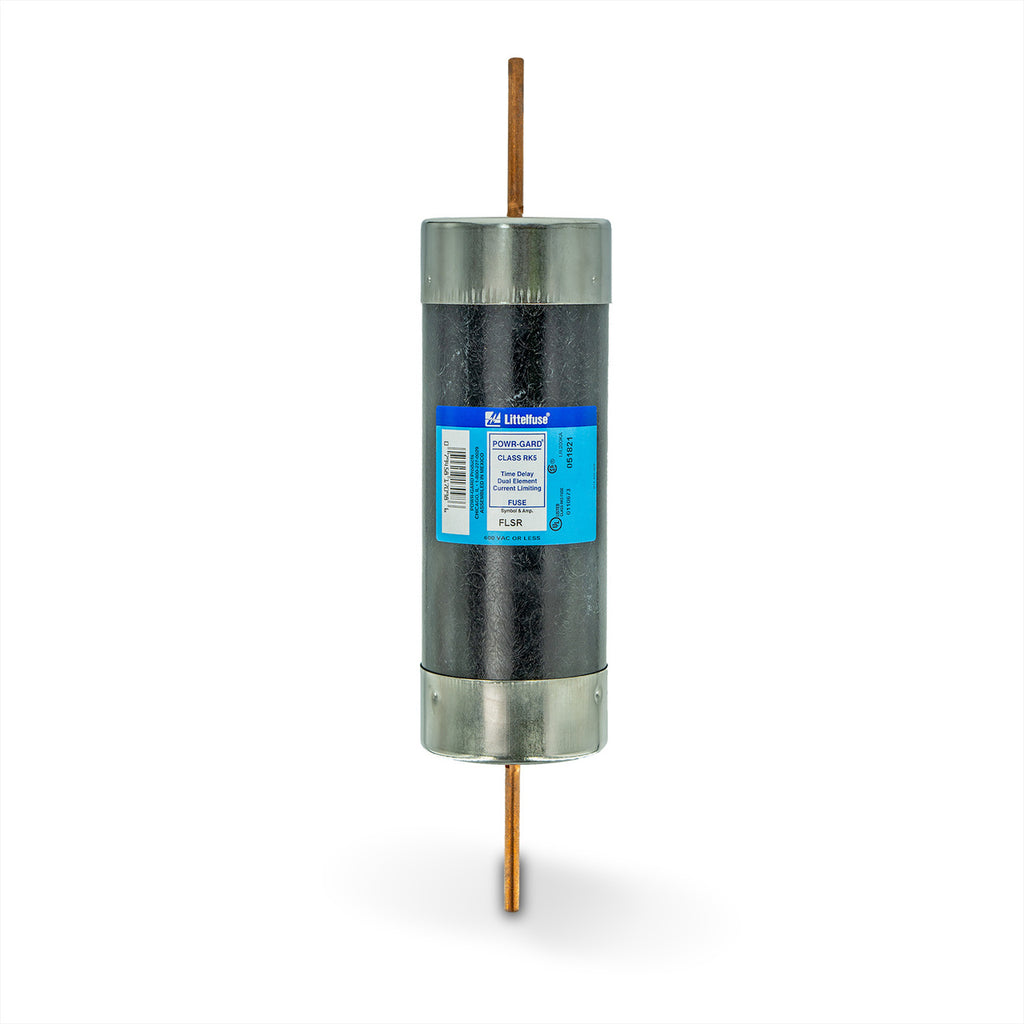

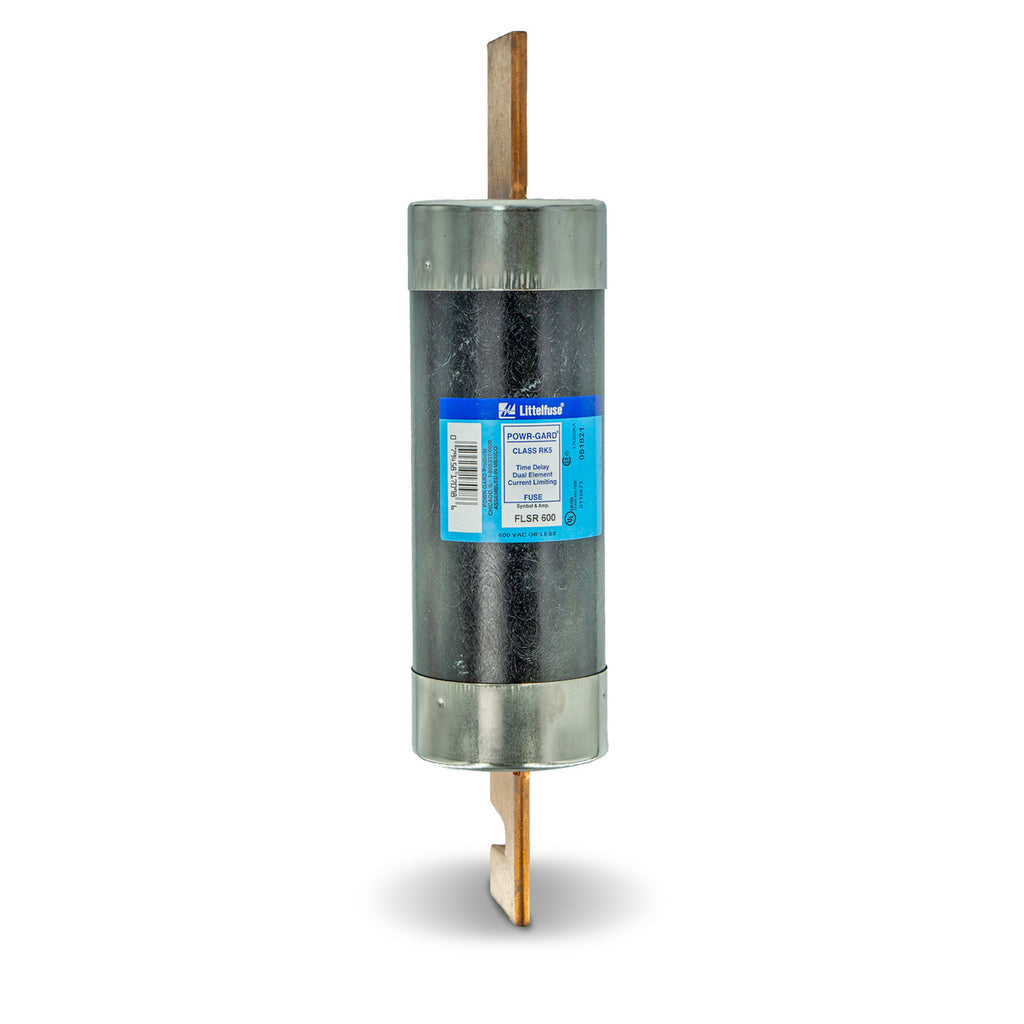

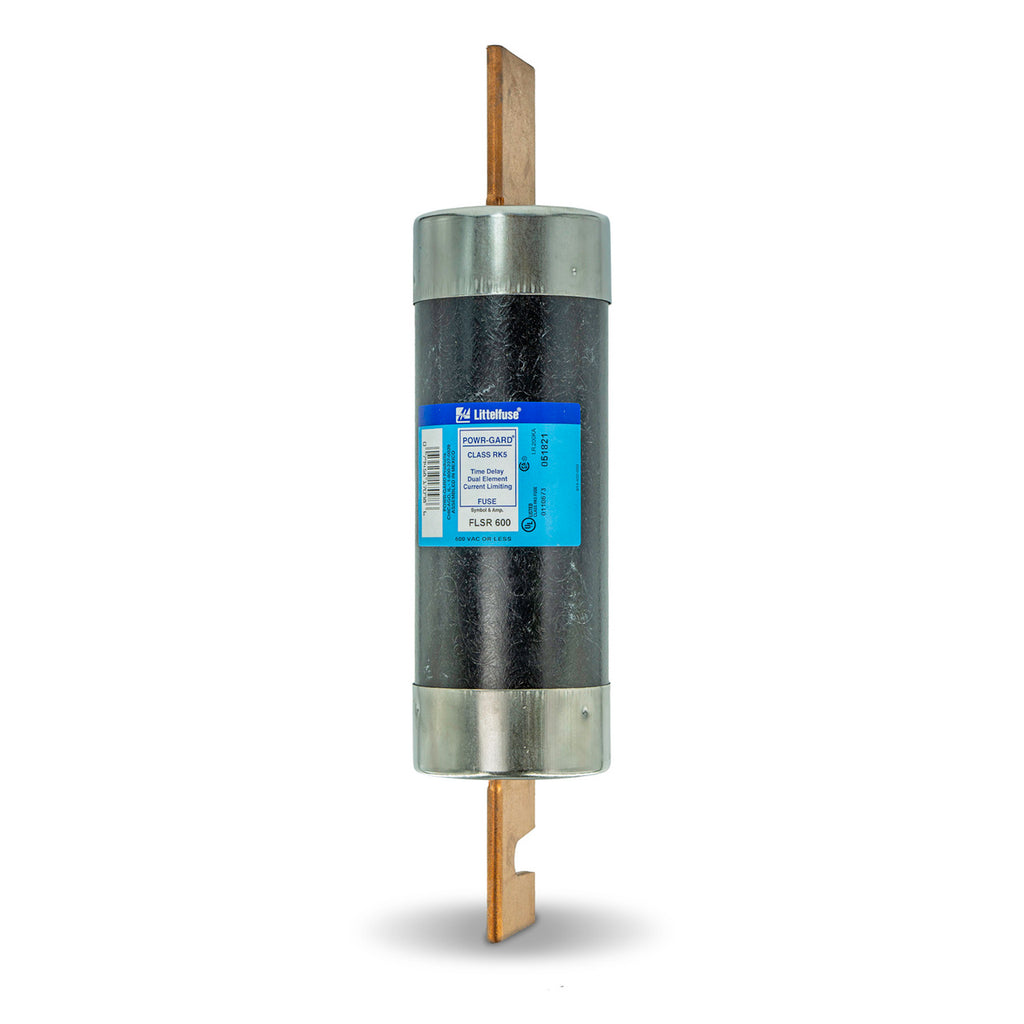

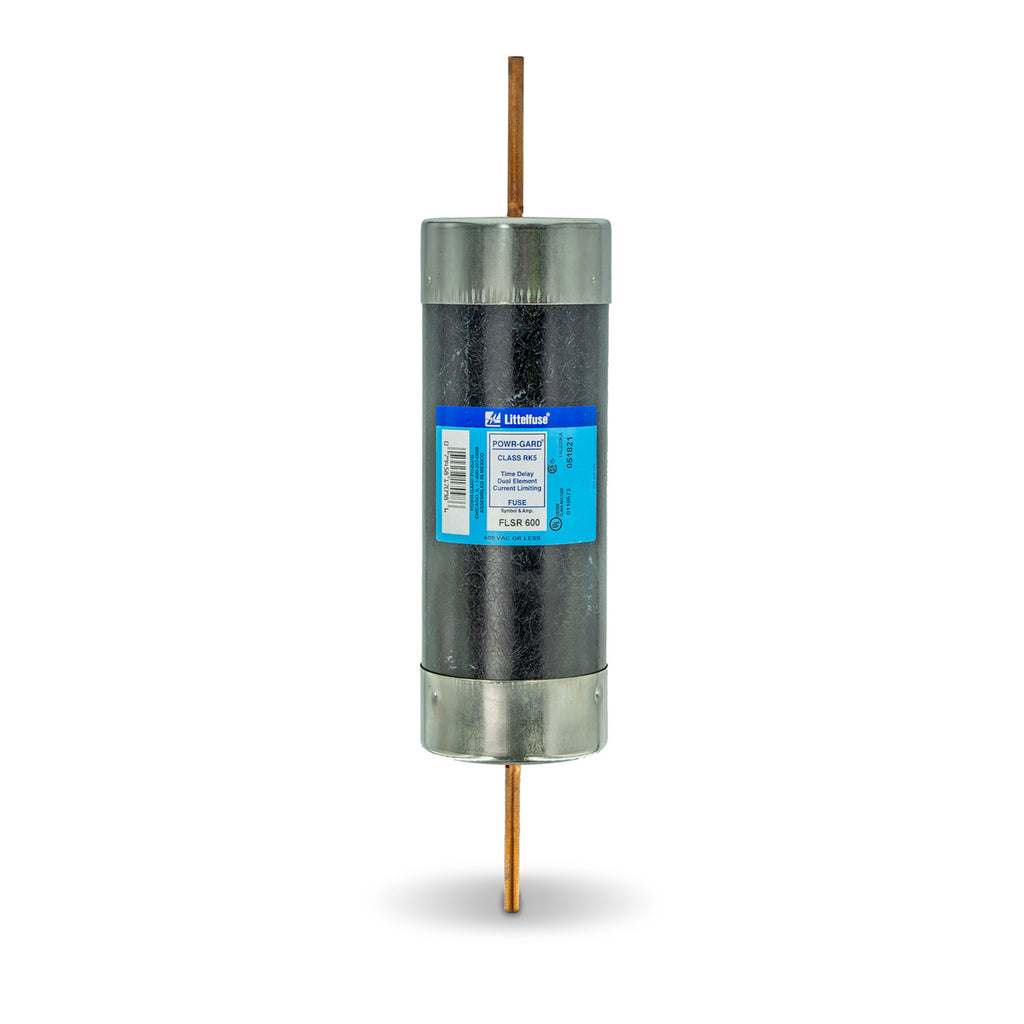

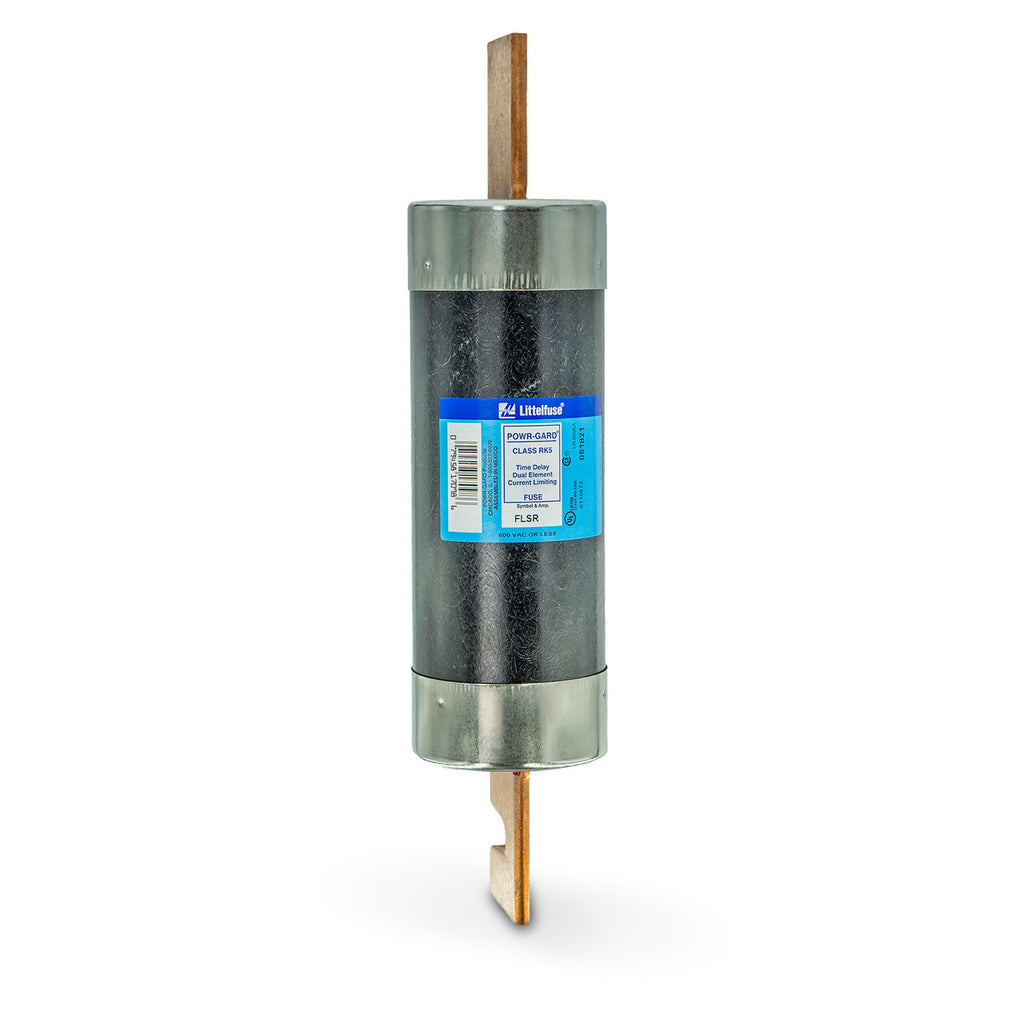

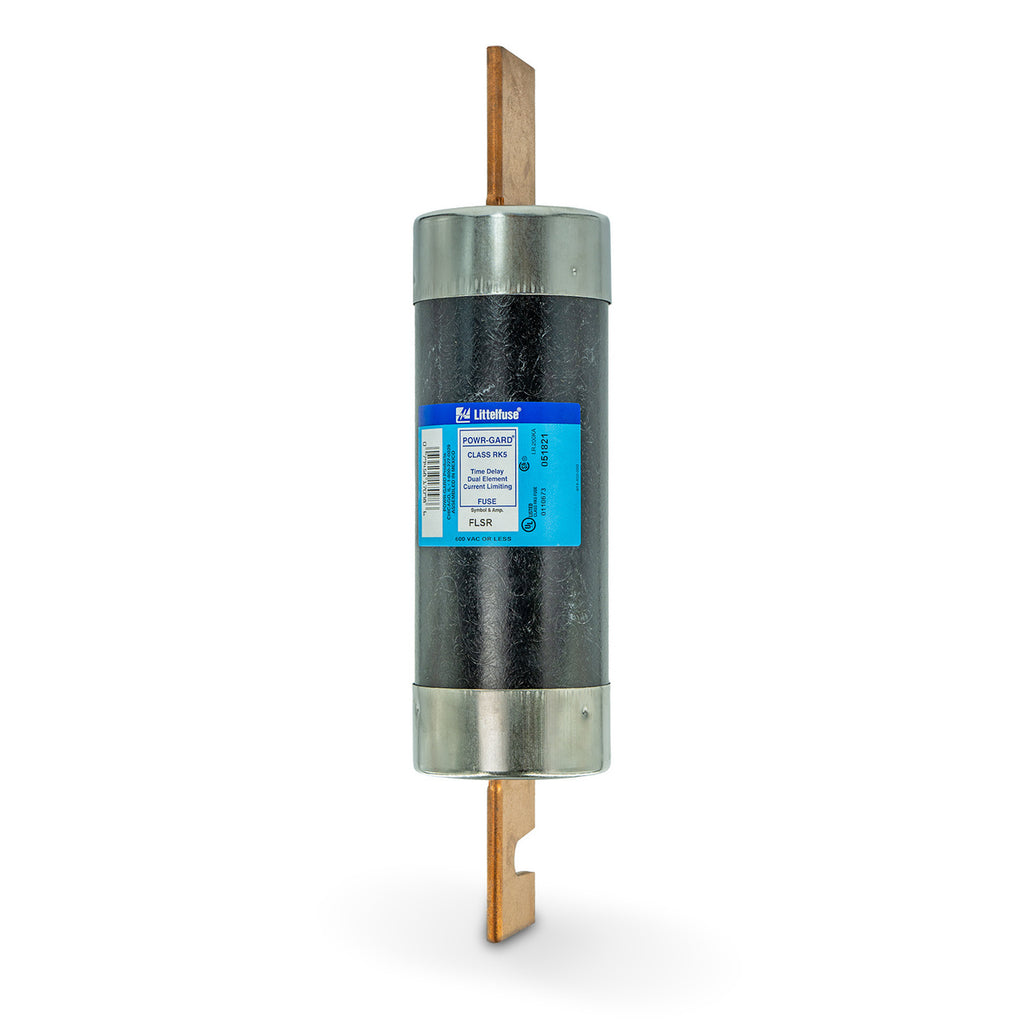

FLSR600 is a 600 Amp, 600 VAC, 300 VDC Class RK5 dual element time delay fuse designed for industrial cartridge mounting.This fuse features a dual-element design providing advanced short-circuit and overload protection with a time-delay (Slo-Blo) opening characteristic. It is rated for 600 volts AC and 300 volts DC with an interrupting rating of 20 kA at 300 VDC and up to 200 kA rms symmetrical at 600 VAC. The fuse is intended for use in general purpose circuits including motor control, transformers, and switchboard mains. It mounts in fuse blocks, clips, or holders and complies with UL 248-12 Class RK5 standards.
- Key Specifications
- Amperage: 600 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class RK5
- Fuse Type: Dual Element, Time Delay (Slo-Blo)
- Interrupting Rating: 20 kA @ 300 VDC, 200 kA rms symmetrical @ 600 VAC
- Mounting Method: Fuse Block / Clip / Holder
- Size: Industrial Cartridge, Knife-Blade Style
- Applicable Standards: UL 248-12 Class RK5
Specifications
- Part Number: FLSR600
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Type : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Diameter : 3.09
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945817098
- GTIN : 00079458170986
- Country of Origin : Mexico
- Dimensions : x 13-3/8 in x
- Weight : 2
- Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
