Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR6.25

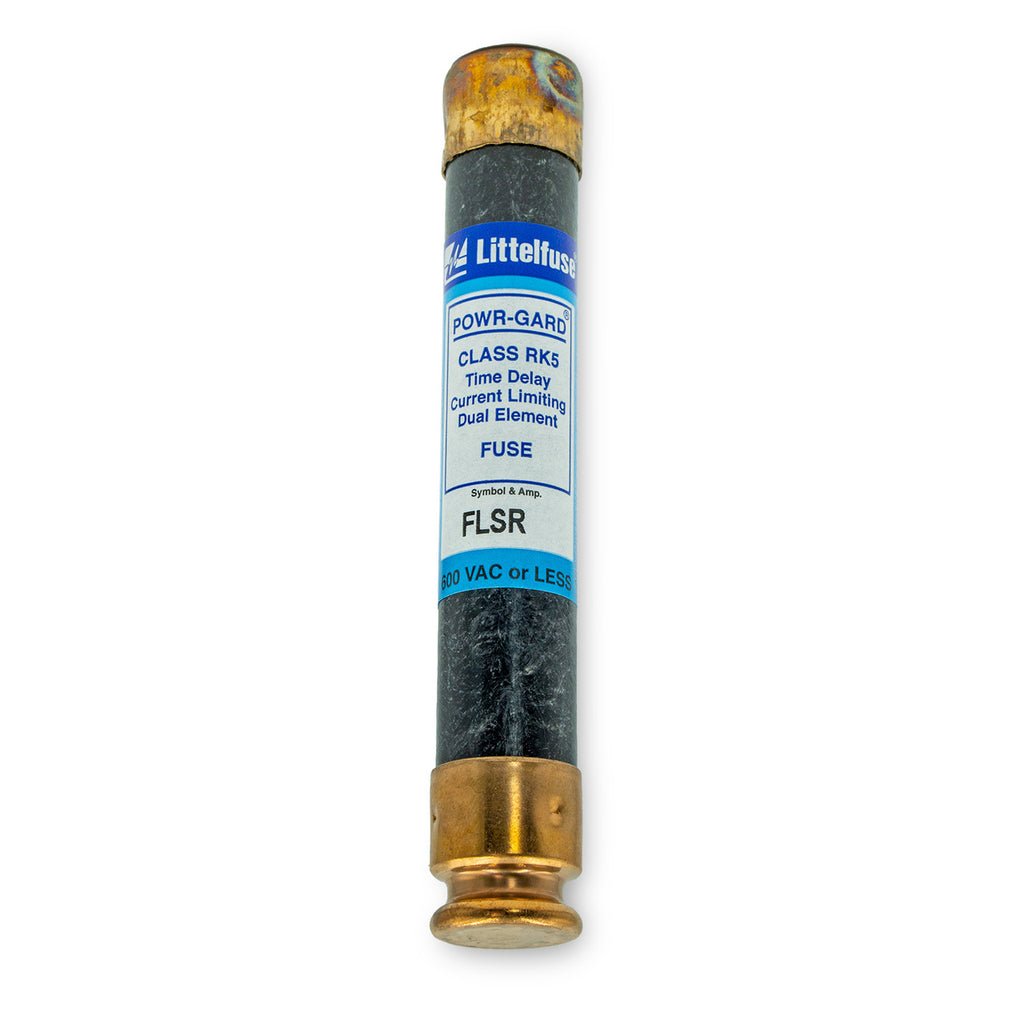

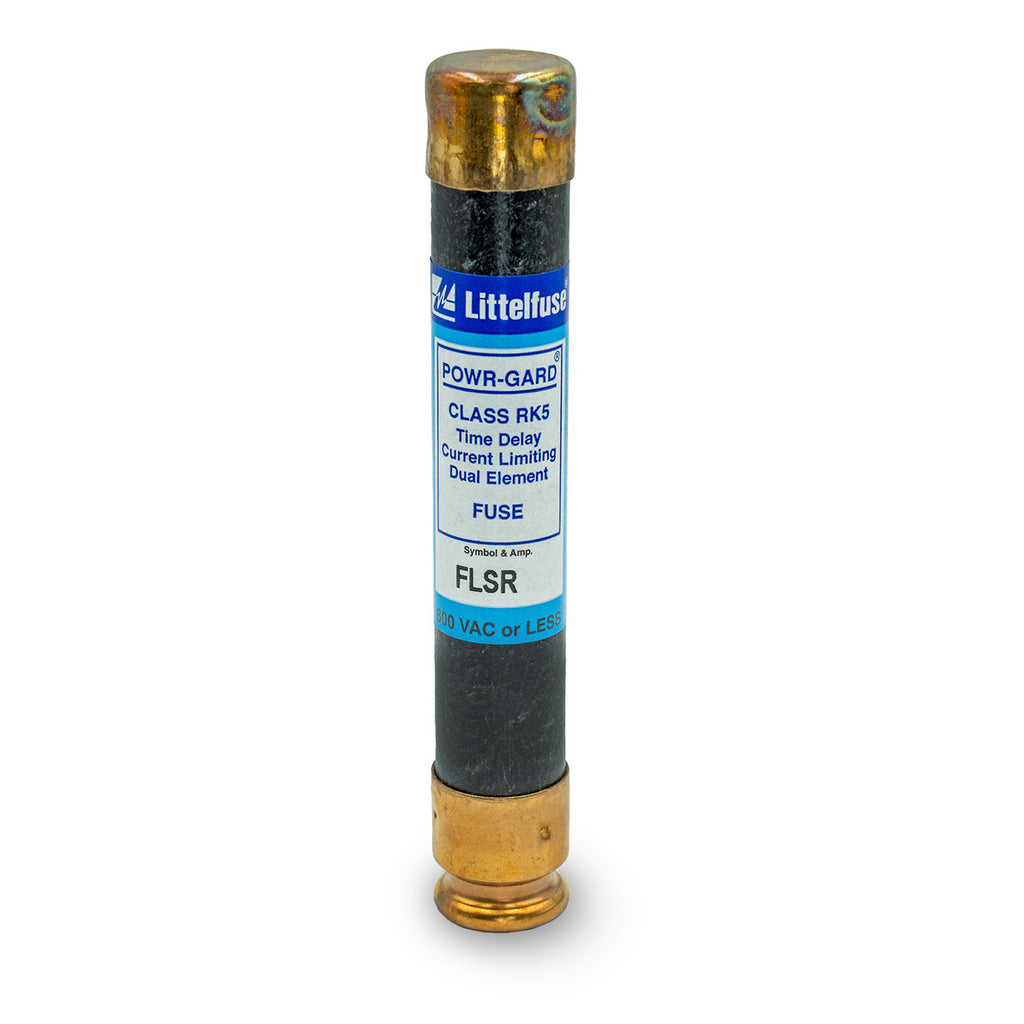

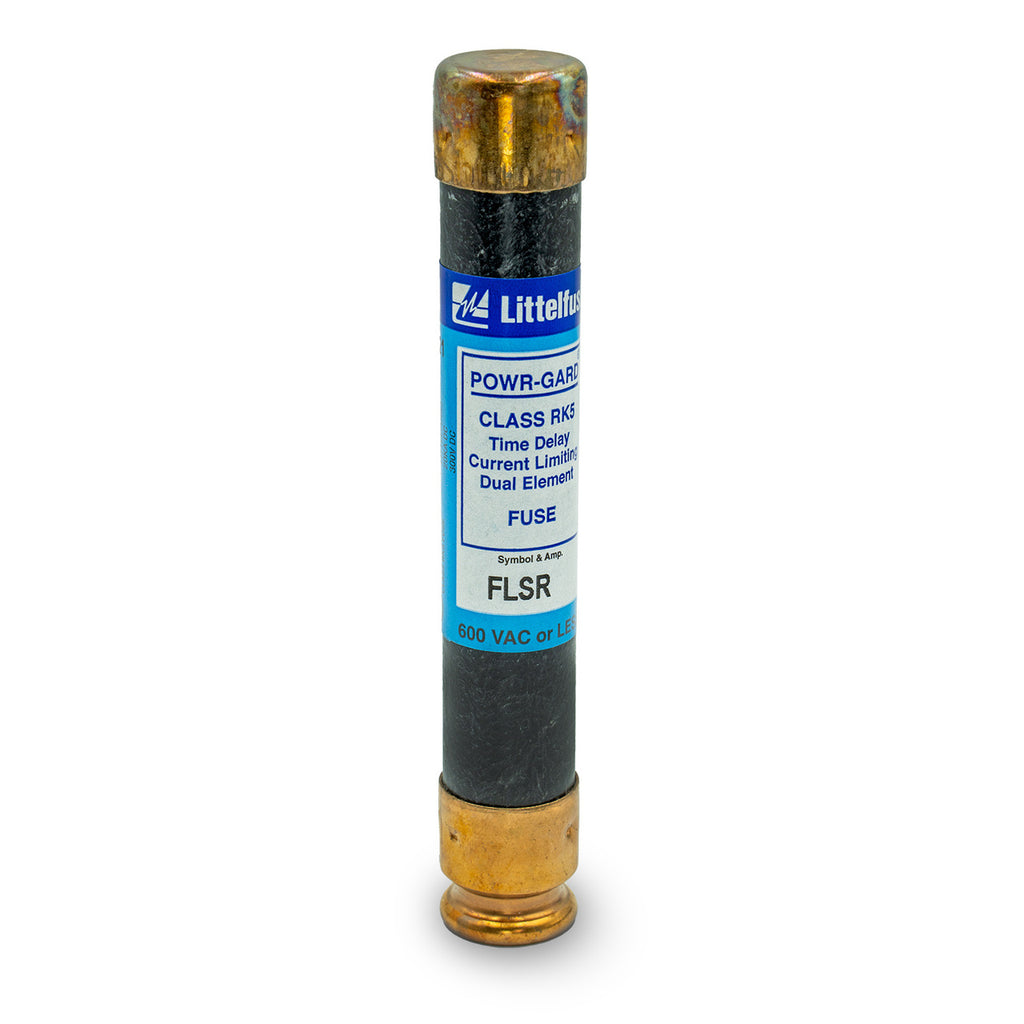

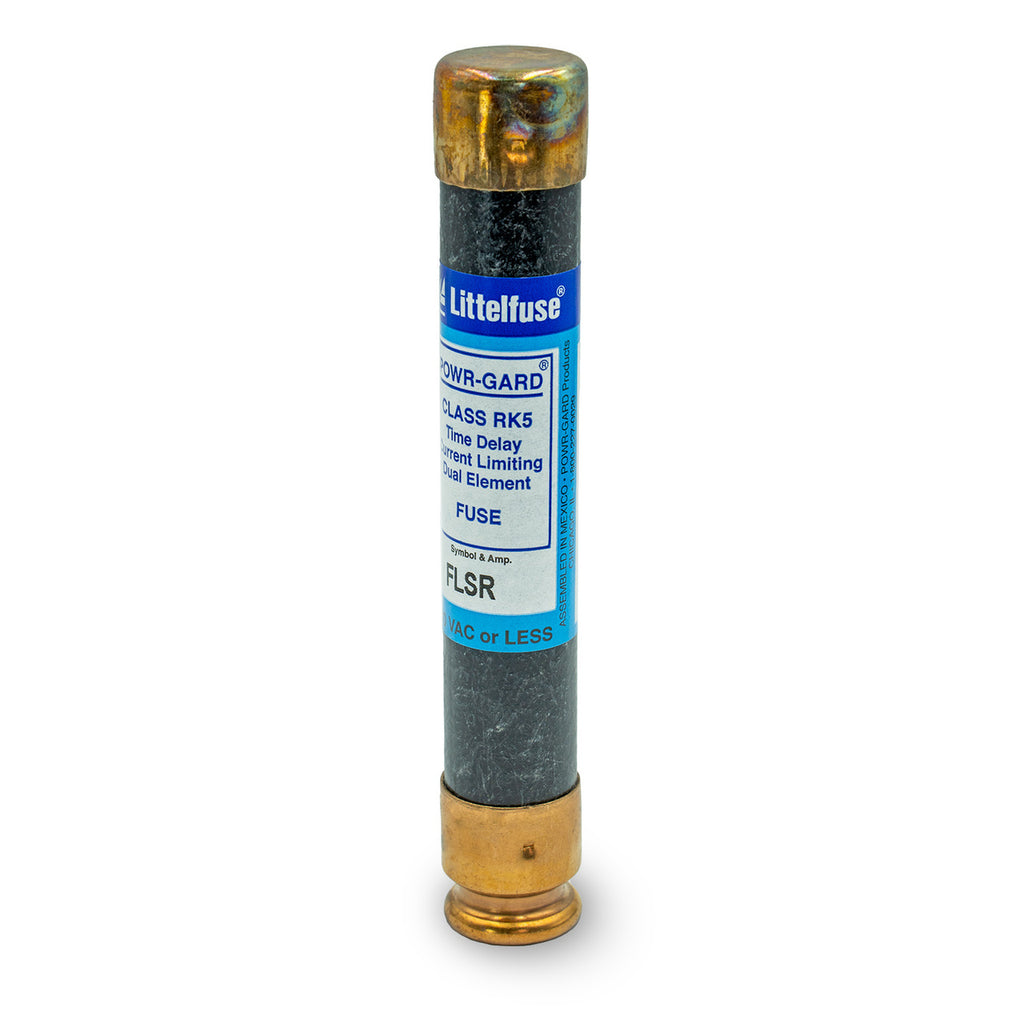

FLSR6.25 is a Littelfuse Class RK5 dual-element, time-delay fuse rated for 6.25 amps and 600 volts AC.
This fuse provides advanced short-circuit and overload protection with a current-limiting design, suitable for general purpose circuits including motor control and switchboard mains. It features a 600V AC and 300V DC voltage rating, with an interrupting rating of up to 200kA rms symmetrical AC and 20kA DC. The FLSR series is UL 248-12 certified and manufactured in Mexico.
- Key Specifications
- Amperage: 6.25 Amps
- Voltage Rating: 600 V AC, 300 V DC
- Fuse Class: RK5
- Fuse Type: Dual Element, Time Delay
- Interrupting Rating: 200 kA AC, 20 kA DC
- Mounting Type: Cartridge
- Applicable Standards: UL 248-12
- Current Limiting: Yes
- Poles: 1
- Country of Origin: Mexico
- Part Number: FLSR6.25
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Type : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Voltage : 600
- AIC rating : 200kA@600Vac
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
- UPC : 079458170597
- GTIN : 00079458170597
- Country of Origin : Mexico
- Dimensions : x 5 in x
- Weight : 0.08
- Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
