FLSR500ID - Littelfuse 500A 600VAC 300VDC Class RK5 Time Delay Fuse

FLSR500ID

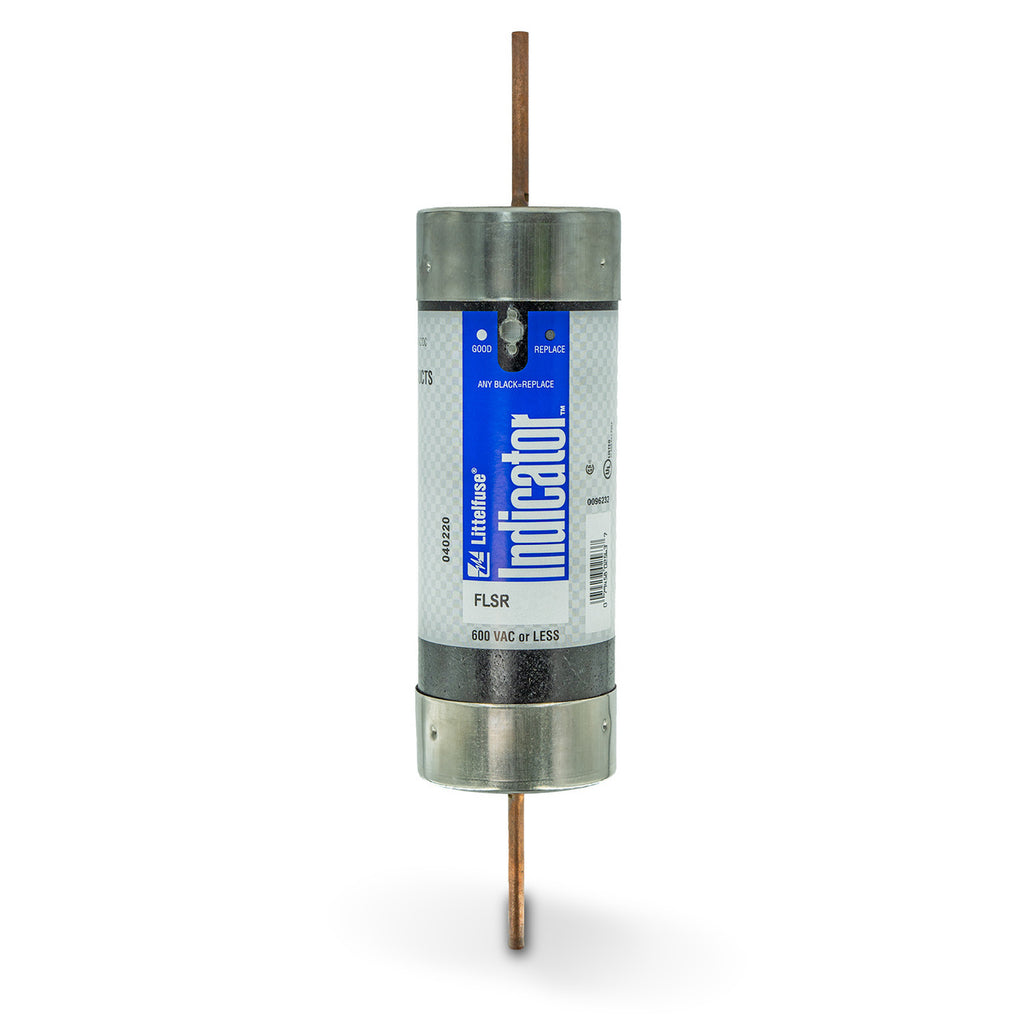

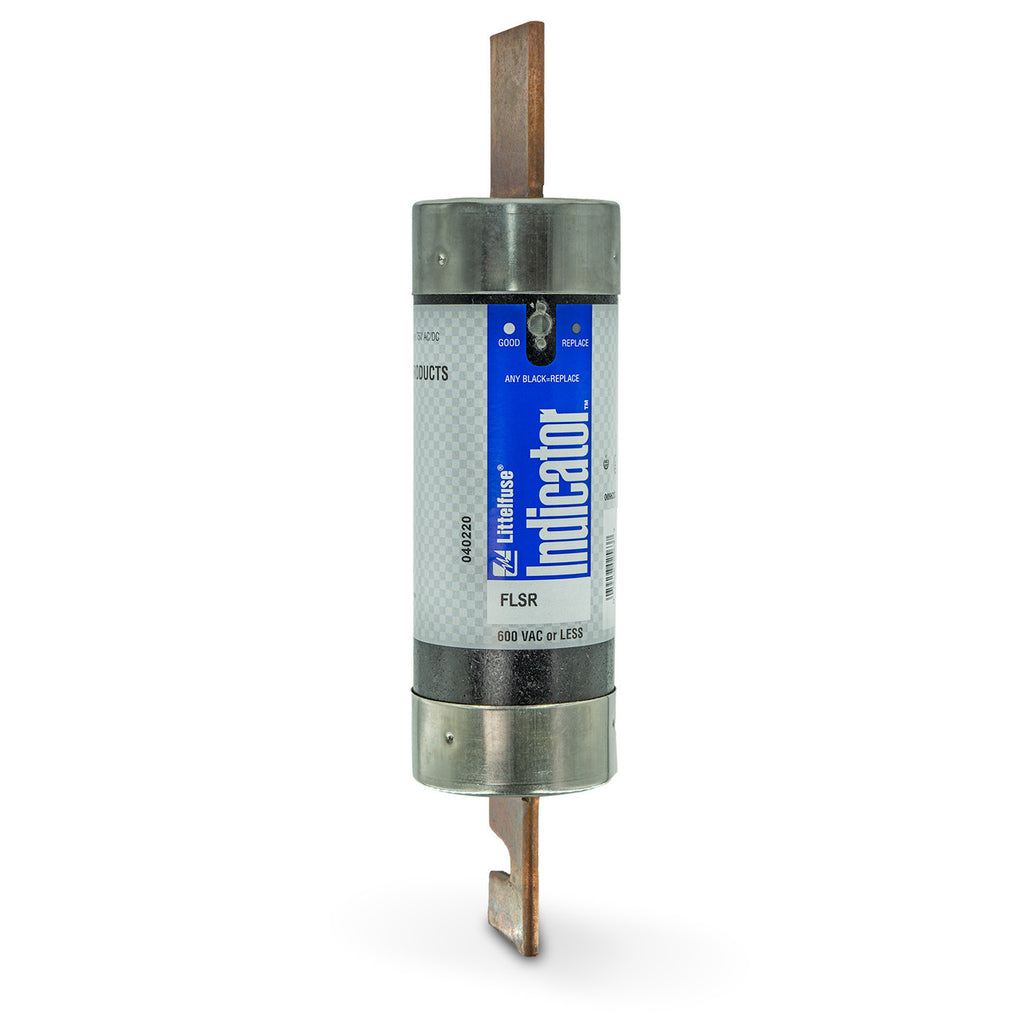

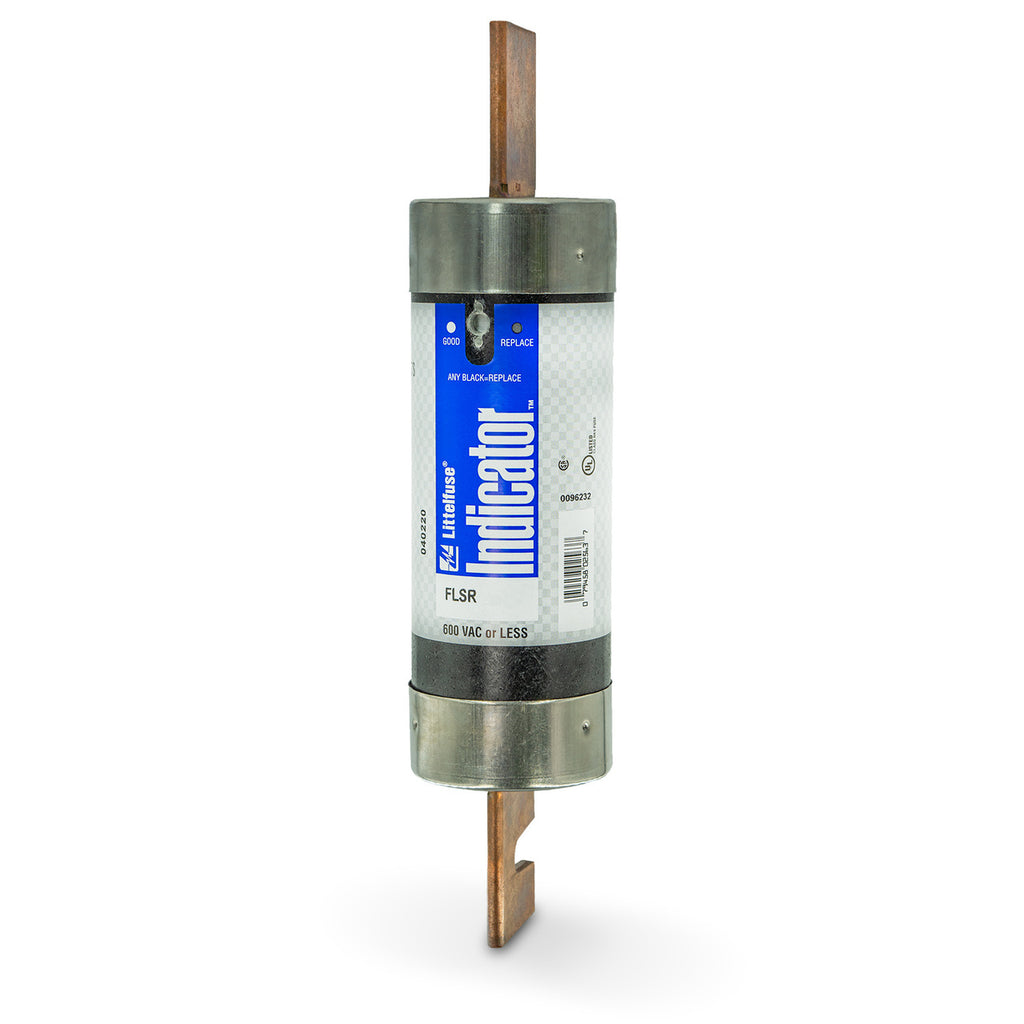

FLSR500ID is a Class RK5 dual-element time-delay fuse from Littelfuse's POWR-GARD FLSR_ID Indicator series, designed for current-limiting protection in industrial and commercial power distribution applications. This knife-blade fuse features a patented solid-state indicator design that turns black when blown, enabling fast visual identification and reducing downtime. The dual-element construction provides advanced short-circuit and overload protection with excellent response to fault currents. Key Specifications

• Current Rating: 500 Amps continuous
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 200 kA AC (rms symmetrical), 300 kA AC (Littelfuse self-certified), 20 kA DC
• Fuse Class: UL Class RK5
• Type: Dual Element, Time Delay (Slo-Blo)
• Size: Knife-Blade
• Mounting: Fuse Block / Clip / Holder (LFR60600 Series compatible)
• Visual Indication: Yes (Indicator window)
• Certifications: UL 248-12, CSA, QPL-WF-1814, CE Approved
• Physical Dimensions: 3-3/32 inch diameter x 13-3/8 inch length
• Applications: Service entrance switches, transformers, switchboard mains, motor control circuits, general purpose circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR500ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 600
• Amperage : 500
• AIC rating : 200kA@600V
• Diameter : 3.09
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 07945802562
• GTIN : 00079458025620
• Country of Origin : Mexico
• Dimensions : x 13 3/8 in x
• Weight : 2
• Certification : CSA, cUL, UL
