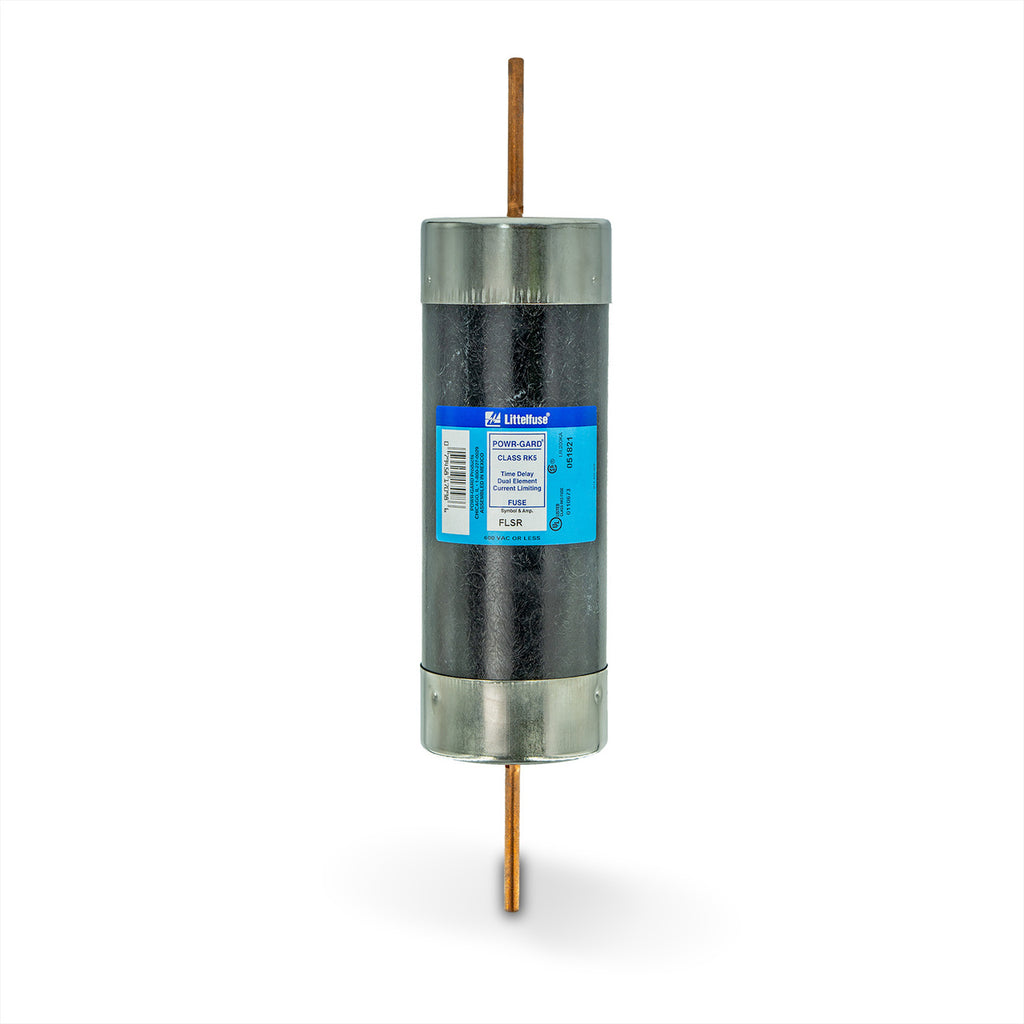

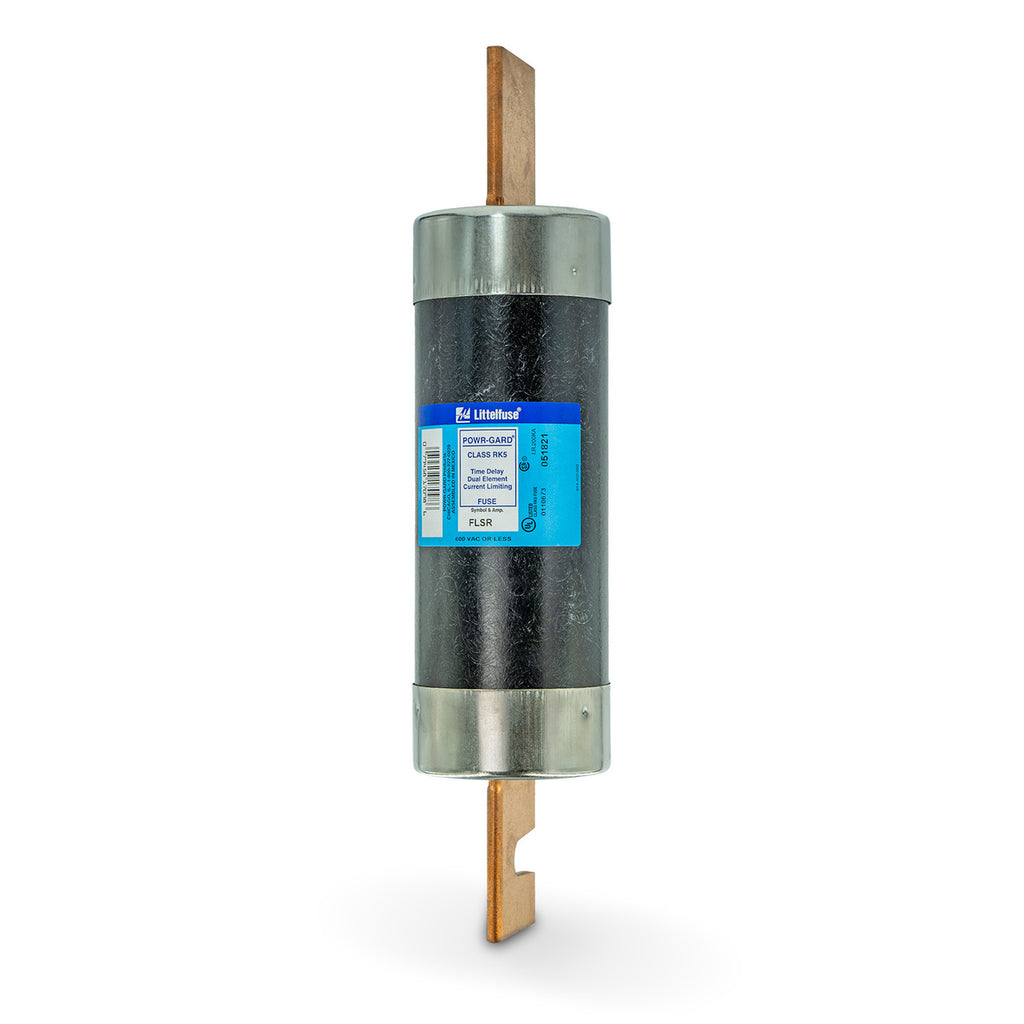

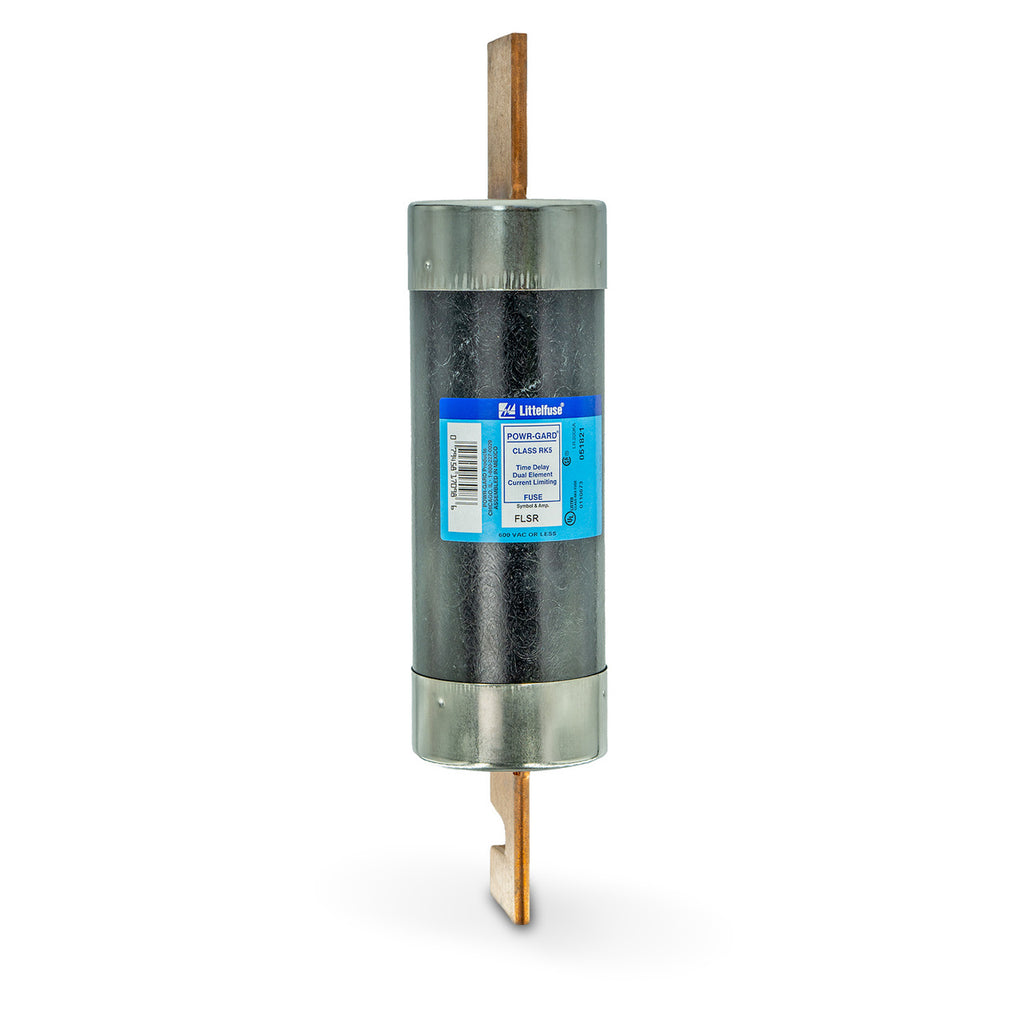

FLSR500 - Littelfuse Class RK5 500A 600V Time Delay Dual Element Fuse

FLSR500

FLSR500 is a Class RK5 time-delay fuse with a 500-amp continuous rating and dual-element design for advanced short-circuit and overload protection in general purpose circuits. This current-limiting fuse features a composite cylindrical body measuring 3-3/32 inches in diameter by 13-3/8 inches in length, designed for use in fuse block or clip-style holders. The FLSR500 provides excellent protection for service entrance switches, transformers, switchboard mains and feeders, motor control circuits, and all general purpose applications requiring reliable overcurrent protection.

• Current Rating: 500 Amps continuous
• AC Voltage Rating: 600 Volts
• DC Voltage Rating: 300 Volts
• Interrupting Rating: 200,000 AIC @ 600 VAC; 20,000 AIC @ 300 VDC
• Fuse Class: UL Class RK5
• Opening Characteristic: Time Delay (Slo-Blo)
• Design: Dual Element, Current Limiting
• Body Type: Cylindrical Composite
• Mounting Method: Fuse Block/Clip/Holder
• Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
• Standards: UL 248-12, QPL-WF-1814, CE Approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR500
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 600
• Amperage : 500
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 07945817096
• GTIN : 00079458170962
• Country of Origin : Mexico
• Dimensions : x 13-3/8 in x
• Weight : 2
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
