Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR300

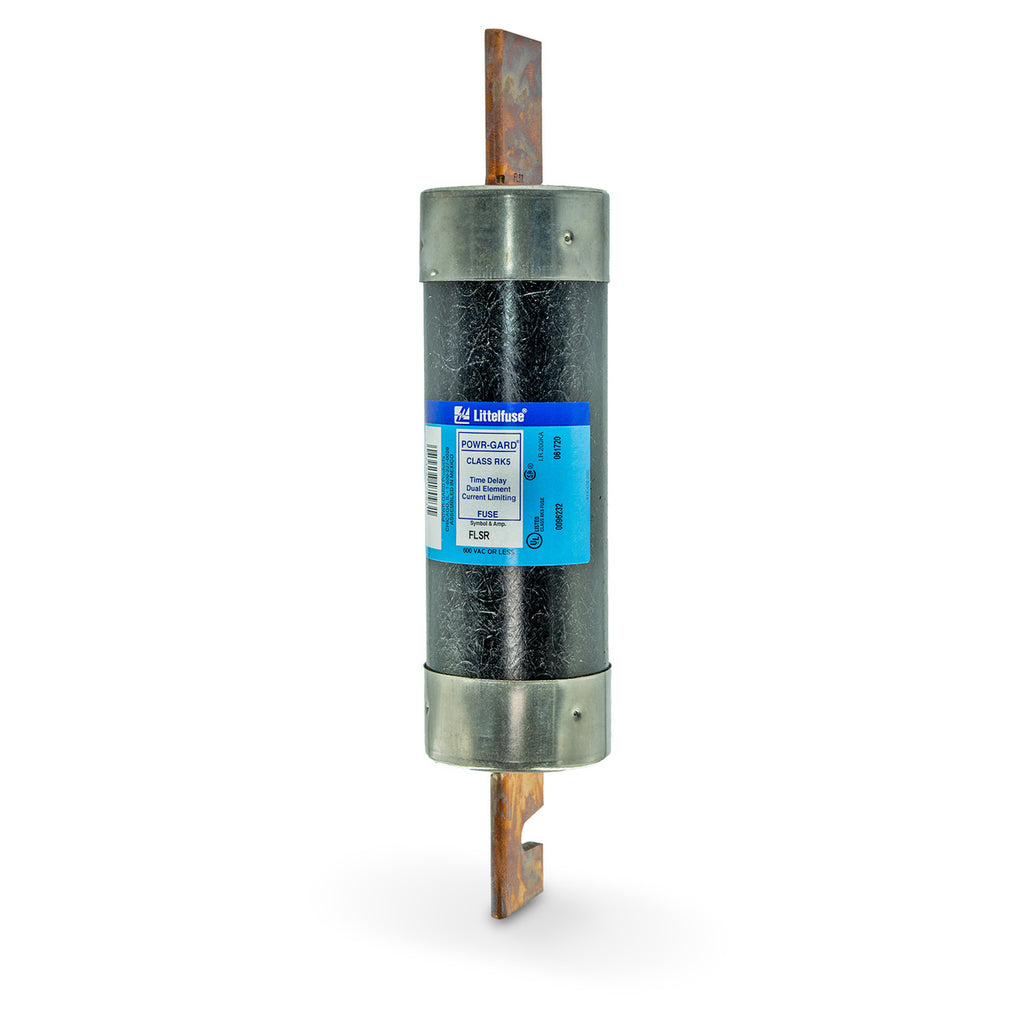

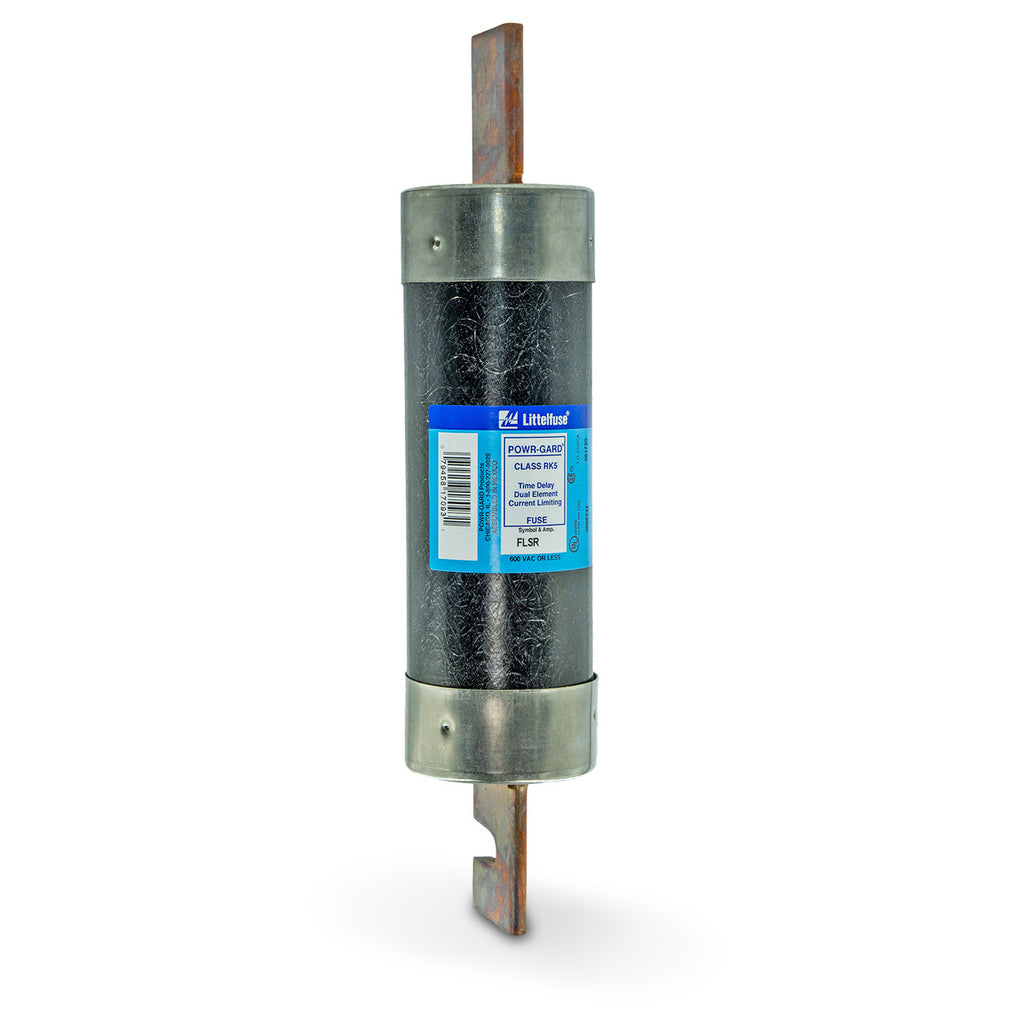

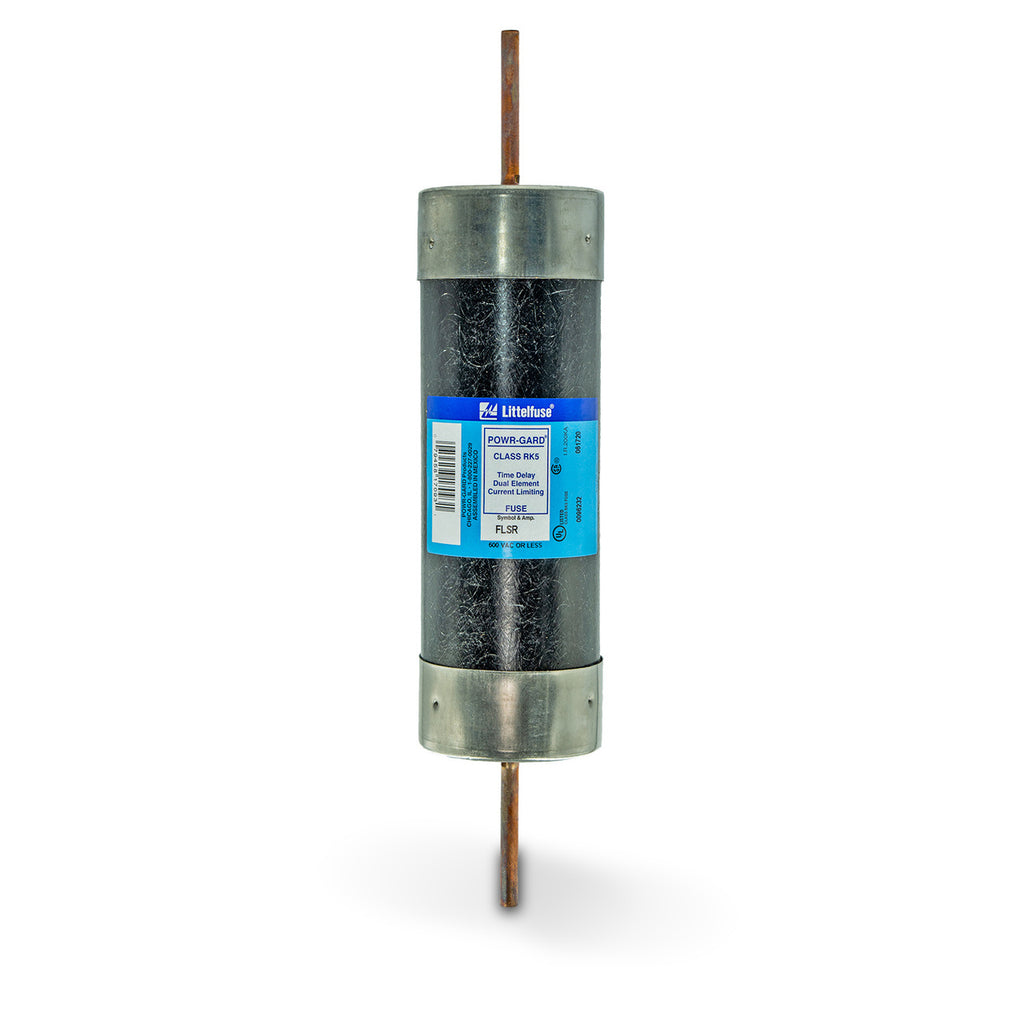

FLSR300 is a Littelfuse Class RK5 fuse designed for reliable circuit protection in general purpose applications. This fuse features a dual-element, time-delay design for advanced short-circuit and overload protection. The FLSR300 fuse is constructed with a cylindrical body and knife-blade style, suitable for use in fuse blocks, clips, or holders. It offers current-limiting performance and is rated for 600VAC and 300VDC systems. The fuse is UL Class RK5 and meets applicable UL 248-12 standards.
- Amperage Rating: 300A
- AC Voltage Rating: 600V
- DC Voltage Rating: 300V
- Interrupting Rating: 200,000A AC, 20,000A DC
- Mounting Type: Fuse Block / Clip / Holder
- Fuse Class: Class RK5
- Response Time: Time Delay (Slo-Blo)
- Body Type: Cylindrical
- Construction: Dual Element
- Standards: UL 248-12, CSA Certified
- Applications: General purpose circuits, service entrance, transformers, switchboards, motor control
- Physical Size: 2-19/32" x 11-5/8"
Specifications
- Part Number: FLSR300
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Type : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Voltage : 600
- Amperage : 300
- AIC rating : 200kA@600V
- Diameter : 2.59
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945817091
- GTIN : 00079458170917
- Country of Origin : Mexico
- Dimensions : x 11-5/8 in x
- Weight : 2
- Certification : CE, CSA Certification, QPL-W-F-1814, UL 248-12 Class RK5
