Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR250ID

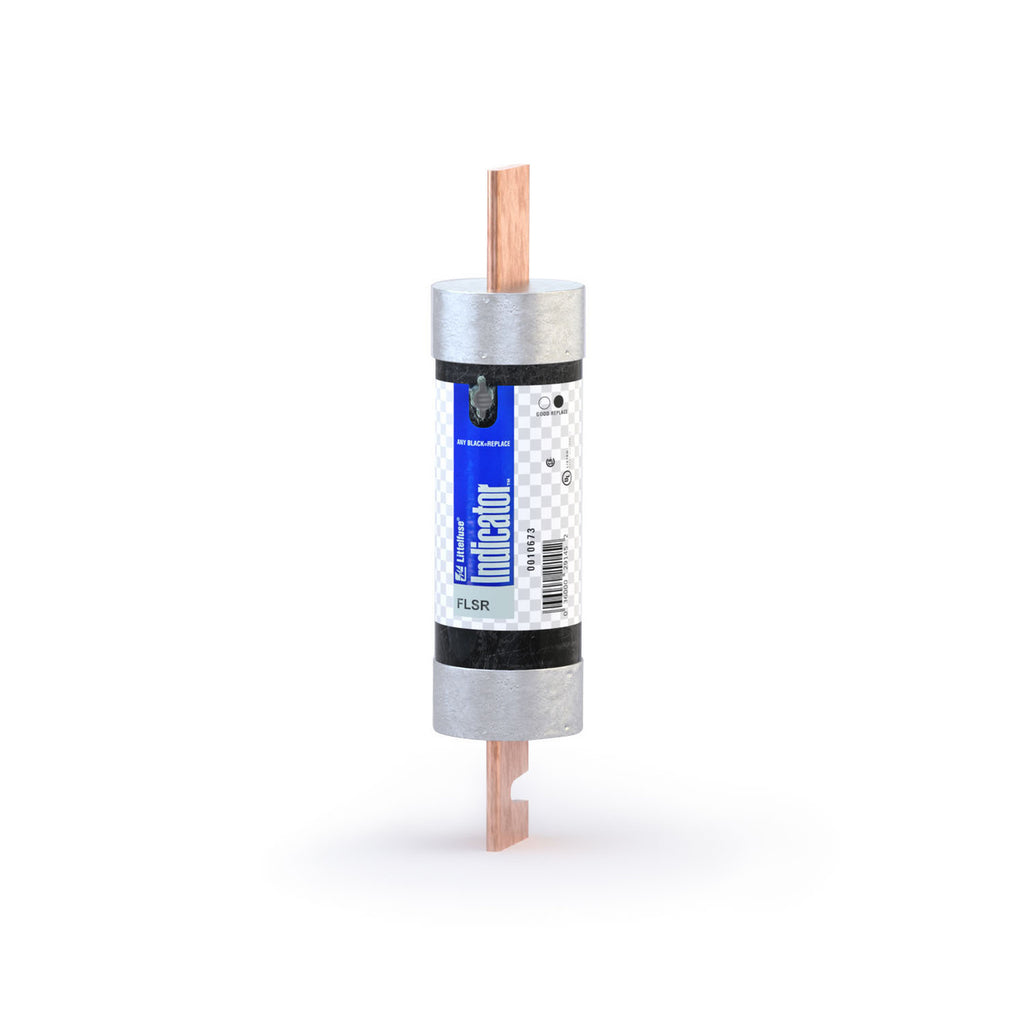

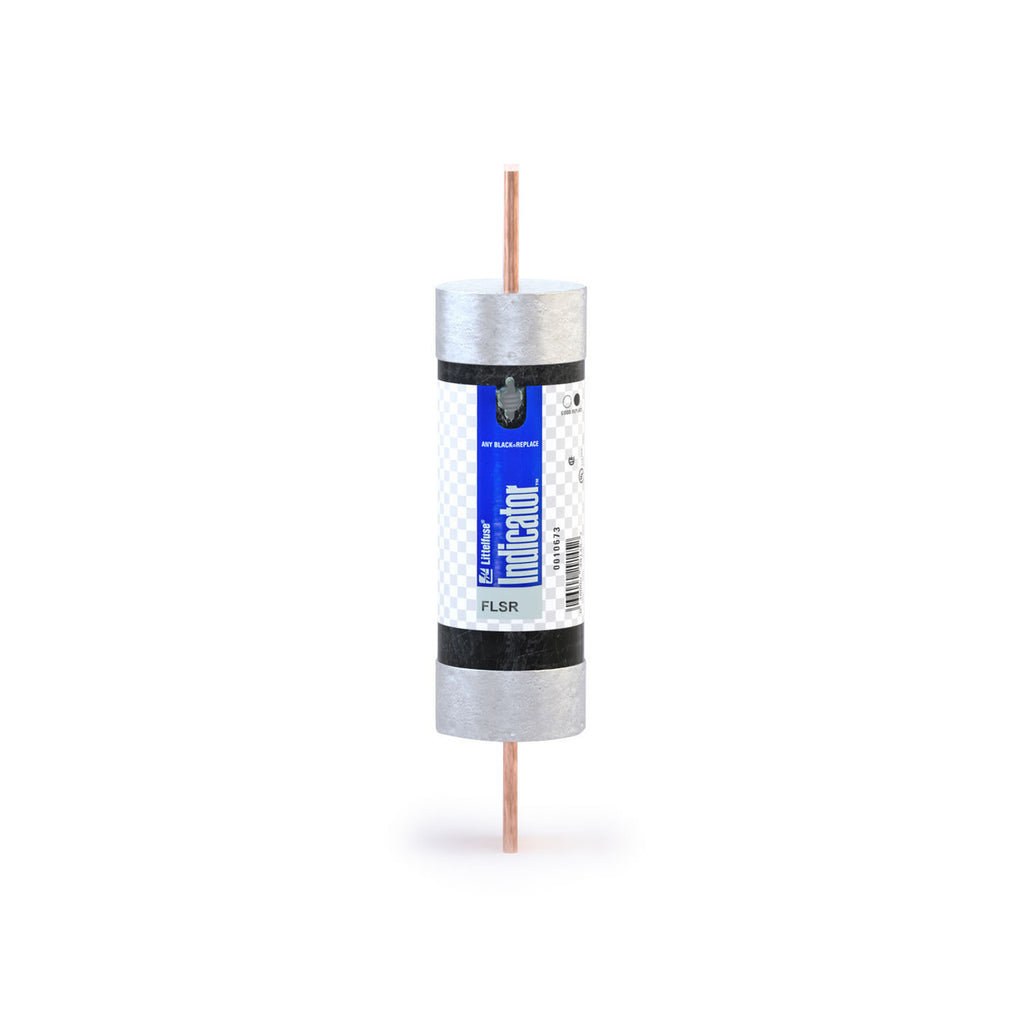

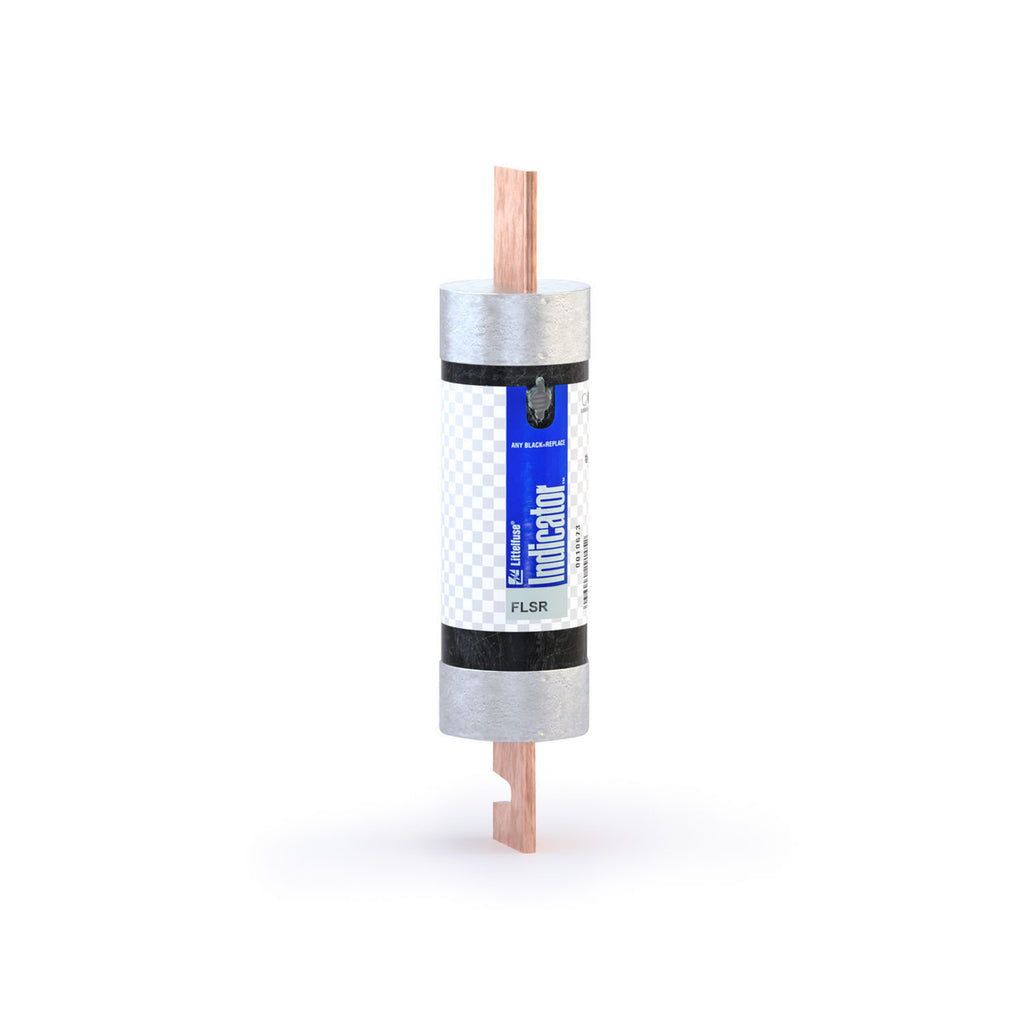

FLSR250ID is a Littelfuse Class RK5 indicating fuse rated for 250 amps and 600 VAC/300 VDC applications.This fuse features a dual-element, time-delay design with current limiting capabilities for advanced short-circuit and overload protection. It includes a visual blown fuse indicator window that turns black for quick identification, improving safety and reducing downtime. The fuse is UL 248-12 certified with a 200 kA AC and 20 kA DC interrupt rating, suitable for service entrance switches, transformers, switchboard mains, and motor control circuits.
- Key Specifications
- Amperage: 250 A
- Voltage Rating: 600 V AC / 300 V DC
- Interrupt Rating: 200 kA AC / 20 kA DC
- Fuse Class: RK5
- Type: Indicating, dual-element, time-delay
- Construction: Cylindrical body with knife-blade style
- Standards: UL 248-12, CSA, CE
- Visual blown fuse indicator window
- Mounting: Fuse holder or switchgear compatible
- Length: 11-5/8 inches
Specifications
- Part Number: FLSR250ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Connection : Rejection Blade
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802557
- GTIN : 00079458025576
- Country of Origin : Mexico
- Dimensions : x 11 5/8 in x
- Weight : 2
- Certification : CSA, cUL, UL
