- Manufacturer:LittleFuse
Description
FLSR20ID

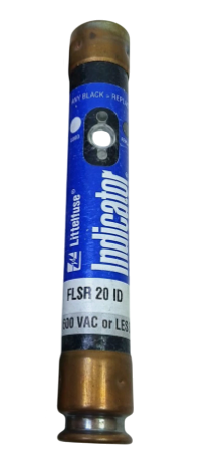

FLSR20ID is a 20 amp, 600 volt AC indicating time delay fuse from Littelfuse's Class RK5 series designed for reliable circuit protection.
This fuse features a dual-element, current-limiting design with a patented solid-state indicator for visual blown fuse identification. It provides advanced short-circuit and overload protection with a 200,000 AIC interrupting rating at 600 VAC and 20,000 AIC at 300 VDC. The cartridge-style fuse measures 13/16 inch in diameter and 5 inches in length, suitable for mounting in fuse blocks or holders. It is UL listed and CSA certified for industrial and general-purpose applications including service entrance switches, switchboard mains, and motor control circuits.
- Amperage Rating: 20 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Fuse Class: RK5
- Type: Indicating, Time Delay (Slow Blow)
- Element: Dual Element
- Body Style: Cartridge
- Dimensions: 13/16 inch diameter x 5 inch length
- Mounting: Fuse Block / Clip / Holder
- Certifications: UL Listed (E81895), CSA Certified (LR29862)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FLSR20ID
- Manufacturer : LittleFuse
- Brand : LittleFuse
Product Data
- Weight : 0.08
