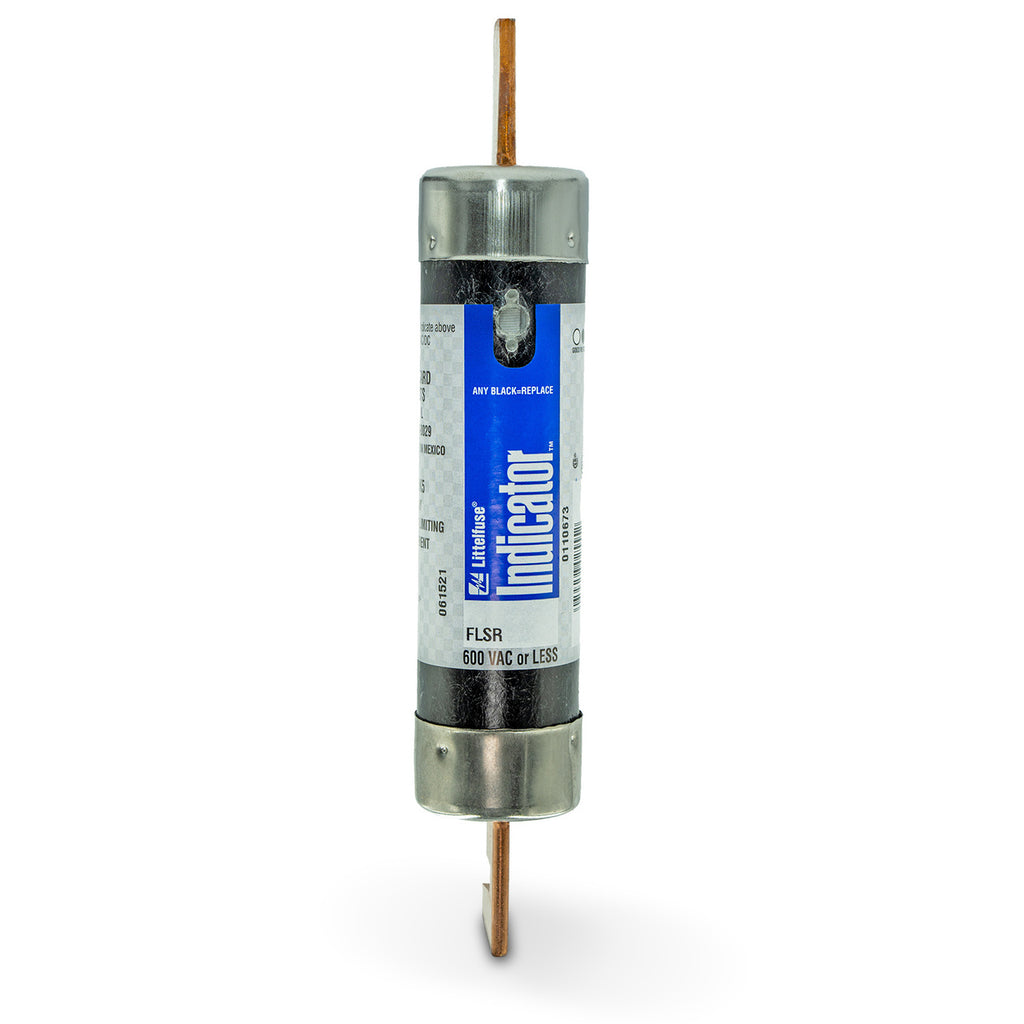

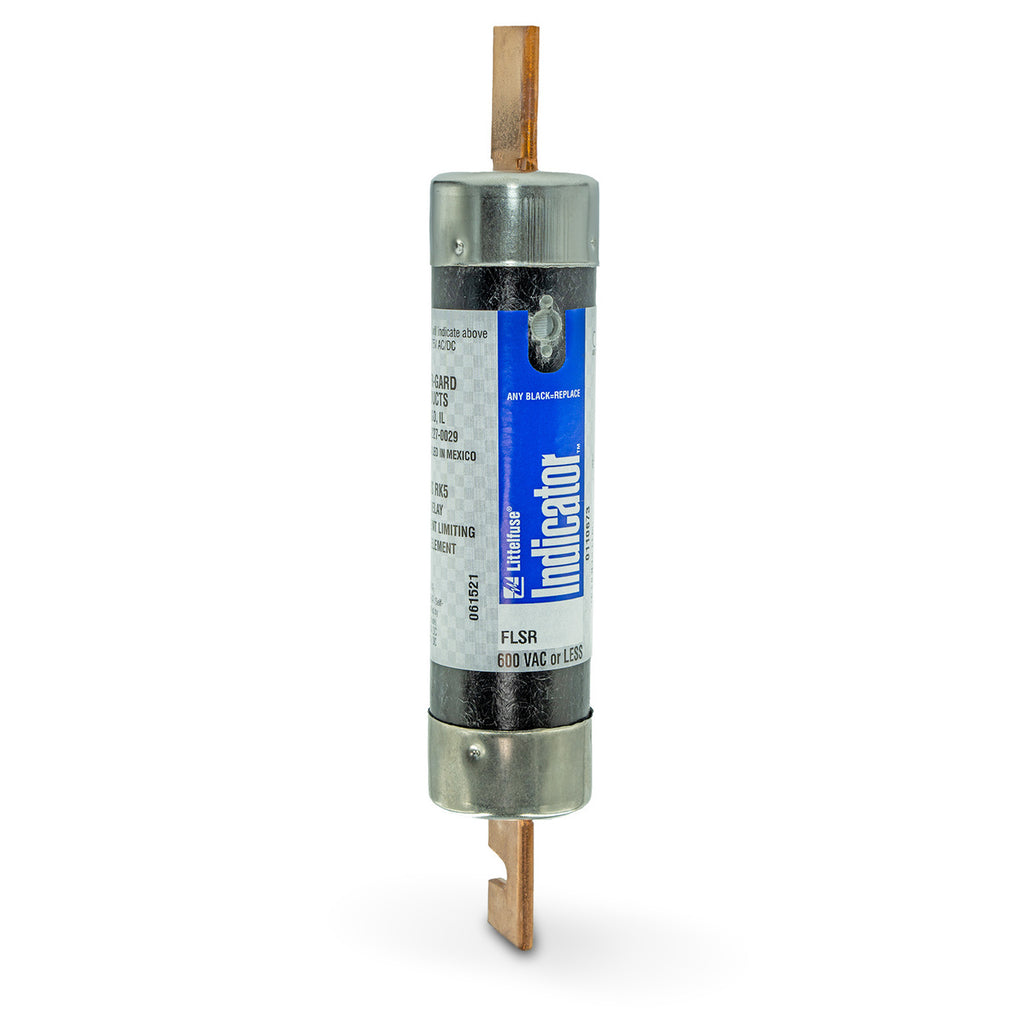

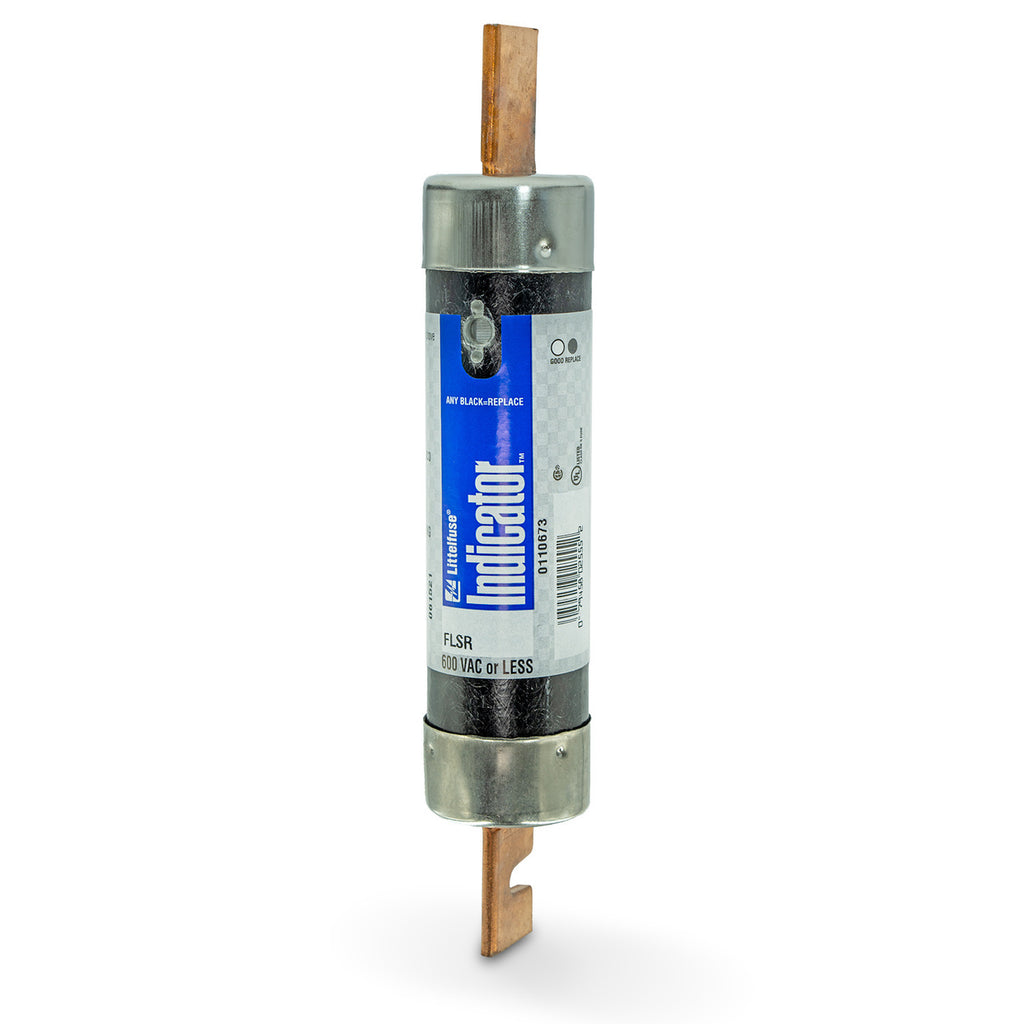

FLSR175ID - Littelfuse Class RK5 175A 600V Time Delay Indicating Fuse

FLSR175ID

FLSR175ID is a Class RK5 dual-element time-delay fuse from Littelfuse designed for advanced short-circuit and overload protection in industrial and commercial electrical systems. This current-limiting fuse features a patented solid-state indicator design that provides visual blown fuse indication, turning black in the indication window for fast identification of a blown fuse and reduced downtime. FLSR175ID specifications include 175 ampere continuous rating, 600 VAC/300 VDC voltage rating, 200 kA AC interrupting rating at 600V, 20 kA DC interrupting rating at 300V, knife-blade mounting style, and dual-element construction for superior performance. The fuse is UL 248-12 Class RK5 certified, CSA approved, and meets QPL-WF-1814 and CE standards.

• Current Rating: 175 Amps continuous
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: Class RK5
• Interrupting Rating: 200 kA AC at 600V, 20 kA DC at 300V
• Response Time: Time Delay (Slo-Blo)
• Construction: Dual Element, Current Limiting
• Mounting: Knife-Blade, Fuse Block/Clip/Holder compatible
• Indication: Visual blown fuse indicator
• Certifications: UL 248-12, CSA, QPL-WF-1814, CE
• Applications: Service entrance, transformers, switchboard, motor control, general purpose circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR175ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 600
• Amperage : 175
• AIC rating : 200kA@600V
• Diameter : 1.84
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 079458025545
• GTIN : 00079458025545
• Country of Origin : Mexico
• Dimensions : x 9 5/8 in x
• Weight : 1
• Certification : CSA, cUL, UL
