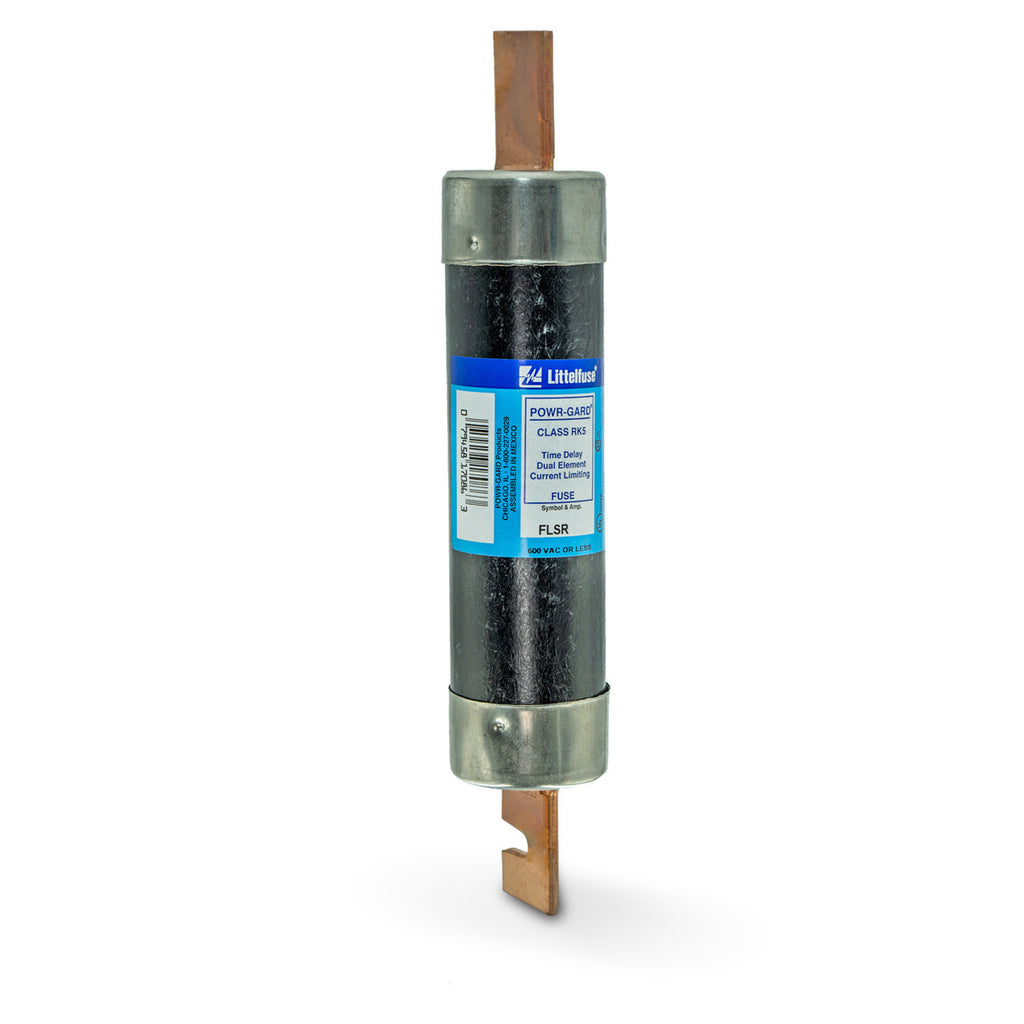

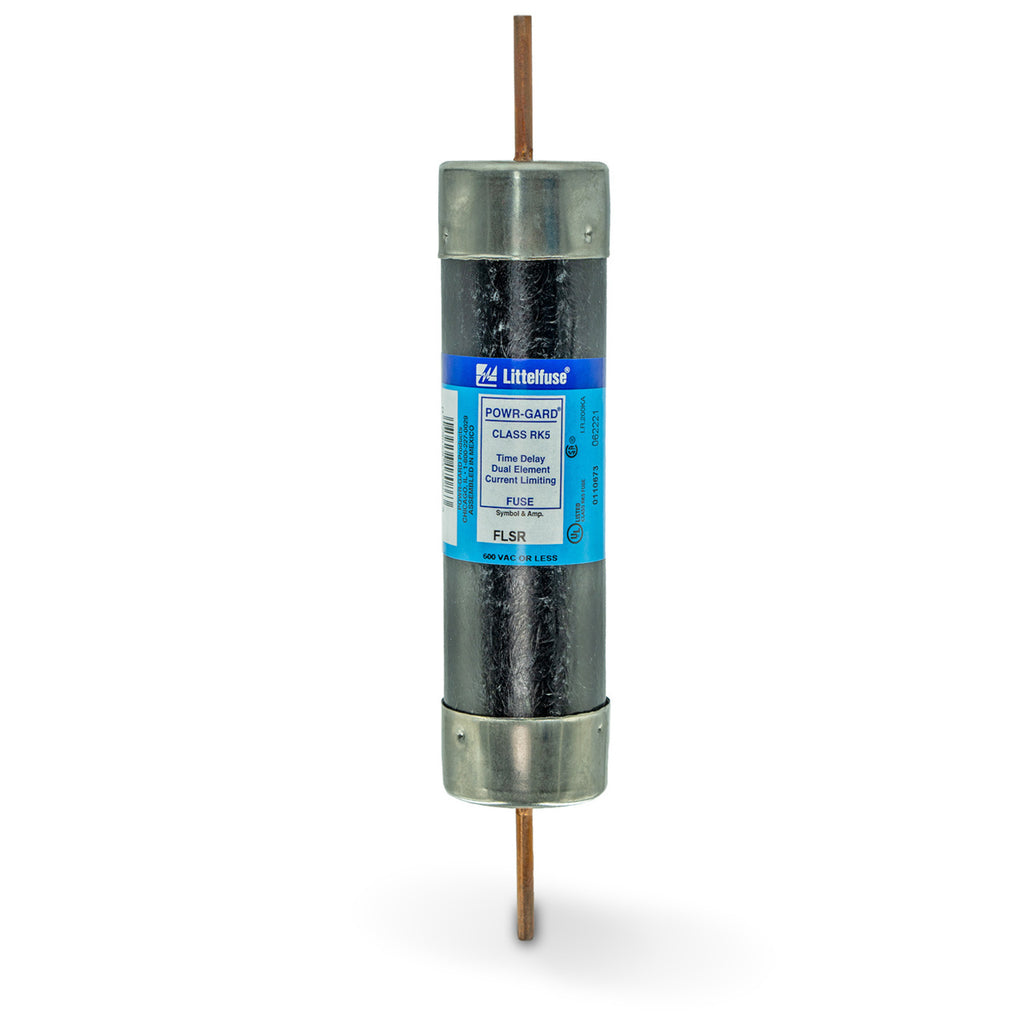

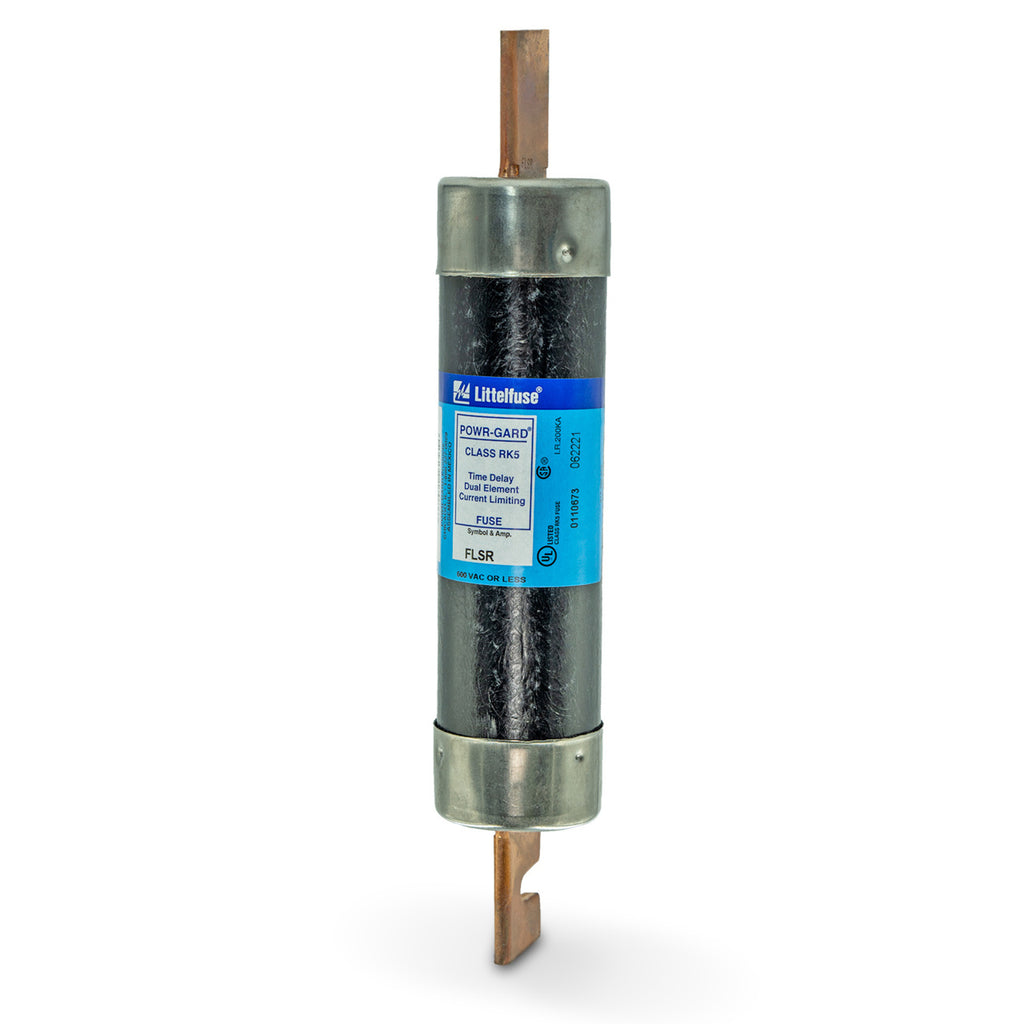

FLSR175 - Littelfuse 175 Amp 600 Volt Class RK5 Time Delay Fuse

FLSR175

FLSR175 is a Littelfuse Class RK5 fuse rated for 175 amps and 600 volts AC, designed for time-delay protection in general purpose circuits.This dual-element, current-limiting fuse features a knife-blade style construction and provides excellent short-circuit protection with a high interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. It is UL listed and CSA certified, suitable for use in motor control, switchboard mains, feeders, transformers, and service entrance switches. The fuse measures 1-27/32 inches in diameter by 9-5/8 inches in length and mounts in fuse blocks, clips, or holders.

• Amperage Rating: 175 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: RK5
• Fuse Type: Time Delay (Slo-Blo)
• Interrupting Rating: 200,000 AIC at 600 VAC, 20,000 AIC at 300 VDC
• Dual Element Design
• Current Limiting
• Mounting Method: Fuse Block / Clip / Holder
• Dimensions: 1-27/32" diameter x 9-5/8" length
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR175
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 600
• Amperage : 175
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 079458170870
• GTIN : 00079458170870
• Country of Origin : Mexico
• Dimensions : x 9-5/8 in x
• Weight : 1
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
