2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR125ID

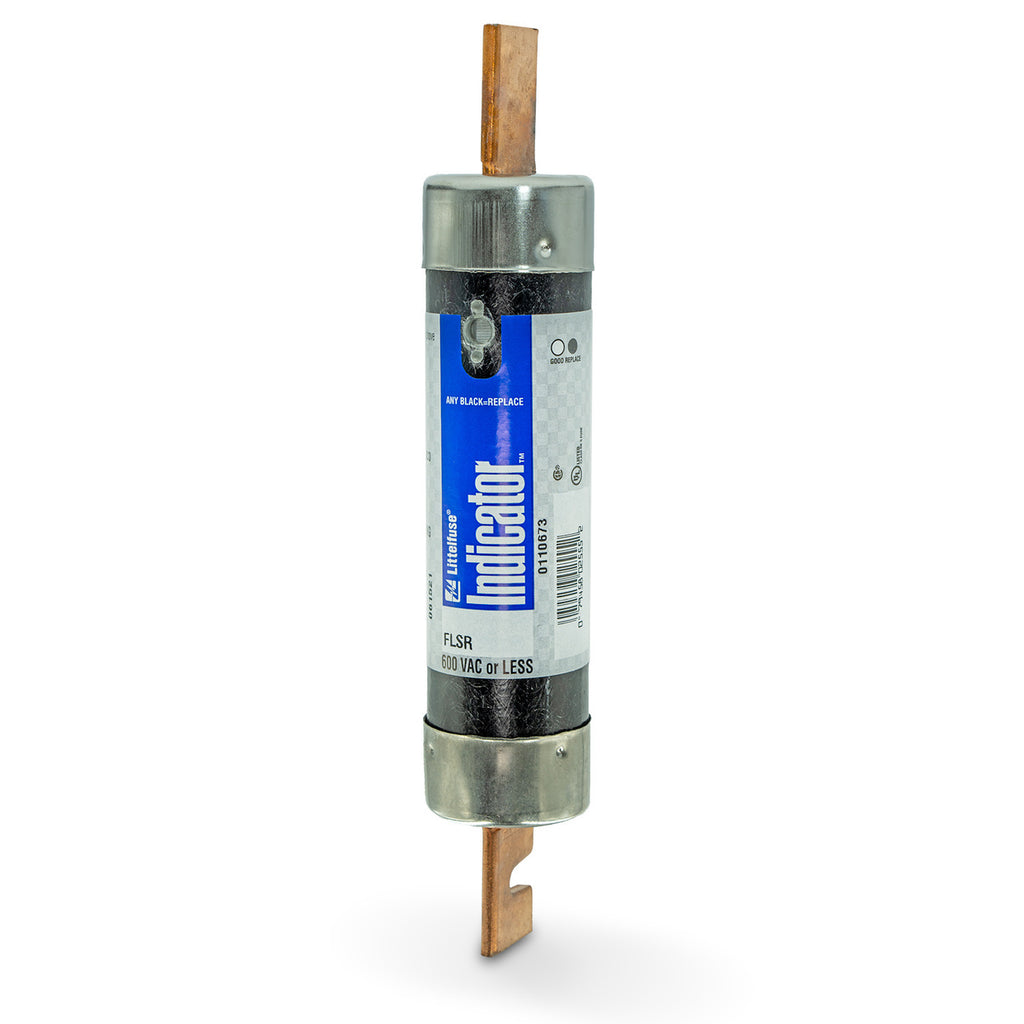

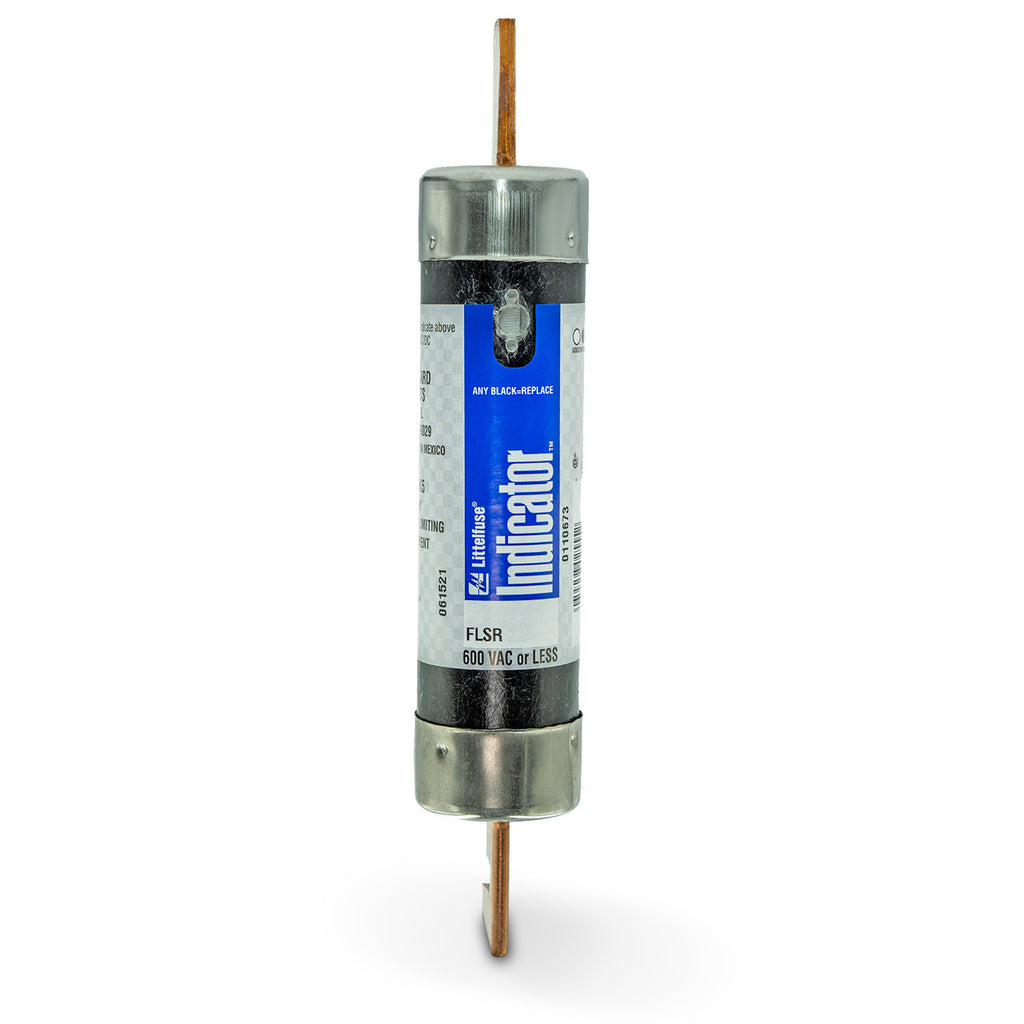

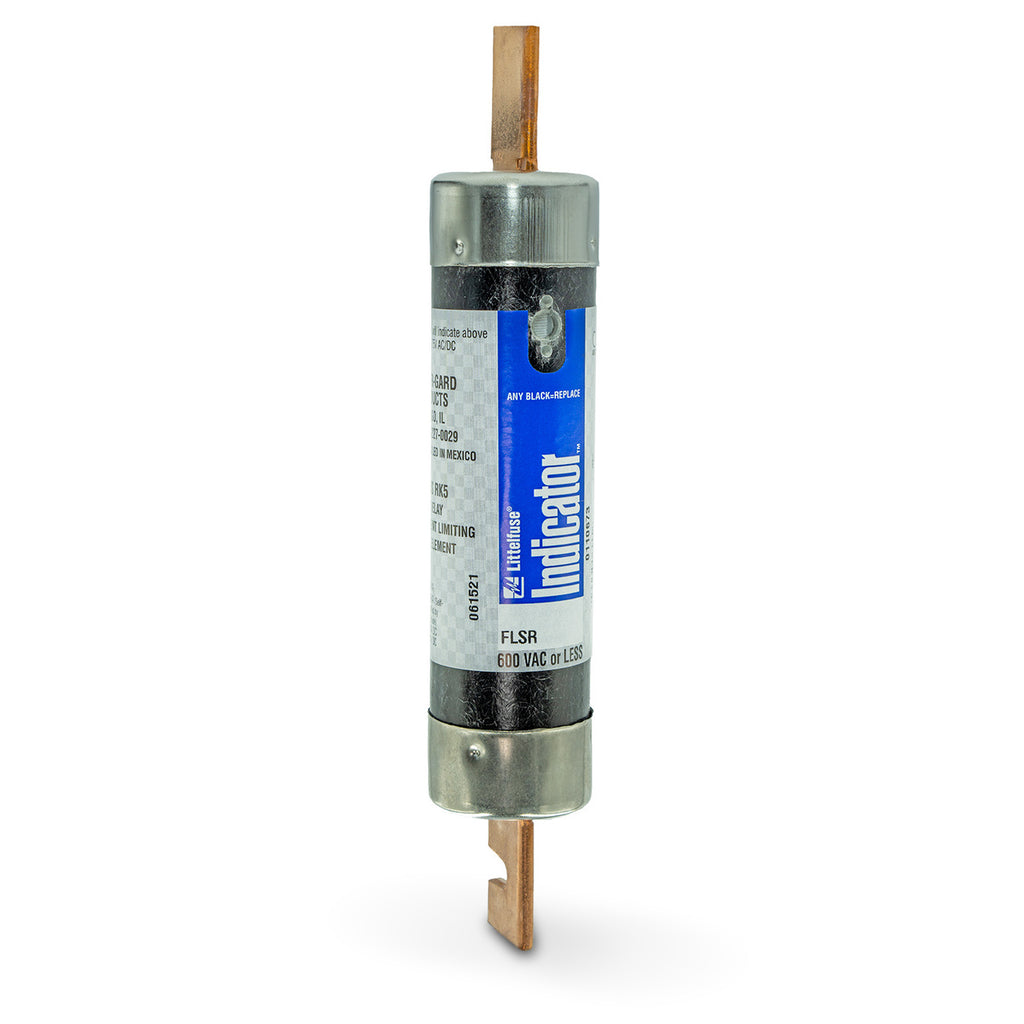

FLSR125ID is a Littelfuse Class RK5 indicating fuse rated for 125 amps and 600VAC/300VDC operation. It features a time delay (slow blow) dual-element design for advanced circuit protection.
This fuse offers current limiting capabilities with a 20kA interrupt rating at 300VDC and up to 200kA rms symmetrical interrupt rating at 600VAC. It has a knife-blade mounting style and includes a visual blown fuse indicator for quick status identification. The fuse is suitable for general purpose circuits including service entrance switches, transformers, switchboard mains, feeders, and motor control circuits.
- Amperage Rating: 125A
- Voltage Rating: 600VAC / 300VDC
- Fuse Class: RK5
- Fuse Type: Time Delay (Slow Blow), Dual Element
- Interrupt Rating: 20kA DC, 200kA AC rms symmetrical
- Mounting Type: Knife-Blade
- Visual Blown Fuse Indication: Yes
- Length: 9 5/8 inches
- Diameter: 1 27/32 inches
- Applicable Standards: UL 248-12, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FLSR125ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Voltage : 600
- Amperage : 125
- AIC rating : 200kA@600V
- Diameter : 1.84
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 079458025521
- GTIN : 00079458025521
- Country of Origin : Mexico
- Weight : 1.4
- Certification : Standard 248-12 UL Listed/CSA
