FLSR125 - Littelfuse 125 Amp 600 VAC 300 VDC Class RK5 Dual Element Time Delay Fuse

FLSR125

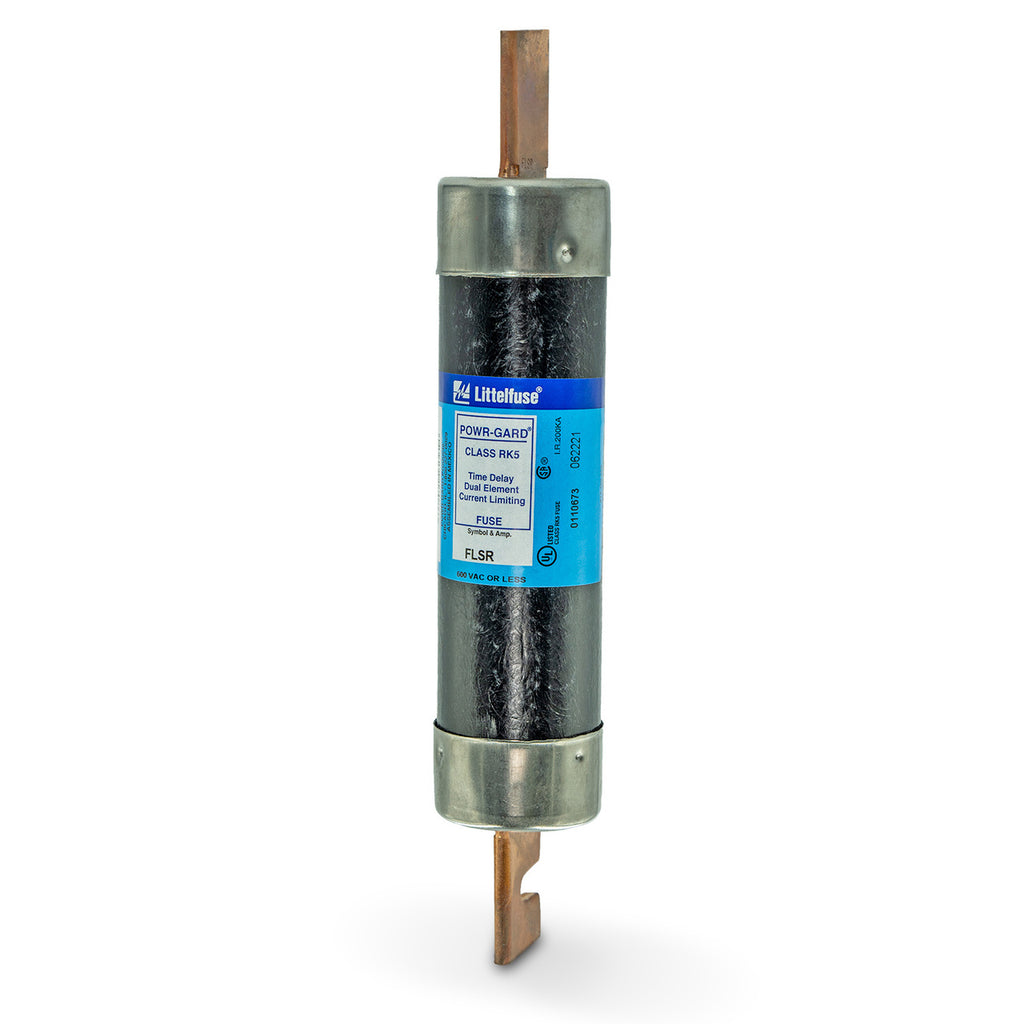

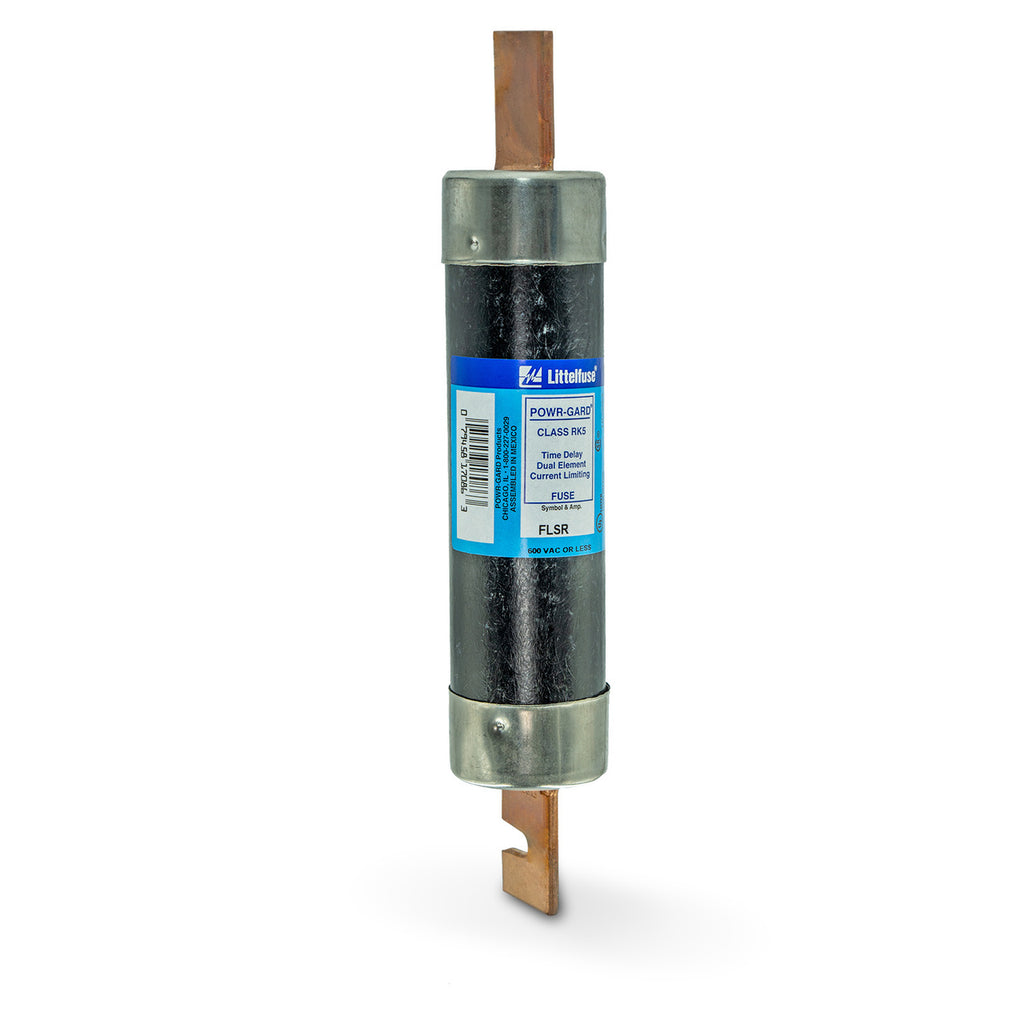

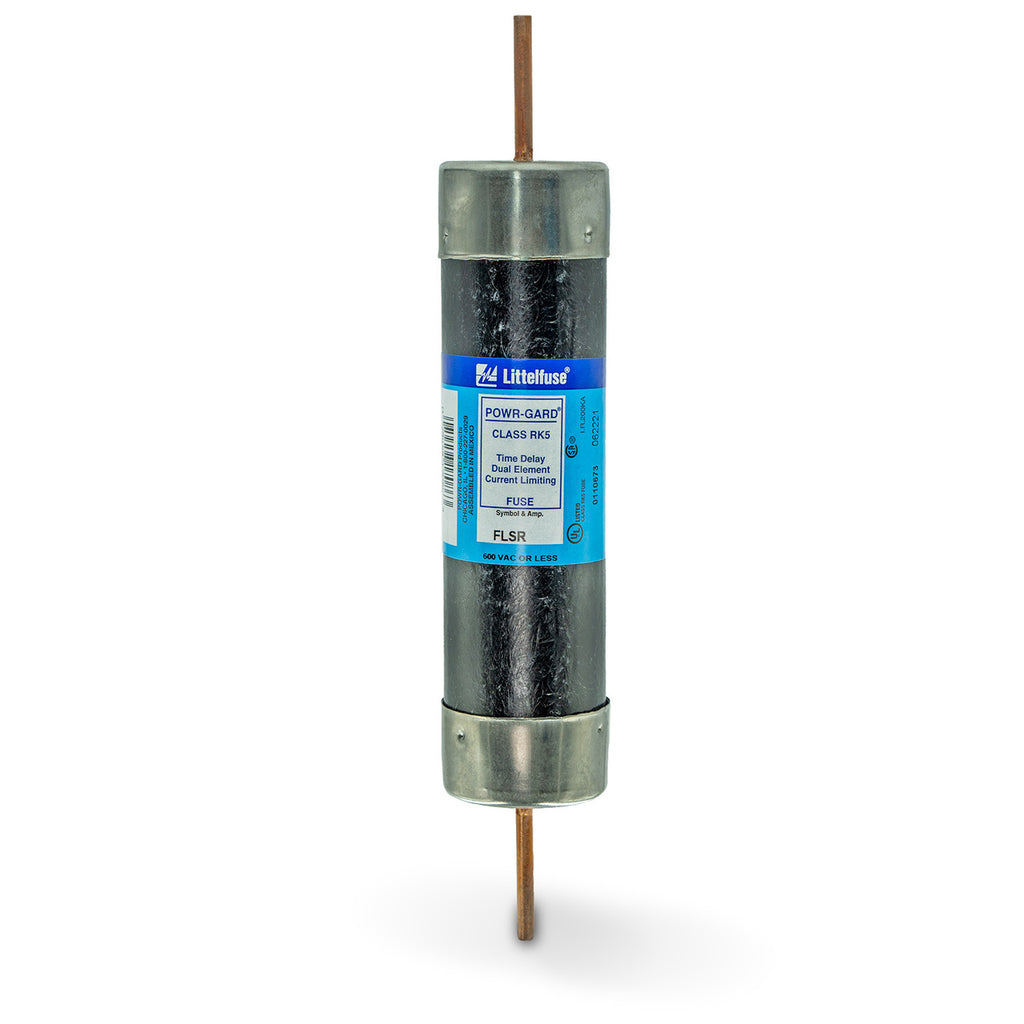

FLSR125 is a 125 amp dual element time delay fuse designed for superior circuit protection in industrial and general purpose applications.This Class RK5 fuse features a knife-blade construction and is rated for 600 VAC and 300 VDC operation. It provides excellent short-circuit and overload protection with a current-limiting, dual-element design. The fuse has a time-delay (Slo-Blo) characteristic to allow temporary overloads without blowing, making it ideal for motor circuits and other inductive loads. It has an interrupting rating of 200 kA at 600 VAC and 20 kA at 300 VDC, ensuring reliable interruption of high fault currents. The fuse is mounted using fuse blocks, clips, or holders compatible with the LFR60200 series.

Key Specifications
• Amperage: 125 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: Class RK5
• Fuse Type: Dual Element, Time Delay (Slo-Blo)
• Construction: Knife-Blade
• Interrupting Rating: 200 kA @ 600 VAC, 20 kA @ 300 VDC
• Mounting Method: Fuse Block / Clip / Holder
• Applicable Standards: UL 248-12
• Typical Applications: Motor circuits, switchboard mains, transformers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR125
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 600
• Amperage : 125
• AIC rating : 200kA@600V
• Diameter : 1.84
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 07945817084
• GTIN : 00079458170849
• Country of Origin : Mexico
• Dimensions : x 9-5/8 in x
• Weight : 1
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
