Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR110ID

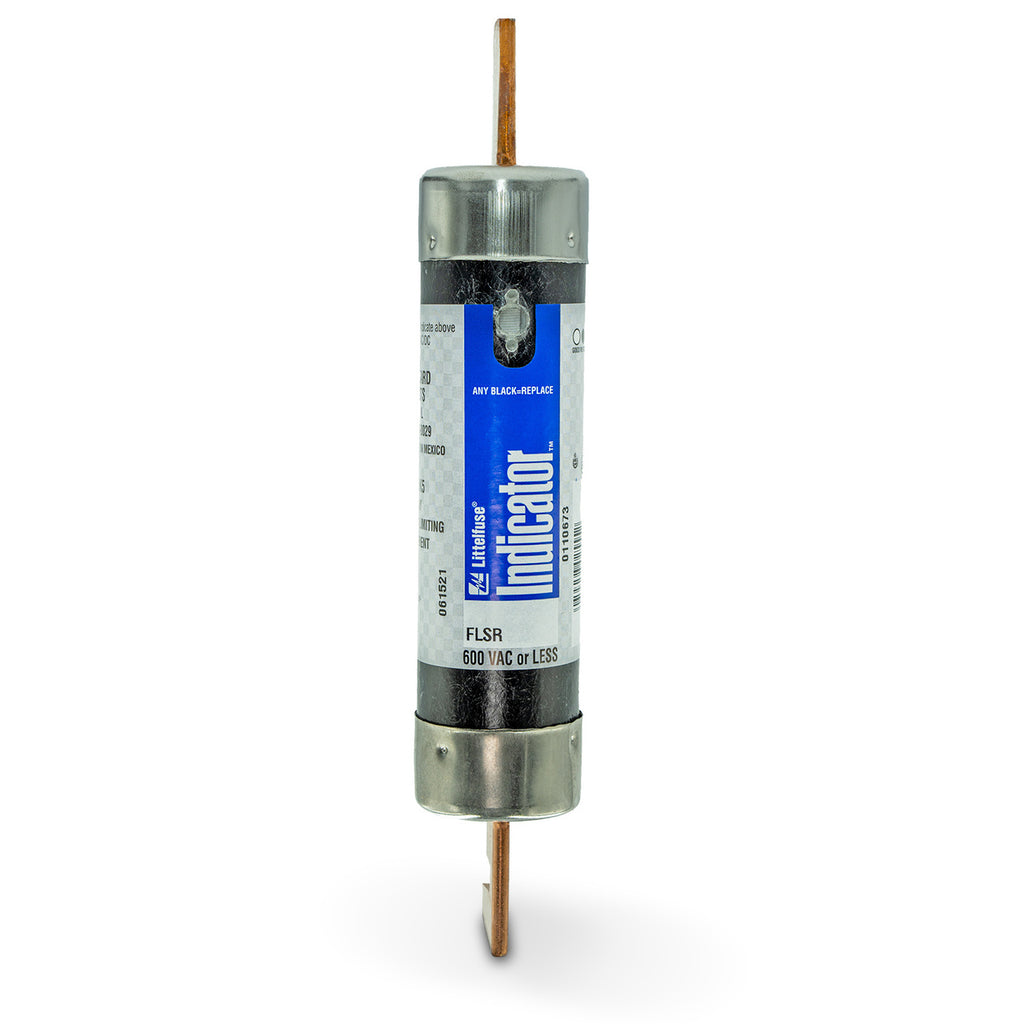

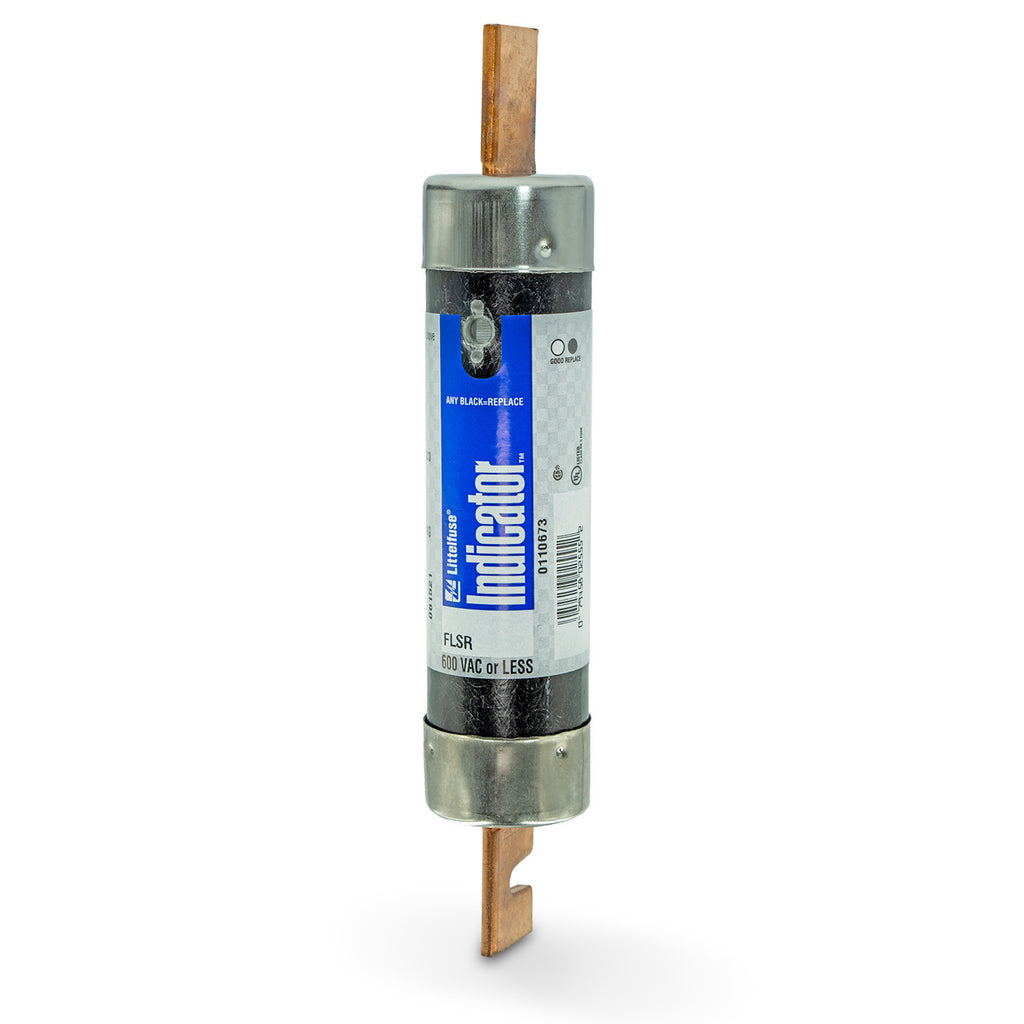

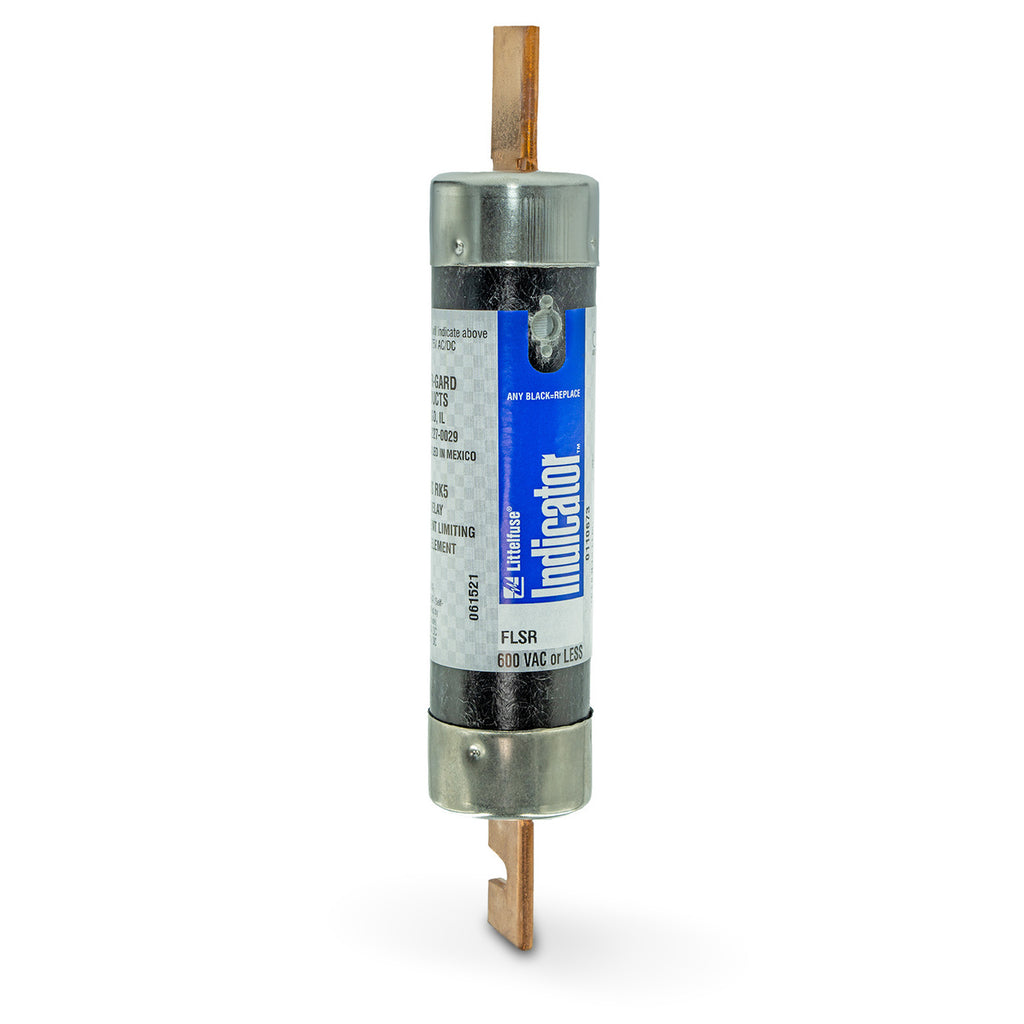

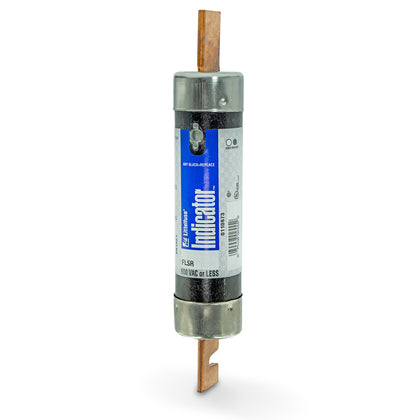

FLSR110ID is a Littelfuse Class RK5 indicating fuse designed for reliable circuit protection in a wide range of industrial and commercial applications. This fuse features a dual-element, time-delay construction for advanced overload and short-circuit protection, with a visual blown fuse indicator for quick identification. The FLSR110ID is a current-limiting fuse suitable for all general purpose circuits, including service entrance switches, transformers, switchboard mains, feeders, and motor control circuits. Its robust design ensures consistent performance and safety in demanding environments.
- Amperage Rating: 110 Amps
- AC Voltage Rating: 600 Volts
- DC Voltage Rating: 300 Volts
- Fuse Class: UL Class RK5
- Response Time: Time Delay
- Interrupting Rating: 200,000 AIC @ 600VAC
- DC Interrupting Rating: 20,000 AIC
- Mounting Type: Knife-Blade
- Physical Size: 1 27/32" x 9 5/8"
- Indicator: Yes
- Series: FLSR_ID
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: FLSR110ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Voltage : 600
- Amperage : 110
- AIC rating : 200kA@600V
- Diameter : 1.84
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 079458025514
- GTIN : 00079458025514
- Country of Origin : Mexico
- Dimensions : x 9 5/8 in x
- Weight : 1
- Certification : CSA, cUL, UL
