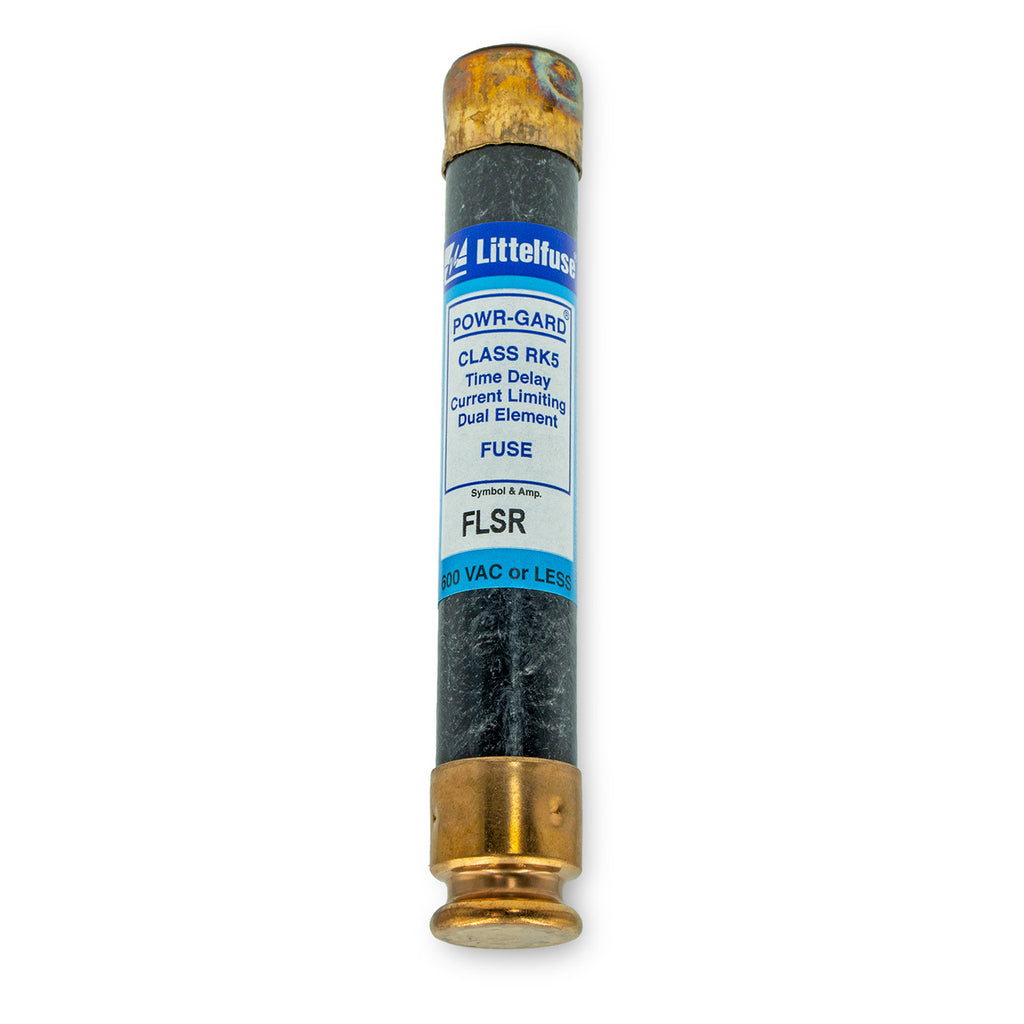

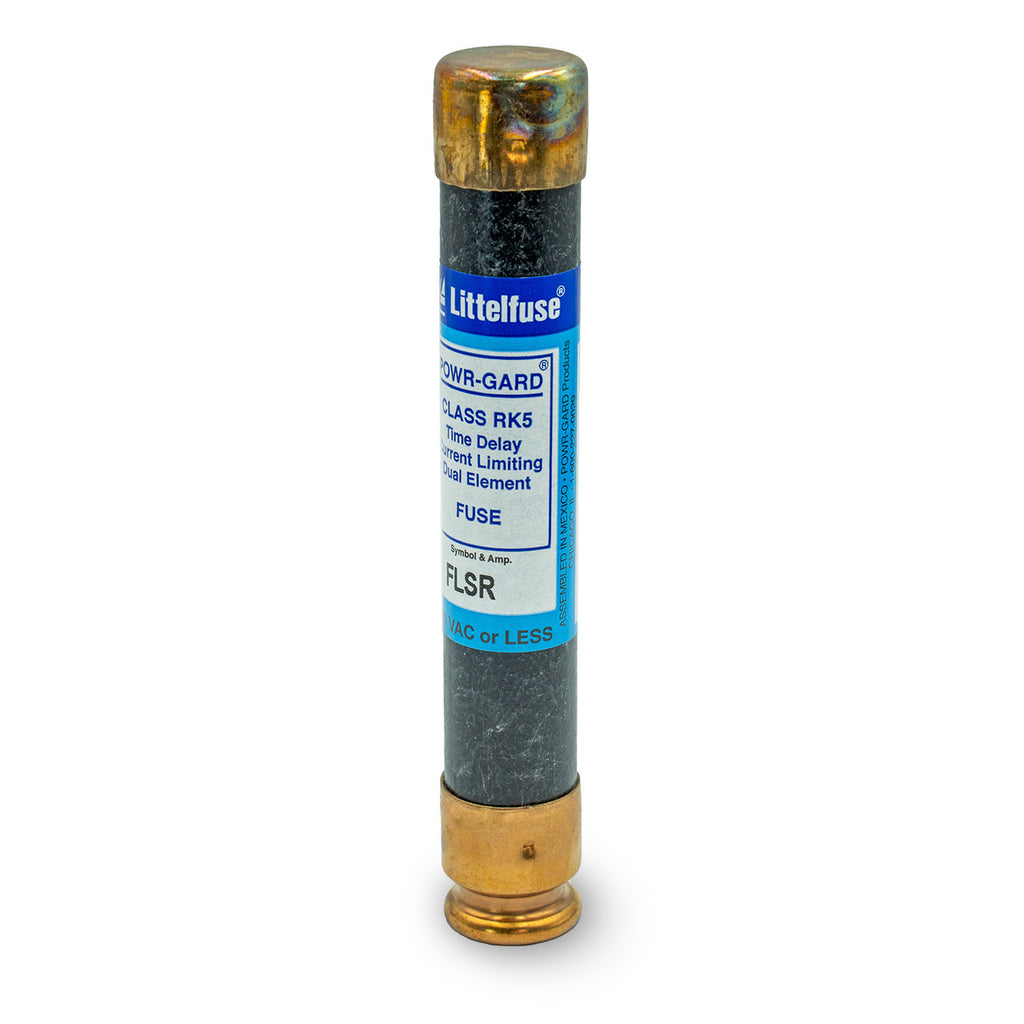

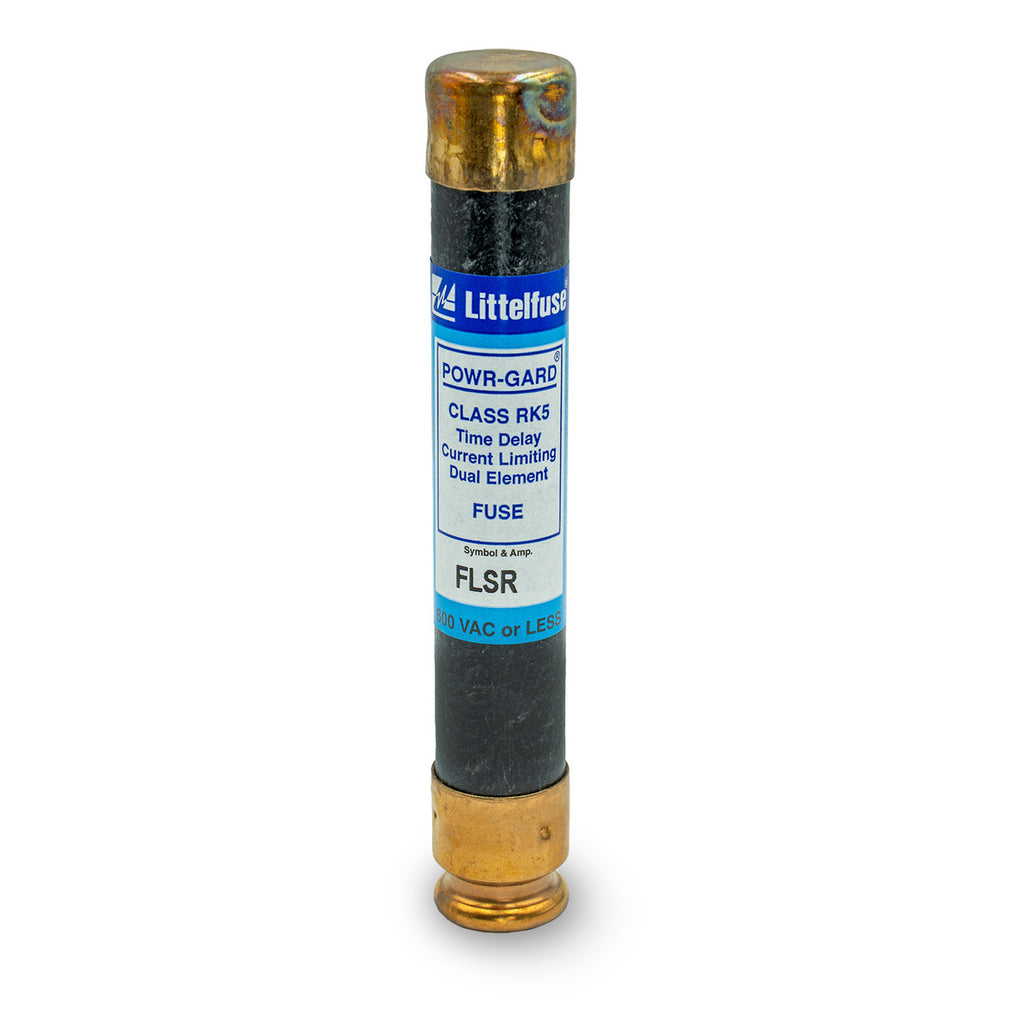

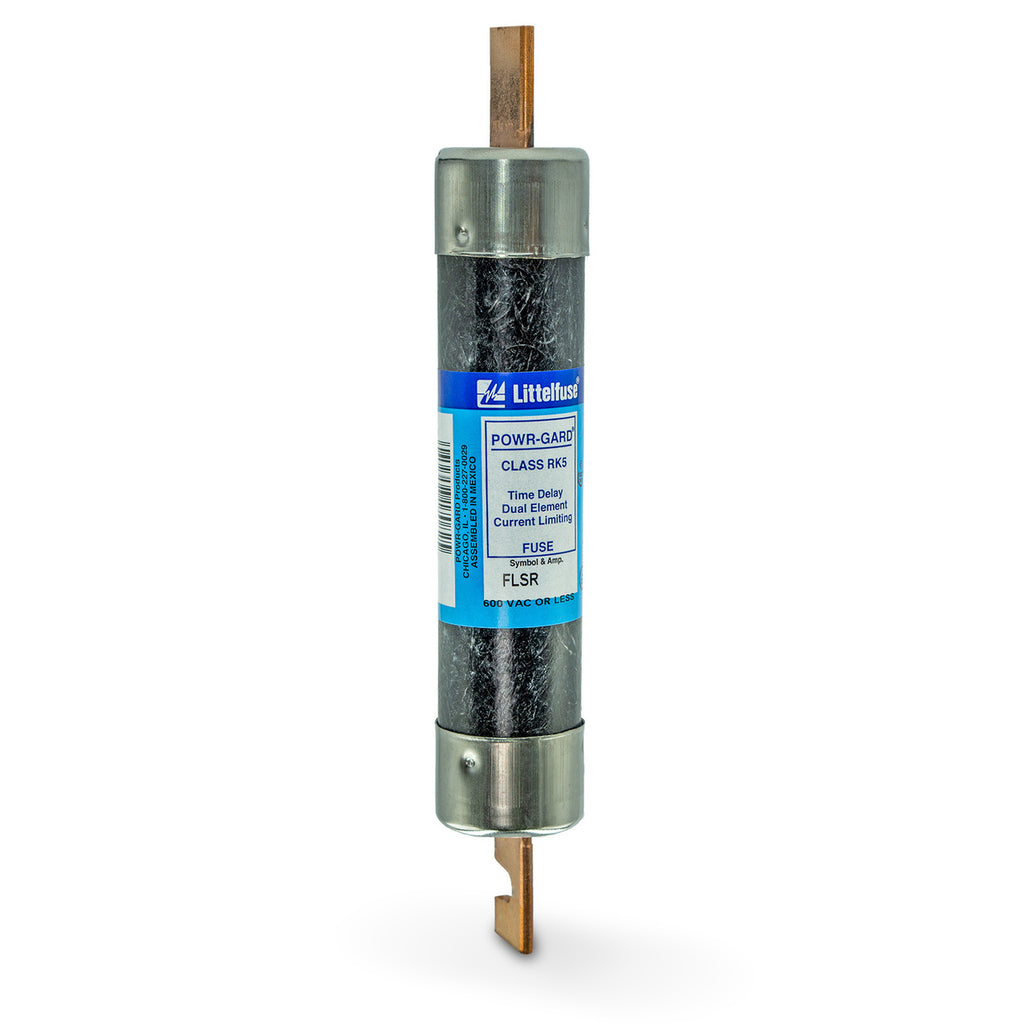

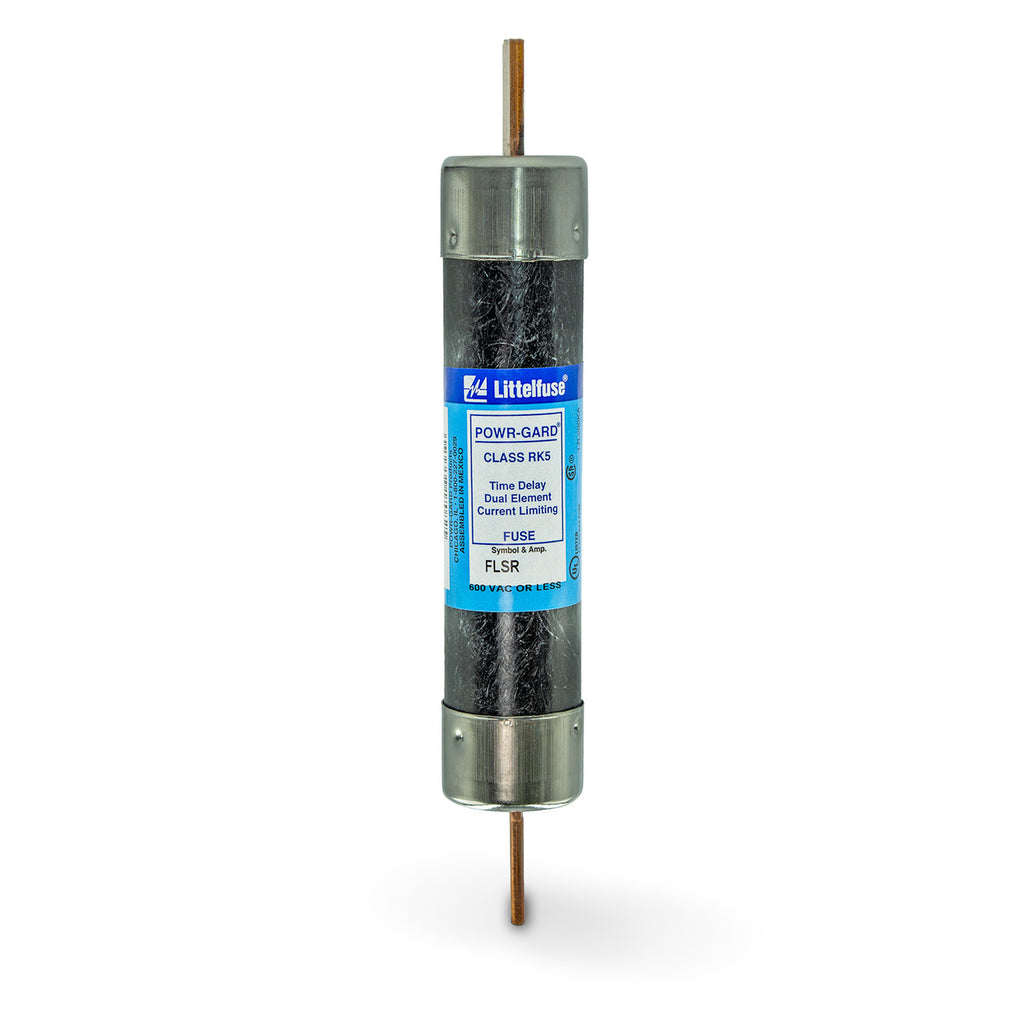

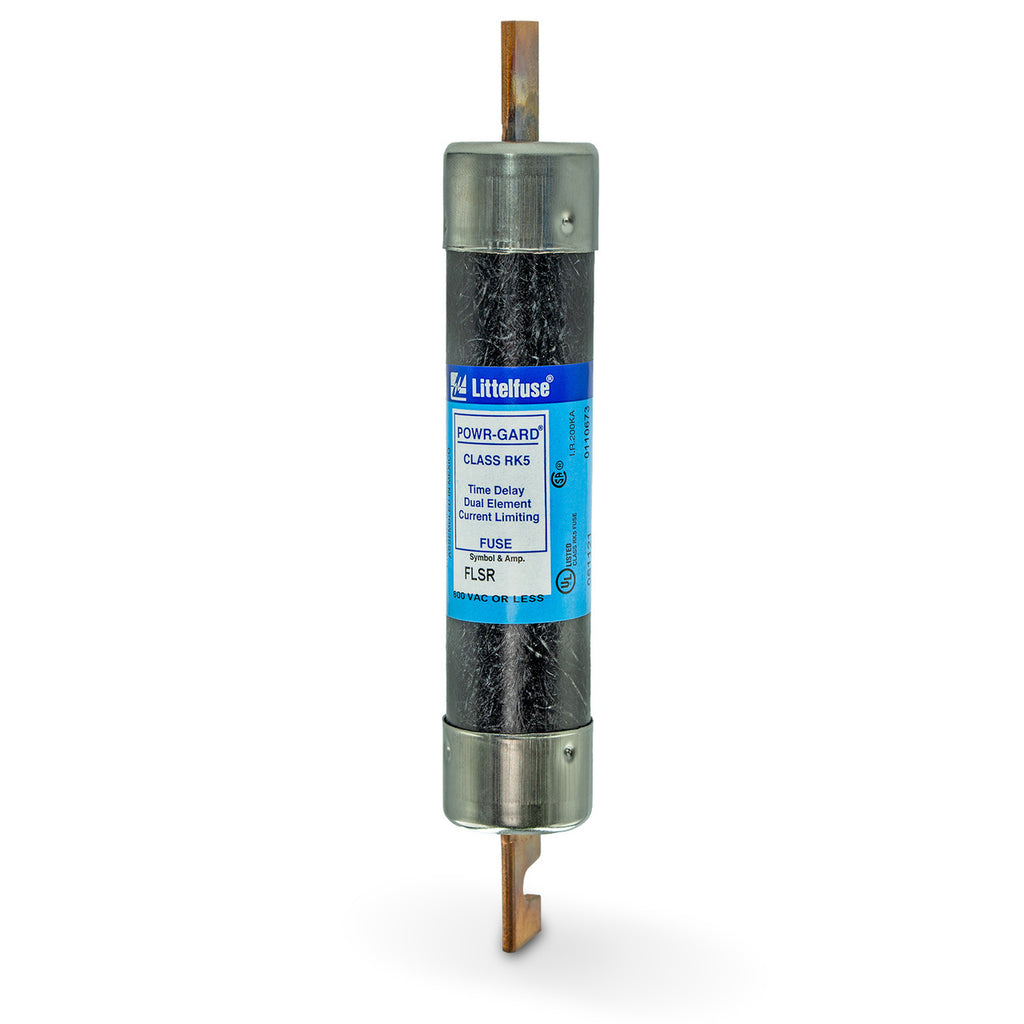

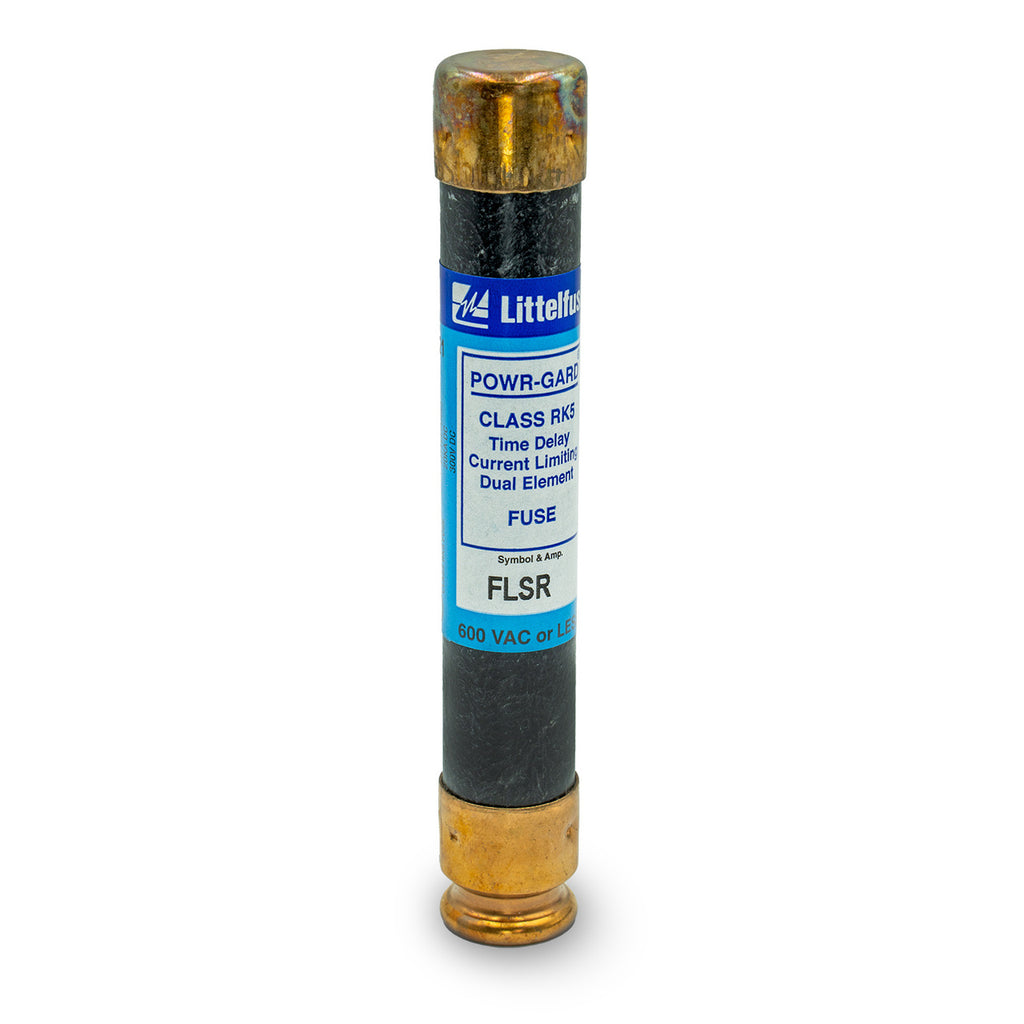

FLSR100 - Littelfuse 100A 600VAC Class RK5 Time Delay Dual Element Fuse

FLSR100

FLSR100 is a Class RK5 time delay dual element fuse designed for reliable protection in general purpose circuits. This fuse features a 100A continuous current rating and a 600VAC maximum voltage rating, making it suitable for a wide range of industrial and commercial applications. The FLSR100 fuse is constructed with a knife-blade style and is non-indicating, providing current limiting and dual element protection for enhanced safety and circuit reliability. It is designed for use in fuse blocks, clips, or holders and is ideal for service entrance switches, transformers, switchboard mains, feeders, and motor control circuits.

• Current Rating: 100A
• Maximum AC Voltage: 600VAC
• DC Voltage Rating: 300VDC
• Interrupting Rating: 200,000AIC @ 600VAC
• Interrupting Rating: 20,000AIC @ 300VDC
• Fuse Class: Class RK5
• Response Type: Time Delay (Slo-Blo)
• Element Type: Dual Element
• Mounting: Fuse Block / Clip / Holder
• Physical Size: 1 5/16" x 7 7/8"
• Standards: UL 248-12, CSA Certified
• Applications: General purpose, service entrance, transformers, switchboards, motor control

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR100
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 600
• Amperage : 100
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 007945817082
• GTIN : 79458170825
• Country of Origin : Mexico
• Dimensions : x 7-7/8 in x
• Weight : 25
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
